Dometic CoolAir RTX 2000 12V

Parking cooler, 1700 W, 12 V

  • Turbo cooling in Boost mode
  • Pleasantly quiet running
  • Energy-saving Eco mode

One of the most popular truck parking coolers – now also available as a 12 V version for panel vans, light trucks and special vehicles! This self-contained 1700 W rooftop parking cooler impresses with pleasantly quiet running, ample cooling power and outstanding energy efficiency. Easy to install and easy to use, with four operating modes: Auto, Eco, Boost or Manual.

Description

  1. Innovative speed controlled inverter compressor reduces energy consumption
  2. Up to 1700 W cooling power according to ISO 5151
  3. Low noise and less vibration thanks to inverter compressor
  4. Cools down the vehicle interior in record time
  5. Reduces the compressor speed to extend the runtime
  6. Simply adjust the fan speed in five steps in manual mode or by remote control
  7. Reliable operation even at outside temperatures up to +52°C, tested in Australia
  8. High-precision sensor technology prevents excessive battery discharging
  9. Universal installation kit available

Specifications

SKU: 9620001310

Dometic CoolAir RTX 2000 12V — General specifications
ModelRTX2000 12V
Scope of deliveryParking cooler,Remote control, User Manual, Handling Note,Safety lnstruction
SKUCertificatesECER10;CB;CE
Product DescriptionParking cooler, 1700 W, 12 V

Dometic CoolAir RTX 2000 12V — Dimensions specifications
Dimensions product depth, [mm]645
Dimensions product height, [mm]308
Dimensions product width, [mm]860
Dimensions product width, [in]33.86
Net weight, [kg]32
Net weight, [lbs]70.56
Standard mount. material thickness 1 min, [mm]5
Standard mount. material thickness 1 max, [mm]140

Dometic CoolAir RTX 2000 12V — Electrical specifications
Input voltage (DC), [V]12

Dometic CoolAir RTX 2000 12V — Performance specifications
Hermetically SealedYes
Refrigerant, typeR134a
GWP1430
CO2 equivalent, [t]1.22
Refrigerant, typeR134a
AirFlow, [m<sup>3</sup>h]350
Cooling Capacity ISO5151 Display1700
Current consumption min cooling, [A]10
Current consumption max cooling, [A]30
Operating temperature min, [°C]5
Operating temperature max, [°C]52

Dometic CoolAir RTX 2000 12V — Properties specifications
Thermostat controlDigital

Dometic CoolAir RTX 2000 12V — Logistics specifications
Dimensions parcel depth, [mm]700
Dimensions parcel height, [mm]380
Dimensions parcel width, [mm]900
Parcel weight, [kg]39
Parcel weight, [lbs]86

Dometic RTX1000, RTX2000 - Declaration of Conformity - EU
Declaration Of Conformity
Dometic RTX1000, RTX2000 Universal 3 - Figures EMEA(zxx)
Figures
Dometic RTX1000, RTX2000 Universal 4 "Uni4" (Assembly kit) - Figures AMER(zxx) for BR &MX
Figures
Dometic RTX1000, RTX2000 Assembly kit for universal installation 3 - Installation Manual EMEA16
Installation Manual
Dometic RTX1000, RTX2000, SPX1200T - Assembly kit Universal 4 "Uni4" - Installation Manual AMER3
Installation Manual
Dometic RTX1000, RTX2000 (Uni1, Uni2, Uni3) - Installation Prerequisites EMEA16
Installation Prerequisites

Product size & weight

W 860 x H 308 x D 645 mm

Weight: 32 kg

Loading products…

Highlights

Turbo cooling in Boost mode

Cools down the vehicle interior in record time

Pleasantly quiet running

Low noise and less vibration thanks to inverter compressor

Energy-saving Eco mode

Reduces the compressor speed to extend the runtime

Convenient fan speed control

Simply adjust the fan speed in five steps in manual mode or by remote control

Easy and neat installation

Universal installation kit available

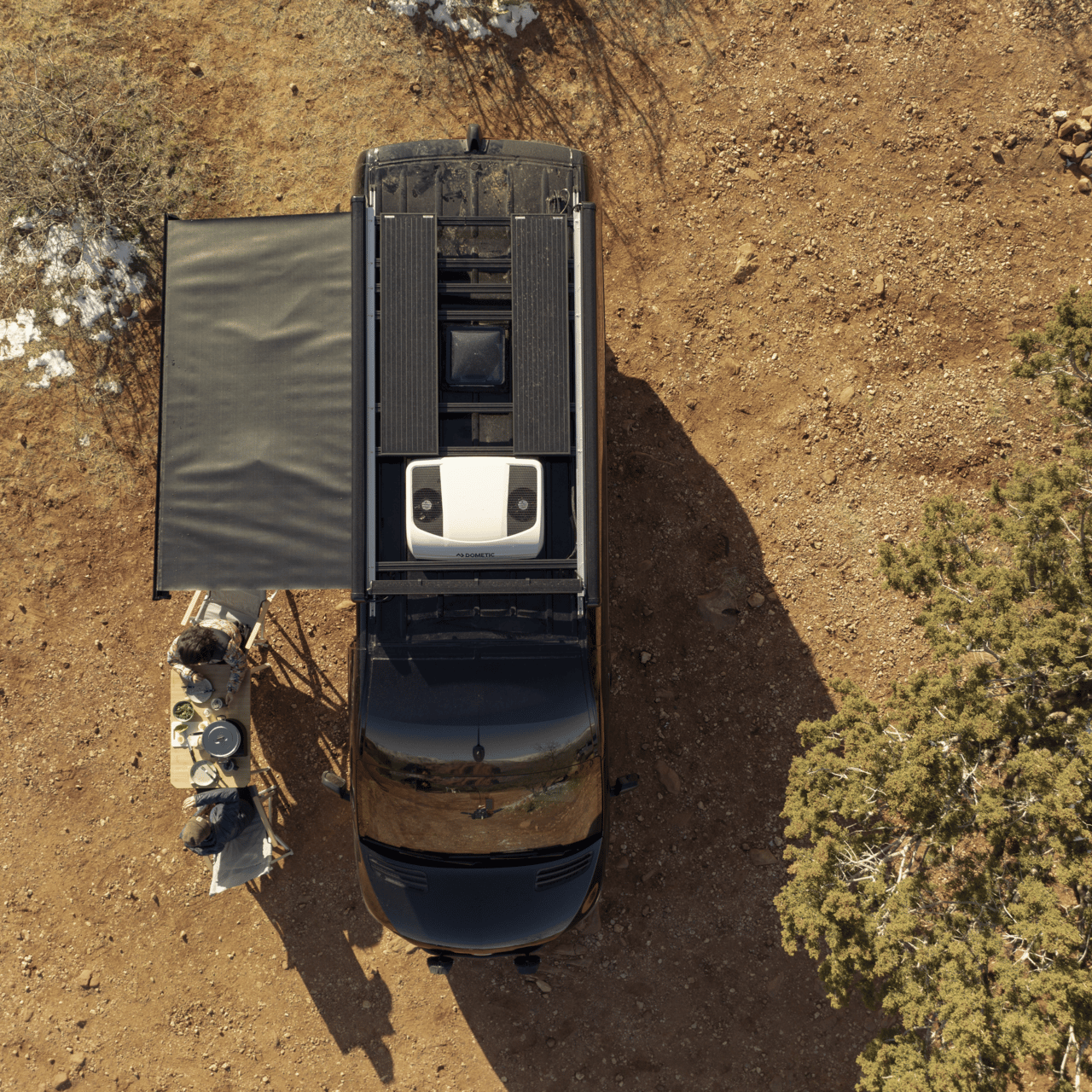

Your next adventure’s coolest companion

Your next adventure’s coolest companion

The Dometic RTX CoolAir is designed to provide the maximum amount of cooling while consuming minimal energy. This self-contained, 12-volt air conditioner is ideal for camper vans and RVs alike, as it allows one to run the AC without running the vehicle. Thanks to its variable-speed inverter compressor, it features excellent cooling performance and is amazingly efficient and quiet. Adventure with peace of mind during the day, knowing that as the sun sets, you’ll return to a cool space, inviting you to unwind and relax.

Questions, answered.

A few things worth knowing before you decide.

Still need a hand?

Contact product support

3 questions

If you are travelling to cooler climates then this will not challenge the air conditioners to the extremes, a unit with a smaller power rating will do for these types of trips. You should not save on power, though, if you regularly travel to warmer climates and even less so if you have children or pets on board as staying in a recreational vehicle can quickly become uncomfortable on a hot summer day. When the nights are not cooler either, rest and recuperation is only possible with an adequate air conditioner.

Air conditioners work on basically the same principle as the cooling units of kitchen refrigerators. Their cooling efficiency is way higher though. In either system a refrigerant extracts heat from the space to be cooled and dissipates it to the outside. An RV air conditioner should additionally reduce the humidity. AC systems most commonly used for recreational vehicles:

  • Evaporation systems: Water is vapourised in a roof-mounted unit and collected in a filter. A fan draws ambient air in through the filter, which results in a heat exchange. Benefits: low current consumption, lightweight. Drawback: The energy efficiency depends on the ambient humidity; so the performance of the system varies. It drops when the humidity is > 85% – and that's exactly the level where air conditioning is needed. Moreover, evaporation systems will, by nature increase the humidity in the vehicle, regardless of the ambient conditions.

The temperature conditions in recreational vehicles and the reasons behind them RV and caravans are no houses and they don't have thick walls, even if they are reasonably insulated they will heat up in the sun. The temperature inside can quickly rise to 30°C or more and not only in the hot and sunny south, but also in moderate climate zones. Besides insulation, the temperature conditions inside the vehicle depend on other factors, too: the size and number of windows, for instance. A caravan with small windows will heat up less quickly than a RV with generously sized glass surfaces and it does of course matter where you park your vehicle – in the blazing sun or in the shade of a tree. Do you take every opportunity to air the vehicle out? Or are all the windows closed and the heat can spread throughout the interior?
