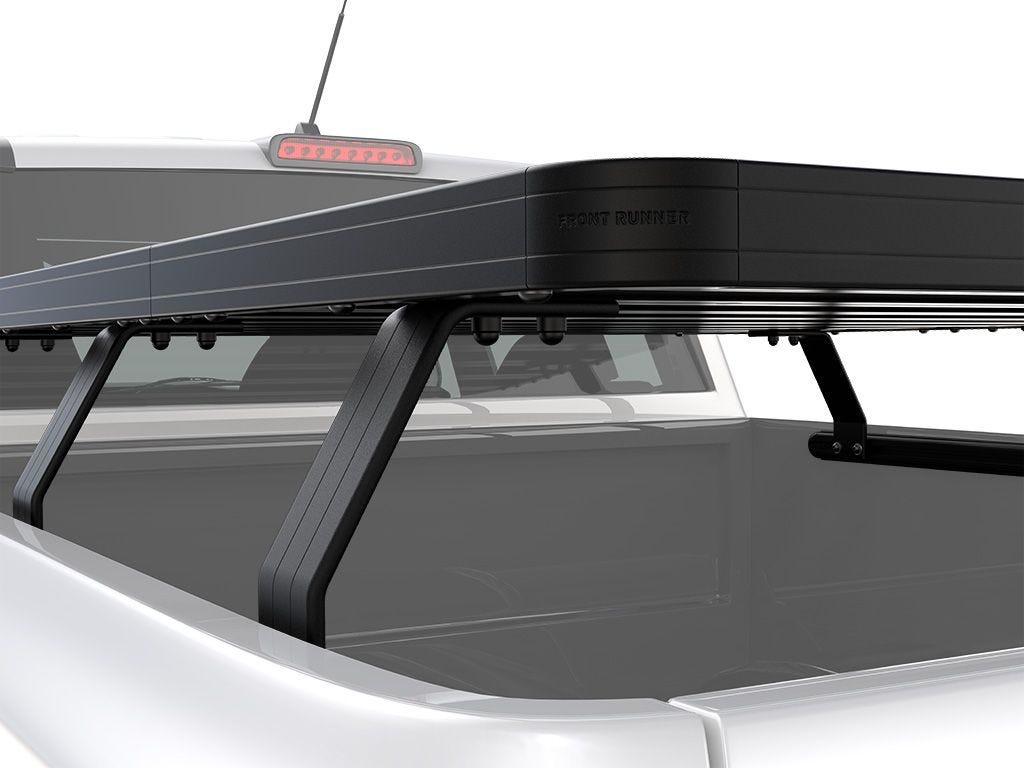

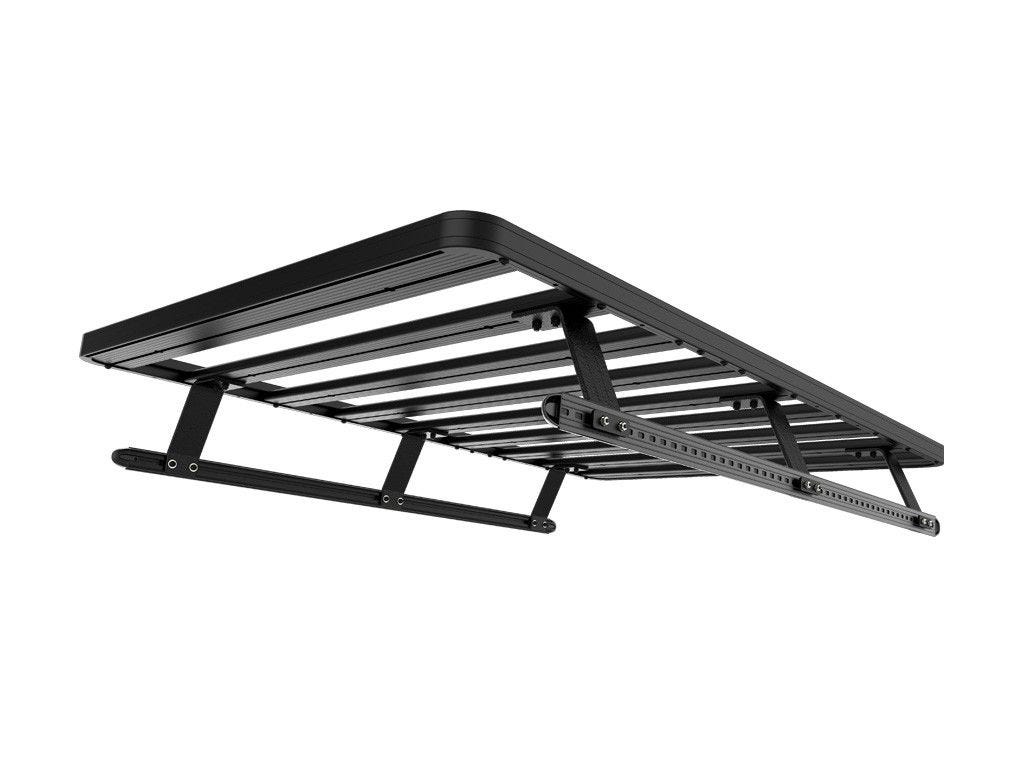

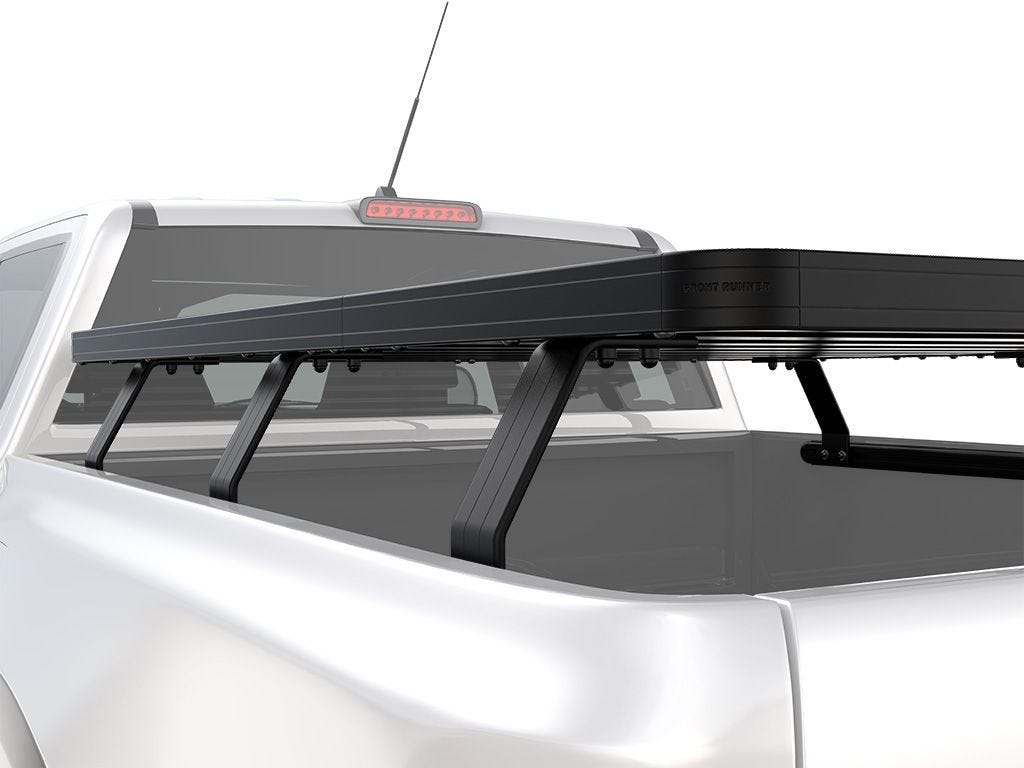

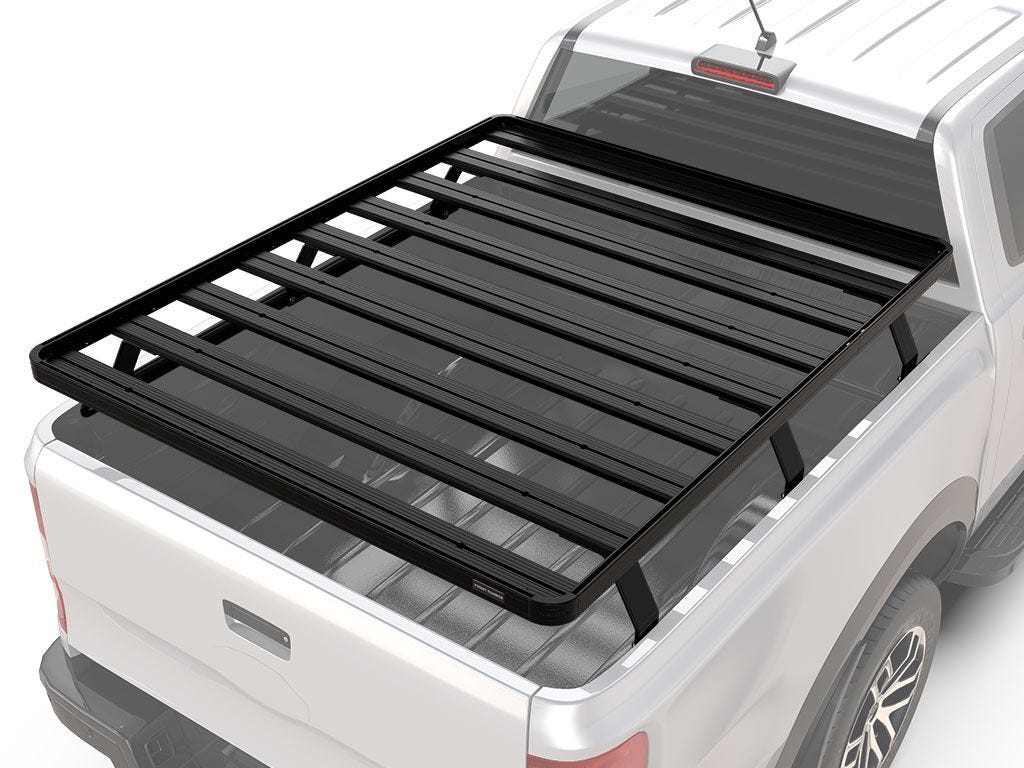

Pickup Truck Slimline II Load Bed Rack Kit / 1255(W) x 1762(L)
Loading...
SKU: KRLB014T
Technical Information
Technical Information
KRLB014T - Pick-Up Truck Slimline II Load Bed Rack Kit / 1255(W) x 1762(L) - by Front Runner
Consisting of:
3 x LASS026 - Universal Load Bed Leg 188mm (Pair) - by Front Runner
1 x RRSTD09 - Slimline II Tray - 1255mm(W) X 1762mm(L) - by Front Runner
1 x TRBU003 - Pick-Up Load Bed Tracks / 1400mm(L) - by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
High strength steel
Approximate Installed Weight 30kg (66lbs)

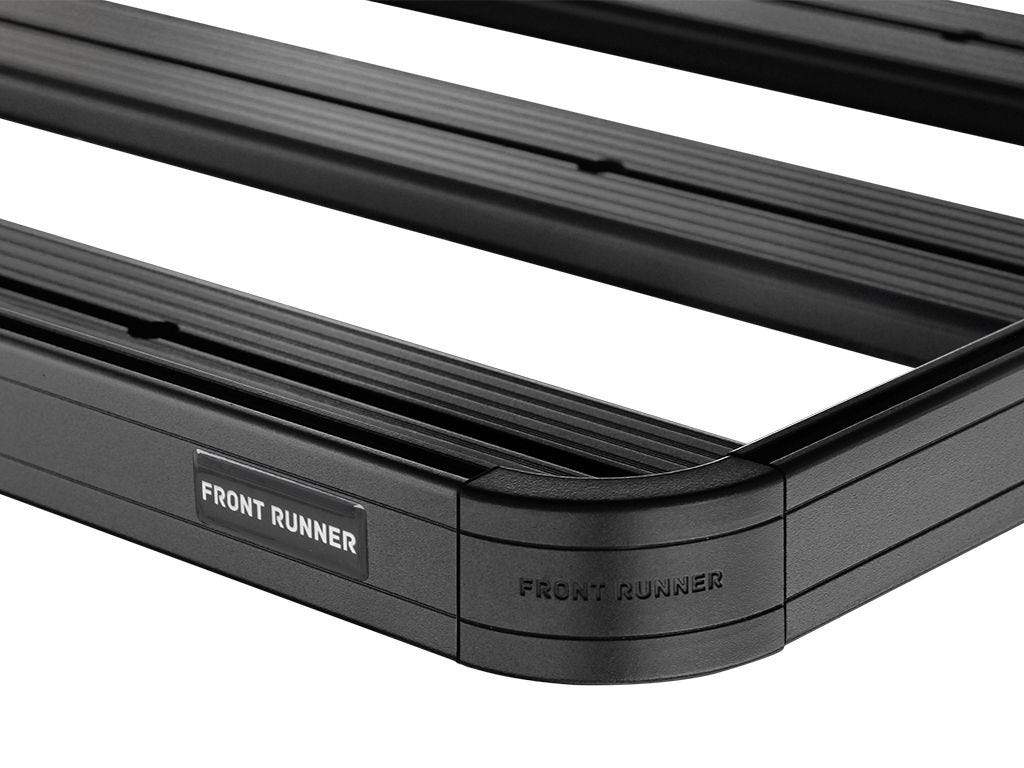

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width 450mm (18")
Length 1615mm (64")
Height 140mm (6")
Shipping Weight:
Weight 34.9kg (76.7lbs)
