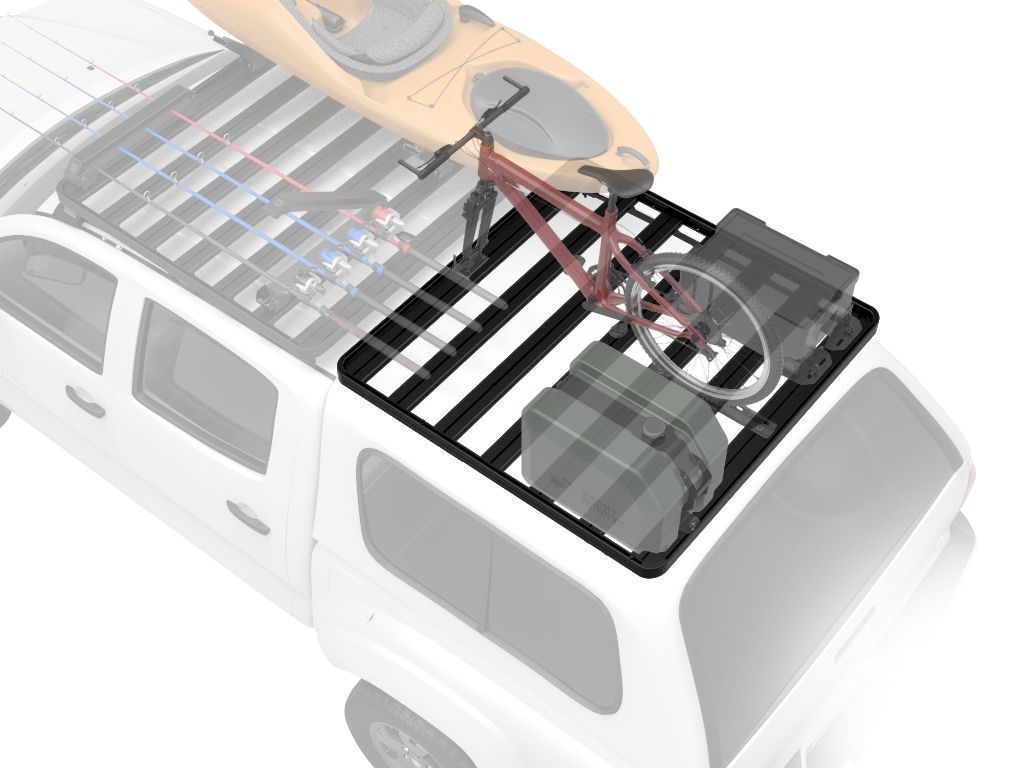

Truck Canopy or Trailer Slimline II Rack Kit / 1345mm(W) X 1358mm(L)
SKU: KRCA044T
Technical Information
Technical Information
KRCA044T - Truck Canopy or Trailer Slimline II Rack Kit / 1345mm(W) X 1358mm(L) - by Front Runner
Consisting of:
3 x FASS024 - Foot Set / 50mm-60mm - by Front Runner
1 x RRSTG07 - Slimline II Tray - 1345mm(W) X 1358mm(L) - by Front Runner
3 x TRCA008 - Universal 140mm Tracks - by Front Runner
Material used:
Black epoxy powder-coated T6 aluminium
High strength steel
Approximate Installed Weight 23kg (51lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2") to the height of the Legs to determine the height of the rack from your vehicle’s rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width 1345mm (53")
Length 1358mm (53")
Height 50mm (2")
Shipping Weight:
Weight 26.8kg (59.0lbs)
