Description
- The 25L capacity holds up to 40 x 12 oz cans – a compact size for up to three people’s weekend adventures and long solo trips.
- Temperature range of -7F (-22C) to 68F (20C); Using less power than a 60W light bulb.
- Track energy consumption and monitor temperature with the cooler’s Bluetooth smartphone app; be alerted when lid is left over, monitor history, and connect multiple devices at once.
- Optimized ratio of exterior to interior proportions provides maximum compressor efficiency, while the extended evaporator on inner walls ensures an even distribution of cold air.

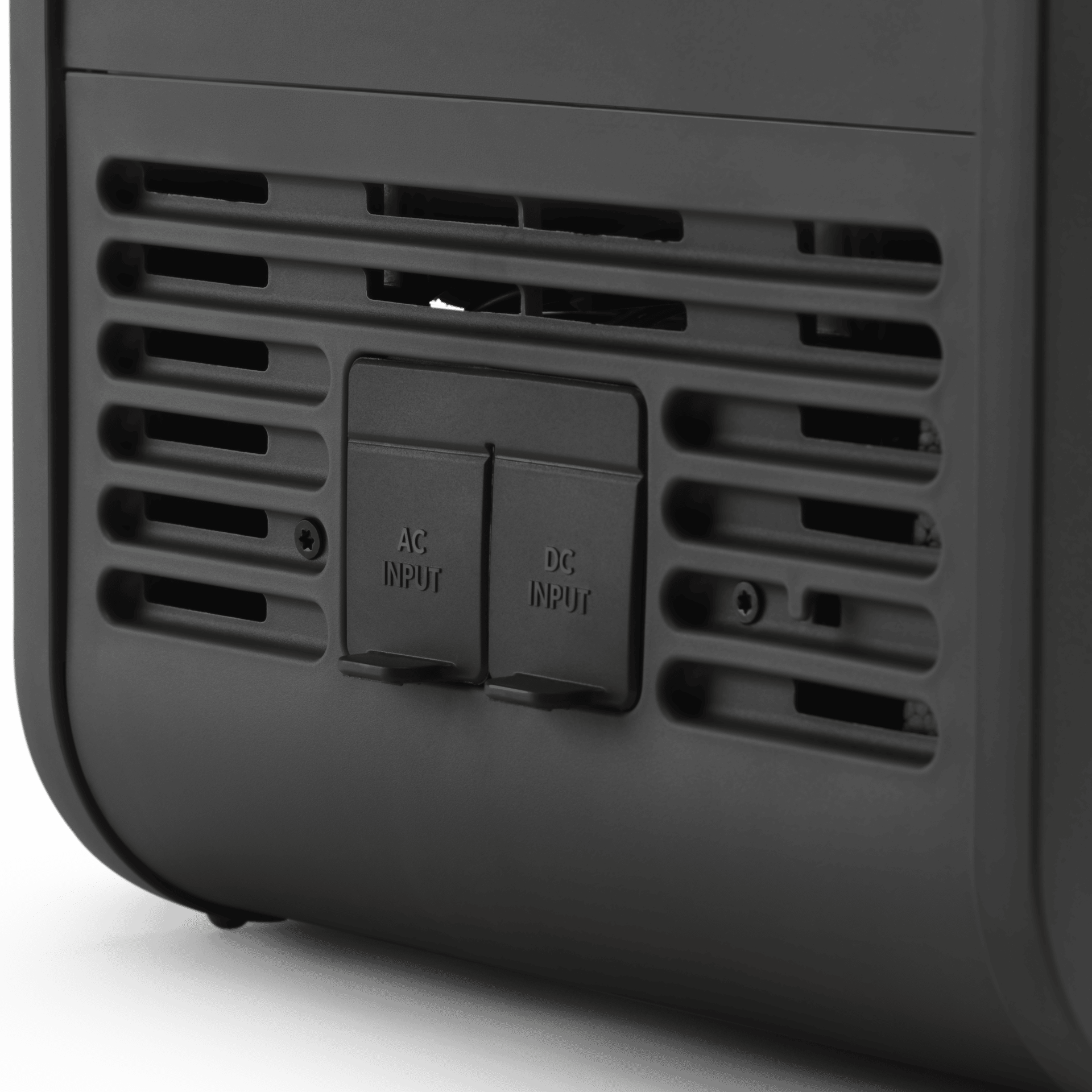

- Powered by AC (110-240V), DC (12/24V) – or go off-grid with Dometic batteries and Obsidian solar panels.
- 3-stage dynamic battery protection system actively monitors inbound power and prevents draining a vehicle battery or allows deep draw on dual batteries.

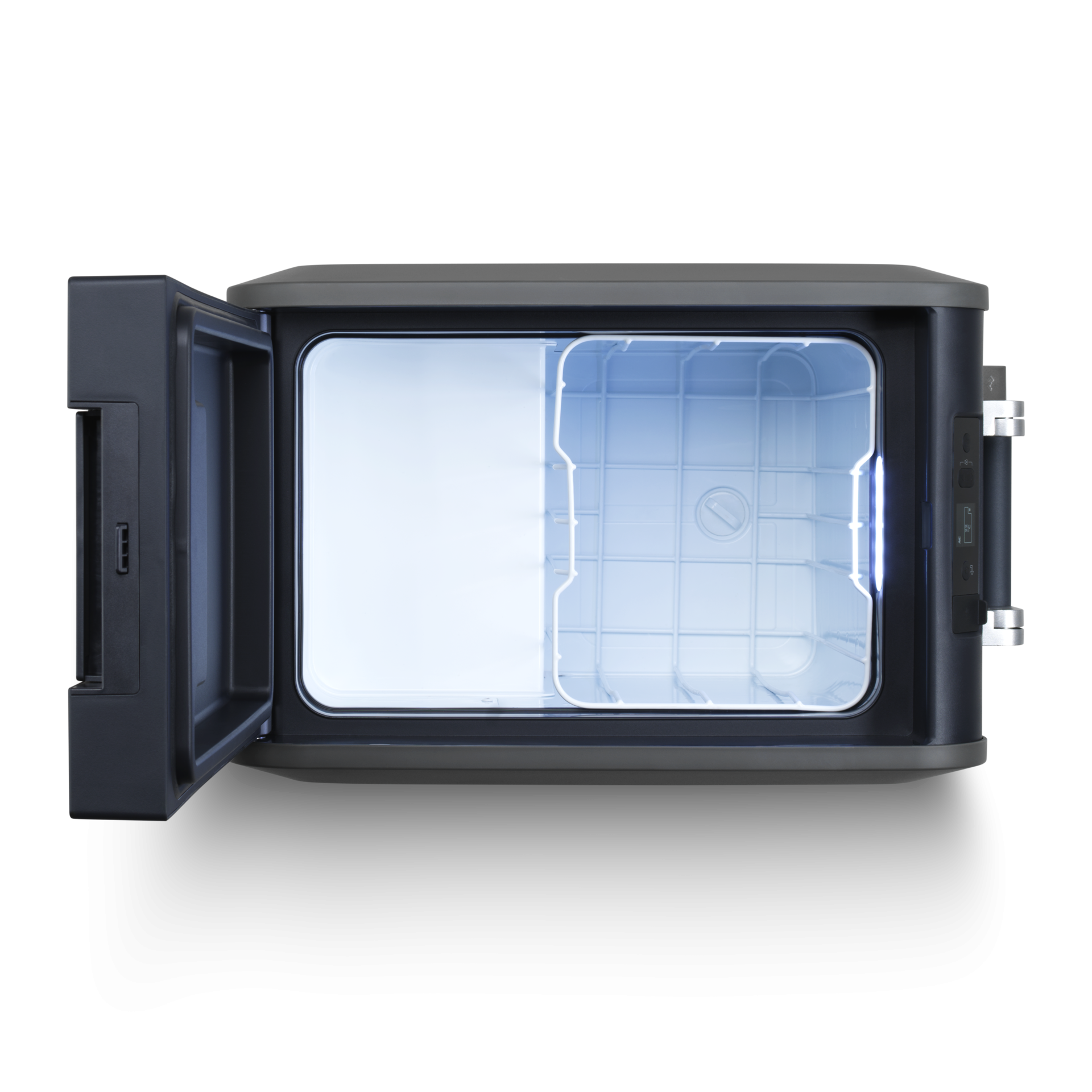

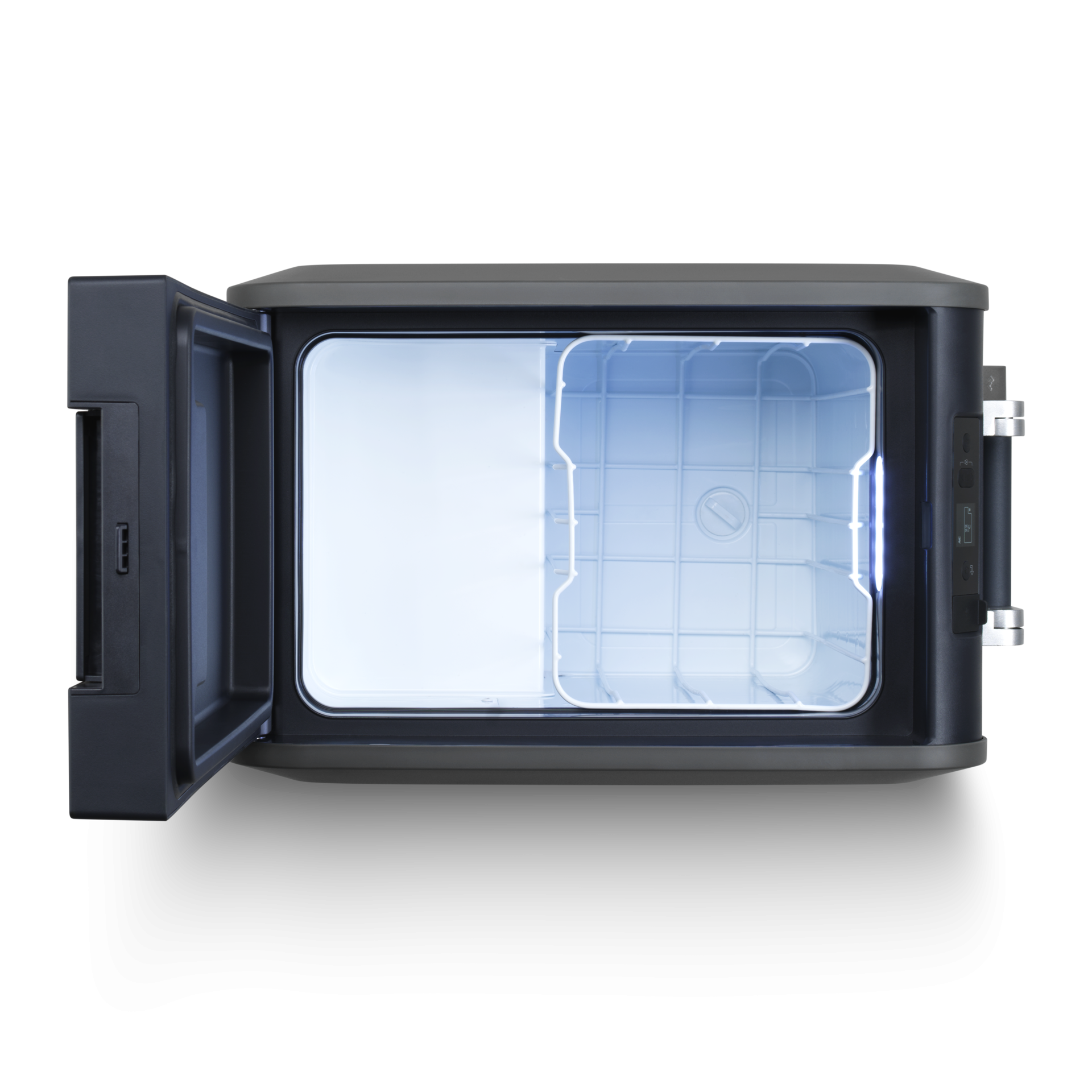

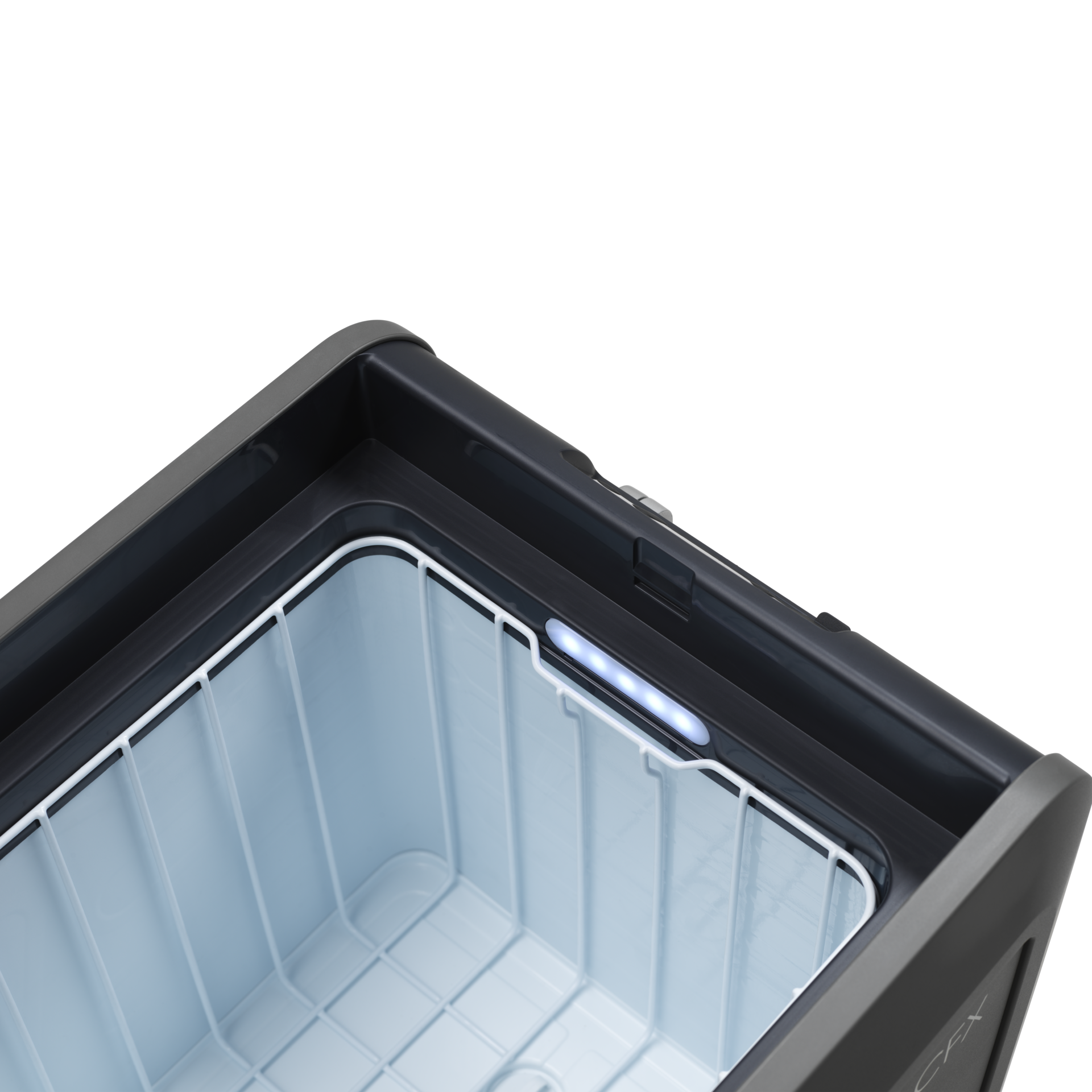

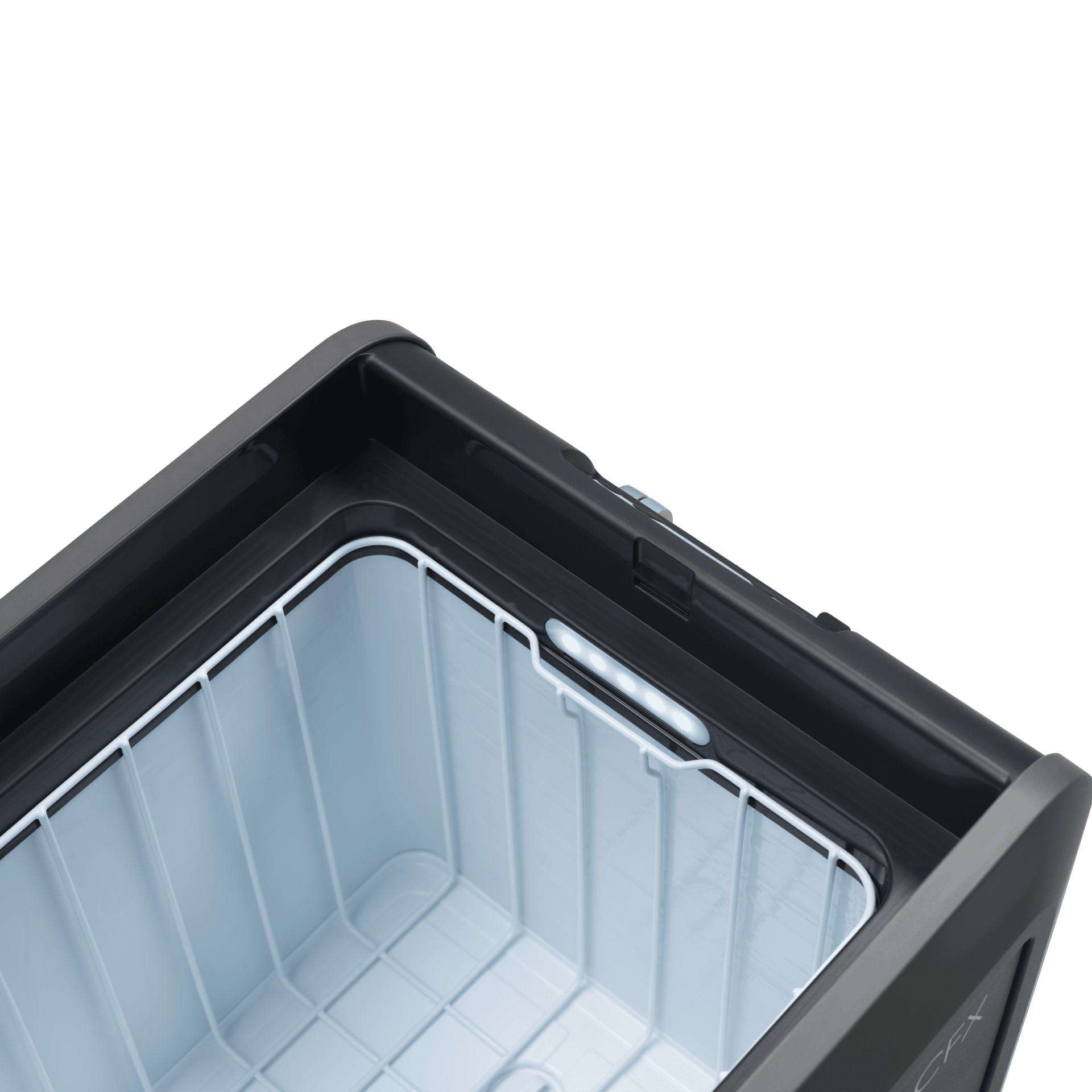

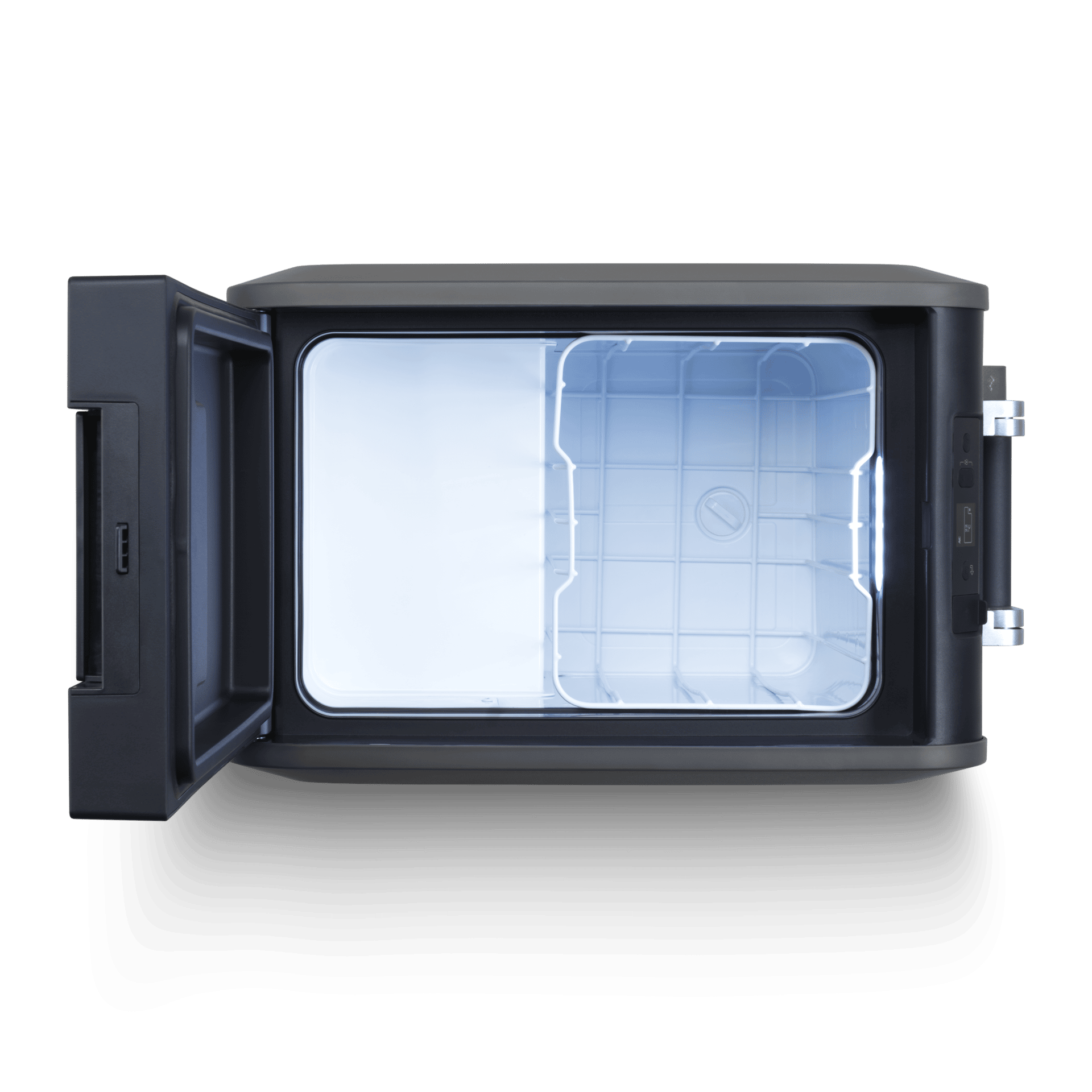

- Internal details include a removable wire divider and an interior light.

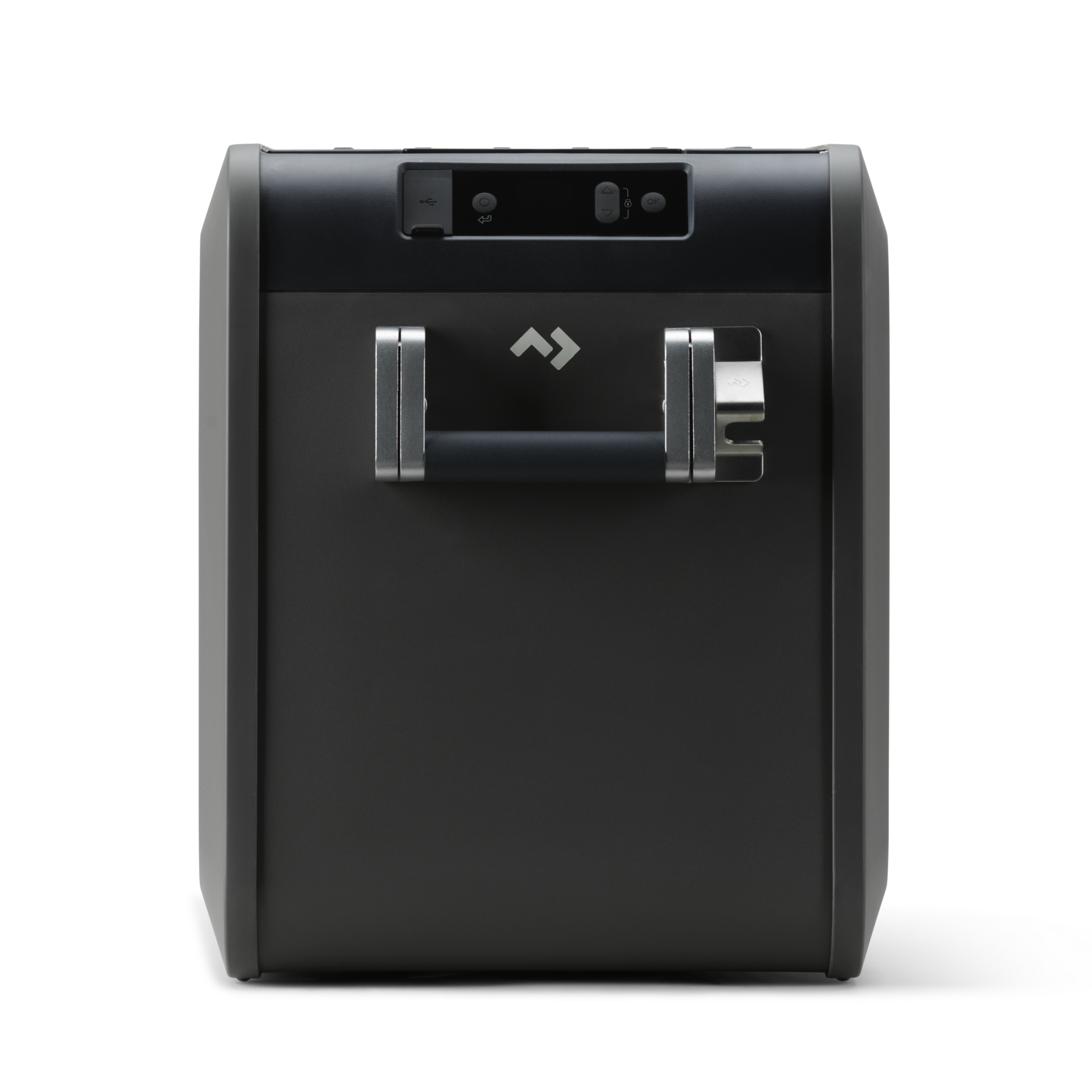

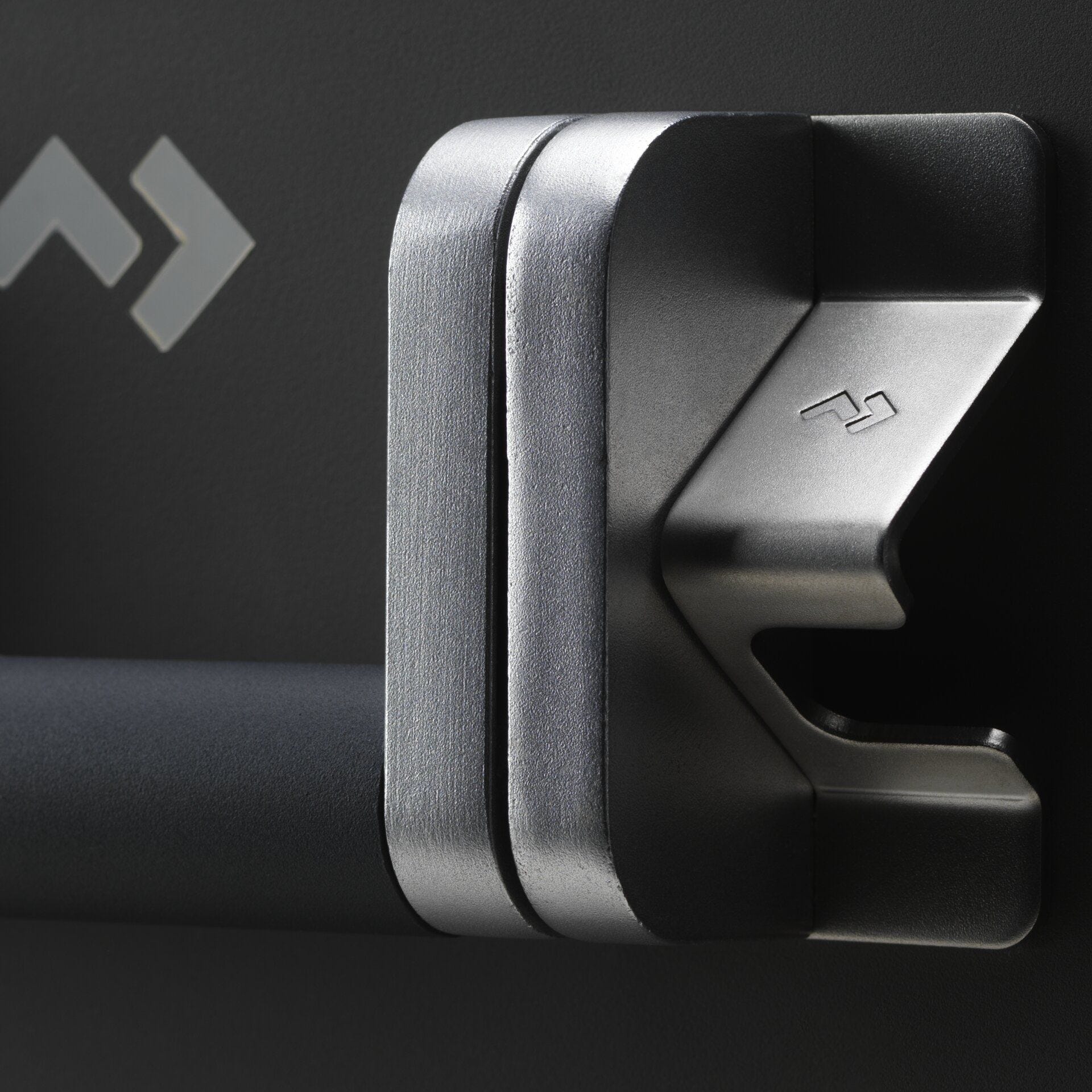

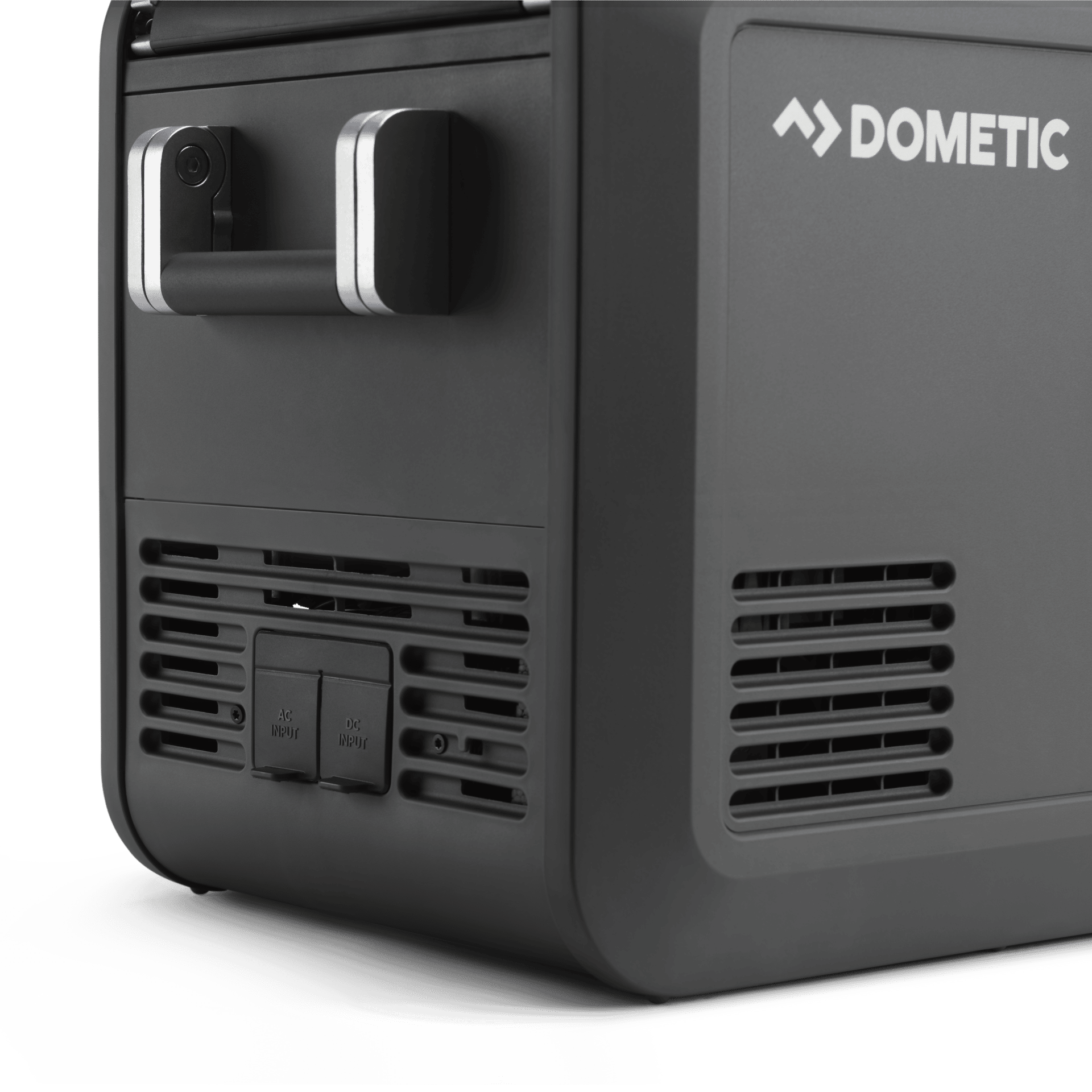

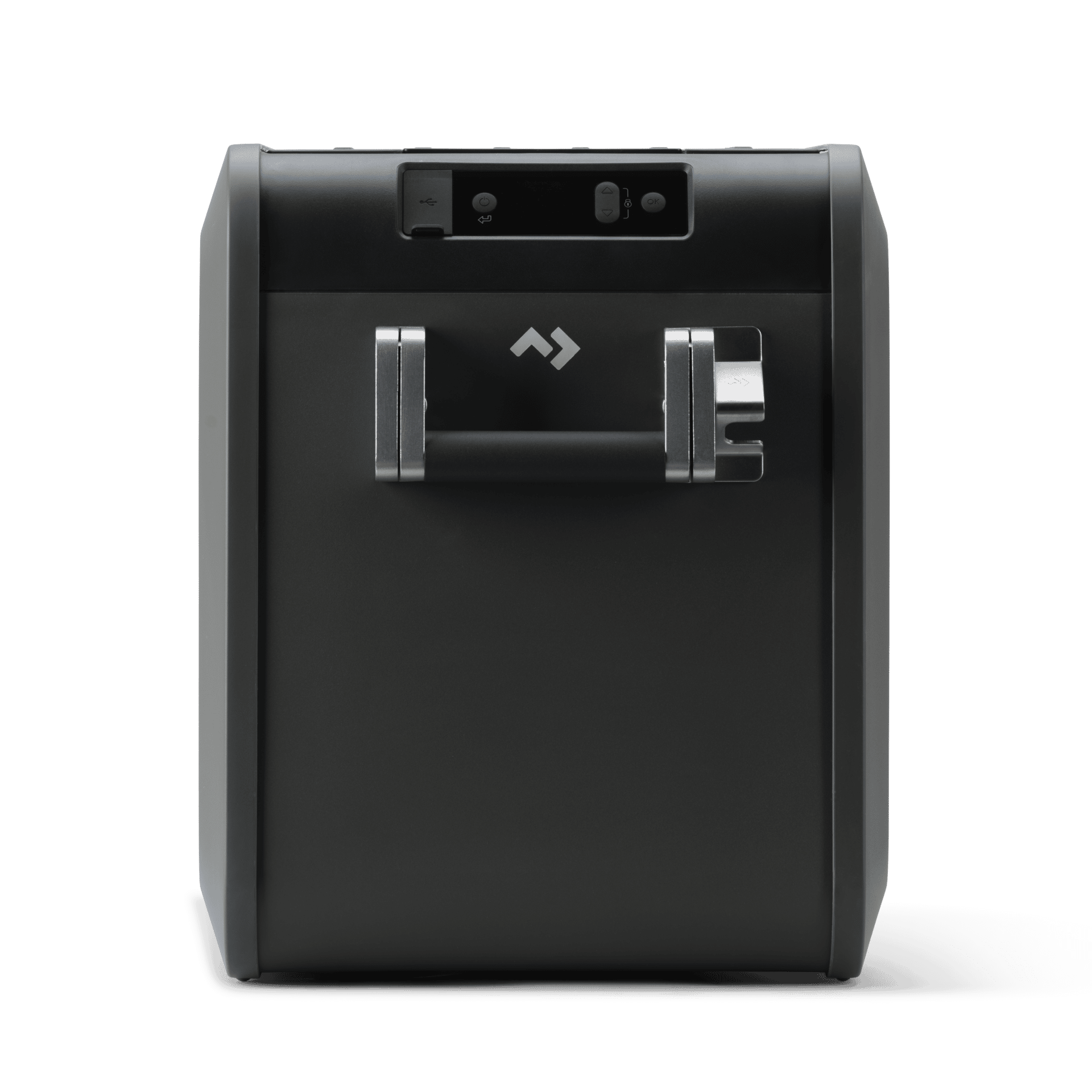

- External details include self-folding aluminum alloy handles, a removable, textured nonslip lid, TPE gaskets to ensure a tight lid seal, and an integrated bottle opener.
Specifications
SKU: 97000050753
| Model | CFX525 |
|---|---|
| Scope of delivery | 1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets, bottle opener |
| Product Description | Advanced Materials and Design in an Ice-Free 25L Electric Cooler |
| Dimensions product depth, [mm] | 568.96 |
|---|---|
| Dimensions product height, [mm] | 420.12 |
| Dimensions product width, [mm] | 341.88 |
| Dimensions product width, [in] | 13.46 |
| Net weight, [kg] | 13.47 |
| Net weight, [lbs] | 29.70 |
| Total volume (IEC 62552-3), [l] | 25 |
| Amount of cans (12oz/375ml) | 121 |
| Input voltage (AC), [V] | 100-240 |
|---|---|
| Input voltage (DC), [V] | 12/24 |
| Rated input current (AC), [A] | 0.85A at 100V, 0.36A at 240V |
| Rated input current (DC), [A] | 3.2A at 24V, 7.2A at 12V |
| Rated input power (AC), [W] | 45 |
| Input frequency, [Hz] | 50/60 |
| Battery type | Not Applicable (NA) |
| Priority circuit (Integrated) | Yes |
| Hermetically Sealed | Yes |
|---|---|
| Refrigerant, type | R1234yf |
| GWP | 0.5 |
| Energy Consumption 12VDC (Ambient@32C, Internal@4C), [Ah/h] | 1.03 |
| Climate class (EN 62552) | N/T |
| Operating temperature min, [°C] | 16 |
| Operating temperature max, [°C] | 43 |
| Insulation Type | PU (Polyurethane) |
| USB Port | Yes |
|---|---|
| Connectivity Type | Bluetooth |
| Basket | Yes |
| Threaded inserts in base for mounting | M6 |

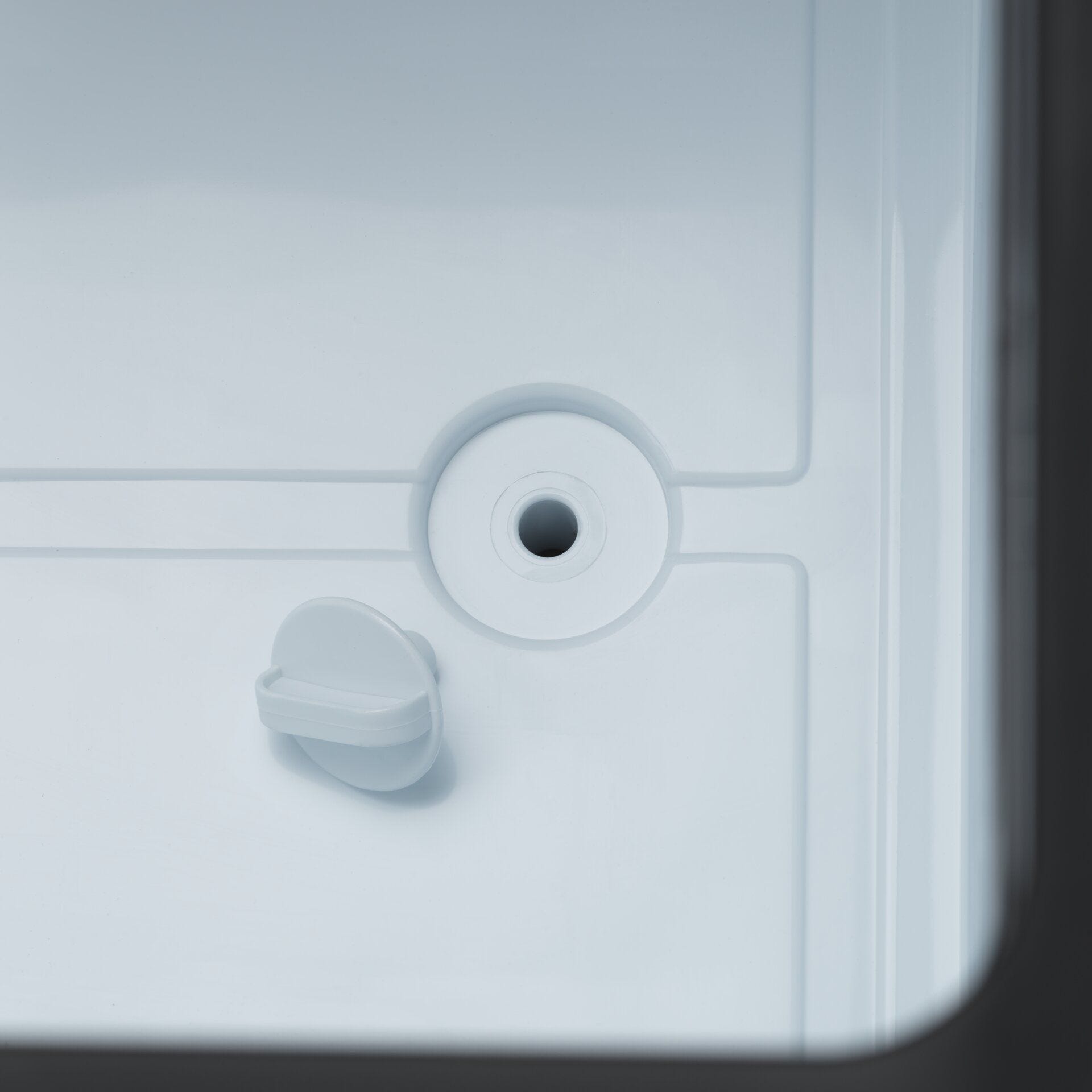

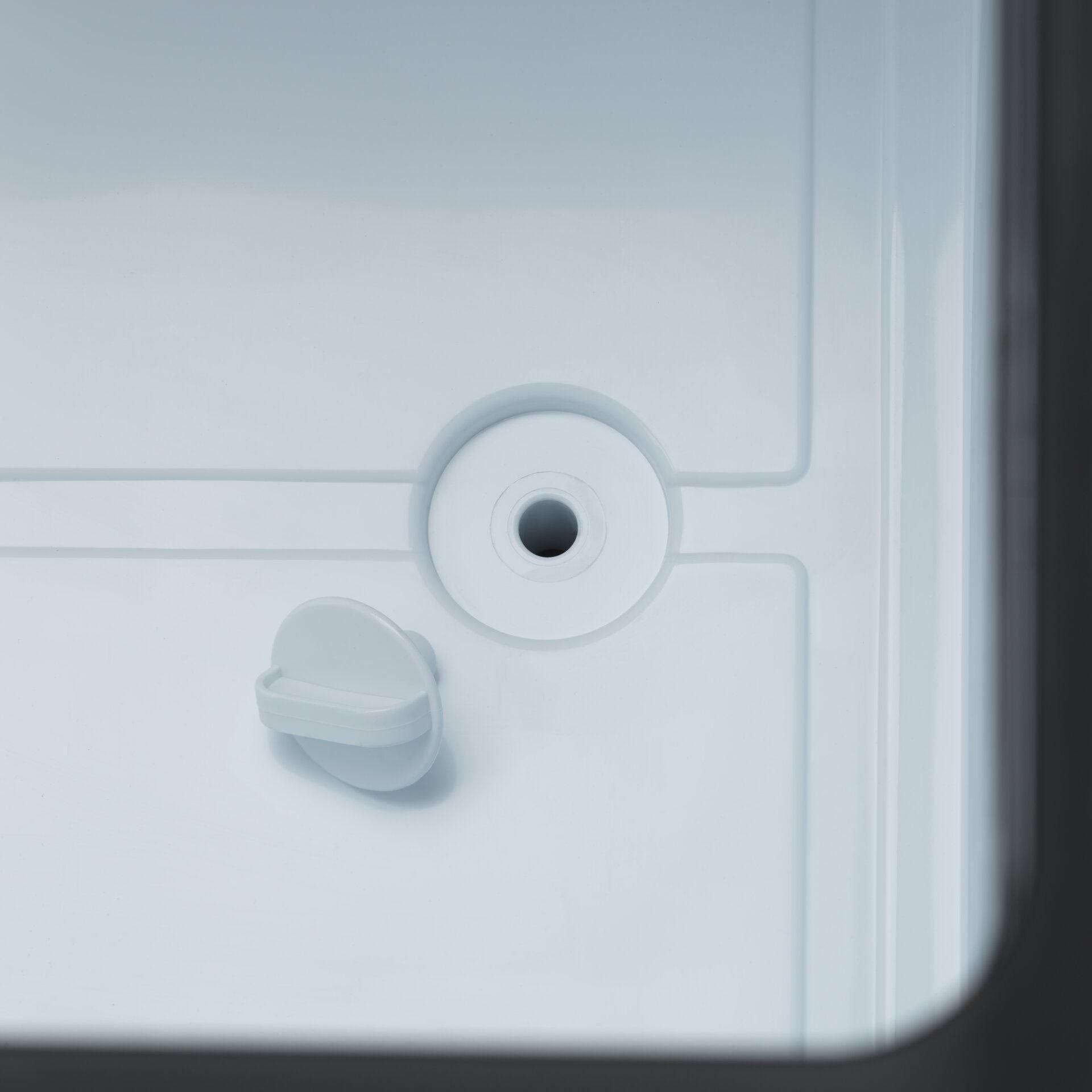

| Drain plug | Yes |
| Single or Dual Zone | Single |
| Thermostat control | Electronic Thermostat |
| Interior light | Yes, LED |
| Dimensions parcel depth, [mm] | 605.03 |
|---|---|
| Dimensions parcel height, [mm] | 474.98 |
| Dimensions parcel width, [mm] | 385.06 |
| Parcel weight, [kg] | 15.47 |
| Parcel weight, [lbs] | 34.10 |
Videos
Highlights
VIP – VACUUM INSULATED PANELS
Exceptionally efficient insulation. Vacuum Insulated Panels have superb energy efficiency, VIPs minimize thermal transfer through superior sealing and air removal techniques.
POWERFUL VMSO 3.5 COMPRESSOR
Variable Motor Speed Optimization Technology 3.5 automatically adjusts speed for optimal performance.

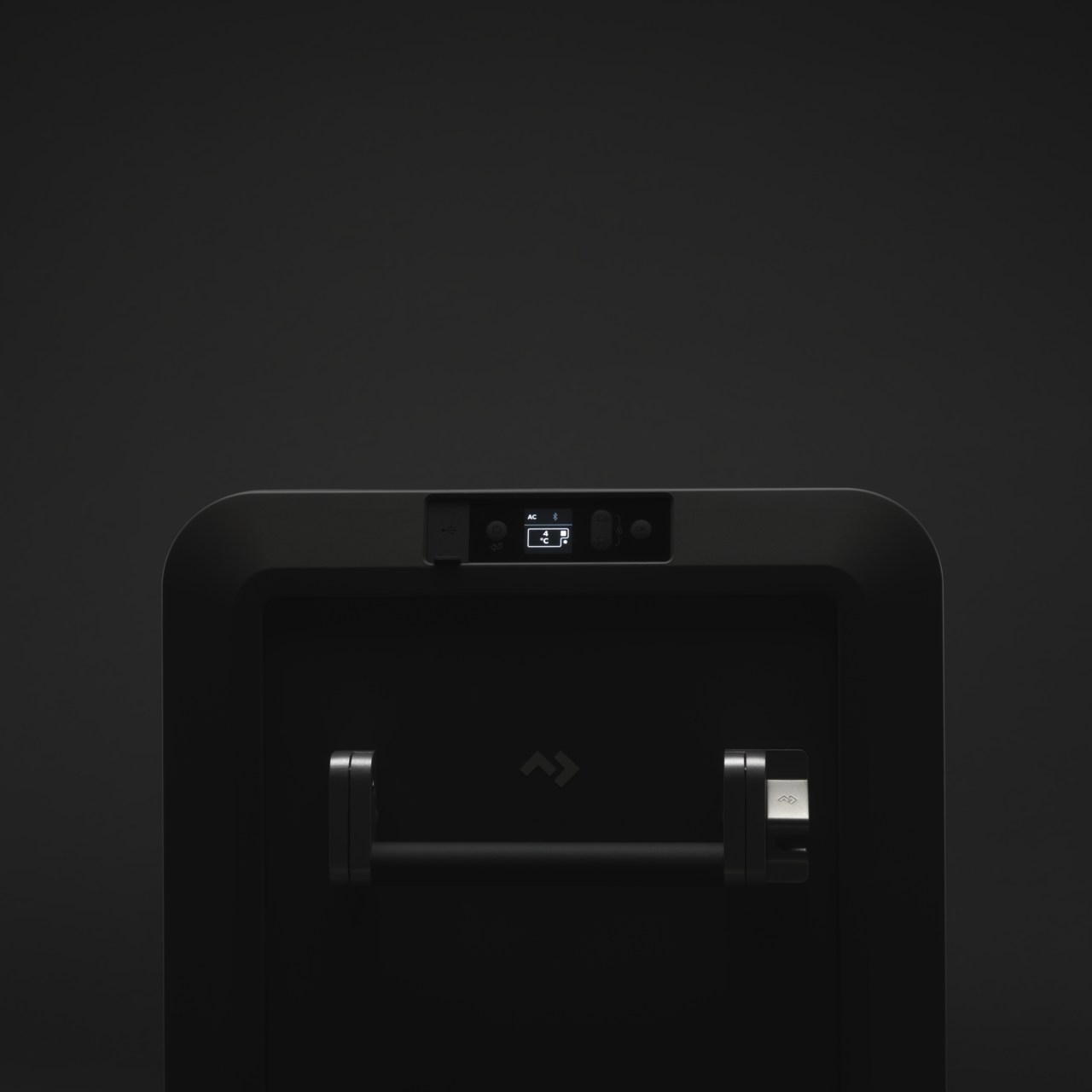

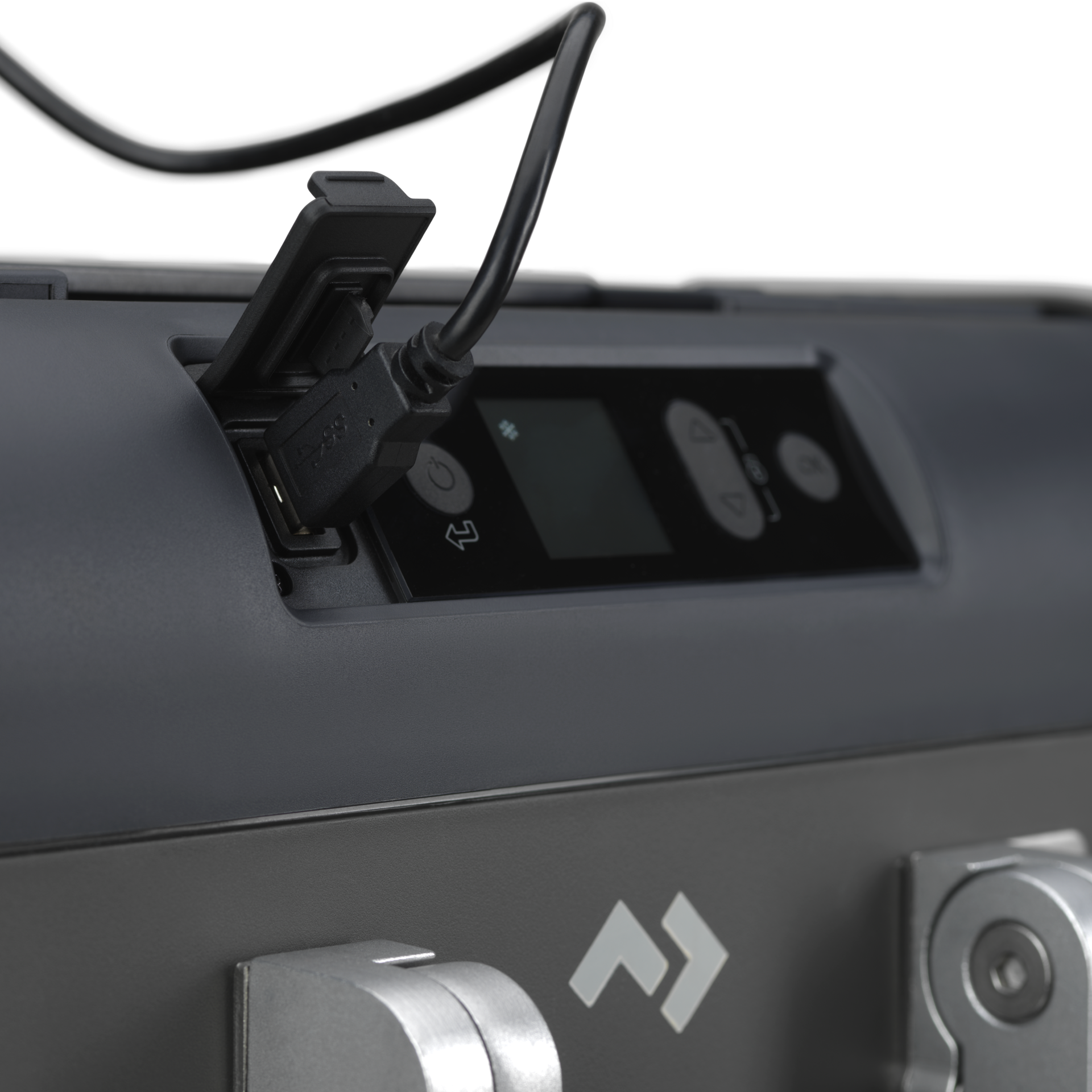

WEATHERPROOF HIGH RESOLUTION DISPLAY

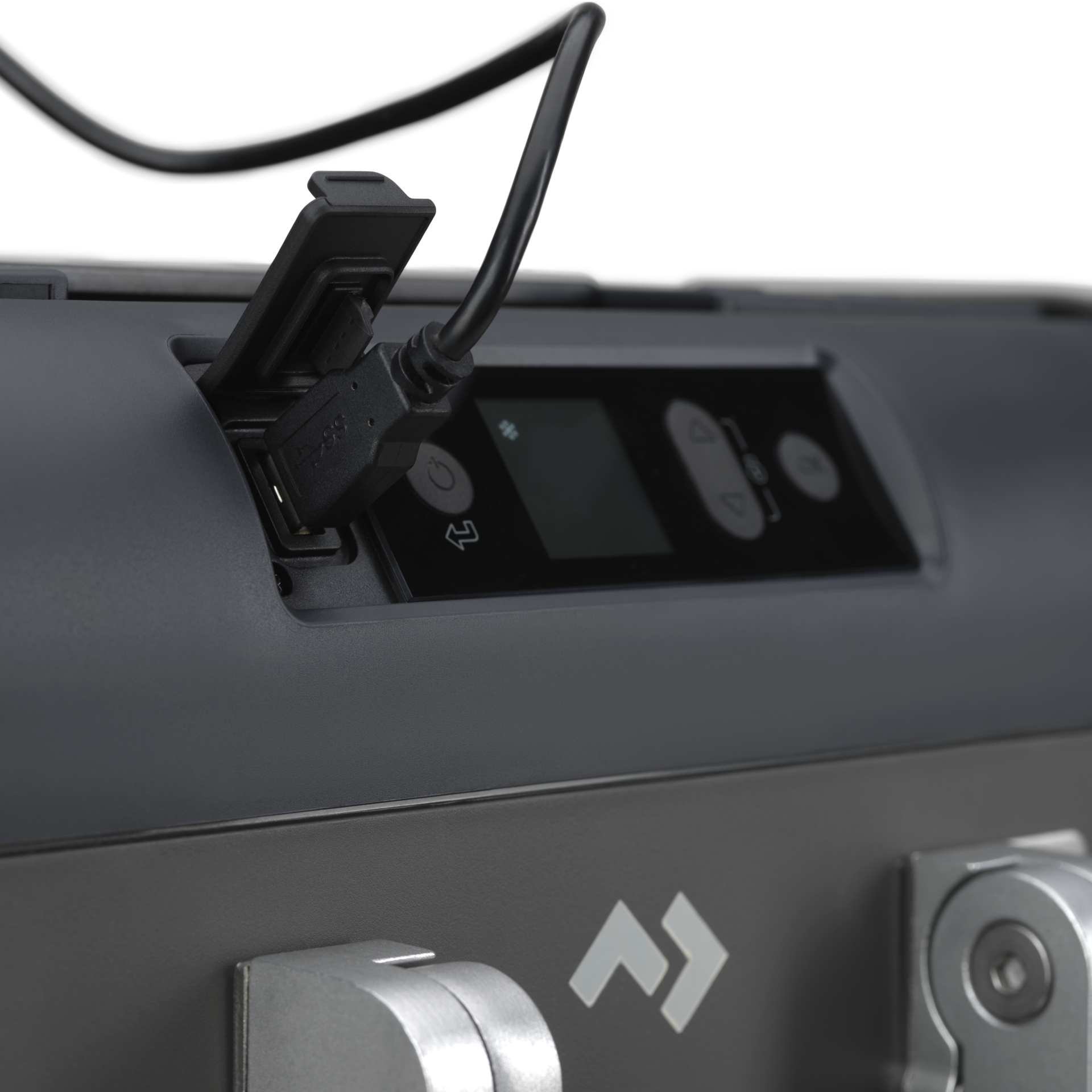

Easy-to-read, weatherproof, high-resolution TFT color operating display, with 18W QC 3.0 USB port, and soft-touch buttons.
RELIABLE & STABLE INTERIOR
Internal components are mounted on dampers to isolate noise and endure sustained vibration off road.
DURABLE EXOFRAME DESIGN
Reinforced corners and edges, and folding handles that help you take it anywhere.
2 questions
VIPs – Vacuum Insulated Panels – the latest electric cooler insulation technology,
that keeps your cooler cold, light, and efficient.
Just like the insulation in your water bottle – by eliminating gas molecules, VIPs drastically reduce heat transfer. The result? Your CFX5 stays cold with less energy, while remaining compact and lightweight. More efficiency, more cooling, less bulk.
Benefits of VIP:
Effective Thermal Insulation: VIP creates a near-perfect vacuum, drastically reducing heat transfer and preventing convective heat loss.
Reliable Cooling: VIP ensures stable temperatures, even in harsh conditions, keeping your items consistently chilled.
Energy Efficient: The advanced insulation reduces power consumption, making it ideal for extended off-grid use without sacrificing cooling performance.
Lightweight Design: VIP allows for thinner insulation, keeping the cooler both lightweight and easy to carry.
Yes, cleaning your CFX electric cooler is simple. Just wipe down the interior and exterior surfaces with a mild cleaning solution and a towel. Regular cleaning helps maintain the hygiene and longevity of your cooler.
