Description

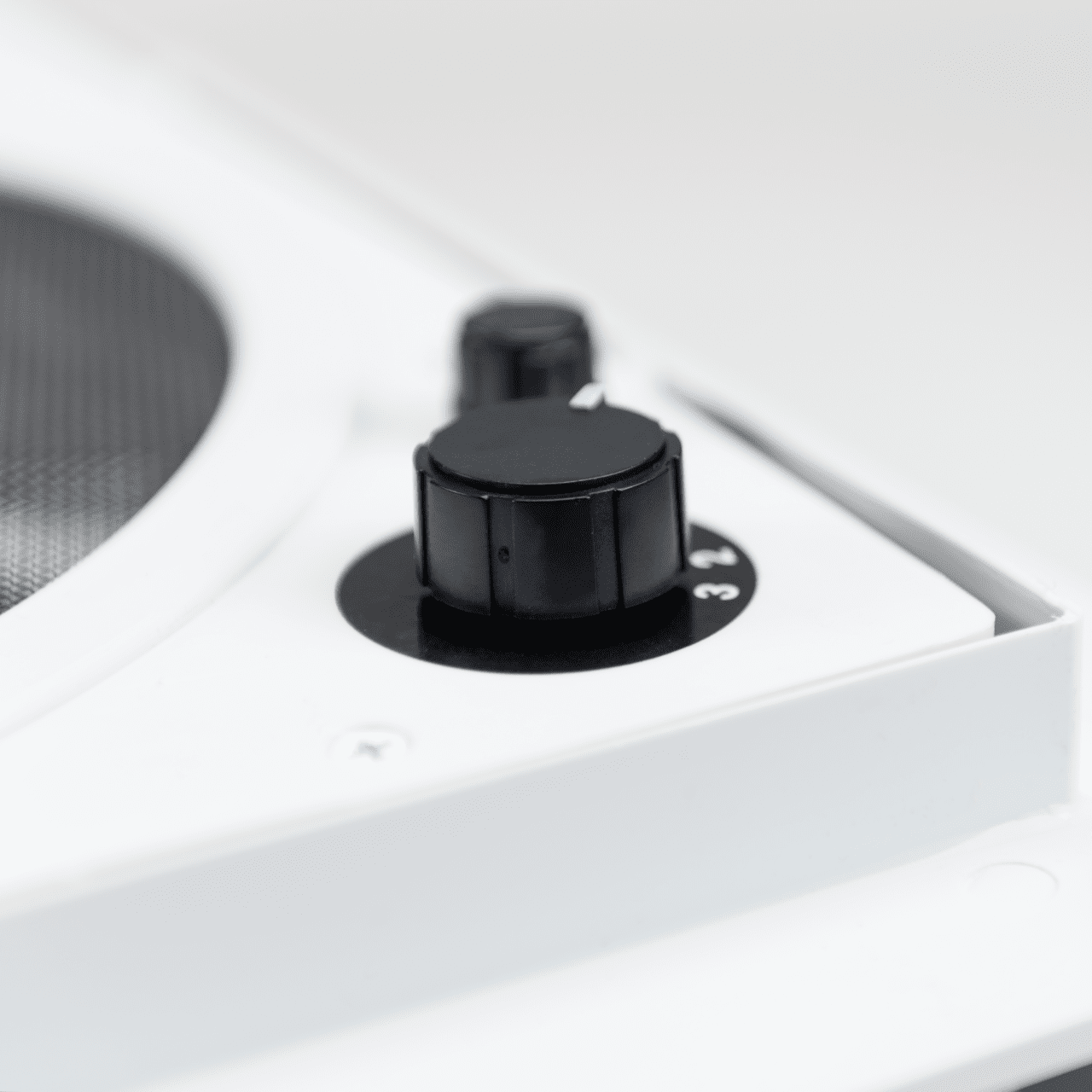

- Three fan blade speeds (low, medium, high)

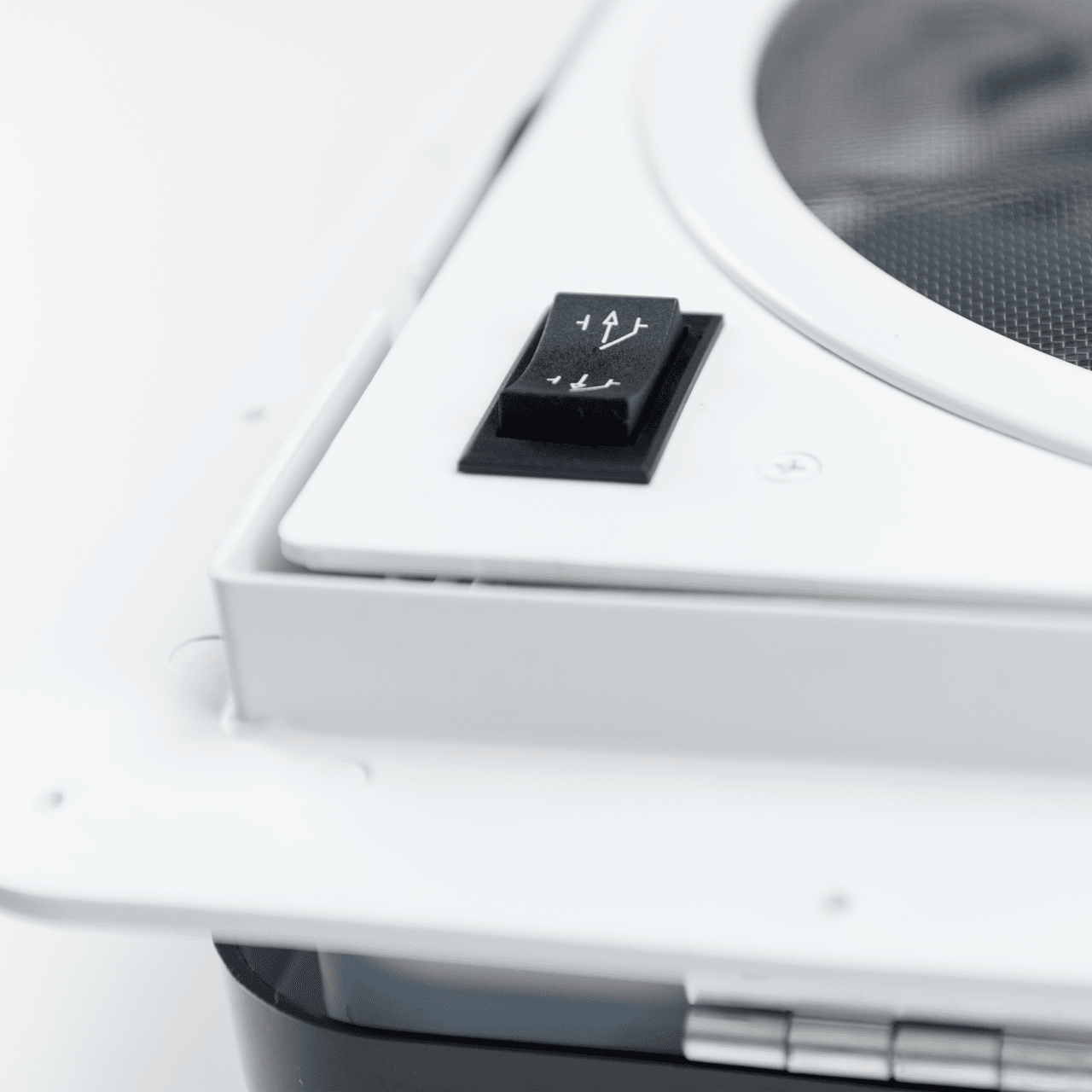

- Reverse switch controls the fan blade direction (OUT-exhaust or IN-intake)

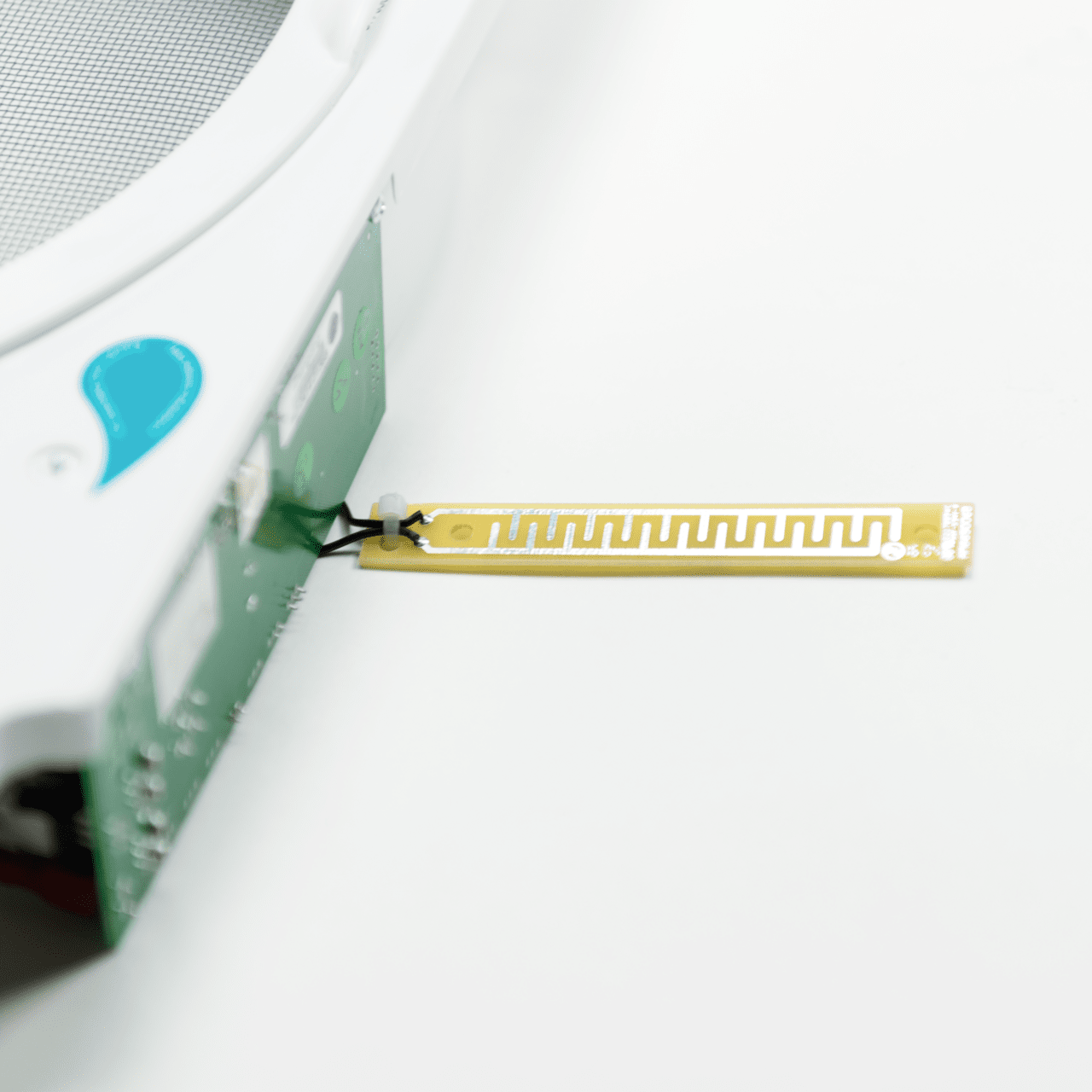

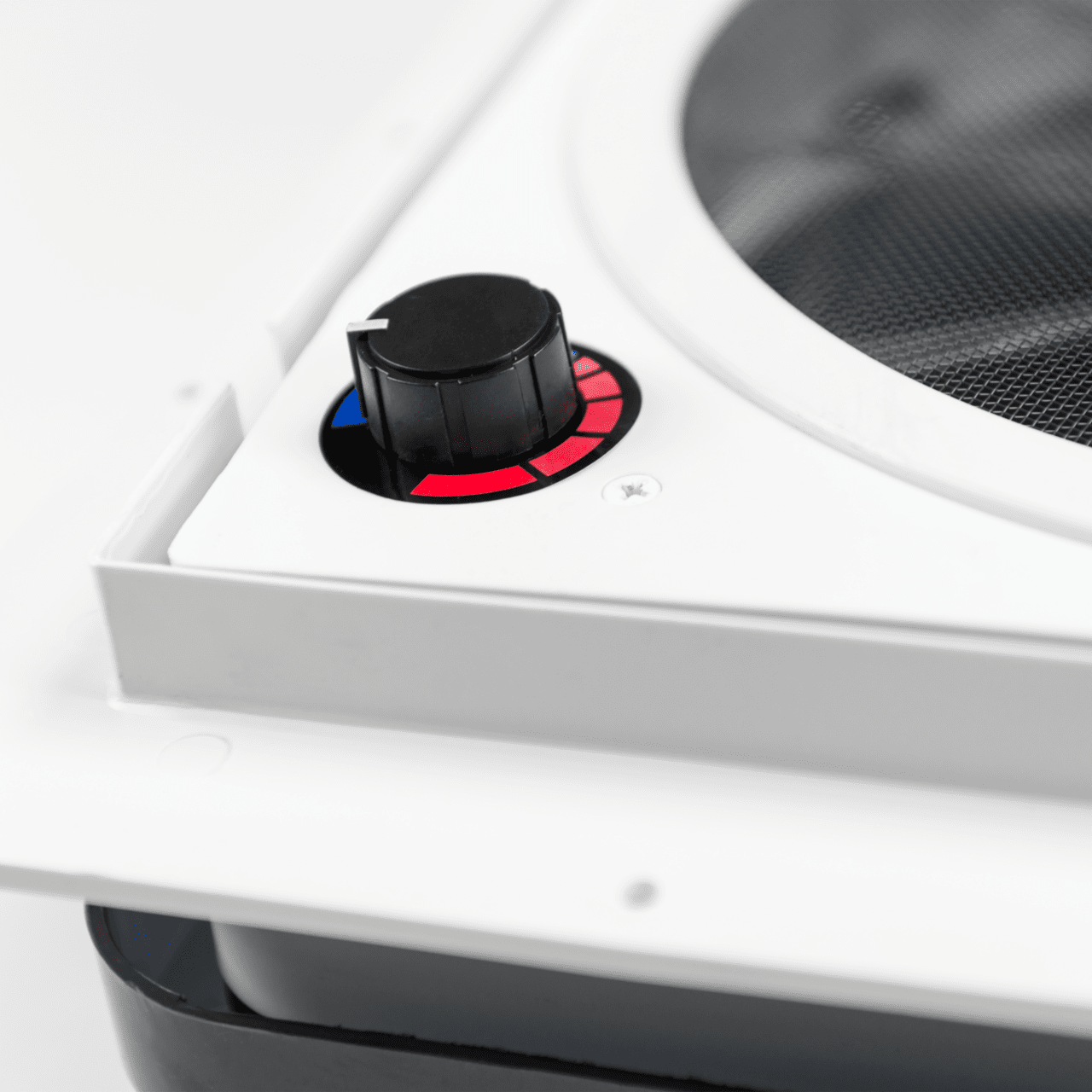

- A built-in thermostat maintains your desired comfort level

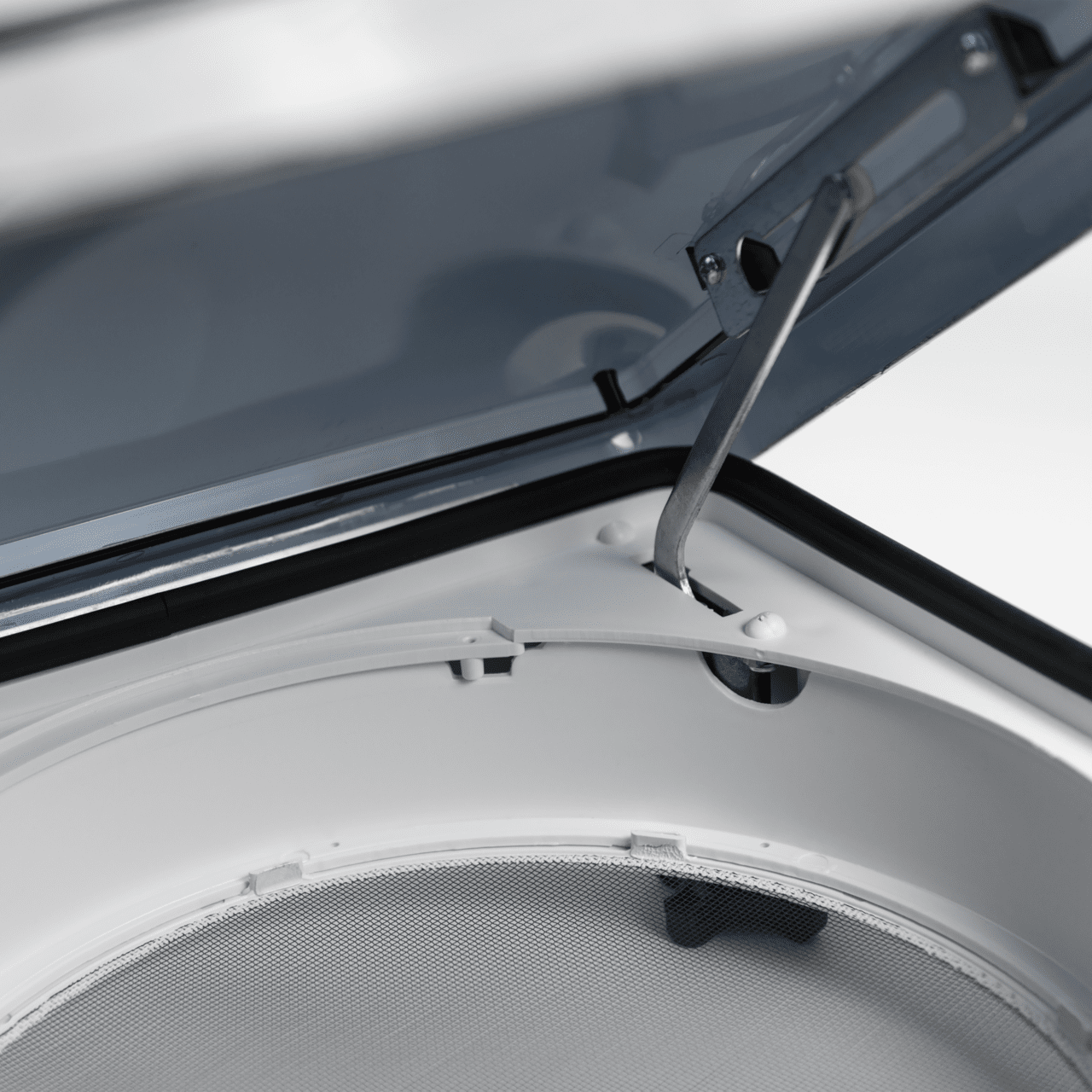

- Manual lift dome
- Quiet operation
- Fits standard 14 in. x 14 in. (35.5 cm x 35.5 cm) opening
- High profile base

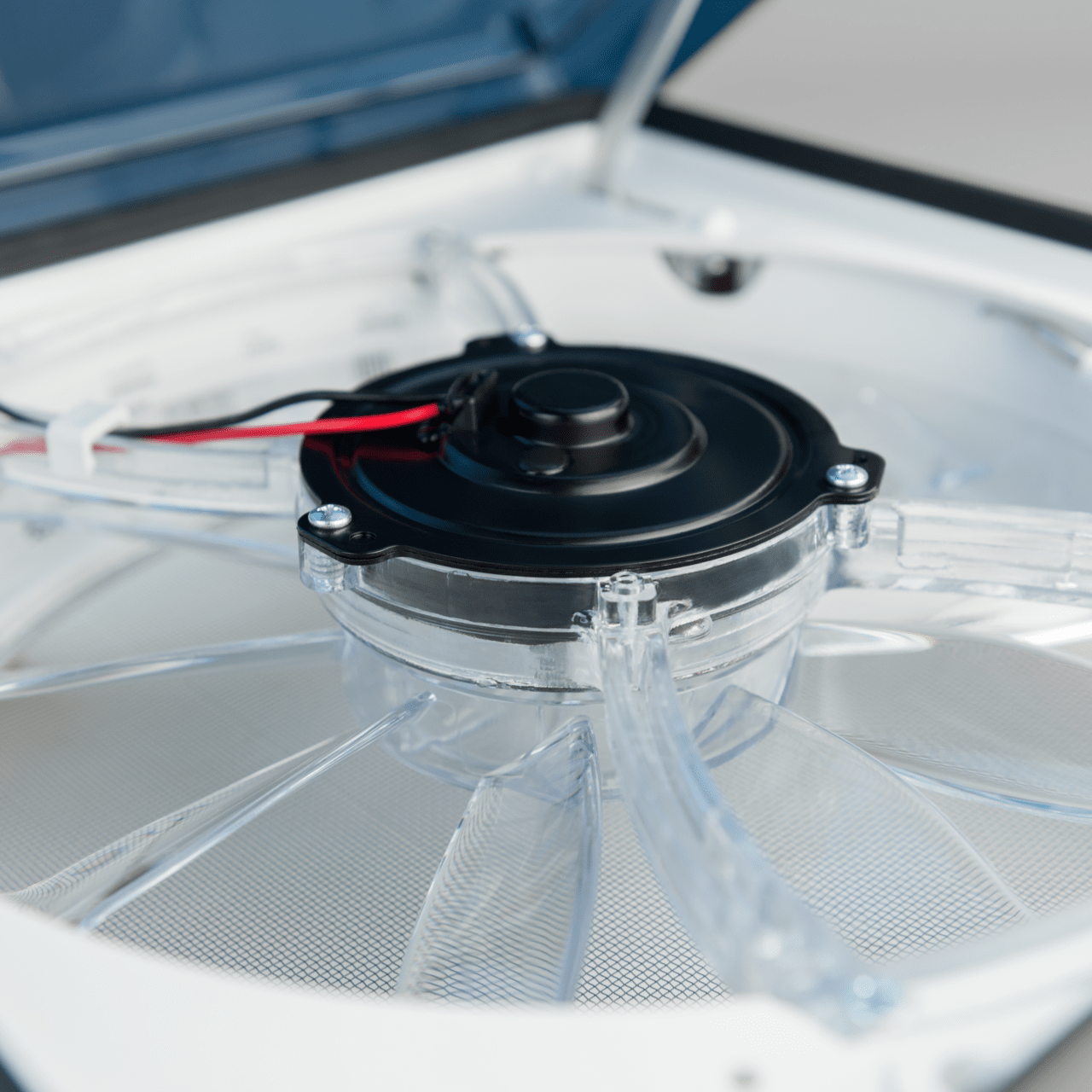

This lightweight, compact and durable vent fan seals tight when not in use. Powerful 12 in, 10-blade fan quickly moves air into and out of the cabin.
Specifications
SKU: 9108869049
| Model | FA2250 |
|---|---|
| Scope of delivery | Vent, Garnish, User/Installation Manual, Installation Materials |
| SKUCertificates | ETL |
| Product Description | Fan-Tastic Vent Fan 2250 with reversible blade direction. 3 Speed Fan, Manual Dome Lift, Thermostat, Smoke Dome and White Interior |
| Dimensions product depth, [mm] | 419.1 |
|---|---|
| Dimensions product height, [mm] | 241.30 |
| Dimensions product width, [mm] | 419.10 |
| Dimensions product width, [in] | 16 1/2 |
| Input voltage (DC), [V] | 12 |
|---|
| AirFlow, [m<sup>3</sup>h] | 920 |
|---|
| Thermostat control | Analog |
|---|
| Dimensions parcel depth, [mm] | 431.8 |
|---|---|
| Dimensions parcel height, [mm] | 304.8 |
| Dimensions parcel width, [mm] | 431.8 |
| Parcel weight, [kg] | 4.81 |
| Parcel weight, [lbs] | 10.61 |
Highlights
Environmental Control
3-speed fan (low, medium, high),
Easy to Use
Manual lift dome
Easy to Install
Fits standard 14 in. x 14 in.
Control the Air Flow
Reversible air flow
Modern Design
High profile base
Environmental Control
Built-in thermostat
