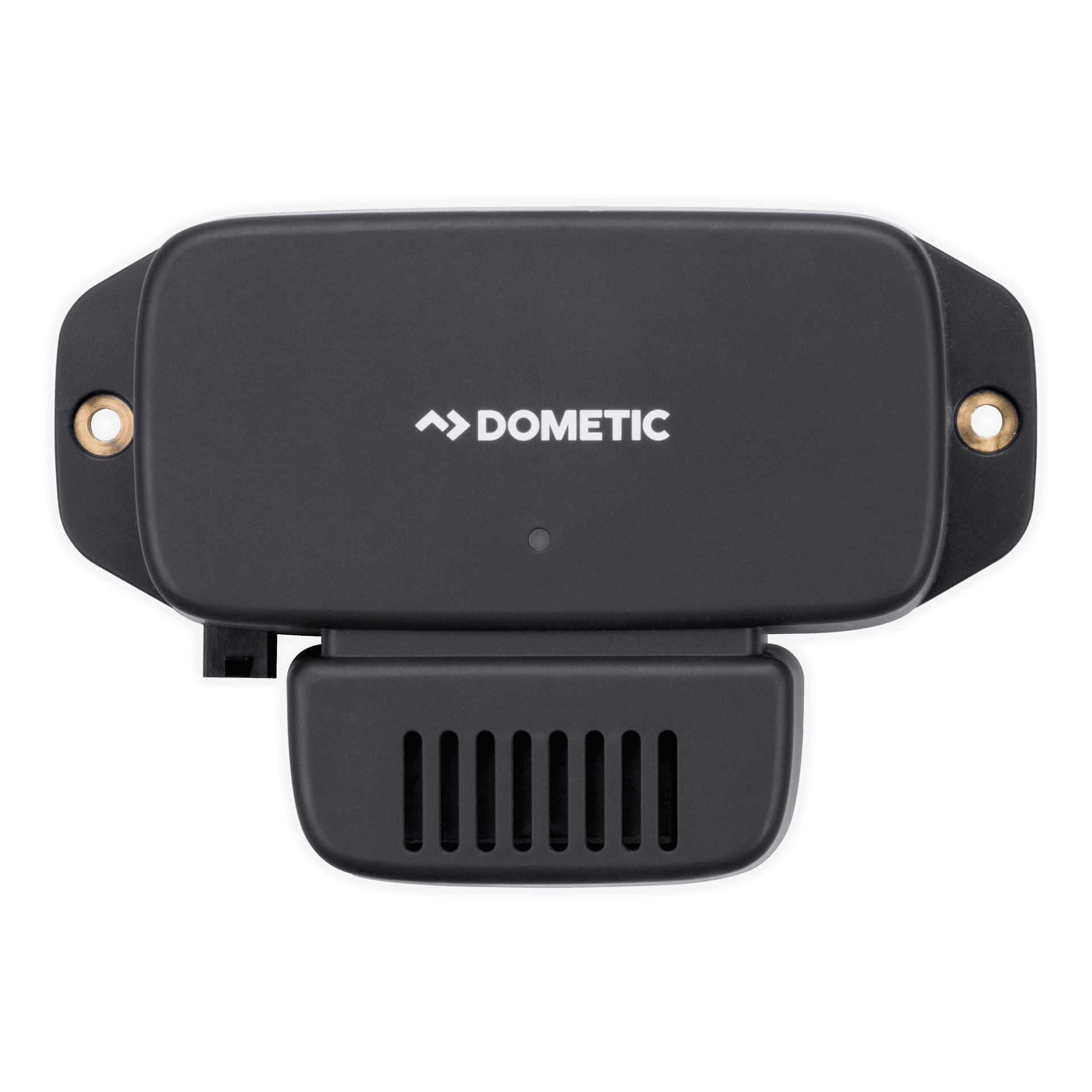

Dometic BREATHE 2500

Air purification add-on kit, 2.5 kV

  • LED pilot lamp
  • High-quality aluminium inserts
  • Plug-and-play installation

With this easy-to-install upgrade kit for your rooftop air conditioner, you will breathe clean and healthy air in your RV at all times. Using state-of-the-art ionization technology, the air purifier effectively reduces dust particles, bacteria, mold build-up and unpleasant odors. A genuine must need upgrade for your air conditioning system!

Description

  1. Latest bipolar ionization technology reliably reduces dust particles, bacteria, mold build-up and odors
  2. Easy installation with flexible mounting options: fan, ductwork, transition boxes, or directly behind the air outlet grille
  3. No consumables or replacement parts required, simply clean the ionizer brushes
  4. Energy-saving – can be connected directly to the fan to ensure power supply only when needed
  5. Compact and space-saving design
  6. Universal power supply – wide input voltage range (100 to 245 VAC)
  7. Fits Dometic FJX4 1500M as well as Dometic FreshJet 1100, 1500, 1700, 2000, 2200, 3000 and 3200

Specifications

SKU: 9620000428

Dometic BREATHE 2500 — General specifications
ModelBreathe
Scope of deliveryAir purification* 1pc, screw ST4*16mm*2pcs, tie* 2pcs, double tape* 4pcs, connection cable* 1pc
SKUCertificatesECER10;UKCA;CB;EMC
Product DescriptionAir purification add-on kit, 2.5 kV

Dometic BREATHE 2500 — Dimensions specifications
Dimensions product depth, [mm]96
Dimensions product height, [mm]40.50
Dimensions product width, [mm]138.50
Dimensions product width, [in]5.45
Net weight, [kg]0.27
Net weight, [lbs]0.60

Dometic BREATHE 2500 — Electrical specifications
Input voltage (AC), [V]100-245
Input frequency, [Hz]50/60

Dometic BREATHE 2500 — Logistics specifications
Dimensions parcel depth, [mm]236
Dimensions parcel height, [mm]50
Dimensions parcel width, [mm]215
Parcel weight, [kg]0.49
Parcel weight, [lbs]1.07

Dometic Breathe 2500, 4500 Marine UK - Declaration of Conformity EMEA(en)
Declaration Of Conformity
Dometic Breathe 2500, 4500 Marine - EU Declaration of Conformity EMEA24
Declaration Of Conformity
Dometic BREATHE 2500, BREATHE 4500 MARINE – Declaration of Confirmity EU
Declaration Of Conformity
Dometic Breathe 2500, Breathe 4500 - Installation and Operating Manual INT16
Installation And Operating Manual
Dometic Breathe 2500, Breathe 4500, Breathe 4500 Marine - Safety Information AMER, APAC, EMEA16
Safety Information

Product size & weight

W 138.50 x H 40.50 x D 96 mm

Weight: 0.27 kg

Highlights

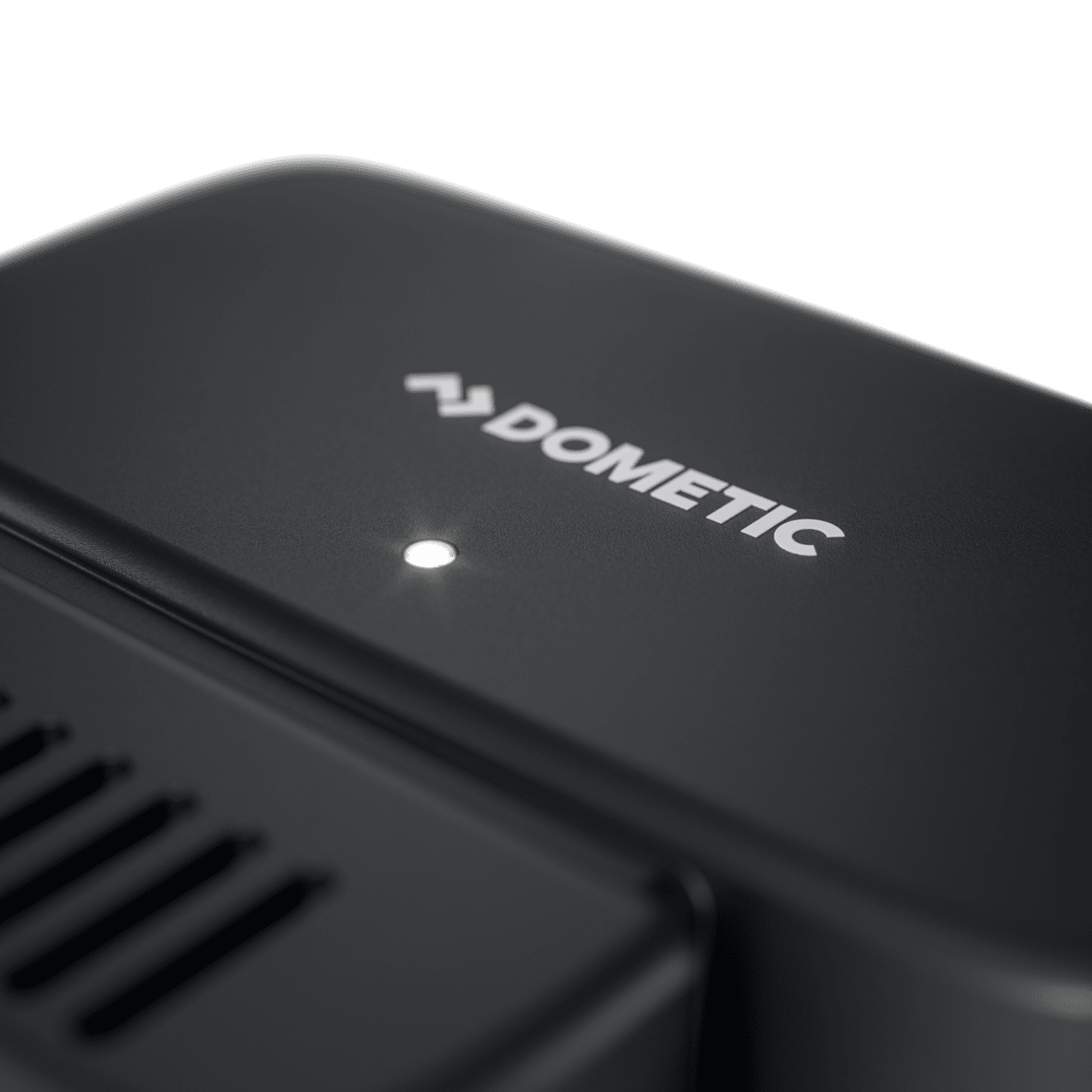

LED pilot lamp

Clearly indicates that the air purifier is operating

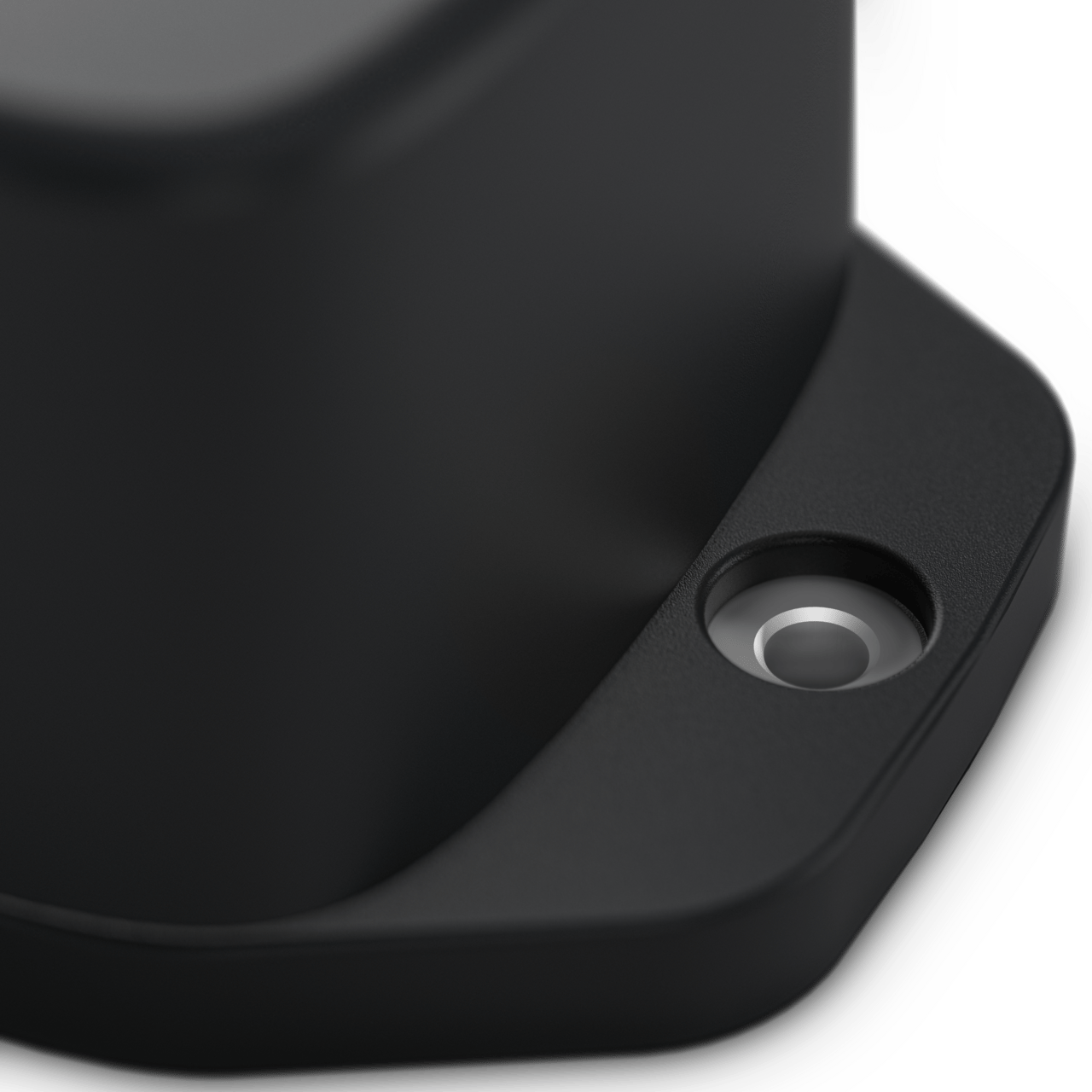

High-quality aluminium inserts

Secure, corrosion-resistant mounting

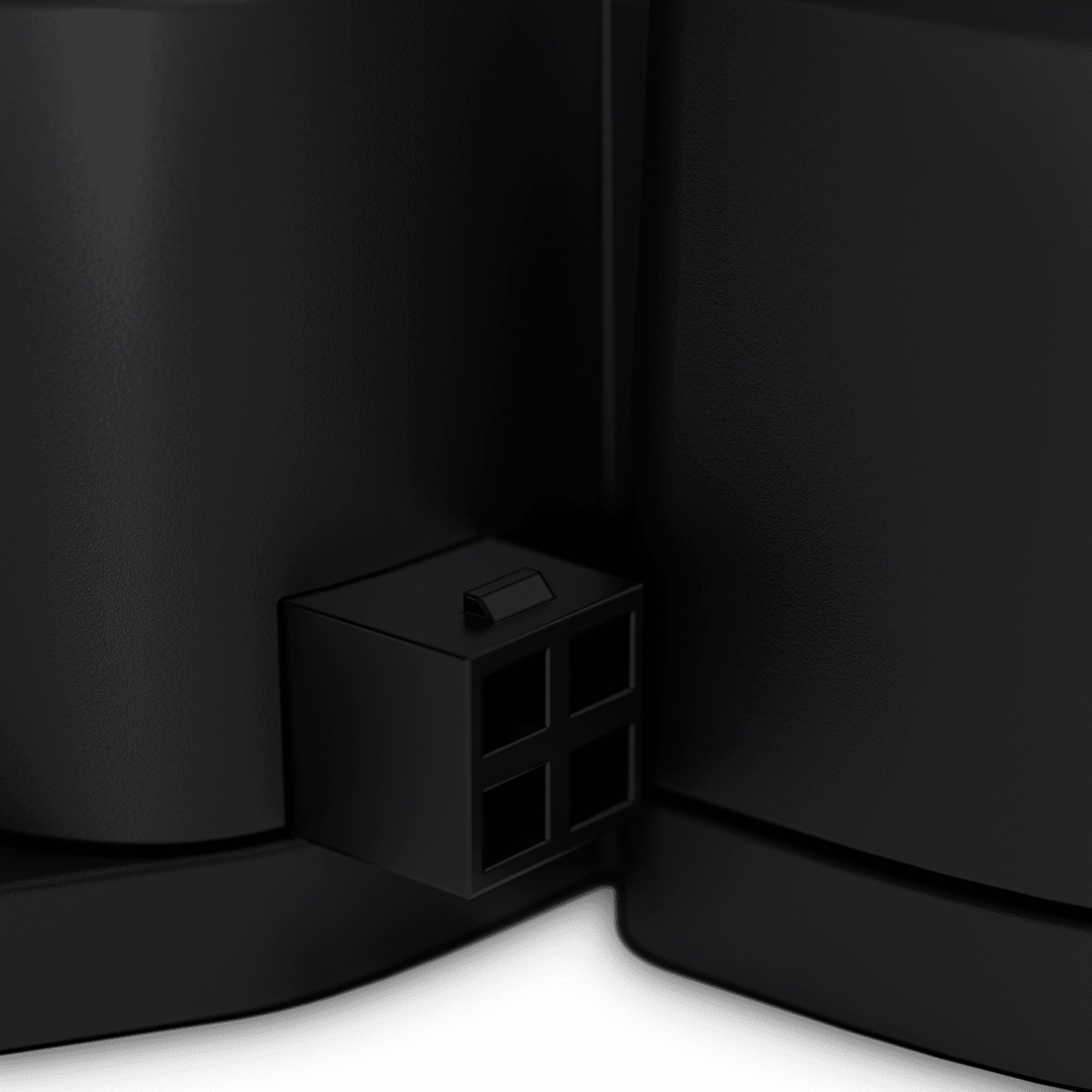

Plug-and-play installation

Simply insert the connectors into the prepared sockets

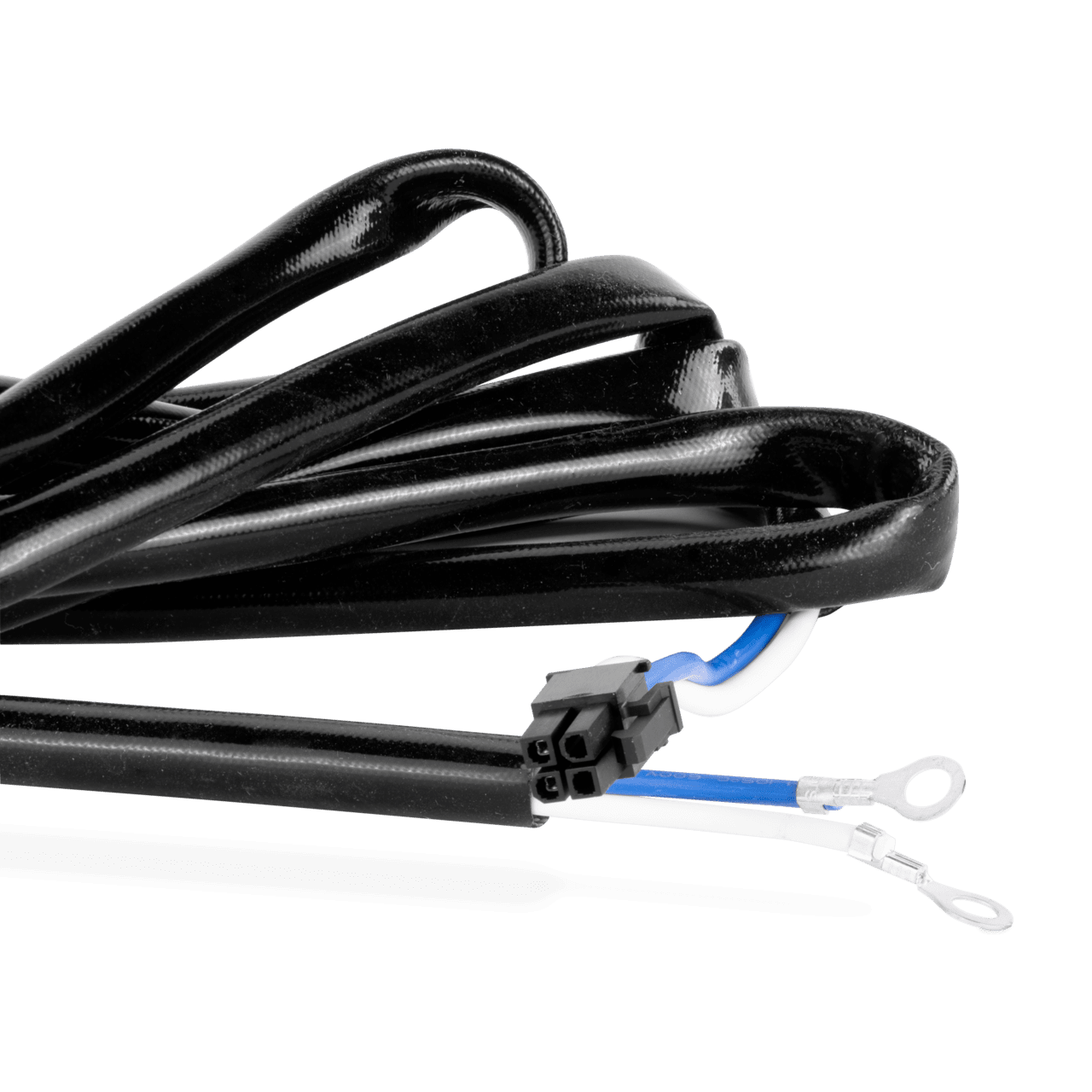

Energy-saving installation option

Connect the air purifier directly to the fan to ensure power supply only when needed

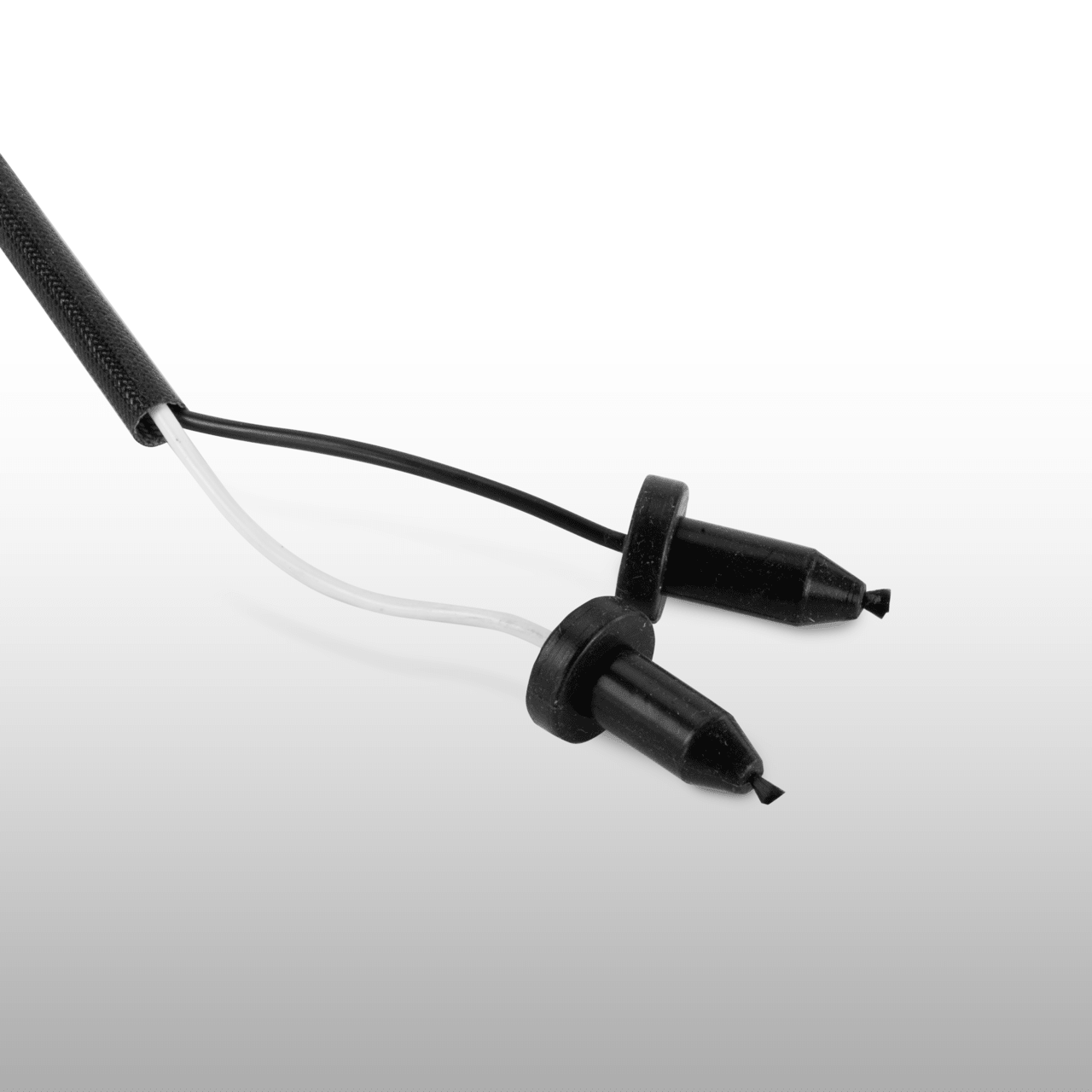

Latest bipolar ionization technology

Reliably reduces dust particles, bacteria, mold build-up and odors

CleanAir technology

CleanAir technology

The Dometic air purifier uses advanced Dometic CleanAir technology. When voltage is applied to the two needle-point brushes, they interact with the oxygen and moisture in the air to produce negative and positive ions. These ions have three positive effects. First, they help reduce bacteria, viruses and mold by attacking their core structure. Second, the charged ions attract the dust particles in the air. This creates larger lumps of particles, which can be easily caught in the AC filter. Third, the ions also break down the molecular structure of volatile organic compounds. This eliminates unpleasant smells caused by chemicals or waste.
