Description
- Always ready to perform, even with partial shading due to luggage racks, satellite system, roof box, or open skylight
- Highest reliability – even in the event of storms, hailstorms, and extreme temperature fluctuations
- Ready-to-install complete system (including solar controller and complete installation accessories)
- Special front glazing for optimal energy yield in unfavorable light conditions
- Mechanical strength at wind speeds up to 225 km/h [139.8 mph]
- Absolute fatigue strength – suitable for extreme applications (e.g., expeditions)
- Waterproof junction box – no moisture penetrates even at high speeds
- Separate charging line output for optimized trickle charge of the starter battery
- Monitor, control and update all on-board devices from a single controller with the N-BUS protocol (compatible with CI-BUS)
- Bluetooth connectivity allows the use of the new Büttner Dometic App

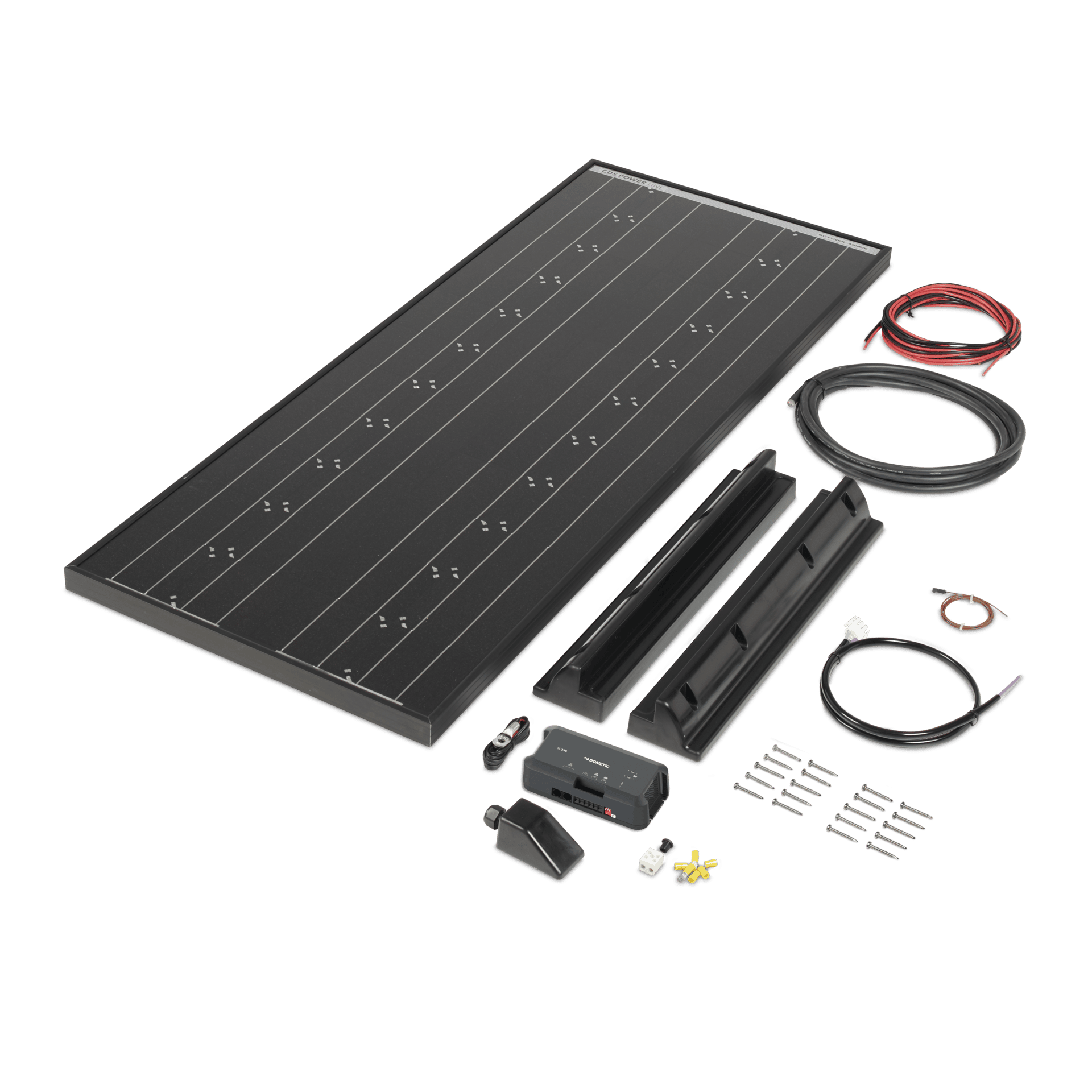

This CDS POWER LINE complete system works with a 130-watt high-end solar panel. A second, equivalent module can be retrofitted at any time. A novel wiring technology makes the solar system much less sensitive to partial shading. A big advantage if your solar system has to share the space on the roof with a luggage rack or a satellite system. Supplied complete with installation accessories.
Specifications
SKU: 9620013706
| Model | MT130CDS |
|---|---|
| Scope of delivery | MT SM 130 CDS, solarcontroller, roof spoiler set incl. accessories, roof bushing, service/distribution block, cable set inside/outside, cable set for vehicles with EBL, mounting material/instructions |
| SKUCertificates | UKCA;CE |
| Product Description | Complete solar system, 1 x 130 W, shade-resistant |
| Dimensions product depth, [mm] | 1449 |
|---|---|
| Dimensions product height, [mm] | 35 |
| Dimensions product width, [mm] | 530 |
| Dimensions product width, [in] | 20.87 |
| Net weight, [kg] | 13.60 |
| Net weight, [lbs] | 29.99 |
| Dimensions parcel depth, [mm] | 1395 |
|---|---|
| Dimensions parcel height, [mm] | 160 |
| Dimensions parcel width, [mm] | 620 |
| Parcel weight, [kg] | 17 |
| Parcel weight, [lbs] | 37.48 |
