Description
- Optimal charging – longer battery life and full battery capacity utilization
- Universal use – suitable for all types of batteries (liquid, gel, AGM or LiFePO4)
- Starter battery mode: automatically charges the starter battery when onboard battery charging is complete
- PWM charging technology – ideal for 36- and 72-cell solar modules (BLACK LINE, FLAT LIGHT 120 W model)
- Use your existing equipment – battery chargers or alternator can be connected in parallel
- Long-term activation program – protects wet/acid batteries during longer parking periods
- Premium quality – guarantees a high level of reliability and a long service life

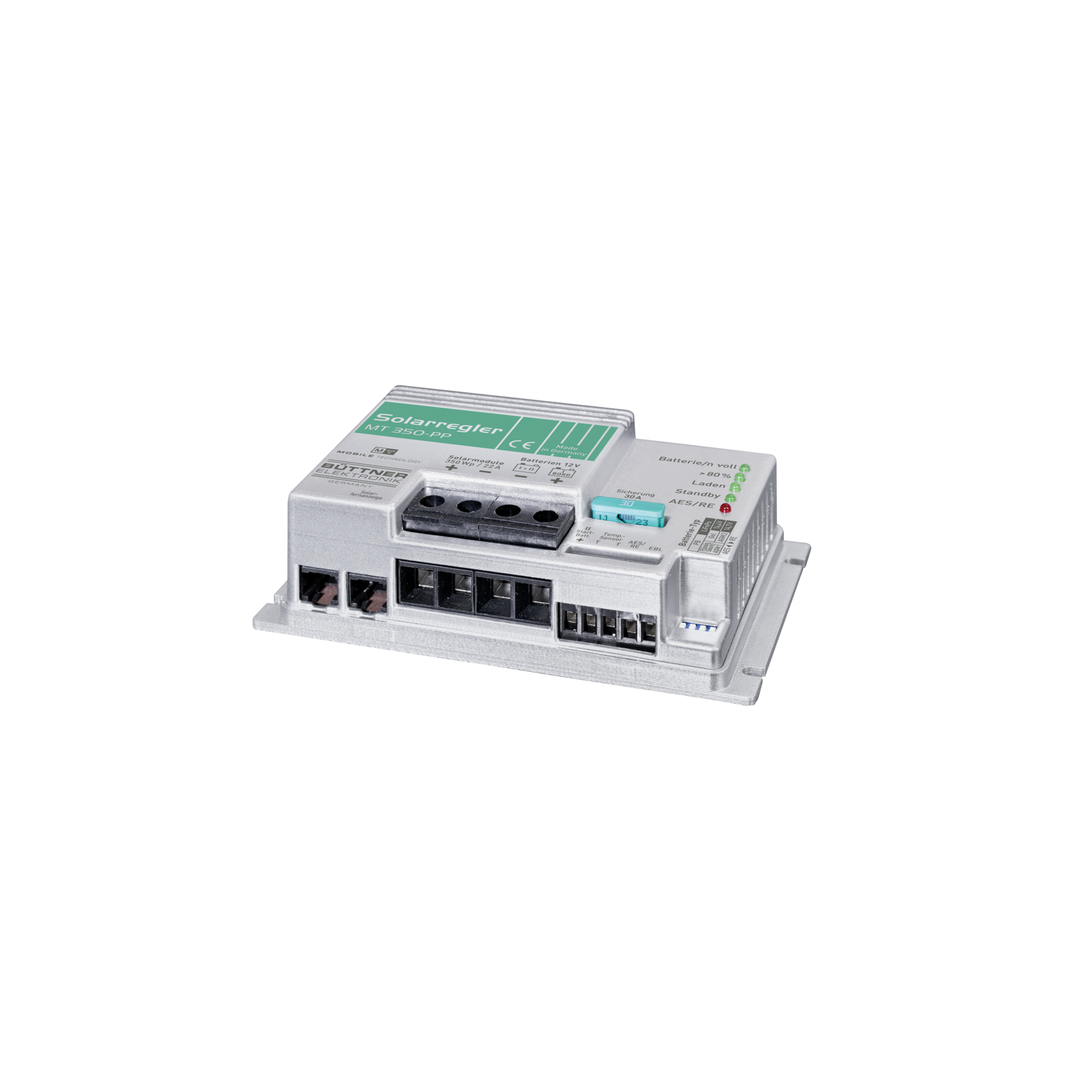

This high-quality 230 W solar charge controller ensures that your onboard batteries are optimally recharged with the power coming from your solar panel. It automatically adapts to the temperature conditions and to the type of battery you have: liquid, gel, AGM or LiFePO4. When the onboard batteries are fully charged, the smart solar charger switches over to recharge your starter battery as well.
Specifications
SKU: 9620000246
| Model | PowerPlus |
|---|---|
| Scope of delivery | Solar charger, Temperature sensor, Installation and Operating Manual |
| SKUCertificates | UKCA;CE |
| Product Description | Solar charge controller, 230 W, PWM |
| Dimensions product depth, [mm] | 130 |
|---|---|
| Dimensions product height, [mm] | 40 |
| Dimensions product width, [mm] | 77 |
| Dimensions product width, [in] | 3.03 |
| Net weight, [kg] | 0.16 |
| Net weight, [lbs] | 0.34 |
| Input voltage (DC), [V] | 12 |
|---|---|
| Battery type | AGM |
| IP class | IP20 |
| Operating temperature min, [°C] | -20 |
|---|---|
| Operating temperature max, [°C] | 45 |
| Dimensions parcel depth, [mm] | 109 |
|---|---|
| Dimensions parcel height, [mm] | 45 |
| Dimensions parcel width, [mm] | 142 |
| Parcel weight, [kg] | 0.28 |
| Parcel weight, [lbs] | 0.62 |
Get the best out of your batteries
Optimal charging is the basis for full capacity utilization and a long battery life. Dometic Büttner solar controllers keep you on the safe side. They can be easily adapted to the respective battery type (AGM, gel, liquid, LiFePO4) and are supplied with a temperature sensor. This guarantees correct charging for every type of battery, regardless of the installation situation and climate zone.
