Description
- Suitable for the operation of larger devices such as hairdryers, fully automatic coffee machines, etc.
- Maintenance-free long-life battery – designed for the high loads in recreational vehicles
- Integrated battery management system (BMS) for reliable operation
- Solar system and inverter operation possible without problems, thanks to high discharge currents
- Integrated temperature sensors – optimal charging in all climates
- Fast and complete charging via charge booster or solar system
- Easy connection – battery terminals with M8 thread

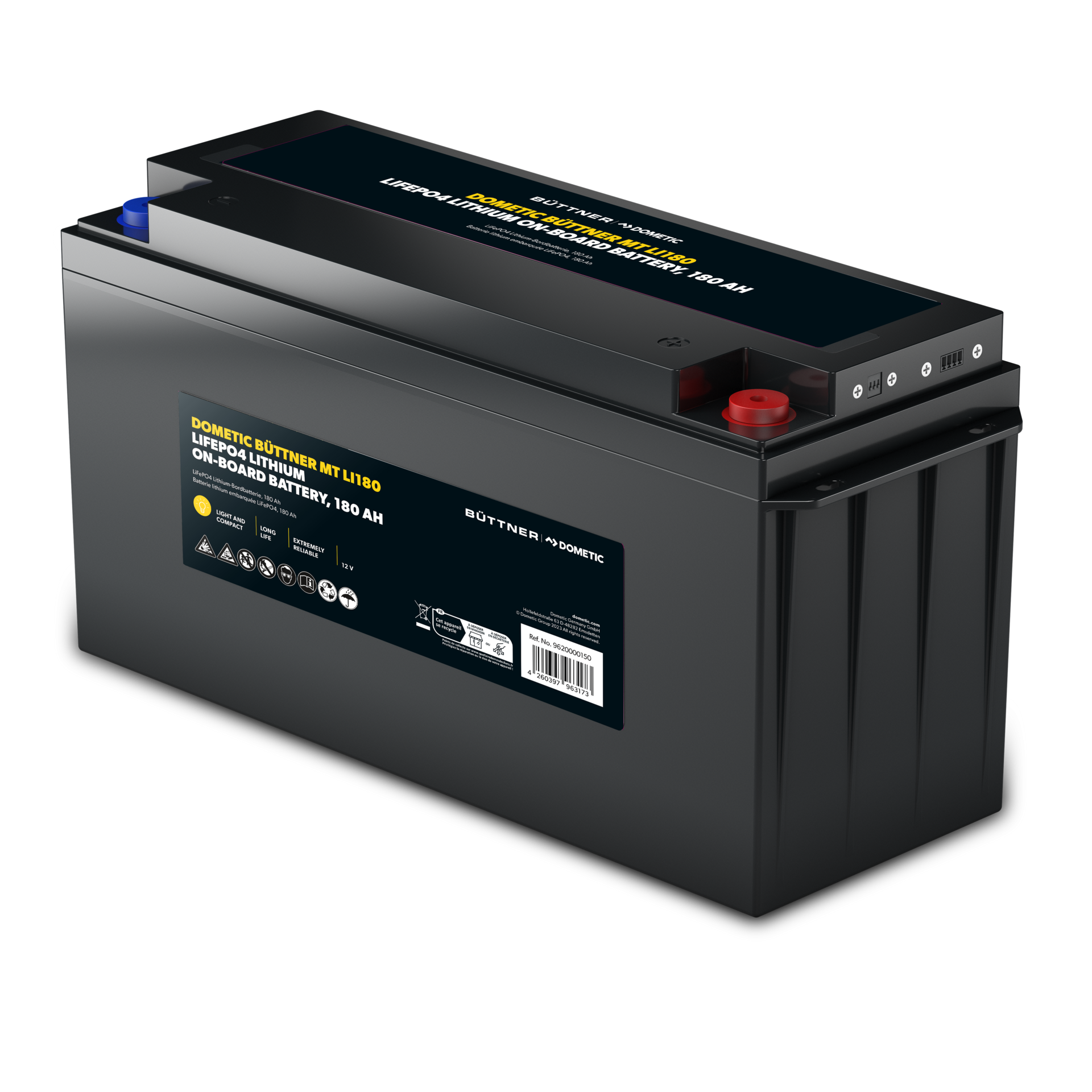

With this LiFePO4 battery, you have the option of connecting a powerful inverter that also reliably supplies larger devices such as hair dryers or fully automatic coffee machines with 230 volts. Specially developed for the demanding operating conditions in recreational vehicles, it has everything that campers expect from a high-performance lithium battery today.
Specifications
SKU: 9620000150
| Model | MTLI180 |
|---|---|
| Scope of delivery | Battery 12V/180Ah |
| SKUCertificates | ECER10;CE |
| Product Description | Lithium on-board battery, 180 Ah |
| Dimensions product depth, [mm] | 212 |
|---|---|
| Dimensions product height, [mm] | 172 |
| Dimensions product width, [mm] | 330 |
| Dimensions product width, [in] | 12.99 |
| Net weight, [kg] | 22.86 |
| Net weight, [lbs] | 50.41 |
| Input voltage (DC), [V] | 12 |
|---|---|
| Rated input current (DC), [A] | 50 |
| Battery type | LithiumIronPhosphateLiFePO4 |
| IP class | IP21 |
| Operating temperature min, [°C] | -20 |
|---|---|
| Operating temperature max, [°C] | 60 |
| Dimensions parcel depth, [mm] | 570 |
|---|---|
| Dimensions parcel height, [mm] | 300 |
| Dimensions parcel width, [mm] | 340 |
| Parcel weight, [kg] | 23.92 |
| Parcel weight, [lbs] | 52.75 |
New from 2022: main switch function
All Büttner Dometic LiFePO4 batteries from model year 2022 onwards are equipped with a main switch function. When this is activated, the battery terminals are completely de-energized. This prevents the on-board battery from discharging unintentionally, even when the vehicle is parked for long periods. The battery can also be de-energized without much effort during servicing. An additional power supply output is available for important memory functions.
