Image 1 of 4

Dometic CFF18

  • CFF18 Fixing Kit (Sold Separately)
  • Bail handle
  • Convenient

Simple product

Description

  1. Provides space for up to 24 x 375 ml cans or 4 x 1.5 l bottles
  2. Plastic inner lining with rounded corners for easy cleaning
  3. The temperature can be set between +10 °C and –18 °C
  4. Powerful and energy-efficient compressor with variable motor speed
  5. Connects to 12/24 V DC as well as to 110 – 240 V AC
  6. Convenient rubber-cushioned handle
  7. Powder-coated metal grid divider allows flexible storage
  8. Compatible with optional Dometic CFX-QFK fixing kit
  9. Plastic inner lining with rounded corners for easy cleaning

Specifications

SKU: 9620001951

Dometic CFF18 — General specifications
ModelCFF18
Scope of delivery1 cooler; 1 manual; 1 DC power cord; 1 AC power cord
SKUCertificatesCB;EMC;eMark;GS;RCM

Dometic CFF18 — Dimensions specifications
Dimensions product depth, [mm]316
Dimensions product height, [mm]422
Dimensions product width, [mm]508
Dimensions product width, [in]20
Net weight, [kg]10
Net weight, [lbs]22.05
Total volume (IEC 62552-3), [l]19
Amount of cans (12oz/375ml)24

Dometic CFF18 — Electrical specifications
Input voltage (AC), [V]100-240
Input voltage (DC), [V]12/24
Rated input current (AC), [A]0.5A @AC240V; 1A @AC100V
Rated input current (DC), [A]4.5A @DC12V; 2.1V @DC24V
Rated input power (AC), [W]46
Input frequency, [Hz]50/60
Priority circuit (Integrated)Yes

Dometic CFF18 — Performance specifications
Refrigerant, typeR600a
Refrigerant, typeR600a
Energy Consumption 12VDC (Ambient@32C, Internal@4C), [Ah/h]0.66
Climate class (EN 62552)N/T
Operating temperature min, [°C]16
Operating temperature max, [°C]43
Insulation TypePU (Polyurethane)

Dometic CFF18 — Properties specifications
USB PortN/A
Single or Dual ZoneSingle
Thermostat controlElectronic Thermostat
Interior lightYes, LED

Dometic CFF18 — Logistics specifications
Dimensions parcel depth, [mm]359
Dimensions parcel height, [mm]466
Dimensions parcel width, [mm]544
Parcel weight, [kg]11.90
Parcel weight, [lbs]26.24

Dometic CFF12, CFF18, CFF20, CFF35, CFF45, CFF50LPDZ, CFF70DZ - Operating Manual APAC(en) for AUS/NZ
Operating Manual
Dometic CFF12, CFF18, CFF20, CFF35, CFF45, CFF50LPDZ, CFF70DZ - Short Operating Manual APAC(en) for AUS/NZ
Short Operating Manual

Product size & weight

W 508 x H 422 x D 316 mm

Weight: 10 kg

Add the essentials

Highlights

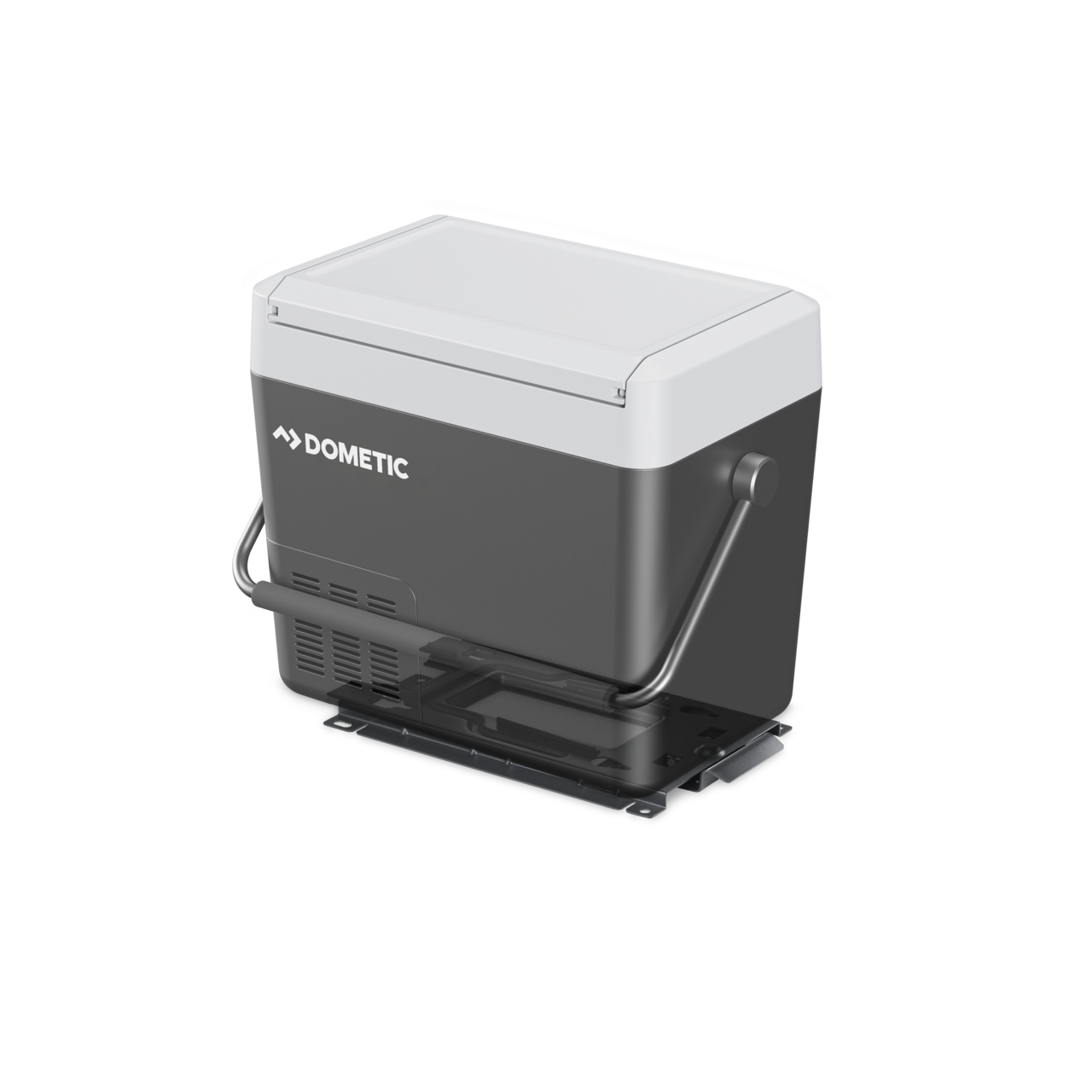

CFF18 Fixing Kit (Sold Separately)

Secure fixing hardware

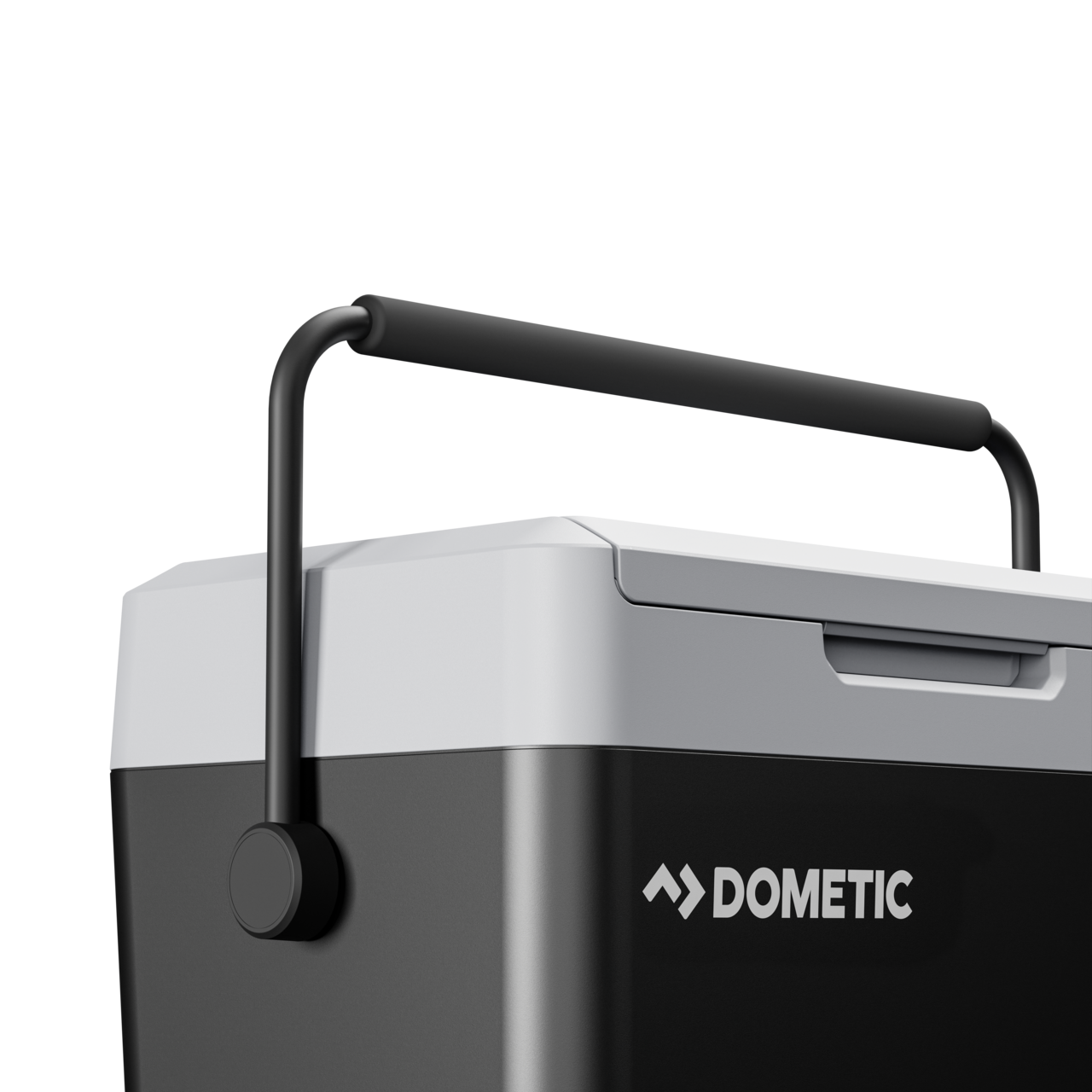

Bail handle

Steel handle with ergonomic comfort grip

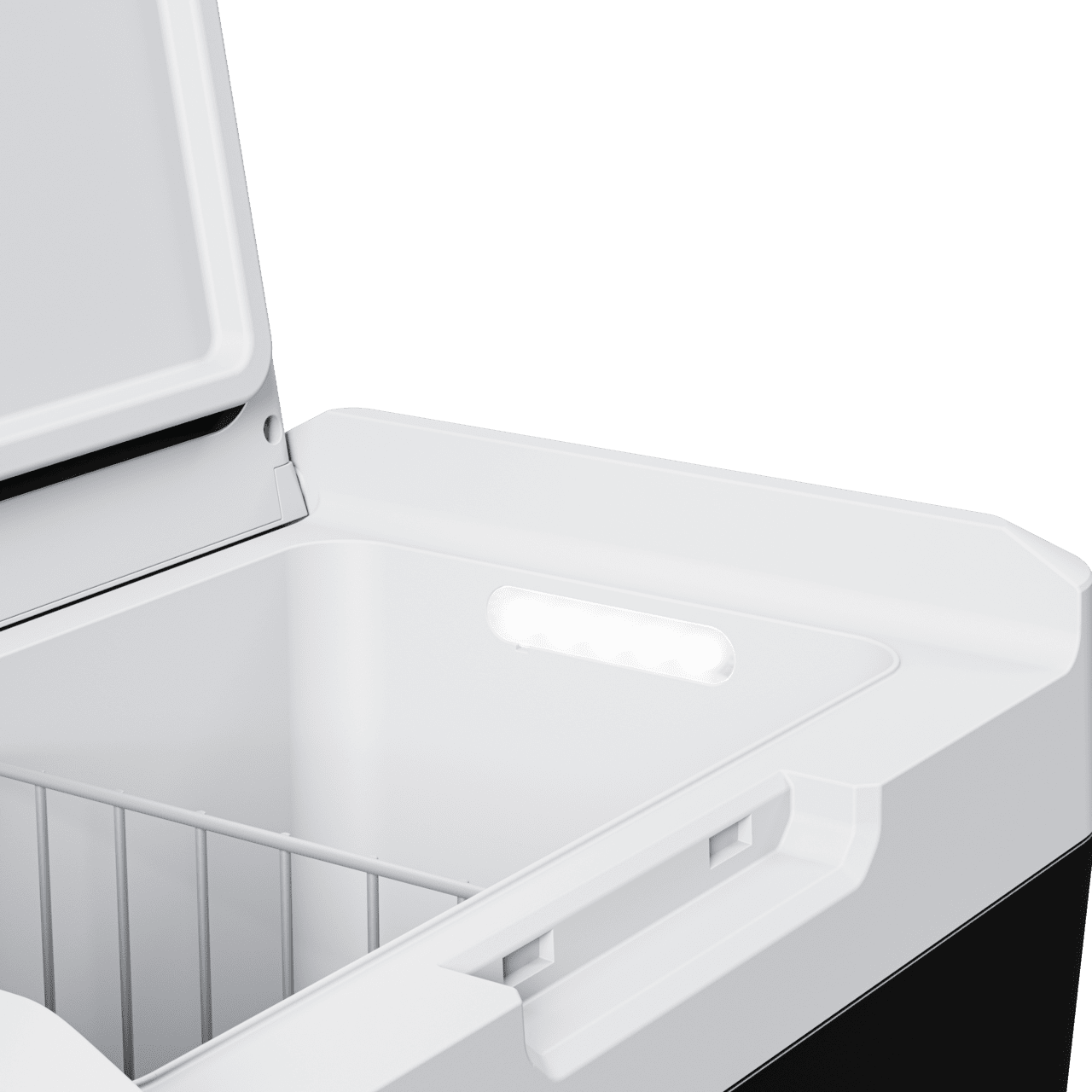

Convenient

Energy efficient LED interior light

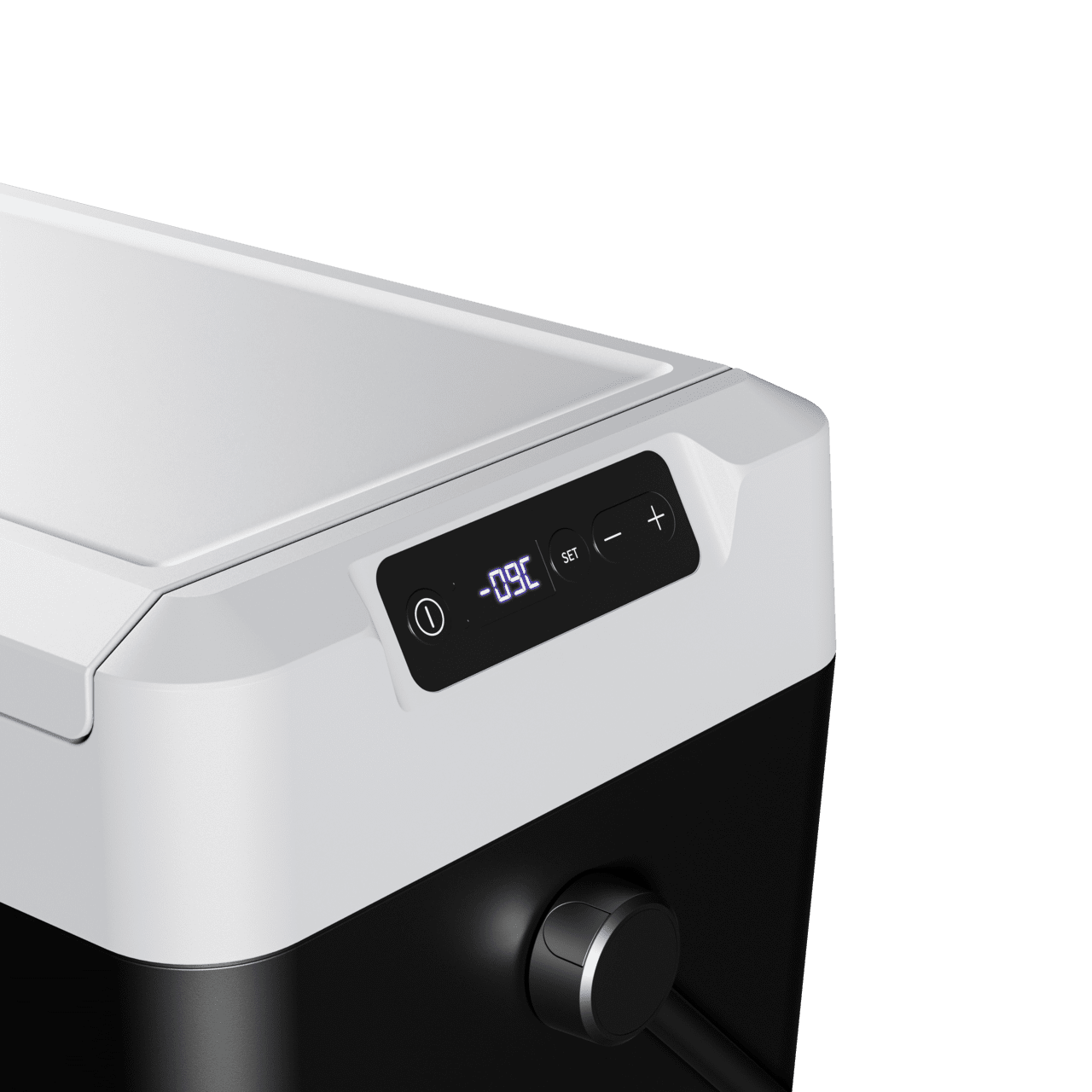

Quick overview

Dimmable digital display for quick overview of temperature settings

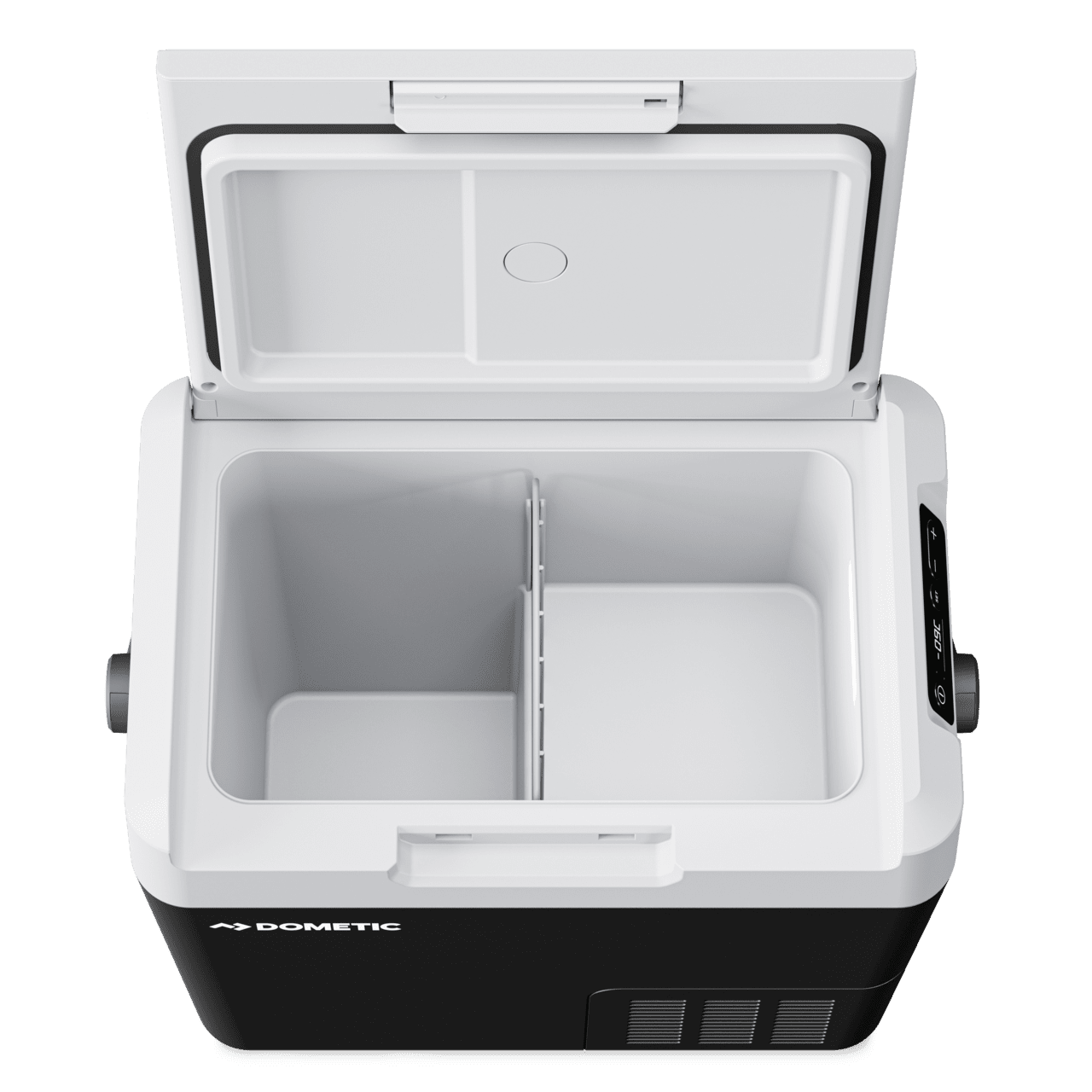

Organised

Removable divider for flexible storage options
