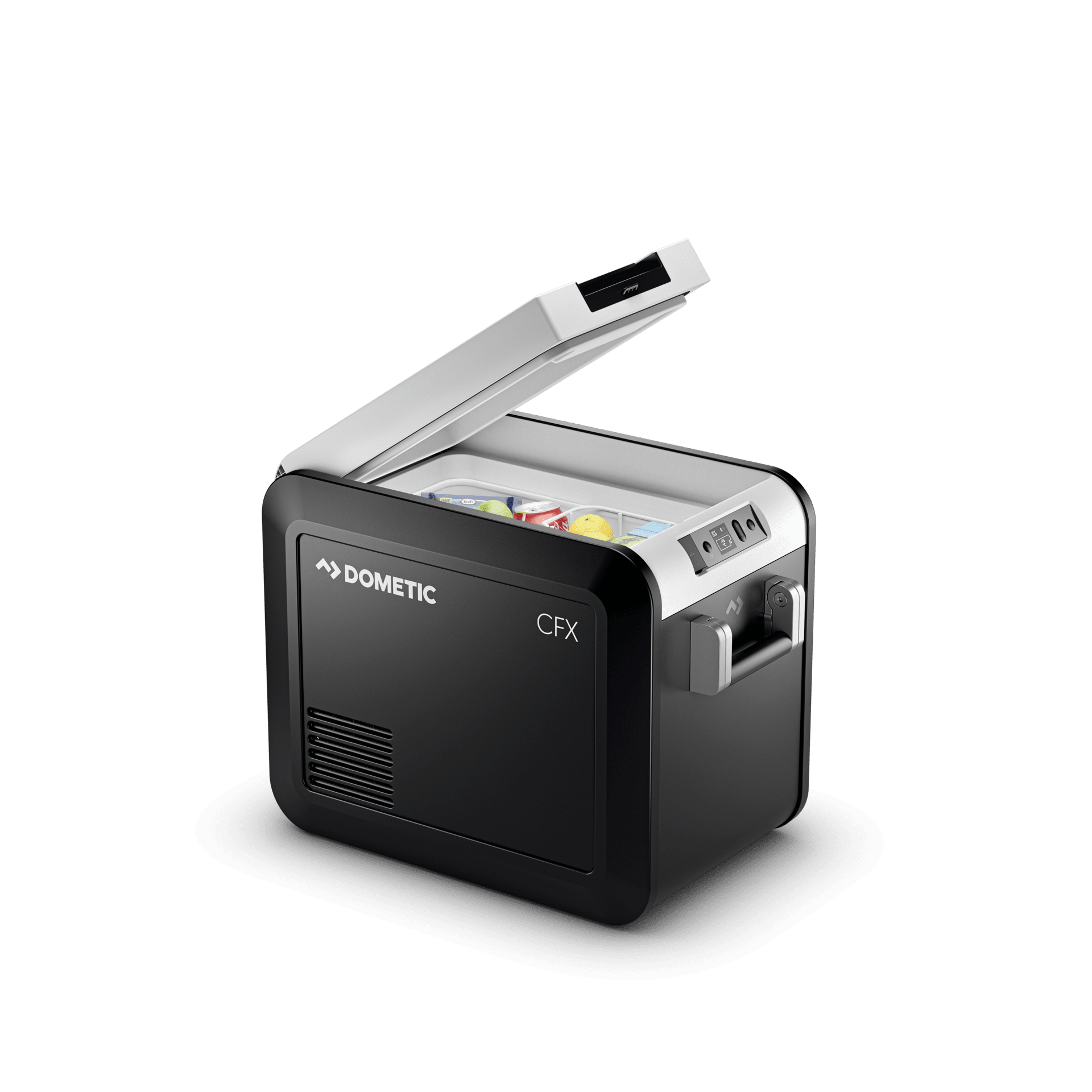

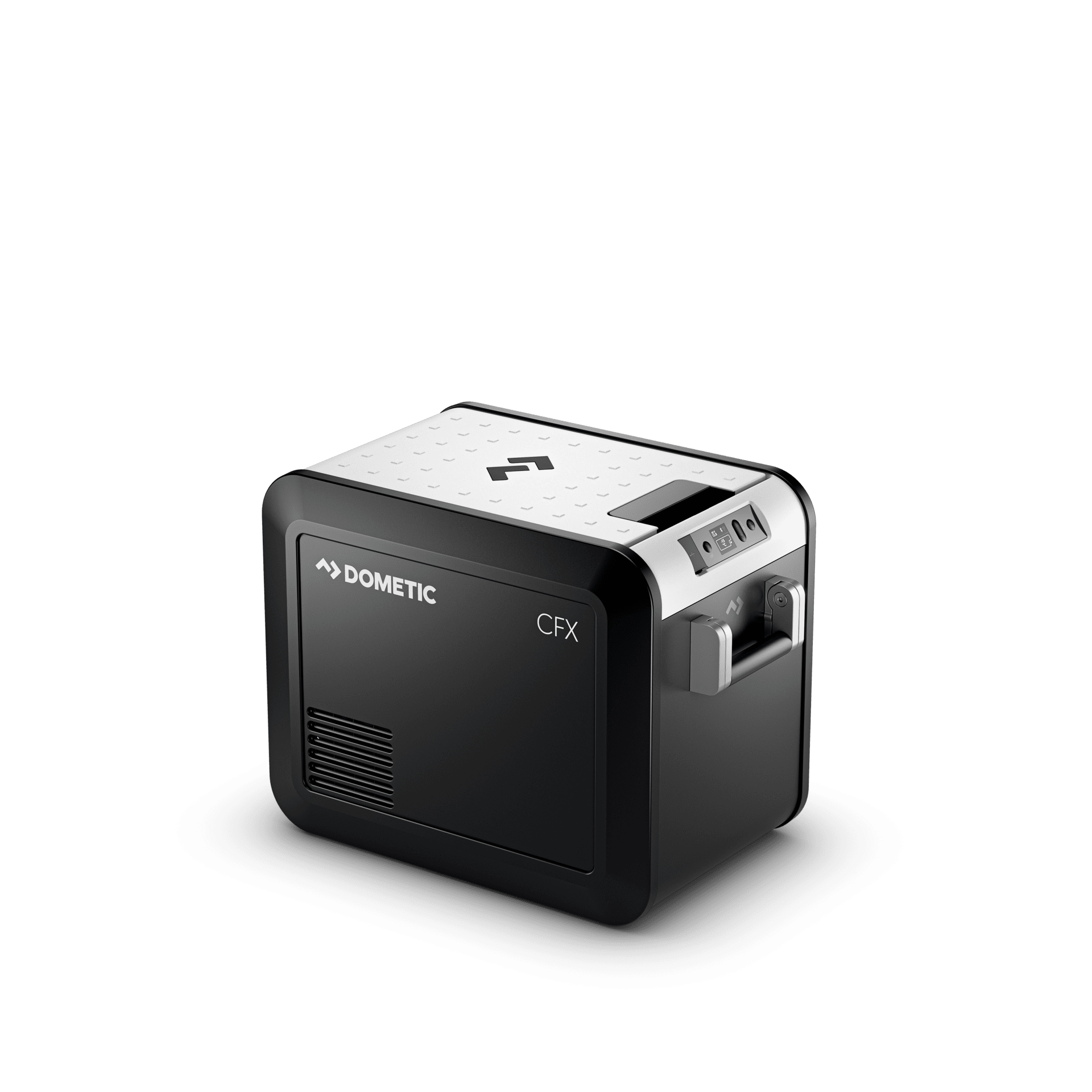

Dometic CFX3 25

Technical Information

Colour

Black

Brand

Dometic

Model

CFX325

SKU replaced by

97000050753

Scope of delivery

1 cooler, 1 manual, 1 Connection cable for 12/24V connection, 1 Connection cable for 120V connection, removable wire baskets

EAN-13

0713814333577

Publication Model Name

Dometic CFX3 25

Product Description

Powered 12 Volt Cooler, 25L

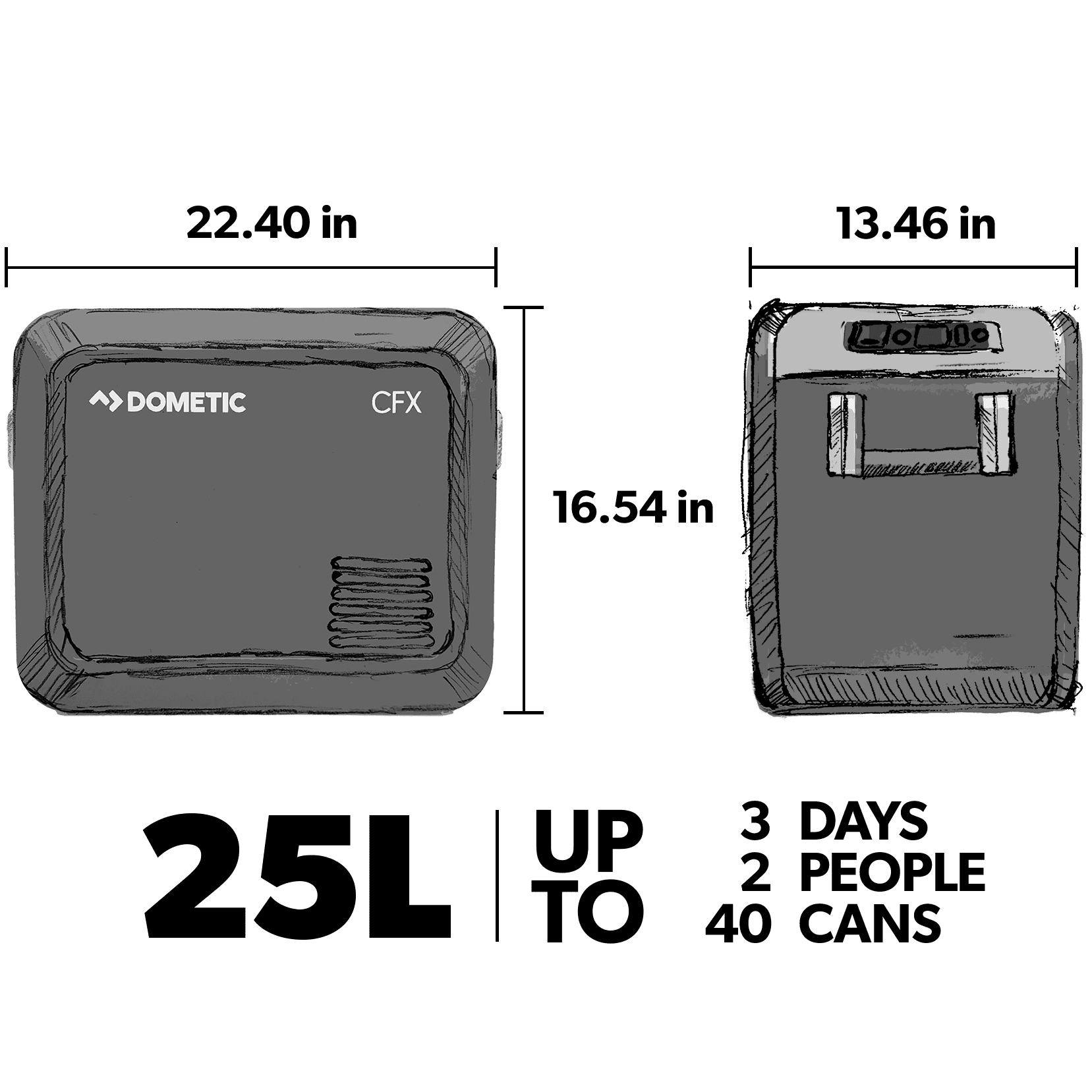

Dimensions product depth, [mm]

569

Dimensions product height, [mm]

420

Dimensions product width, [mm]

342

Net weight, [kg]

12.70

Net weight, [lbs]

28

Dimensions parcel depth, [mm]

610

Dimensions parcel height, [mm]

480

Dimensions parcel width, [mm]

380

Parcel weight, [kg]

15.37

Parcel weight, [lbs]

33.89

GWP

1430

CO2 equivalent, [t]

0.046

Rated input current (AC), [A]

0.69A at 120V

Rated input current (DC), [A]

3.2A at 24V, 6.5A at 12V

USB Port

5V, 2A

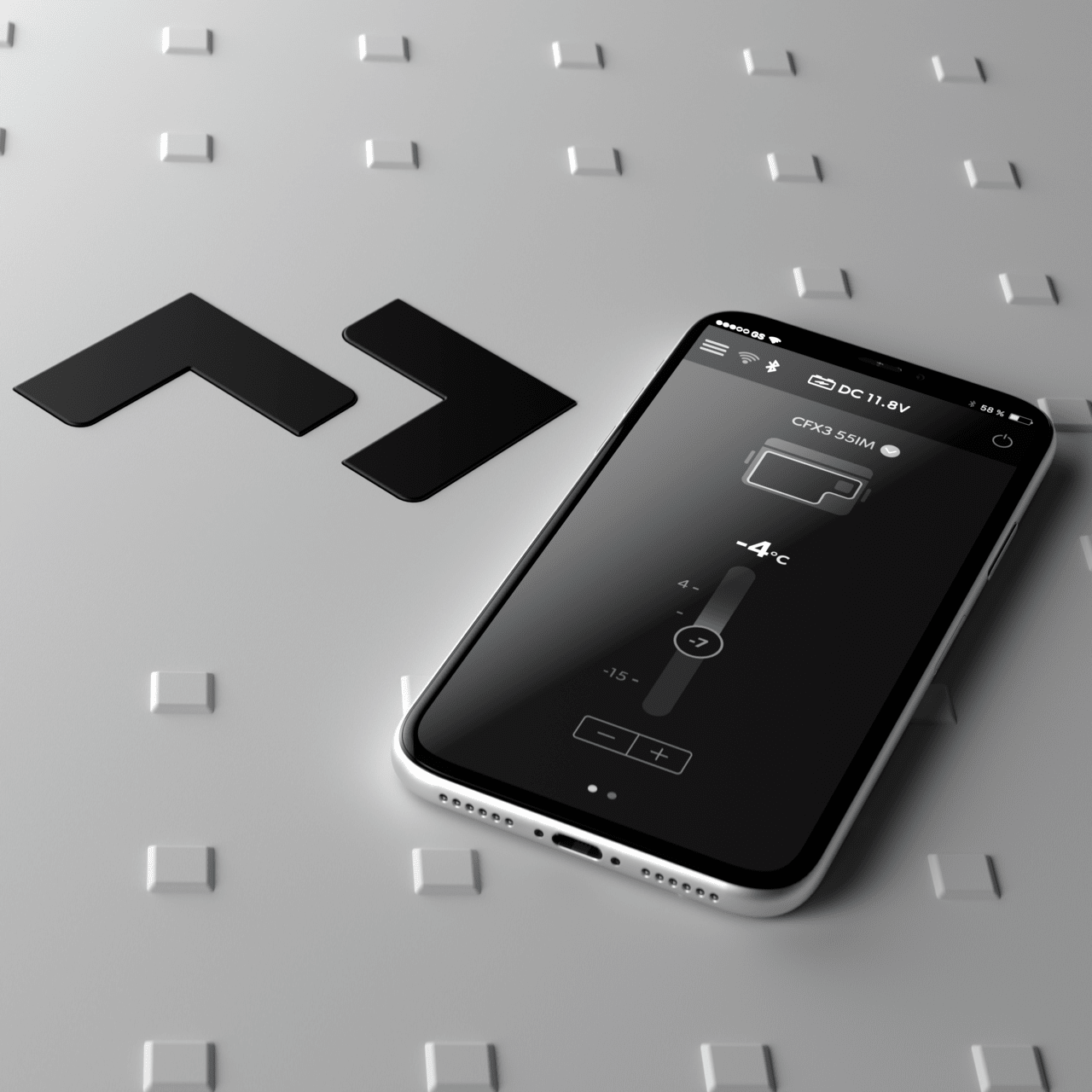

Connectivity Type

Bluetooth, Interact, WiFi

Basket

Yes

Threaded inserts in base for mounting

M6

Drain plug

Yes

Single or Dual Zone

Single

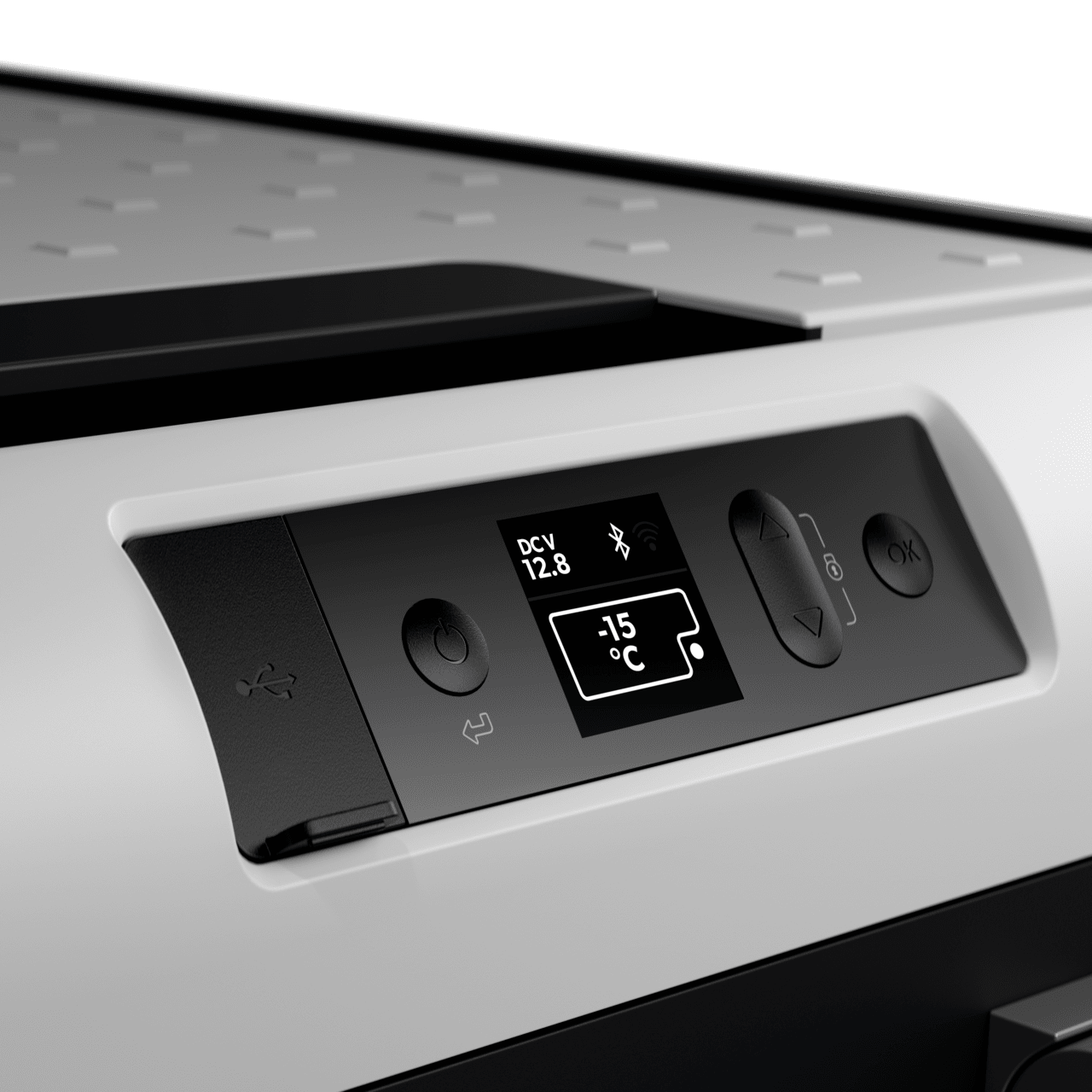

Thermostat control

Electronic Thermostat

Hinge type

Top

Interior light

Yes, LED

SKUCertificates

UL

Total volume (IEC 62552-3), [l]

25.000000

Amount of cans (12oz/375ml)

33

Hermetically Sealed

Yes

Refrigerant, type

R134a

Input voltage (AC), [V]

120

Input voltage (DC), [V]

12/24

Input frequency, [Hz]

50/60

Priority circuit (Integrated)

Yes

Noise (EN60704-1 & 60704-2-14), [dB(A)]

46.000000

Climate class (EN 62552)

N/T

Operating temperature min, [°C]

16.000000

Operating temperature max, [°C]

43.000000

Insulation Type

PU (Polyurethane)

Dimensions product width, ["] - Display

13.46

Item Description

CFX325 compressor cooler UL Plug, for USA, 120V, AC/DC

Pack Size

Yes
