Description
- Powerful VMSO3.5 compressor
- High-resolution colour display
- Powerful and efficient Dometic Compressor with VMSO3.5 technology
- Bluetooth or WiFi control
- Temperature control and performance monitoring via Dometic Mobile Cooling app
- Gasket seal technology
Specifications
SKU: 9620015959
| Model | CFX545 |
|---|---|
| Scope of delivery | 1 cooler, 1 manual, 1 warranty card, 1 Connection cable for 12/24V connection, 1 Connection cable for 100-240V connection, removable wire baskets, bottle opener |
| SKUCertificates | RCM |
| Product Description | Powered cooler, 45 l |
| Dimensions product depth, [mm] | 694 |
|---|---|
| Dimensions product height, [mm] | 476 |
| Dimensions product width, [mm] | 398 |
| Dimensions product width, [in] | 15.67 |
| Net weight, [kg] | 18.90 |
| Net weight, [lbs] | 41.67 |
| Total volume (IEC 62552-3), [l] | 46 |
| Amount of cans (12oz/375ml) | 67 |
| Input voltage (AC), [V] | 100-240 |
|---|---|
| Input voltage (DC), [V] | 12/24 |
| Rated input current (AC), [A] | 1.06A at 100V; 0.44A at 240V |
| Rated input current (DC), [A] | 4.1A at 24V, 9.4A at 12V |
| Rated input power (AC), [W] | 43 |
| Input frequency, [Hz] | 50/60 |
| Battery type | Not Applicable (NA) |
| Priority circuit (Integrated) | Yes |
| Hermetically Sealed | Yes |
|---|---|
| Refrigerant, type | R600a |
| Energy Consumption 12VDC (Ambient@32C, Internal@4C), [Ah/h] | 0.76 |
| Climate class (EN 62552) | N/T |
| Operating temperature min, [°C] | 16 |
| Operating temperature max, [°C] | 43 |
| Insulation Type | PU (Polyurethane) |
| USB Port | Yes |
|---|---|
| Connectivity Type | Bluetooth |
| Basket | Yes |
| Threaded inserts in base for mounting | M6 |
| Drain plug | Yes |
| Anti-condensation coil | Yes |
| Single or Dual Zone | Single |
| Thermostat control | Electronic Thermostat |
| Interior light | Yes, LED |
| Dimensions parcel depth, [mm] | 730 |
|---|---|
| Dimensions parcel height, [mm] | 525 |
| Dimensions parcel width, [mm] | 435 |
| Parcel weight, [kg] | 21.50 |
| Parcel weight, [lbs] | 47.41 |
Videos
Highlights

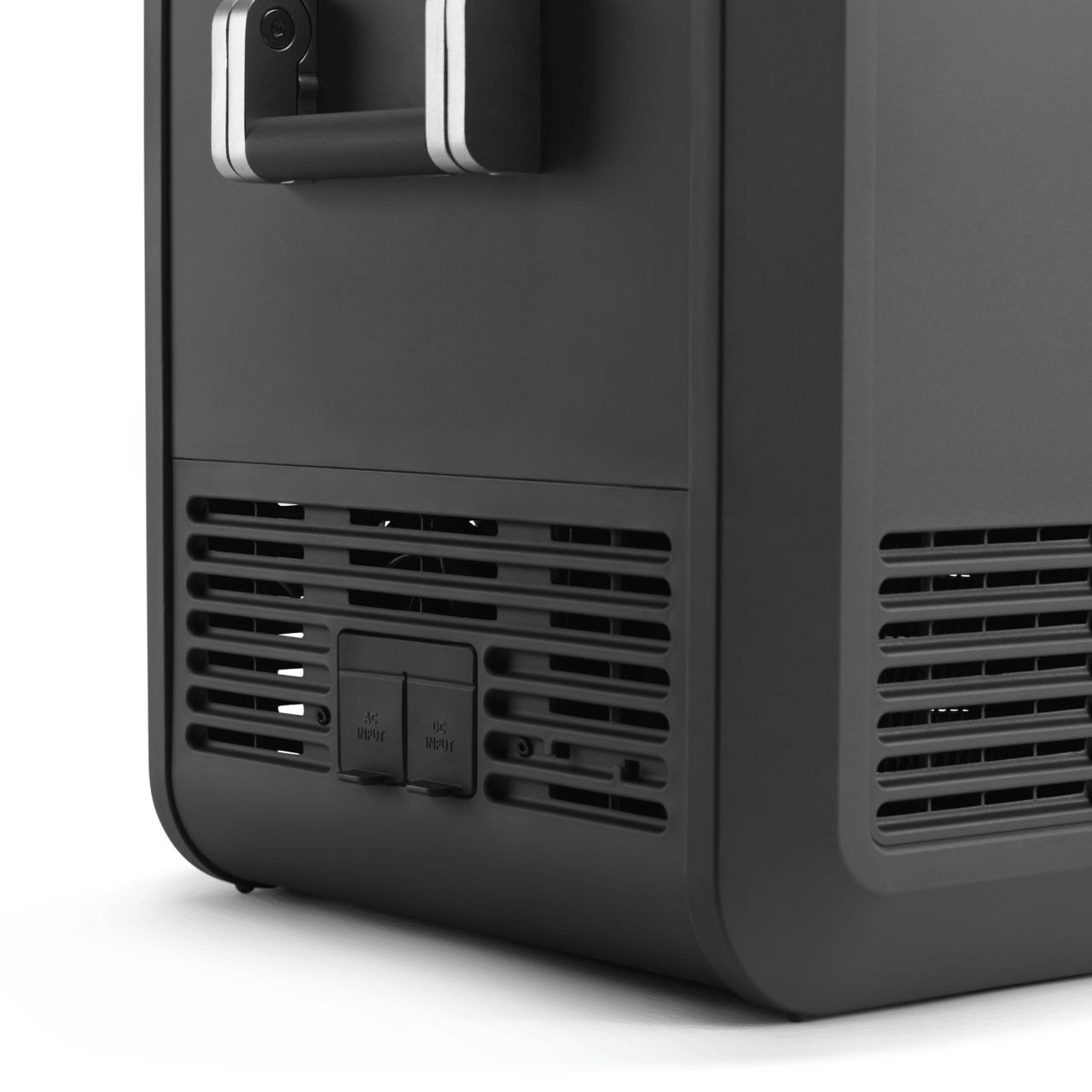

Flexible power options
Powered by AC or DC

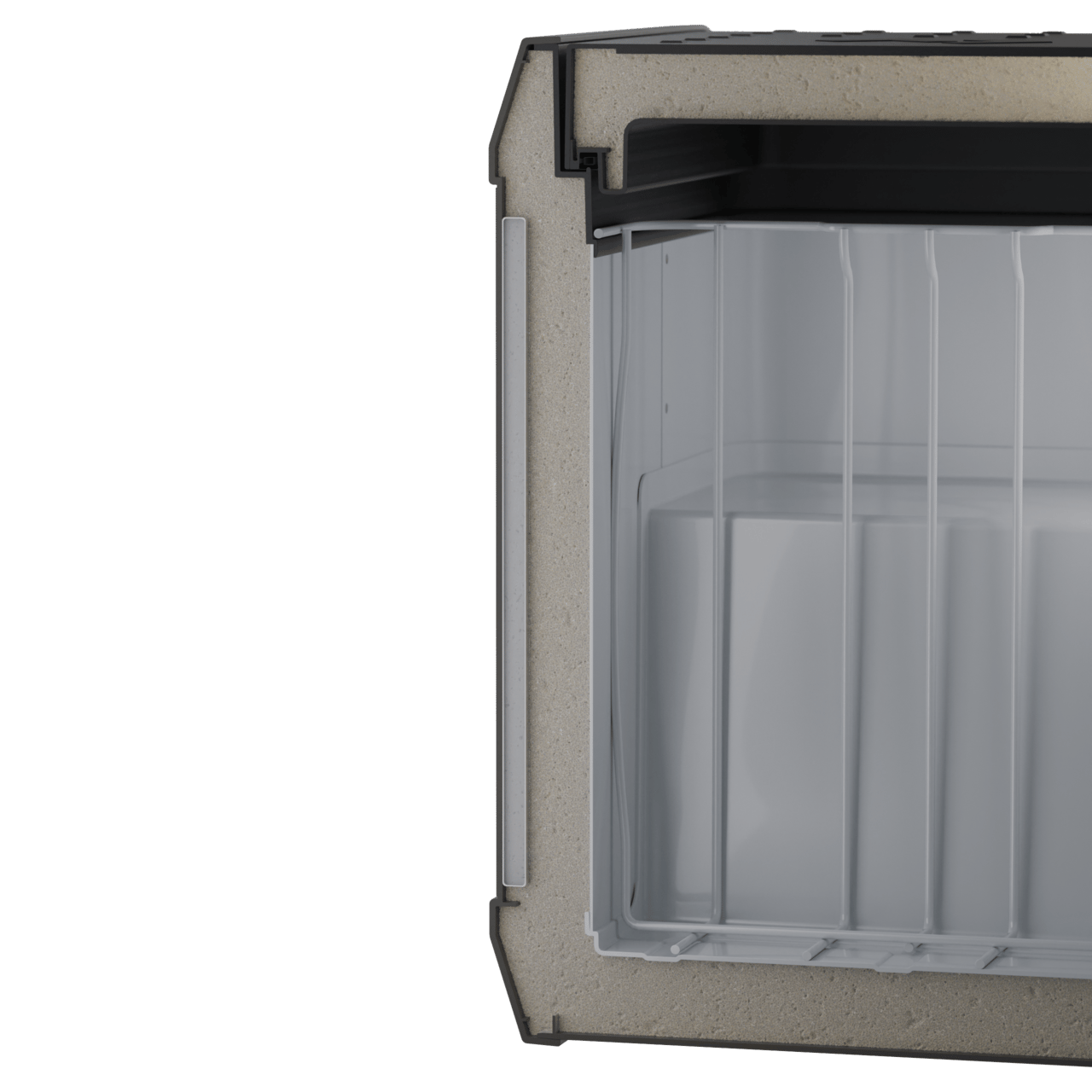

Vacuum insulated panels
Vacuum insulated panels provide for superior insulation.

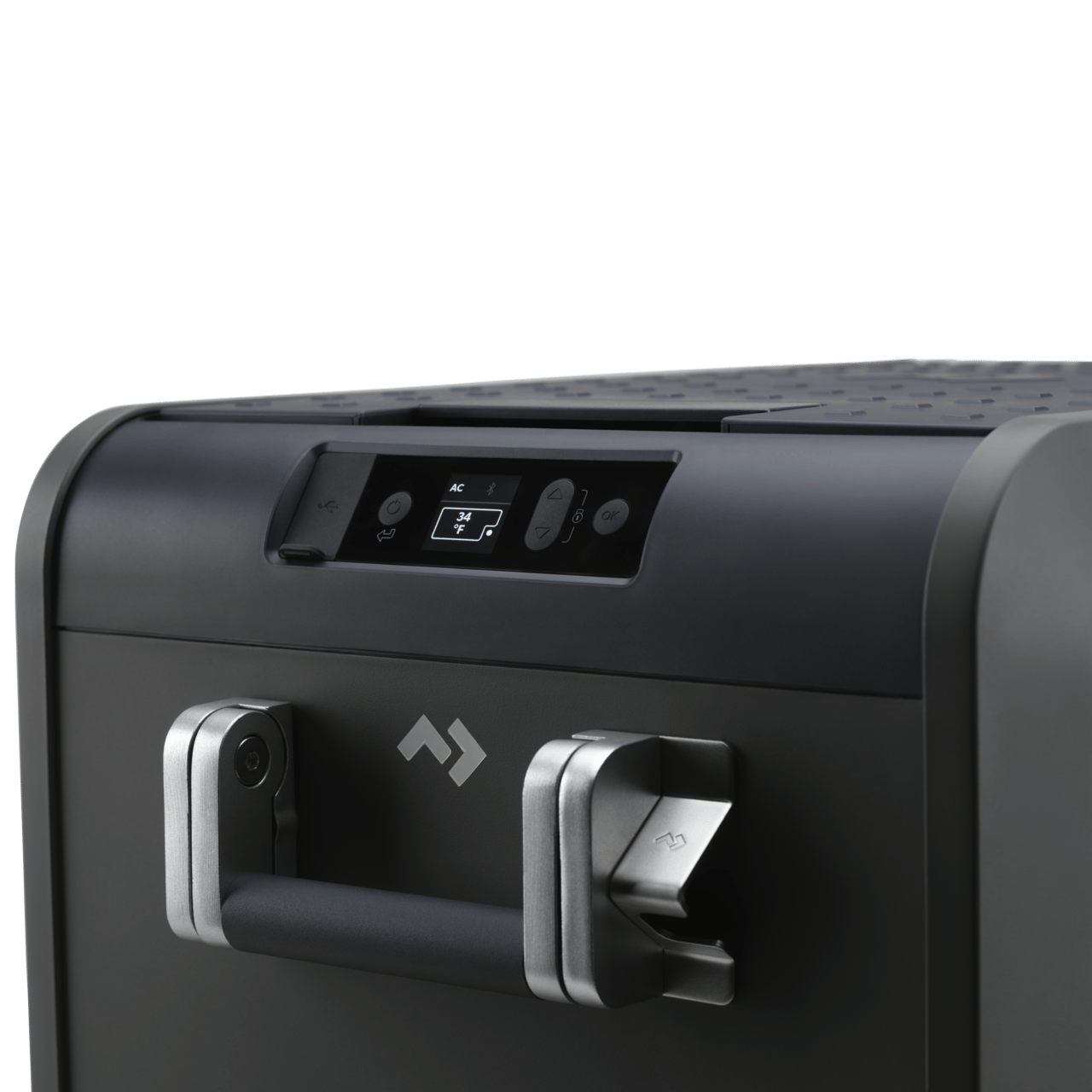

User friendly, weather-resistant interface
Easy-to-read, weather-resistant, high-resolution colour operating display, with 18W USB (QC 3.0) port and soft-touch buttons.

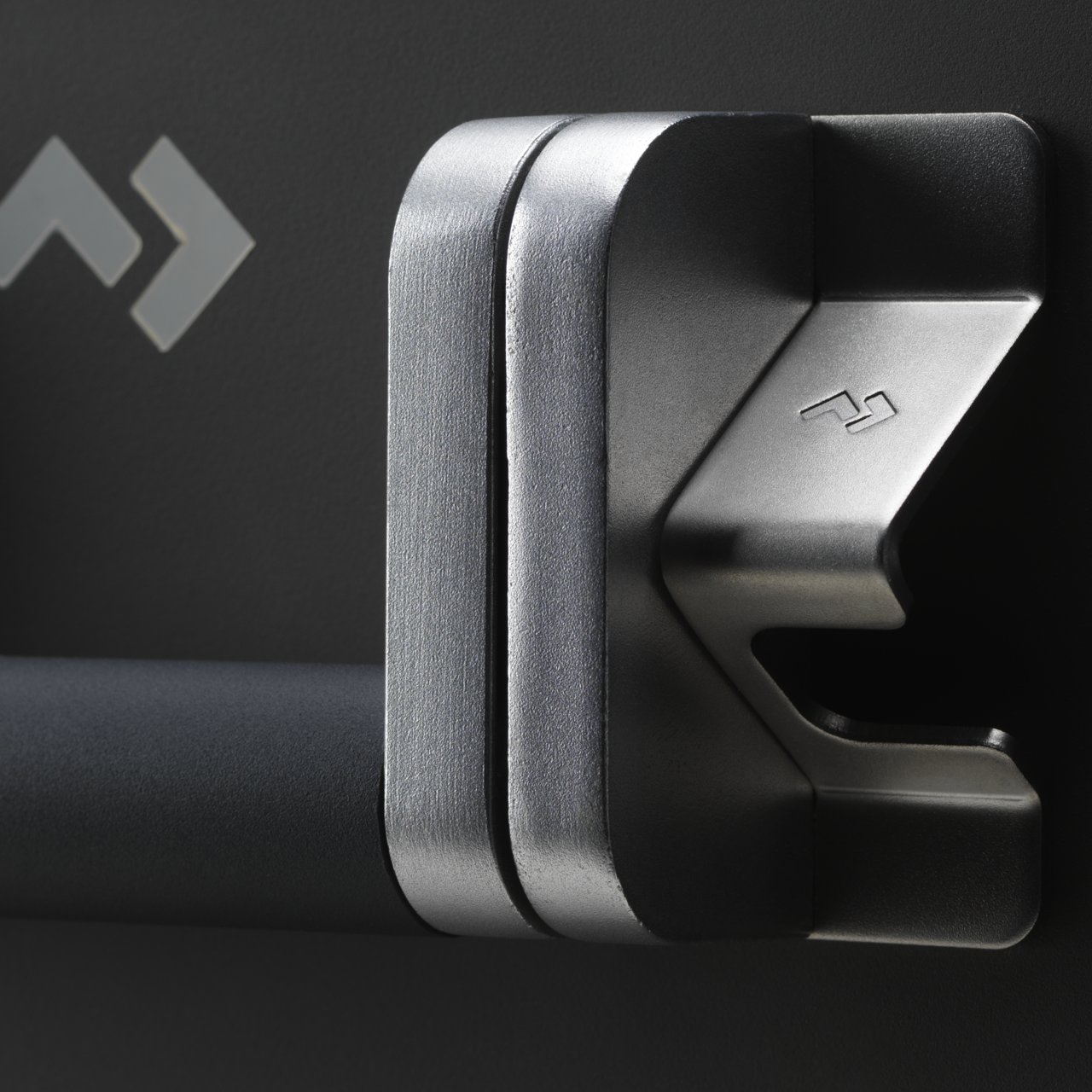

Packed with features
Including a removable wire divider, self-folding aluminium alloy handles, TPE gaskets ensuring a tight lid seal, integrated bottle opener, removable lid with textured non-slip logo.
2 questions
VIPs – Vacuum Insulated Panels – the latest electric cooler insulation technology,
that keeps your cooler cold, light, and efficient.
Just like the insulation in your water bottle – by eliminating gas molecules, VIPs drastically reduce heat transfer. The result? Your CFX5 stays cold with less energy, while remaining compact and lightweight. More efficiency, more cooling, less bulk.
Benefits of VIP:
Effective Thermal Insulation: VIP creates a near-perfect vacuum, drastically reducing heat transfer and preventing convective heat loss.
Reliable Cooling: VIP ensures stable temperatures, even in harsh conditions, keeping your items consistently chilled.
Energy Efficient: The advanced insulation reduces power consumption, making it ideal for extended off-grid use without sacrificing cooling performance.
Lightweight Design: VIP allows for thinner insulation, keeping the cooler both lightweight and easy to carry.
Yes, cleaning your CFX electric cooler is simple. Just wipe down the interior and exterior surfaces with a mild cleaning solution and a towel. Regular cleaning helps maintain the hygiene and longevity of your cooler.
