Description
- Compact footprint for installation flexibility
- Engineered to maximize the performance of R410A, an environmentally safe refrigerant
- Hot-gas bypass valve maintains heating performance in cold seawater
- Up to six modules can be multiplexed for larger capacities
- Thermodynamically-matched components assure maximum performance
- Spiral-fluted cupronickel condenser coil provides maximum heat transfer and corrosion resistance
- High-efficiency rotary or scroll compressors
Provides installation flexibility, reliability, maximum performance and easy accessibility for maintenance and repair.
Specifications
SKU: 9108844415
| Model | Chiller Cond CHC Modular |
|---|---|
| Product Description | Chilled Water Module Compact 24,000 BTU/h--410A |
| Dimensions product depth, [mm] | 444.5 |
|---|---|
| Dimensions product height, [mm] | 482.6 |
| Dimensions product width, [mm] | 622.3 |
| Dimensions product width, [in] | 24.5 |
| Net weight, [kg] | 49.76 |
| Net weight, [lbs] | 109.70 |
| Input voltage (AC), [V] | 230 |
|---|---|
| Input frequency, [Hz] | 50/60 |
| Required AC circuit protection min, [A] | 25 |
| Required AC circuit protection max, [A] | 45 |
| Hermetically Sealed | Yes |
|---|---|
| Refrigerant, type | R410A |
| GWP | 2088 |
| CO2 equivalent, [t] | 1,065 |
| Cooling Capacity ISO5151 Display | 7033.71 |
| Cooling Capacity Display | 24000 |
| Current consumption min cooling, [A] | 8.5 |
| Current consumption max cooling, [A] | 8.5 |
| Dimensions parcel depth, [mm] | 622.3 |
|---|---|
| Dimensions parcel height, [mm] | 482.6 |
| Dimensions parcel width, [mm] | 444.5 |
| Parcel weight, [kg] | 59.06 |
| Parcel weight, [lbs] | 130.22 |

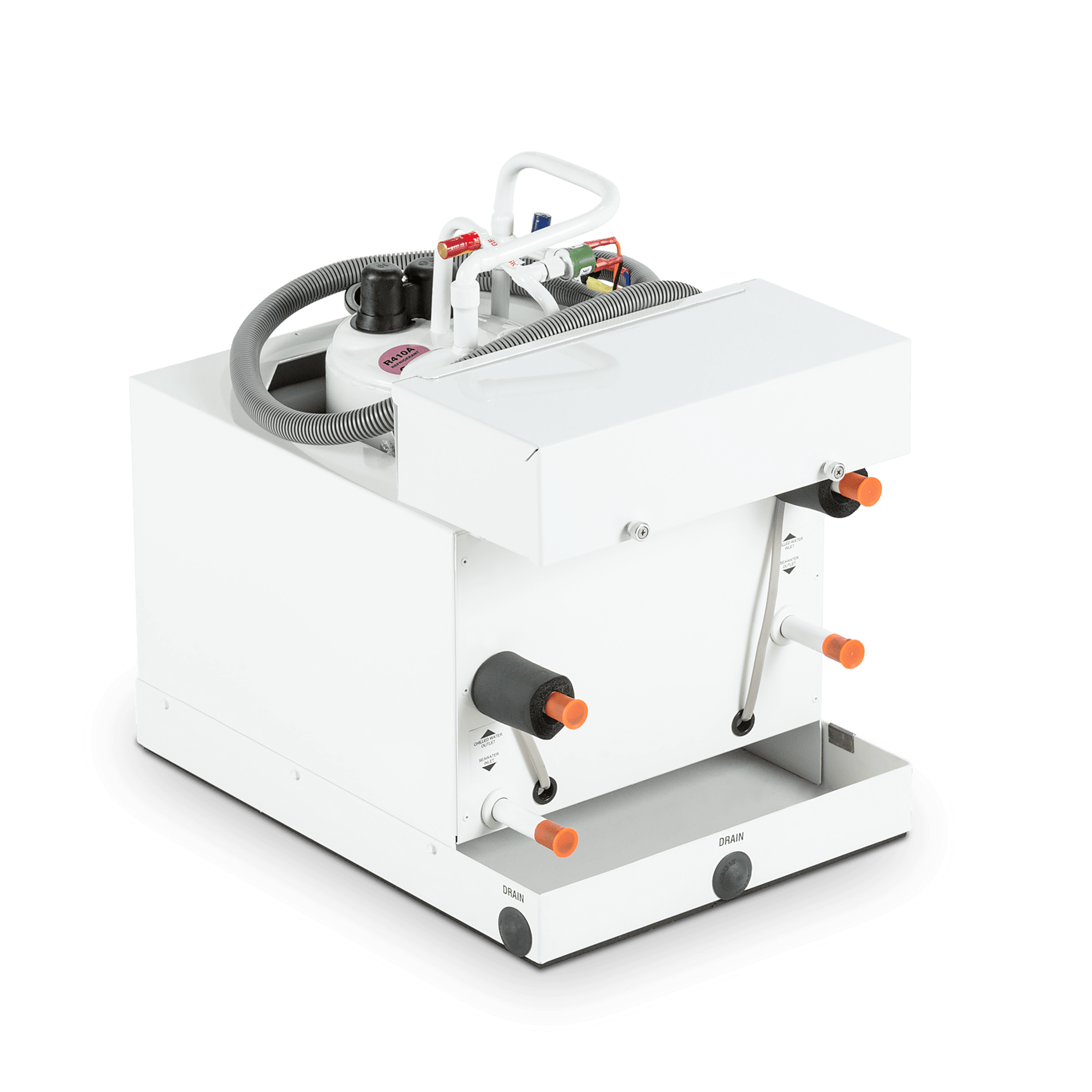

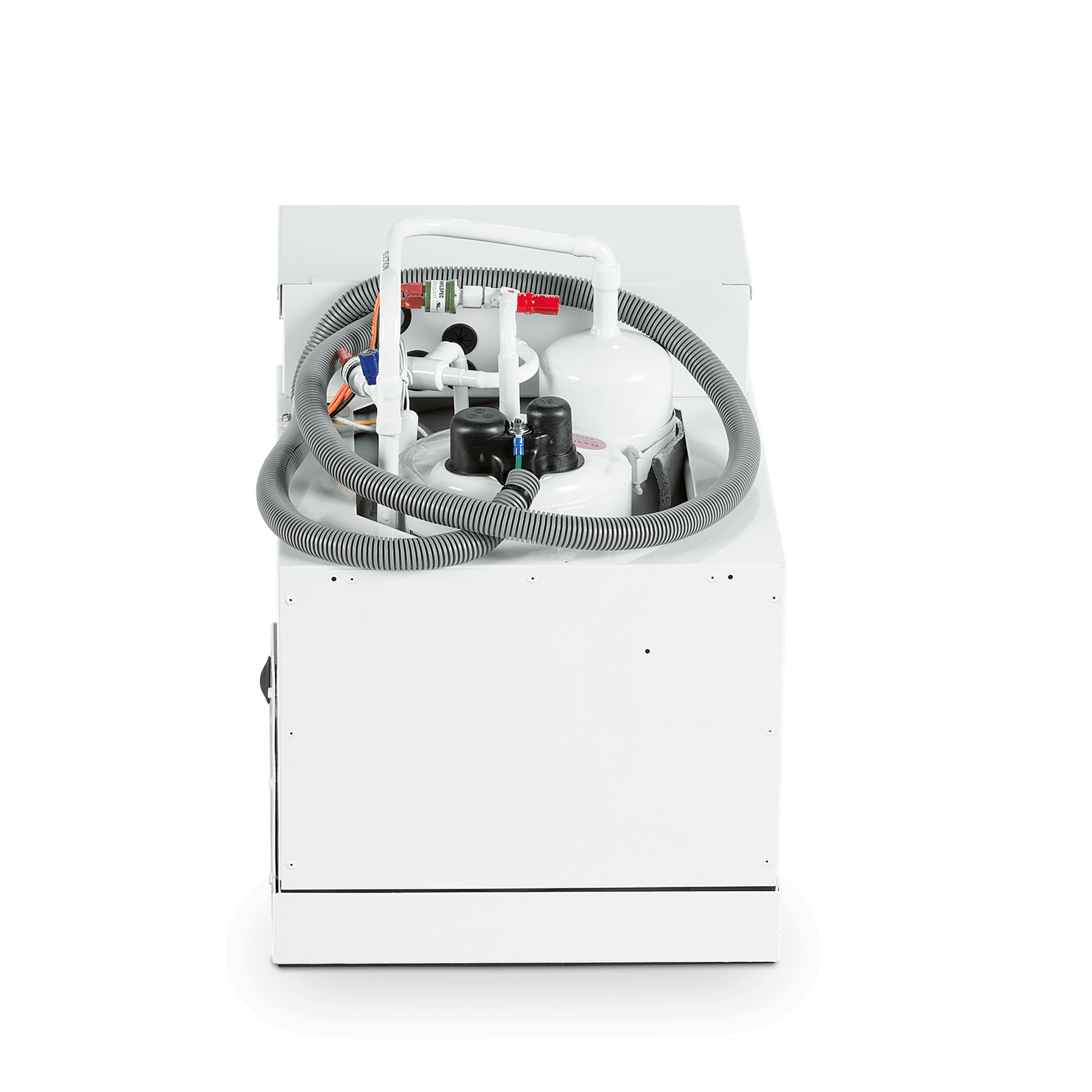

The Dometic CHC compact chiller is ideal for larger boats in the 45-70 ft/15-20 m range. The innovative, space-saving compact base of the Chiller Compact was designed for individual modules to be joined together into one larger system to provide precise capacity requirements for any need.
