Description
- Optimised for refrigeration volumes up to 100 L, delivering balanced cooling capacity without oversizing the compressor
- Low rated power draw (approx. 56 W max) supports energy-efficient operation on 12 / 24 V DC systems

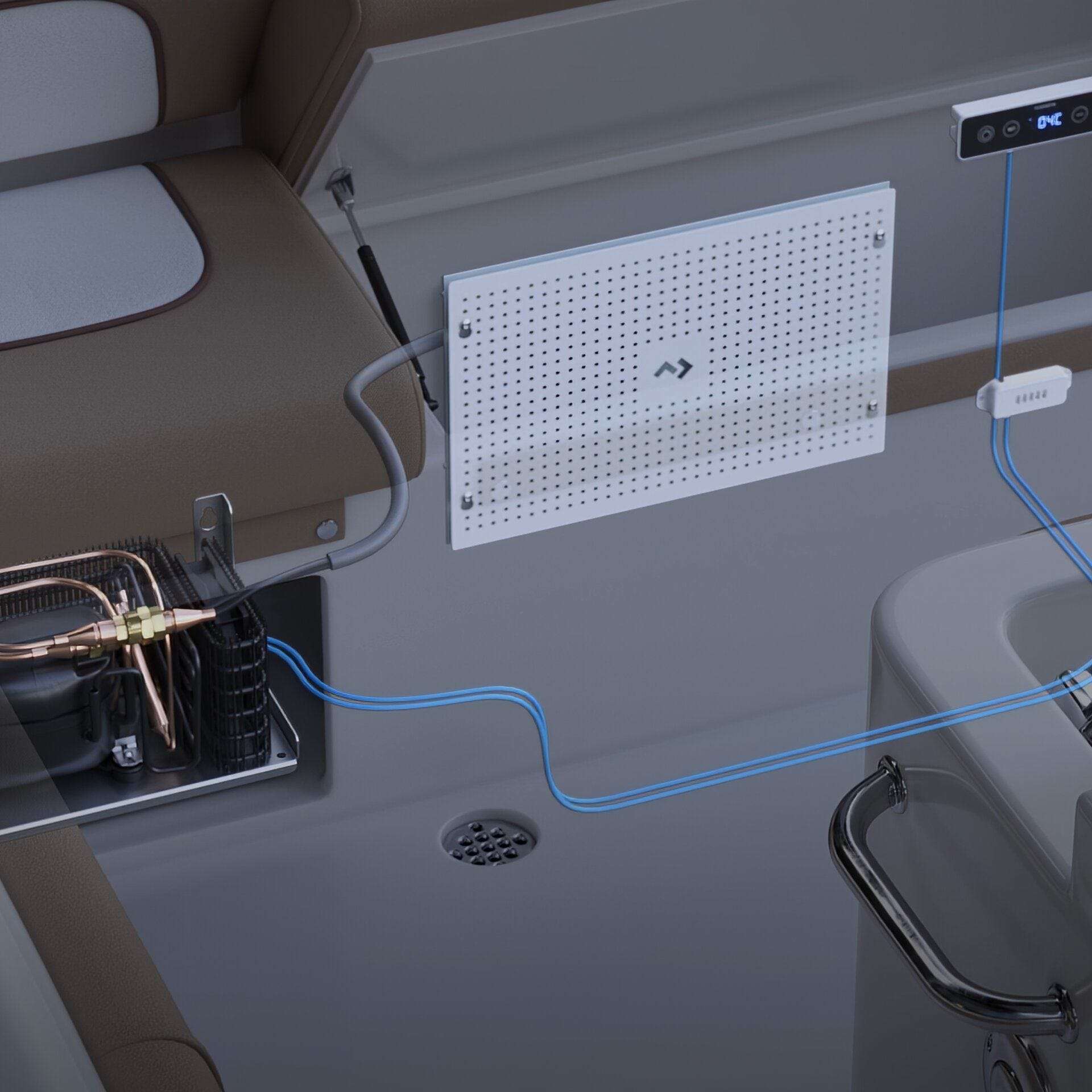

- Ultra-compact footprint (195 × 200 × 141 mm) designed for tight lockers and restricted marine installations
- Lightweight 3.6 kg construction simplifies retrofit handling and reduces onboard weight impact
- High-efficiency compressor platform using low-GWP R1234yf refrigerant for reduced environmental impact
- Heavy-duty spring coupling connections enable fast, secure installation
- Highly compact design for the most typical cool box sizes

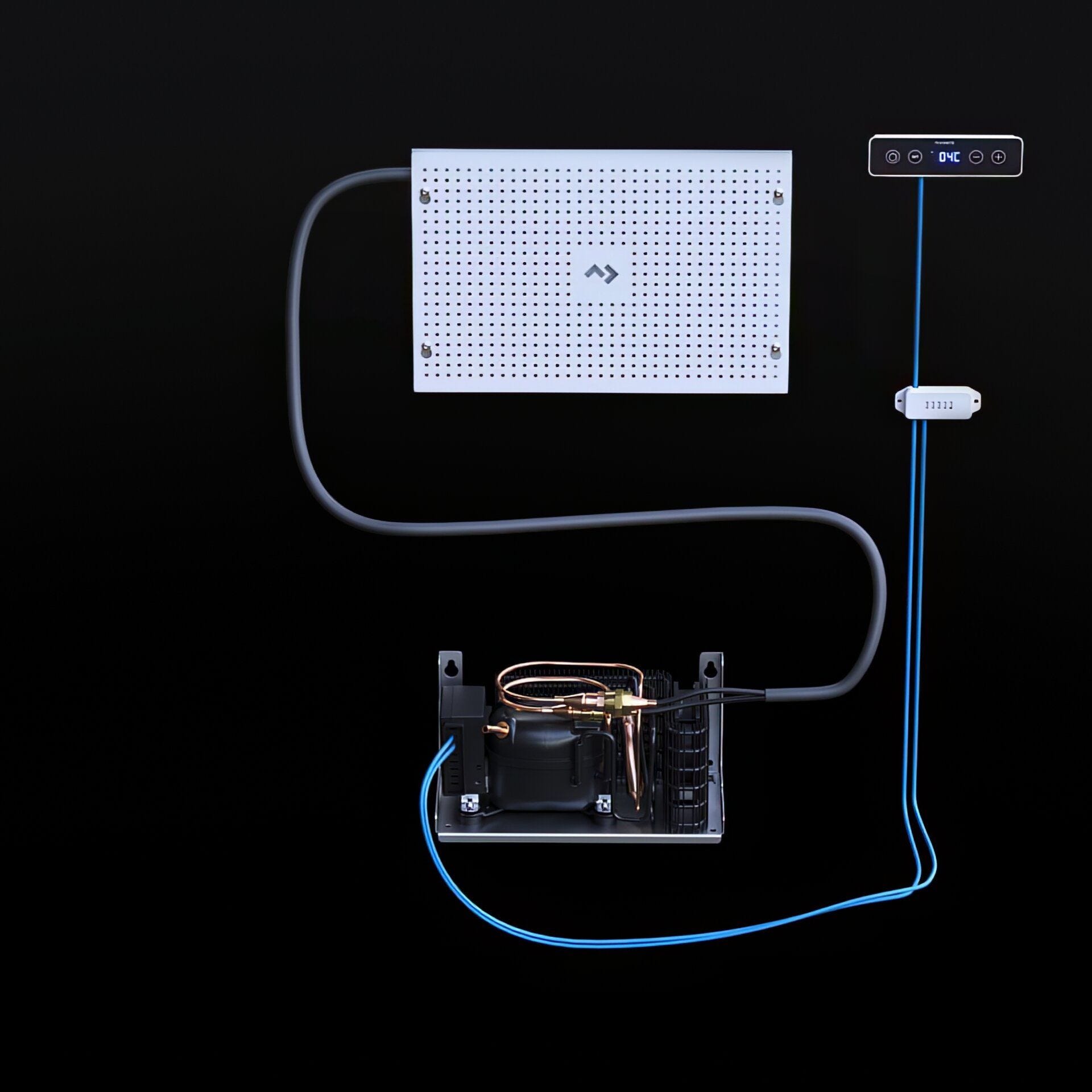

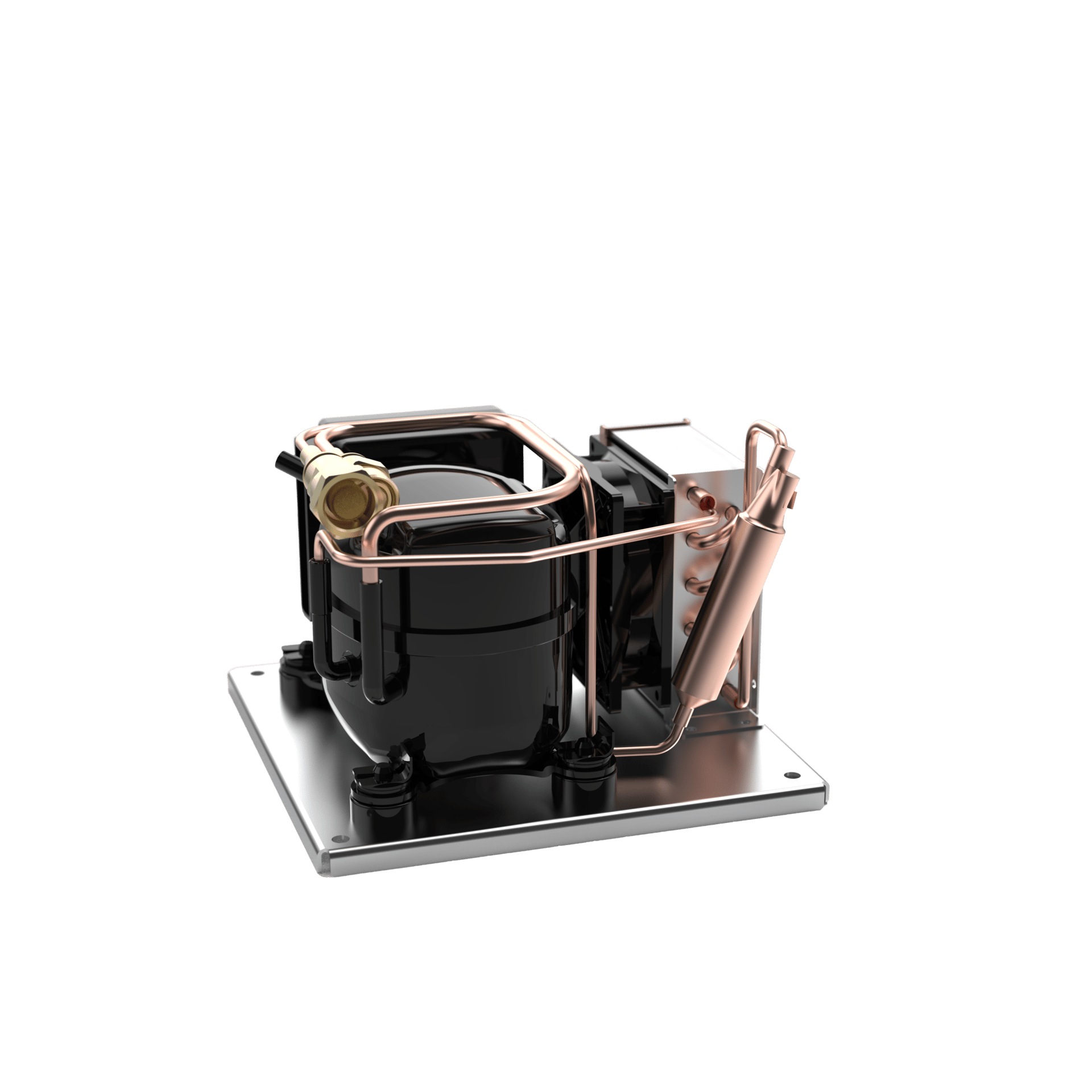

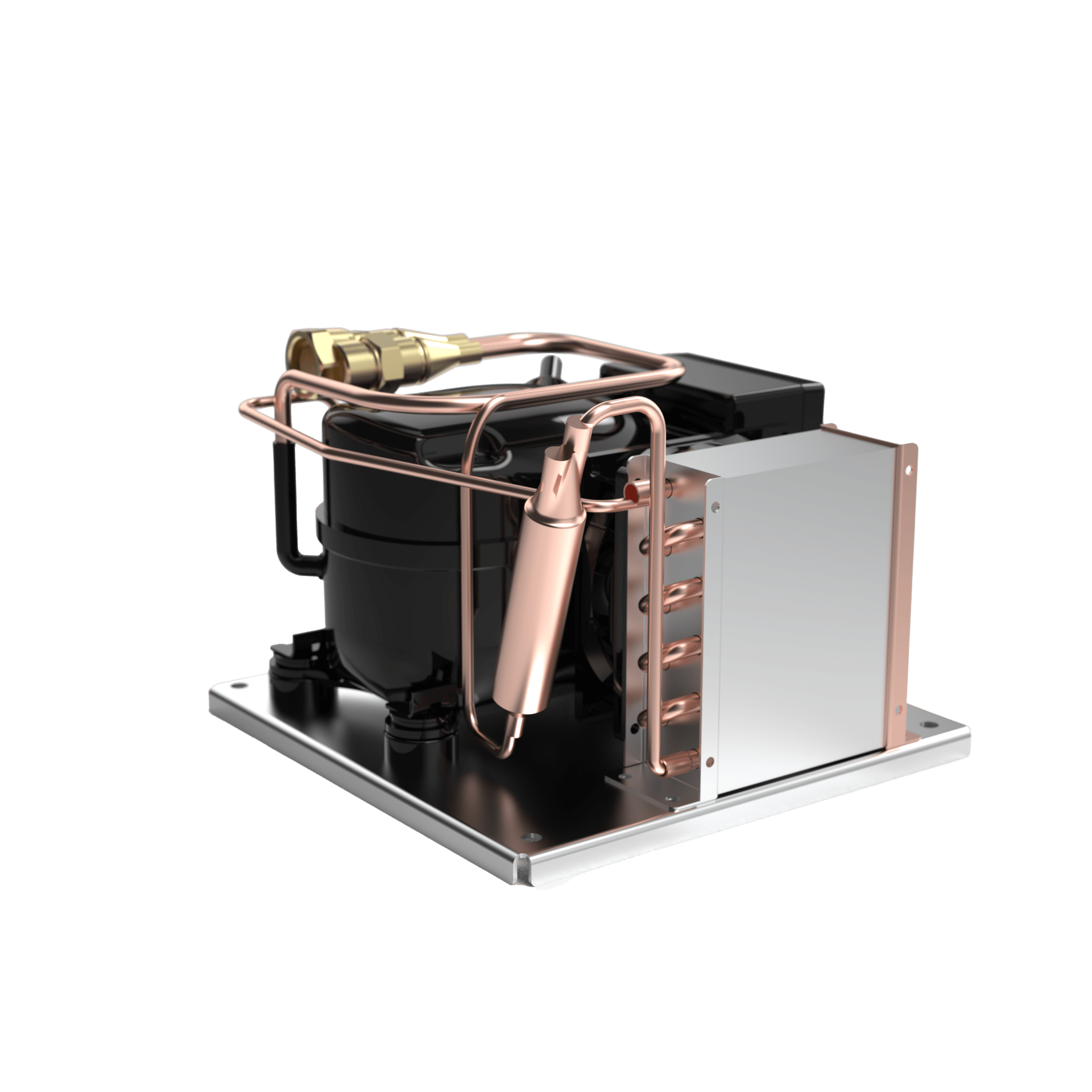

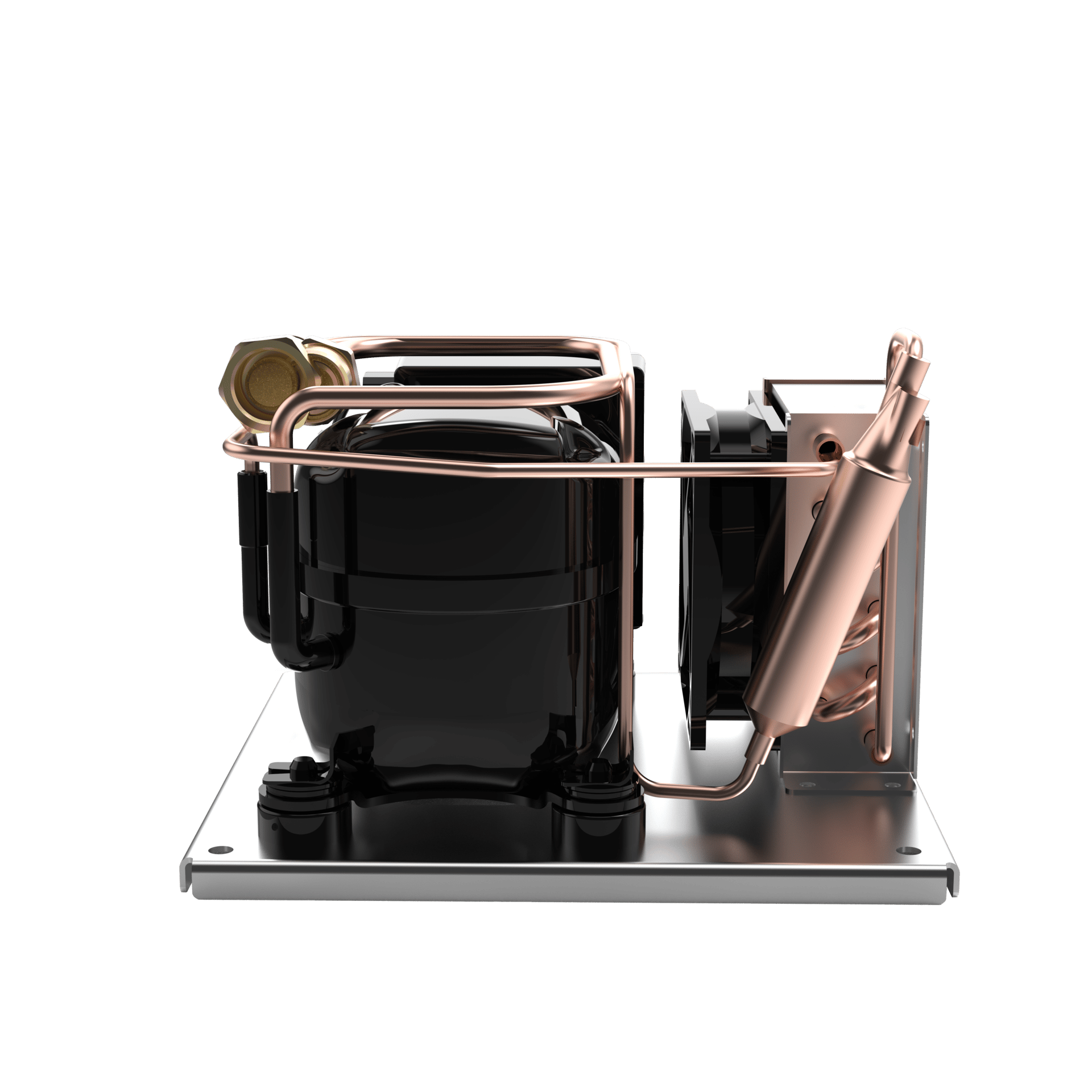

Engineered for dependable performance at sea, the Dometic CX series delivers efficient, space-saving cooling power for custom refrigeration systems. Compact, pre-charged units with low-GWP refrigerant provide reliable operation in any marine environment, ready to pair seamlessly with a matching VX evaporator for tailored cooling capacity.
Specifications
SKU: 9630000216
| Model | CX100 |
|---|---|
| Scope of delivery | 1 coldmachine, 1 manual |
| SKUCertificates | CE;EMC;eMark |

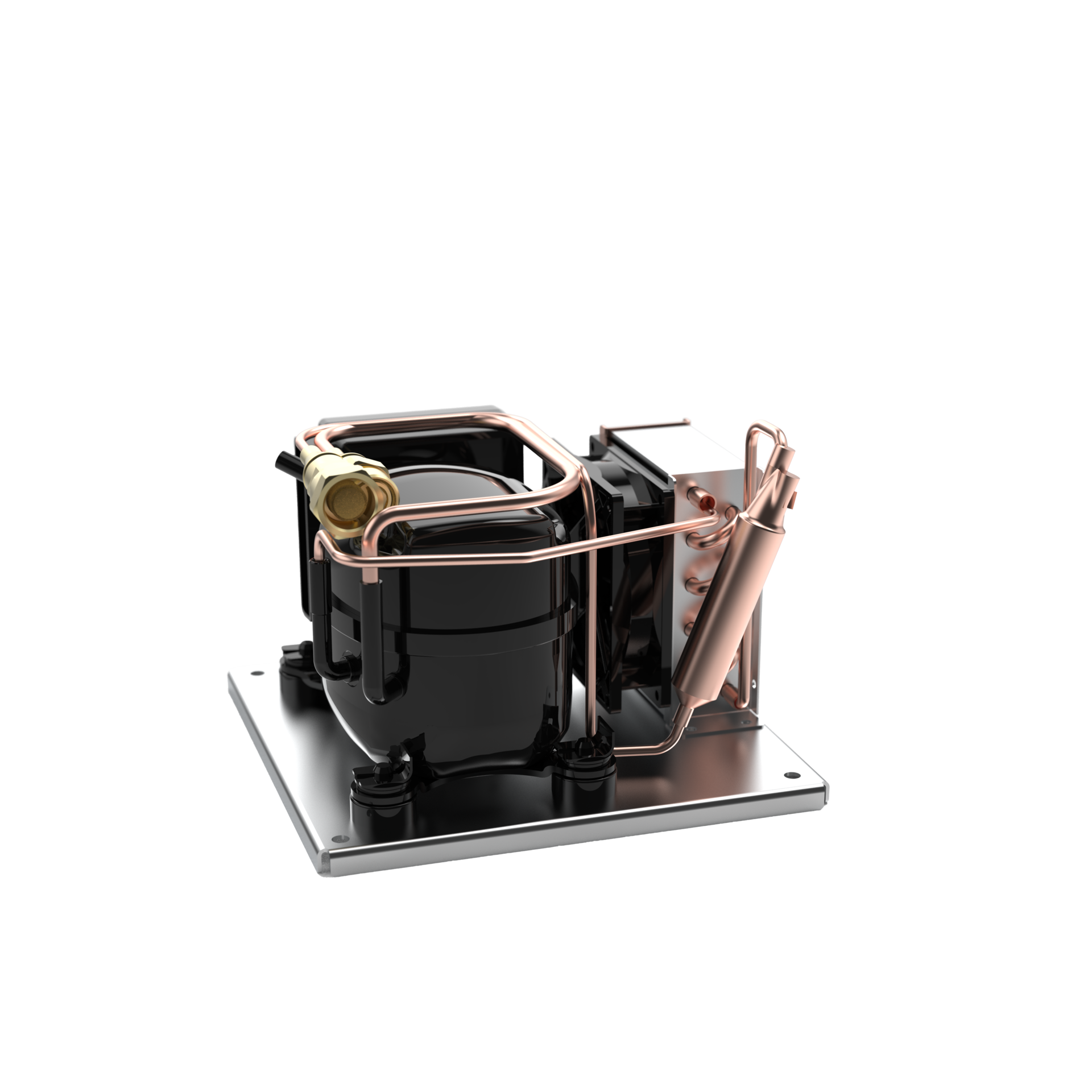

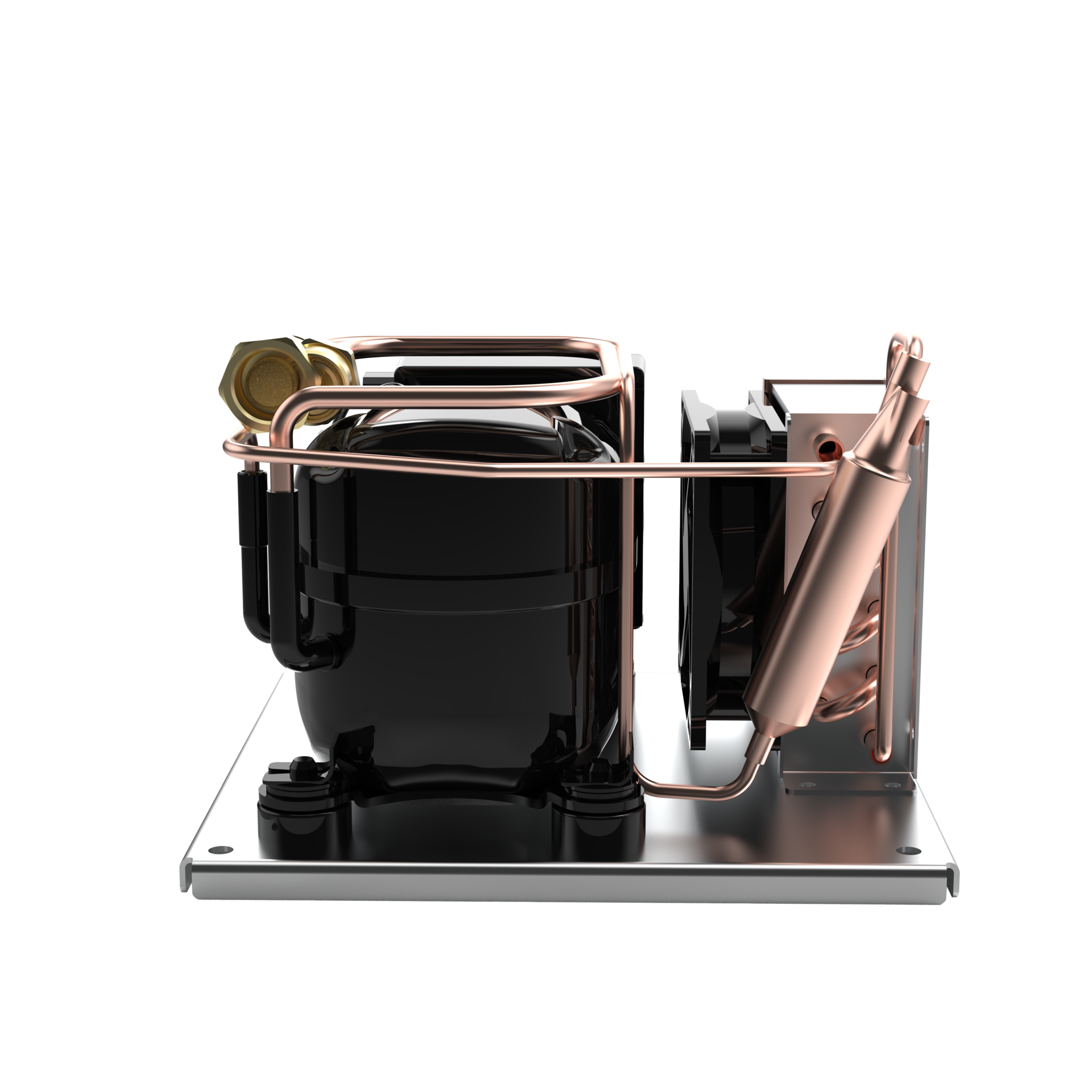

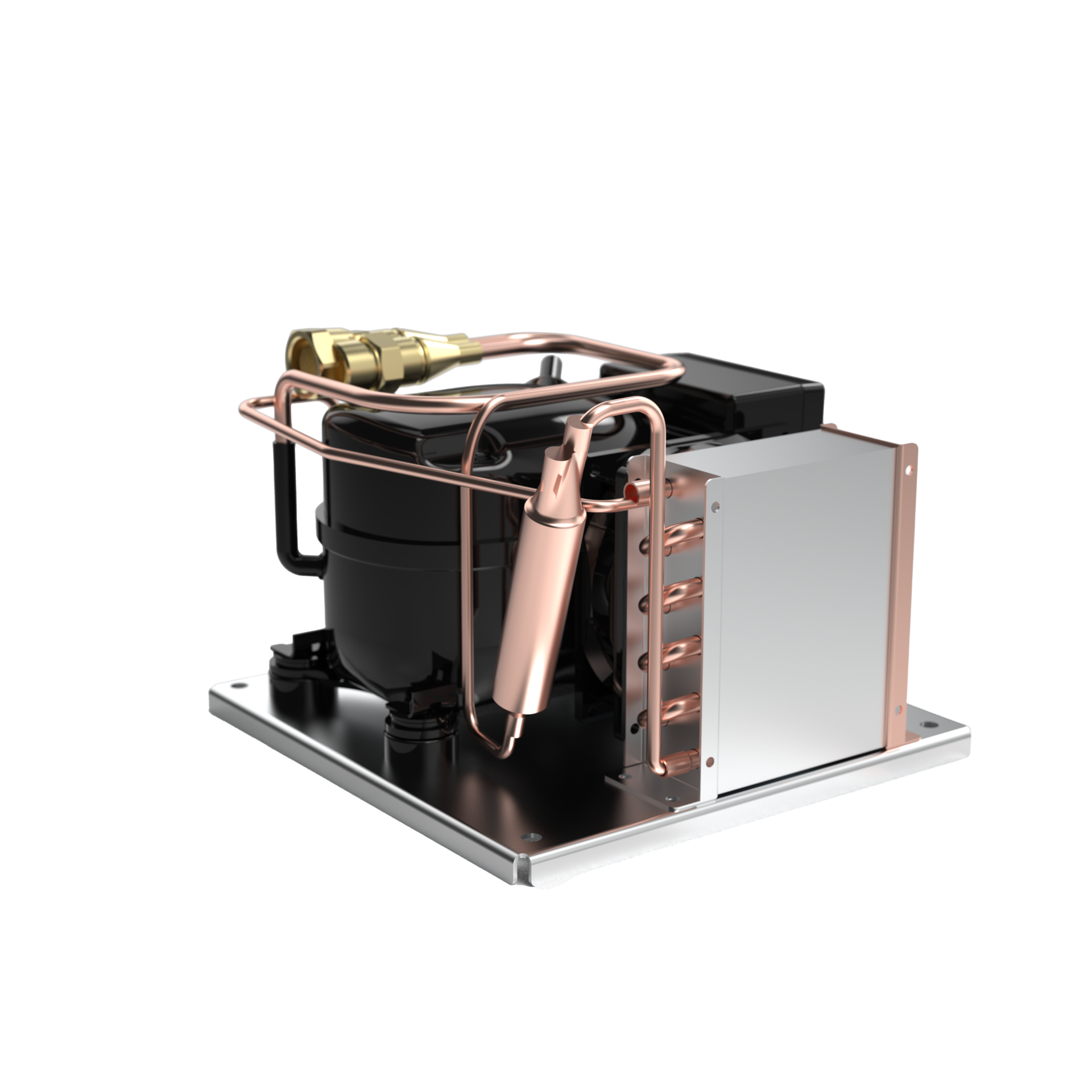

| Product Description | Compact condensing unit for volumes up to 100L |
| Dimensions product depth, [mm] | 200 |
|---|---|
| Dimensions product height, [mm] | 141 |
| Dimensions product width, [mm] | 195 |
| Dimensions product width, [in] | 7.68 |
| Input voltage (DC), [V] | 12/24 |
|---|---|
| Battery type | Not Applicable (NA) |
| Refrigerant, type | R1234yf |
|---|---|
| GWP | 0.5 |
| Climate class (EN 62552) | T |
| Dimensions parcel depth, [mm] | 225 |
|---|---|
| Dimensions parcel height, [mm] | 190 |
| Dimensions parcel width, [mm] | 230 |
| Parcel weight, [kg] | 4.27 |
| Parcel weight, [lbs] | 9.42 |
