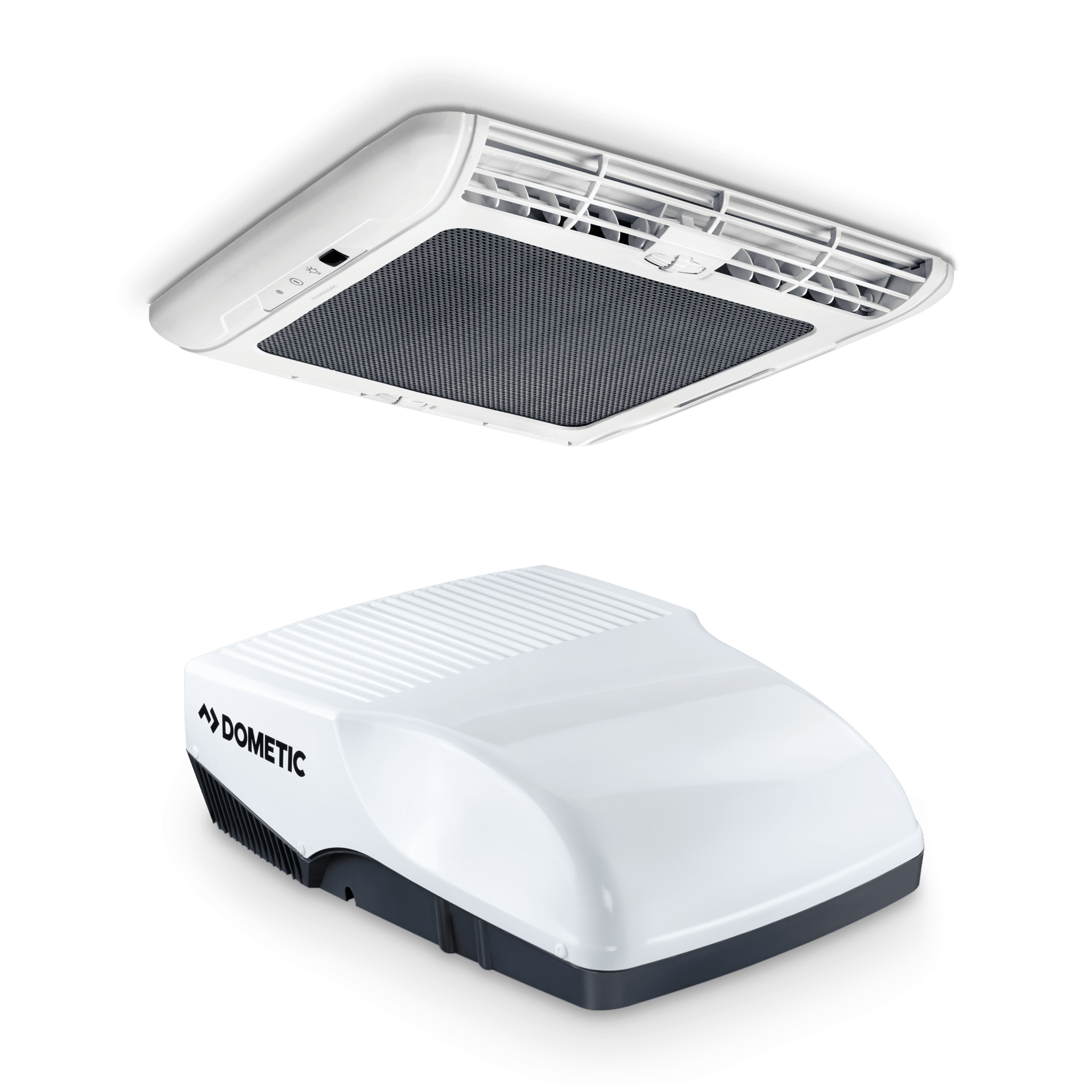

Dometic FreshJet 2200

Roof air conditioner with air distribution box for vehicles up to 7 m

  • Adjustable flow
  • Convenient control
  • LED lighting

This FreshJet is one of the most compact roof air conditioners on the market. Cool, heat and dehumidify motorhomes and caravans of up to 7 m in length. Achieve the perfect indoor climate!

Description

  1. Ideal for vehicles of up to max. 7 m
  2. Cooling capacity: 2200 watts/7500 Btu/h
  3. Ultra-compact lightweight design
  4. Cool and dehumidify air at the touch of a button
  5. Can also be used while driving with optional DC kits
  6. Efficent air distribution in two directions
  7. Can be used as a duo unit for creating separate climate zones in larger vehicles

Specifications

SKU: 9600001899

Dometic FreshJet 2200 — General specifications
ModelFJ2200
Scope of deliveryRoof top Unit, ADB, Screws, Remote control, Installation Manual, User Manual
SKUCertificatesCB
Product DescriptionRoof air conditioner with air distribution box for vehicles up to 7 m

Dometic FreshJet 2200 — Dimensions specifications
Dimensions product depth, [mm]787
Dimensions product height, [mm]225
Dimensions product width, [mm]562
Dimensions product width, [in]22.13
Net weight, [kg]32
Net weight, [lbs]70.56
Standard mount. material thickness 1 min, [mm]25
Standard mount. material thickness 1 max, [mm]60
Cut out depth, [mm]400
Cut out width, [mm]400

Dometic FreshJet 2200 — Electrical specifications
Input voltage (AC), [V]220
Input frequency, [Hz]60

Dometic FreshJet 2200 — Performance specifications
Hermetically SealedYes
Refrigerant, typeR407C
GWP1774
CO2 equivalent, [t]0.92
AirFlow, [m<sup>3</sup>h]351.14
Cooling Capacity ISO5151 Display1800
Cooling Capacity Display6141.85
Operating temperature min, [°C]16
Operating temperature max, [°C]52

Dometic FreshJet 2200 — Properties specifications
Thermostat controlElectronic Thermostat

Dometic FreshJet 2200 — Logistics specifications
Dimensions parcel depth, [mm]830
Dimensions parcel height, [mm]360
Dimensions parcel width, [mm]615
Parcel weight, [kg]38.10
Parcel weight, [lbs]84.01

Product size & weight

W 562 x H 225 x D 787 mm

Weight: 32 kg

Add the essentials

Highlights

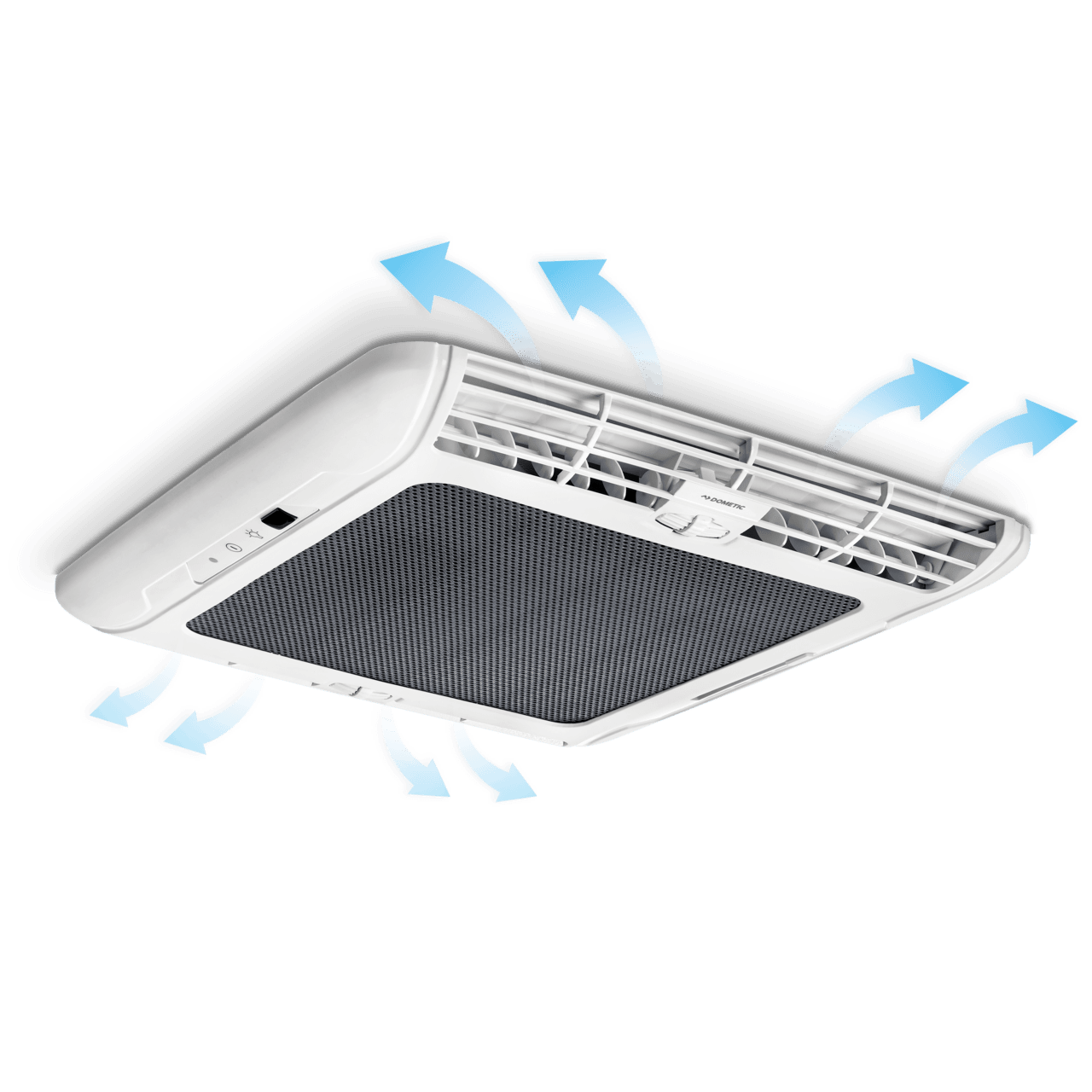

Adjustable flow

Air flow can be individually adjusted up or down, left or right.

Convenient control

Remote control for easy and convenient adjustment of functions

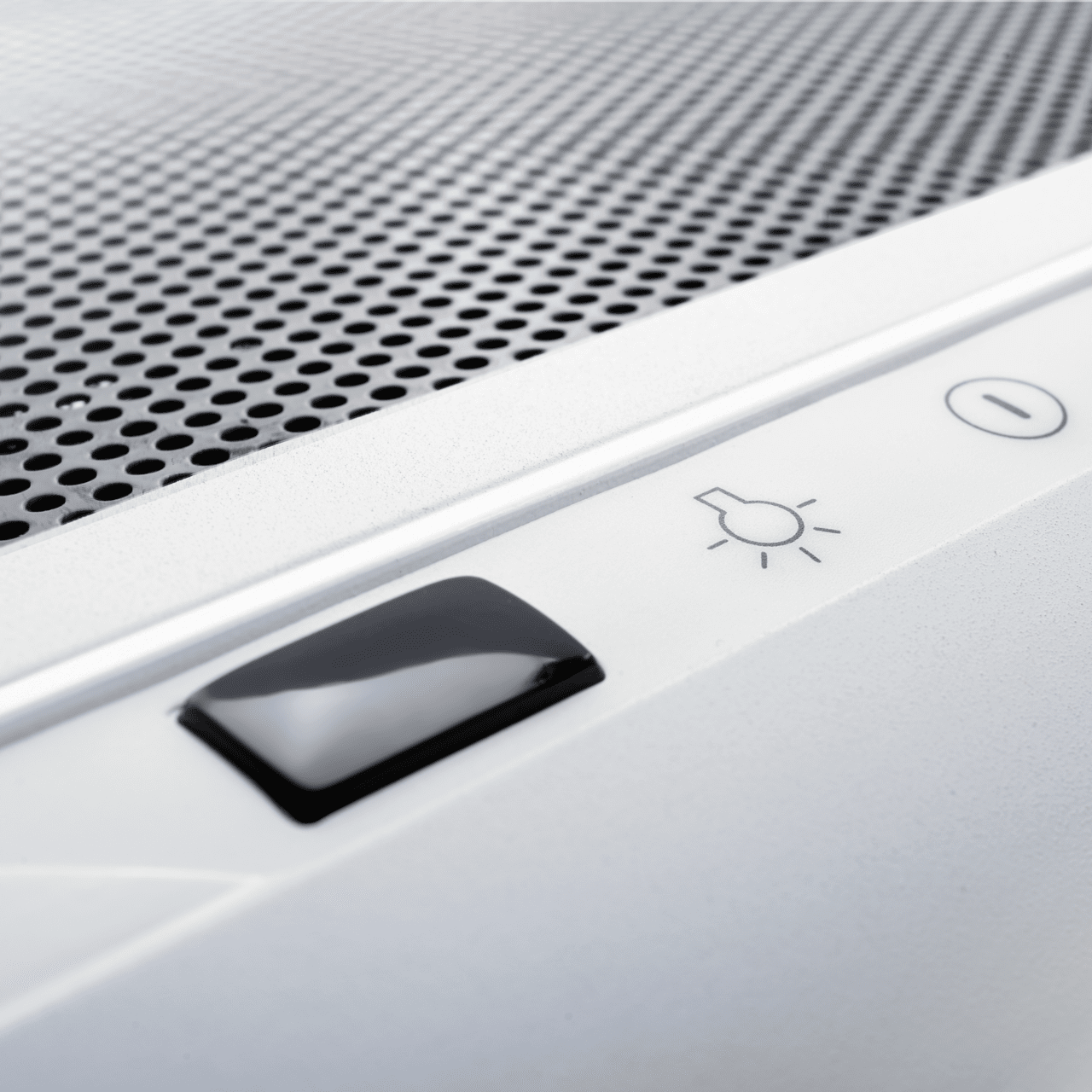

LED lighting

Ambient lighting fitted in the air distribution box

Questions, answered.

A few things worth knowing before you decide.

Still need a hand?

Contact product support

4 questions

If you are travelling to cooler climates then this will not challenge the air conditioners to the extremes, a unit with a smaller power rating will do for these types of trips. You should not save on power, though, if you regularly travel to warmer climates and even less so if you have children or pets on board as staying in a recreational vehicle can quickly become uncomfortable on a hot summer day. When the nights are not cooler either, rest and recuperation is only possible with an adequate air conditioner.

Air conditioners work on basically the same principle as the cooling units of kitchen refrigerators. Their cooling efficiency is way higher though. In either system a refrigerant extracts heat from the space to be cooled and dissipates it to the outside. An RV air conditioner should additionally reduce the humidity. AC systems most commonly used for recreational vehicles:

  • Evaporation systems: Water is vapourised in a roof-mounted unit and collected in a filter. A fan draws ambient air in through the filter, which results in a heat exchange. Benefits: low current consumption, lightweight. Drawback: The energy efficiency depends on the ambient humidity; so the performance of the system varies. It drops when the humidity is > 85% – and that's exactly the level where air conditioning is needed. Moreover, evaporation systems will, by nature increase the humidity in the vehicle, regardless of the ambient conditions.

The temperature conditions in recreational vehicles and the reasons behind them RV and caravans are no houses and they don't have thick walls, even if they are reasonably insulated they will heat up in the sun. The temperature inside can quickly rise to 30°C or more and not only in the hot and sunny south, but also in moderate climate zones. Besides insulation, the temperature conditions inside the vehicle depend on other factors, too: the size and number of windows, for instance. A caravan with small windows will heat up less quickly than a RV with generously sized glass surfaces and it does of course matter where you park your vehicle – in the blazing sun or in the shade of a tree. Do you take every opportunity to air the vehicle out? Or are all the windows closed and the heat can spread throughout the interior?

Travelling off the beaten track with all the comfort you are accustomed to – Dometic generators make it possible. They ensure reliable power supply wherever mains power is unavailable. This makes them a must-have accessory for outdoor enthusiasts striving for maximum freedom and independence.

Air conditioners have the highest start-up current of all electrical devices commonly used in recreational vehicles. However, this current level is only required for fractions of a second; the level required in continuous operation is much lower. As the mains hookups on most campsites are fitted with a delay fuse, the short-time peaks are normally no problem.
