Description
- Direct replacement for Penguin II

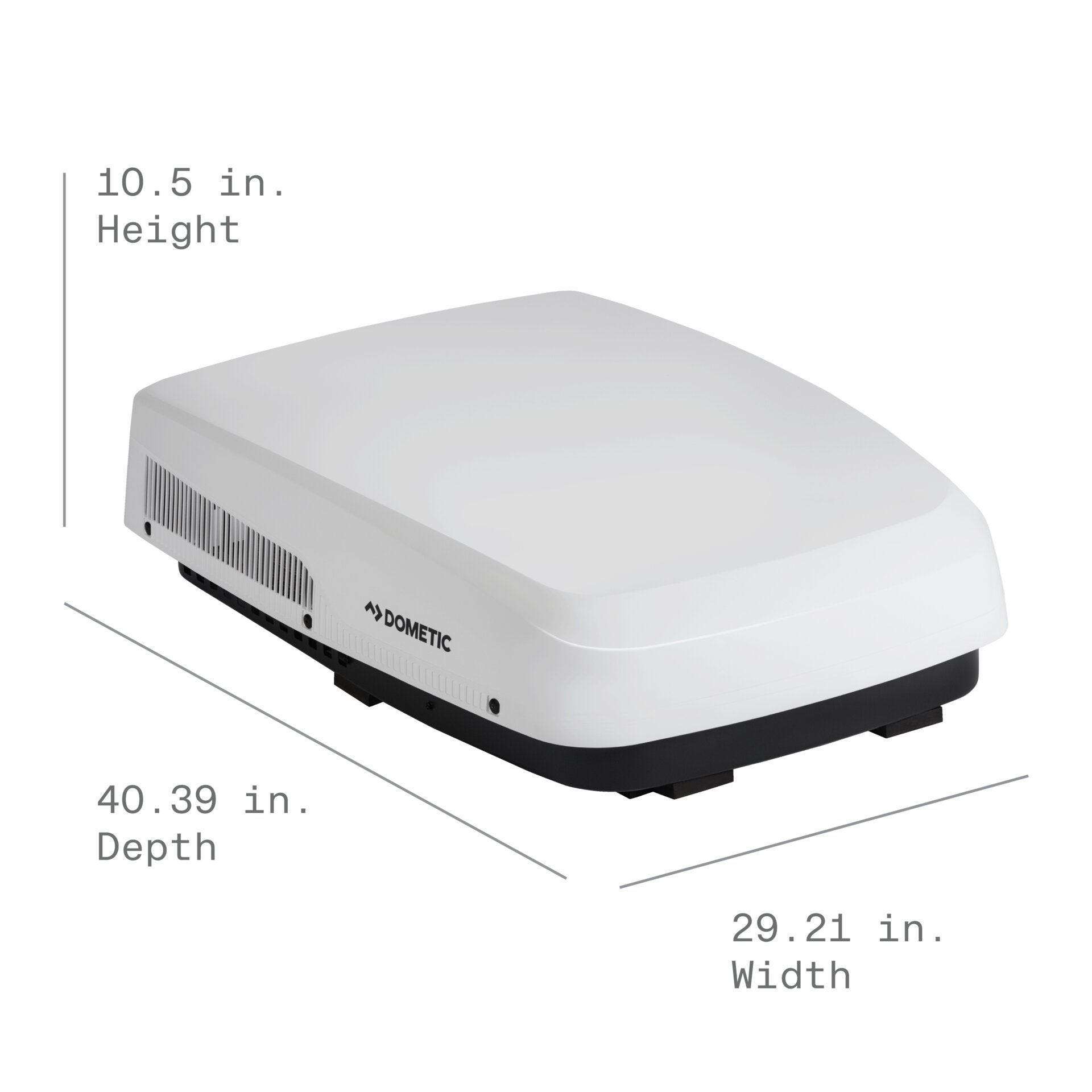

- Same installed 10.5" low profile fit height with updated FreshJet family look and feel
- Built-in hard start for reliable startups
- Reinforced steel base resists road shock
- Backwards compatible with Penguin II models
- High performance motor and fans with fixed speed compressor
- Coated evaporator coils for improved performance and durability
- R32 refrigerant- higher performance with less charge needed

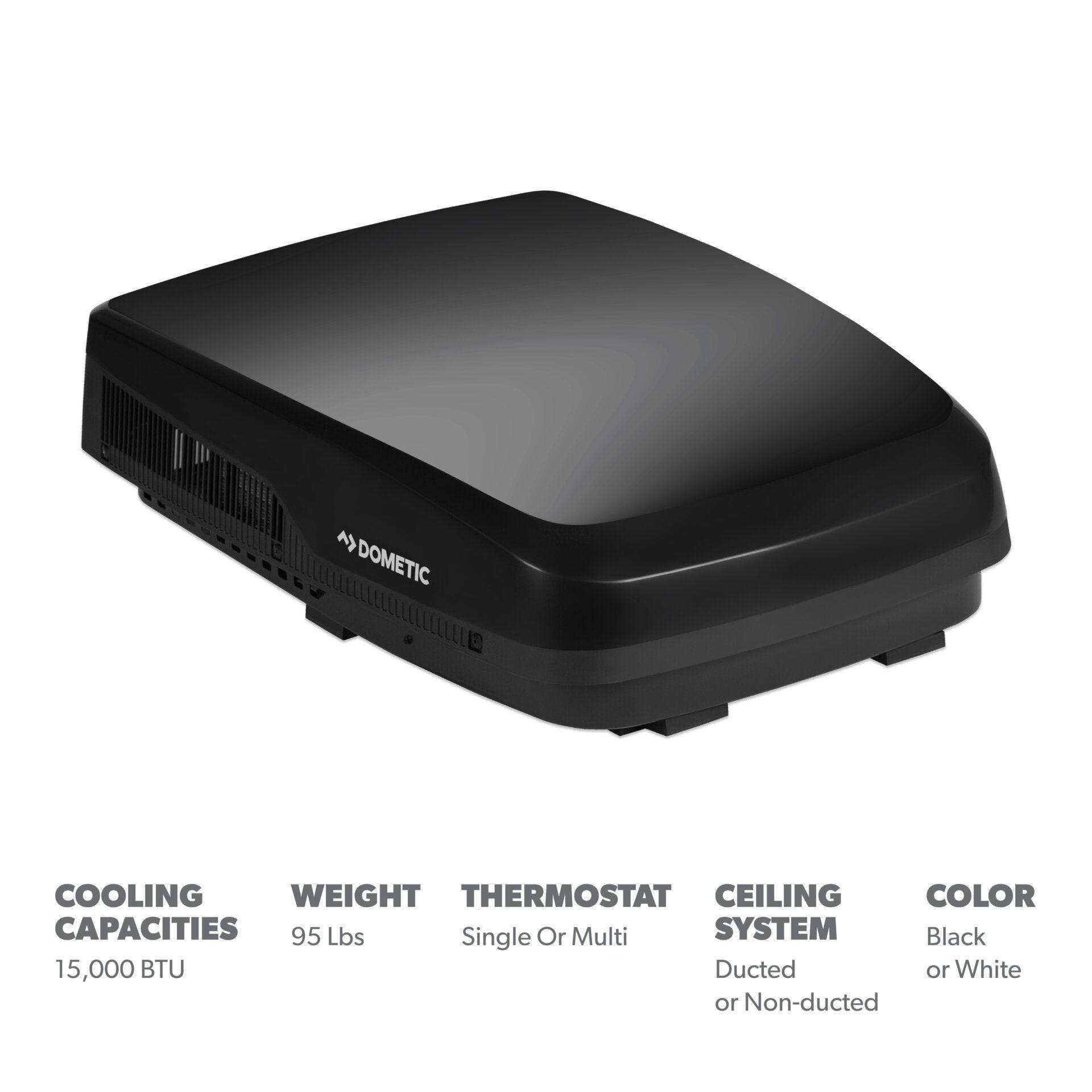

FreshJet 5 is Dometic’s low-profile rooftop air conditioner designed as a direct Penguin II replacement. The 15,000 BTU model delivers powerful cooling in a compact footprint and is available in both mechanical and electronic configurations. With built-in hard start, quieter performance, a reinforced steel base, and options with or without a heat pump, it’s ideal for new RV builds, universal replacements, and upgrades—delivering modern comfort without changing the fit.
Specifications
SKU: 9620015927
| Model | FJX5557M |
|---|---|
| Scope of delivery | 1 Air-conditioner, 1 warranty card |
| SKUCertificates | CSA |
| Product Description | 15,000 BTU - Rooftop Low Profile Air Conditioner with R32 Refrigerant - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required, sold separately (PACKAGE CANNOT BE |
| Dimensions product depth, [mm] | 1026.20 |
|---|---|
| Dimensions product height, [mm] | 742.30 |
| Dimensions product width, [mm] | 282 |
| Dimensions product width, [in] | 11.10 |
| Net weight, [kg] | 43.20 |
| Net weight, [lbs] | 95.26 |
| Standard mount. material thickness 1 min, [mm] | 18 |
| Standard mount. material thickness 1 max, [mm] | 68 |
| Cut out depth, [mm] | 360 |
| Cut out width, [mm] | 360 |
| Input voltage (AC), [V] | 115 |
|---|---|
| Input frequency, [Hz] | 60 |
| Hermetically Sealed | Yes |
|---|---|
| Refrigerant, type | R32 |
| GWP | 675 |
| CO2 equivalent, [t] | 0.26 |
| AirFlow, [m<sup>3</sup>h] | 415.69 |
| Current consumption min cooling, [A] | 12.66 |
| Current consumption max cooling, [A] | 19.73 |
| Operating temperature min, [°C] | -1.1 |
| Operating temperature max, [°C] | 51.7 |
| Dimensions parcel depth, [mm] | 1060 |
|---|---|
| Dimensions parcel height, [mm] | 315 |
| Dimensions parcel width, [mm] | 755 |
| Parcel weight, [kg] | 48.20 |
| Parcel weight, [lbs] | 106.28 |
Dometic Rooftop Air Conditioner (Air Distribution Box, Mechanical Controls) - Installation and Operating Manual AMER3
Installation And Operating Manual
Dometic Power Board for Electronic Control (P/N 4471014061) for FreshJet 4, 5 & 6 - Installation Manual AMER-en-fr
Installation Manual
Dometic FreshJet 3, 4,5, 6, and 7 (120V) Series (ADB) - Short Installation and Operating Manual AMER3
Short Installation And Operating Manual
Dometic Freshjet 3, 4, 5, 7, Brisk II, and Penguin II, Return air grille, wall thermostat controls - Short Installation Manual AMERICAS3
Short Installation Manual
Dometic Rooftop Air Conditioner (Universal Air Distribution Box, Mechanical Controls) - Short Installation and Operating Manual AMERICAS3
Short Installation And Operating Manual
Dometic FreshJet 3, 4, 5, 7, Brisk II, Penguin II - Installation and Operating Manual AMER3
Short Installation And Operating Manual
Loading products…

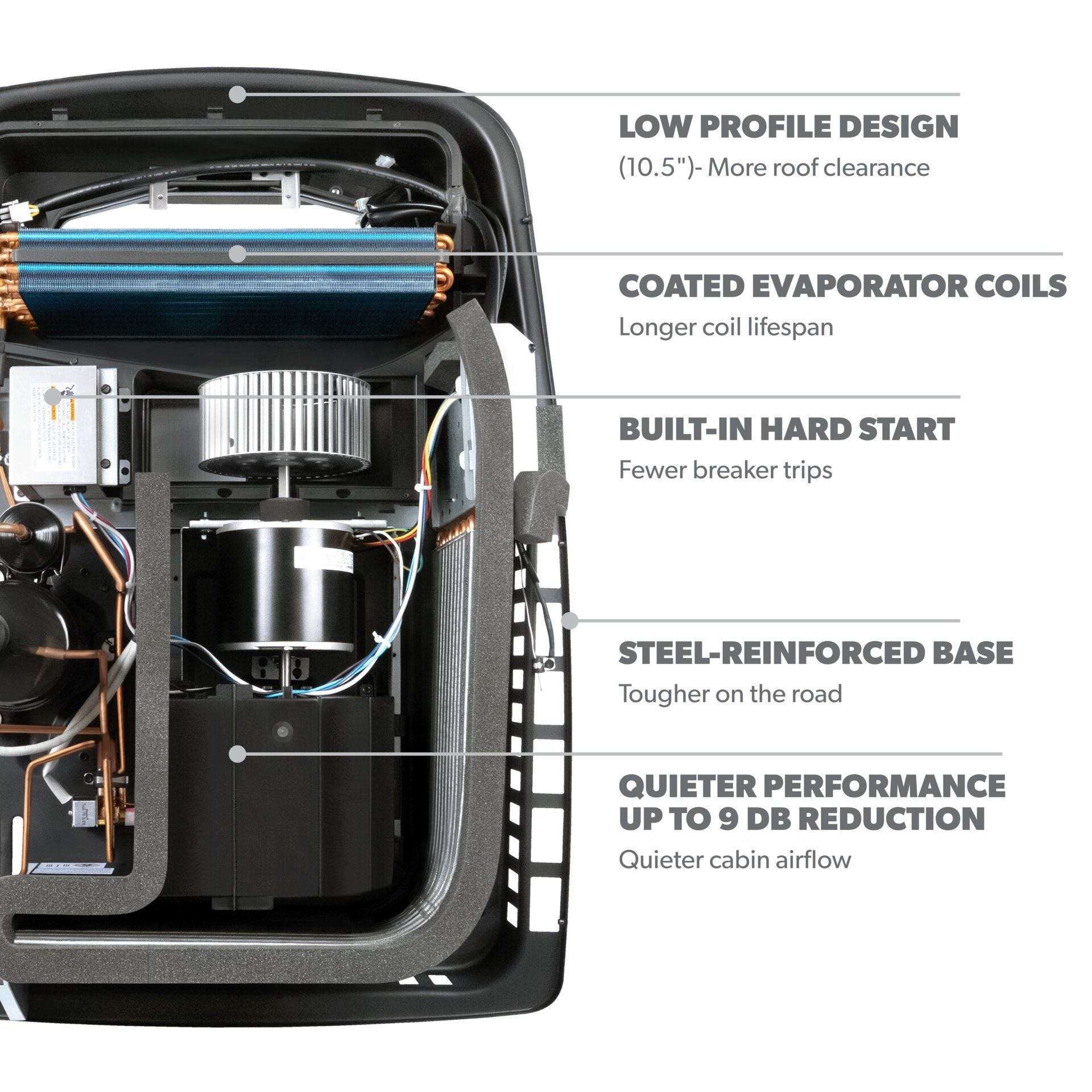

Highlights
More Clearance Flexibility
10.5" low profile fits tall vehicles.
Quieter Cabin Comfort
Upgraded motor and optimized blower system reduce noise by up to 9 dB.
Reliable Startup Power
Built-in hard start supports smooth compressor startup every time.
Long-Term Durability
Steel-reinforced base and UV-resistant shroud handle tough road wear.
Enhanced Cooling Longevity
Coated evaporator coils improve cooling efficiency and extend coil life.
Simplified Mechanical System
Single-motor, fixed-speed design reduces noise and increases reliability.

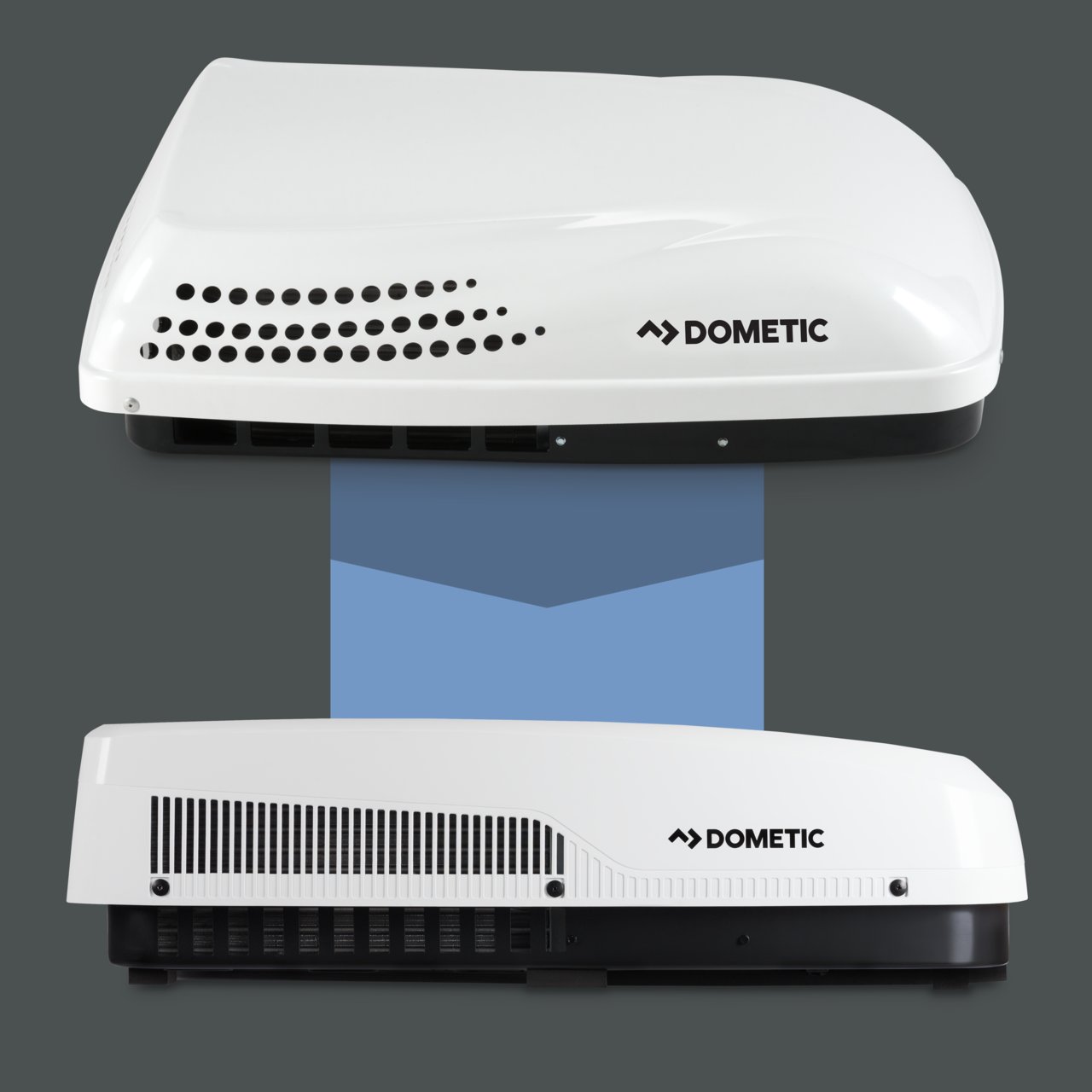

Same Fit, Upgraded Build
FreshJet 5 doesn’t just match the Penguin II, it improves upon it. A new aerodynamic shroud, better airflow design, quieter operation by 9db in non-ducted applications, and more sustainable refrigerant use [R32] all combine to offer better comfort, better reliability, and a longer product lifecycle. It’s built for the road ahead.
