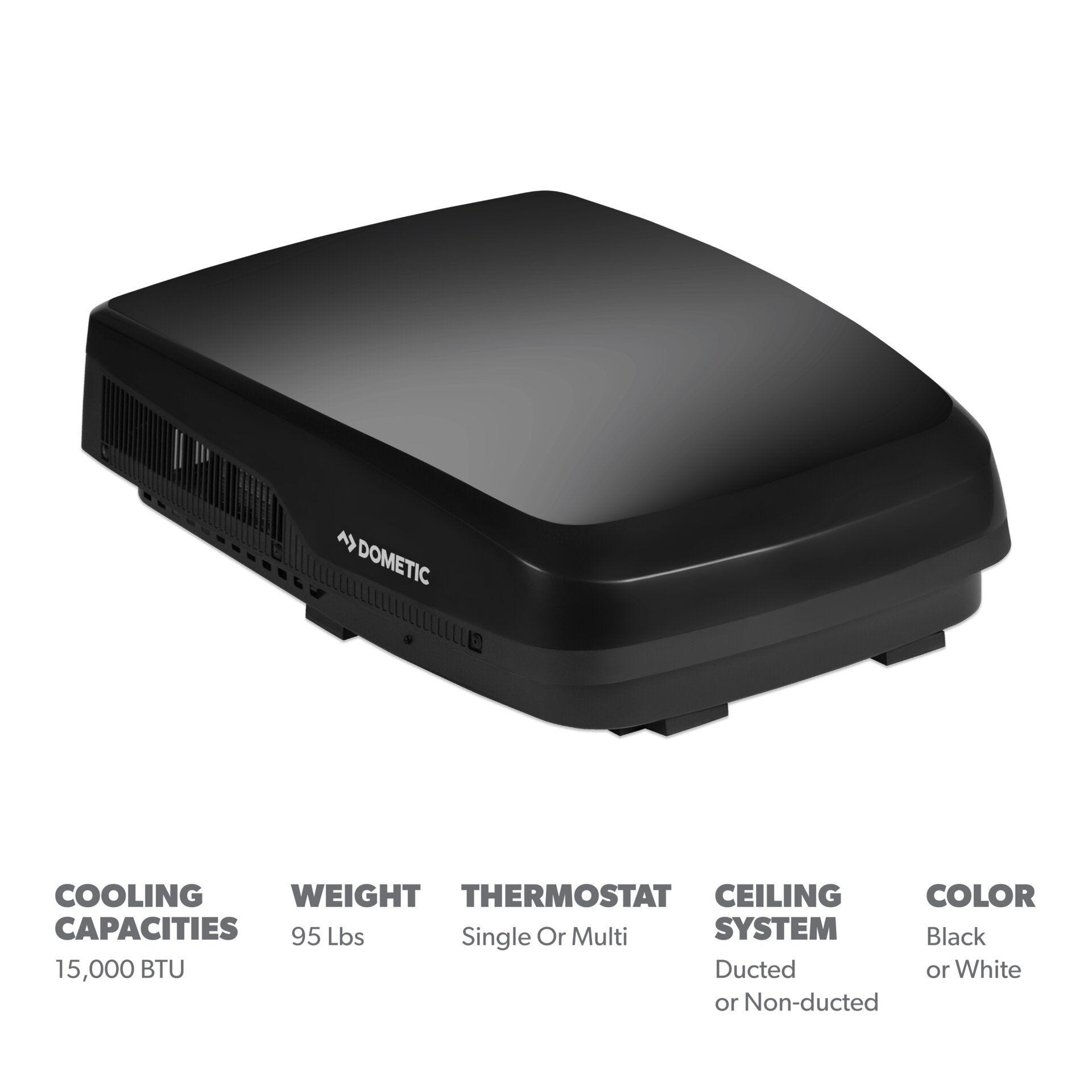

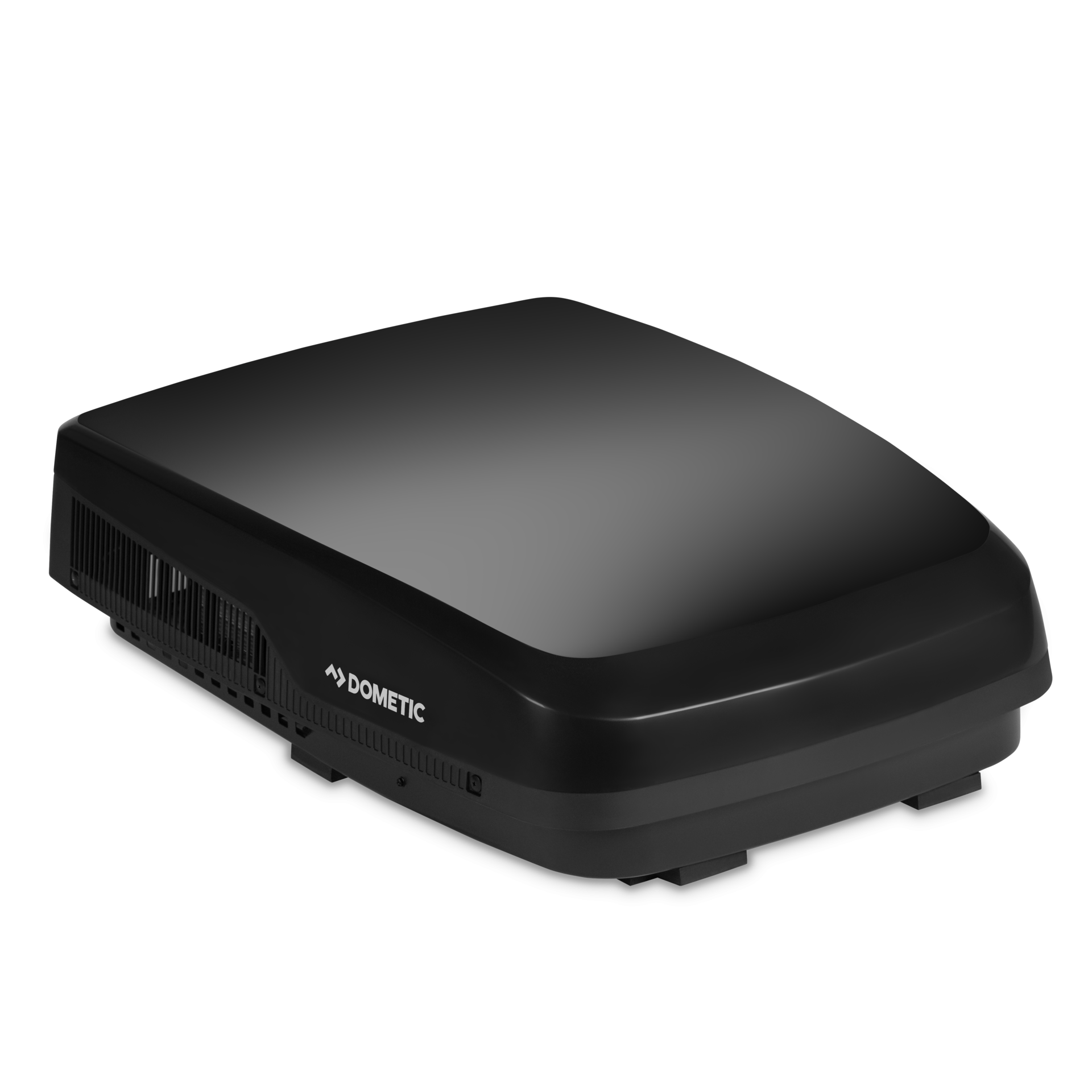

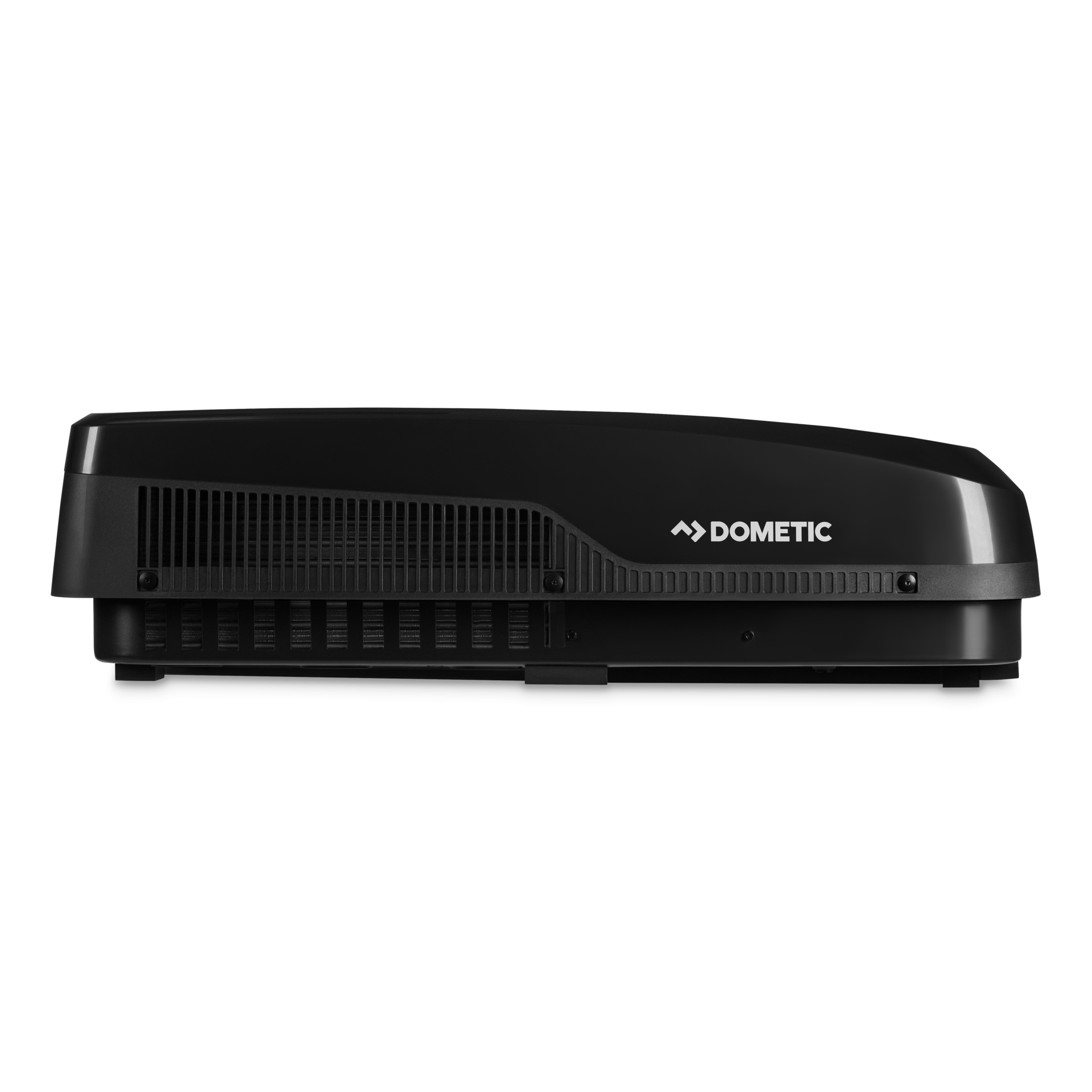

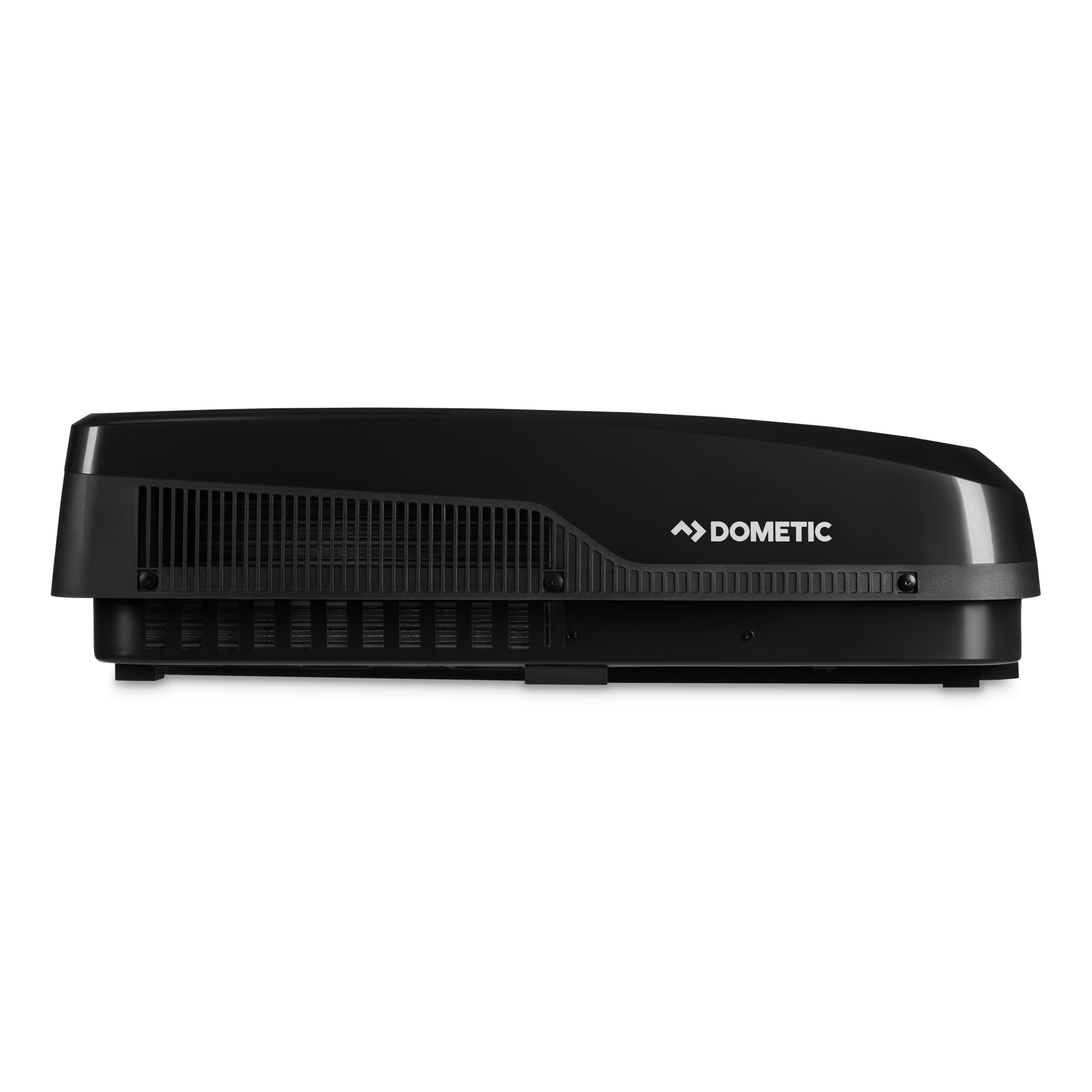

Dometic FreshJet 5 Series Mechanical 15K BTU Low-Profile Air Conditioner - Black
15,000 BTU - Rooftop Low Profile Air Conditioner with R32 Refrigerant - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required, sold separately (PACKAGE CANNOT BE
SKU: 9620015927
FreshJet 5 is Dometic’s low-profile rooftop air conditioner designed as a direct Penguin II replacement. The 15,000 BTU model delivers powerful cooling in a compact footprint and is available in both mechanical and electronic configurations. With built-in hard start, quieter performance, a reinforced steel base, and options with or without a heat pump, it’s ideal for new RV builds, universal replacements, and upgrades—delivering modern comfort without changing the fit.
[]
More Clearance Flexibility
[]
Quieter Cabin Comfort
[]
Reliable Startup Power
[]
Long-Term Durability
[]
Enhanced Cooling Longevity
[]
Simplified Mechanical System
Technical Information
Technical Information

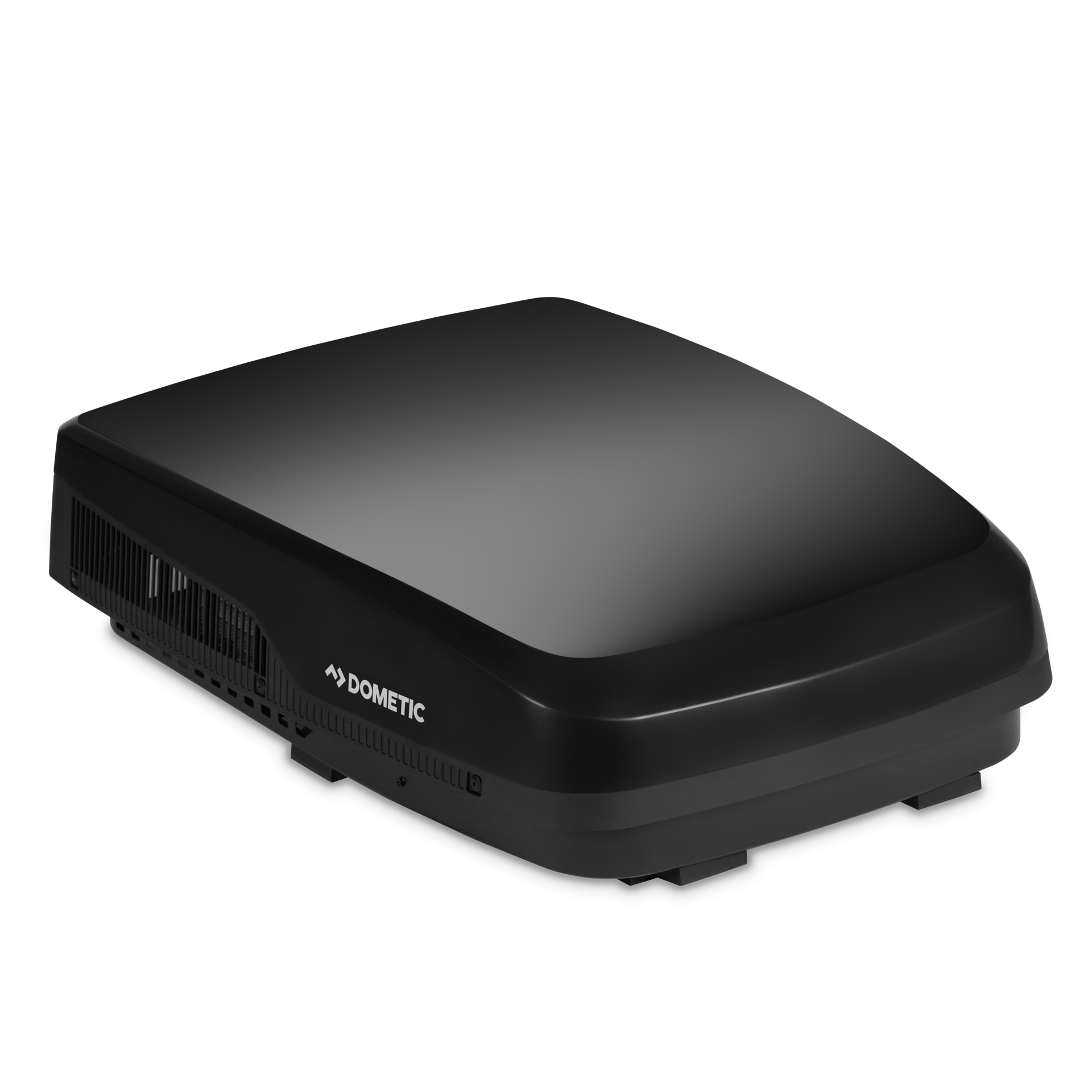

Colour
Black
Brand
Dometic
Scope of delivery
1 Air-conditioner, 1 warranty card
EAN-13
6975399594321
Publication Model Name
Dometic FreshJet 5 Series Mechanical 15K BTU Low-Profile Air Conditioner - Black
Product Description
15,000 BTU - Rooftop Low Profile Air Conditioner with R32 Refrigerant - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required, sold separately (PACKAGE CANNOT BE
Dimensions product depth, [mm]
1026.20
Dimensions product height, [mm]
742.30
Dimensions product width, [mm]
282
Net weight, [kg]
43.20
Net weight, [lbs]
95.26
Dimensions parcel depth, [mm]
1060
Dimensions parcel height, [mm]
315
Dimensions parcel width, [mm]
755
Parcel weight, [kg]
48.20
Parcel weight, [lbs]
106.28
GWP
675
CO2 equivalent, [t]
0.256
SKUCertificates
CSA
Standard mount. material thickness 1 min, [mm]
18
Standard mount. material thickness 1 max, [mm]
68
Hermetically Sealed
Yes
Refrigerant, type
R32
Input voltage (AC), [V]
115
Input frequency, [Hz]
60
AirFlow, [m<sup>3</sup>h]
415.690000
Current consumption min cooling, [A]
12.660000
Current consumption max cooling, [A]
19.730000
Operating temperature min, [°C]
-1.100000
Operating temperature max, [°C]
51.700000
Cut out depth, [mm]
360.000000
Cut out width, [mm]
360.000000
Dimensions product width, ["] - Display
11.10
SKUSKURequiredAccessories
9105304486,9105304487
Item Description
FJX,15K-MECH LOW-PRO,BLK
Technical Information
Documentation & Downloads
Get the Highlights

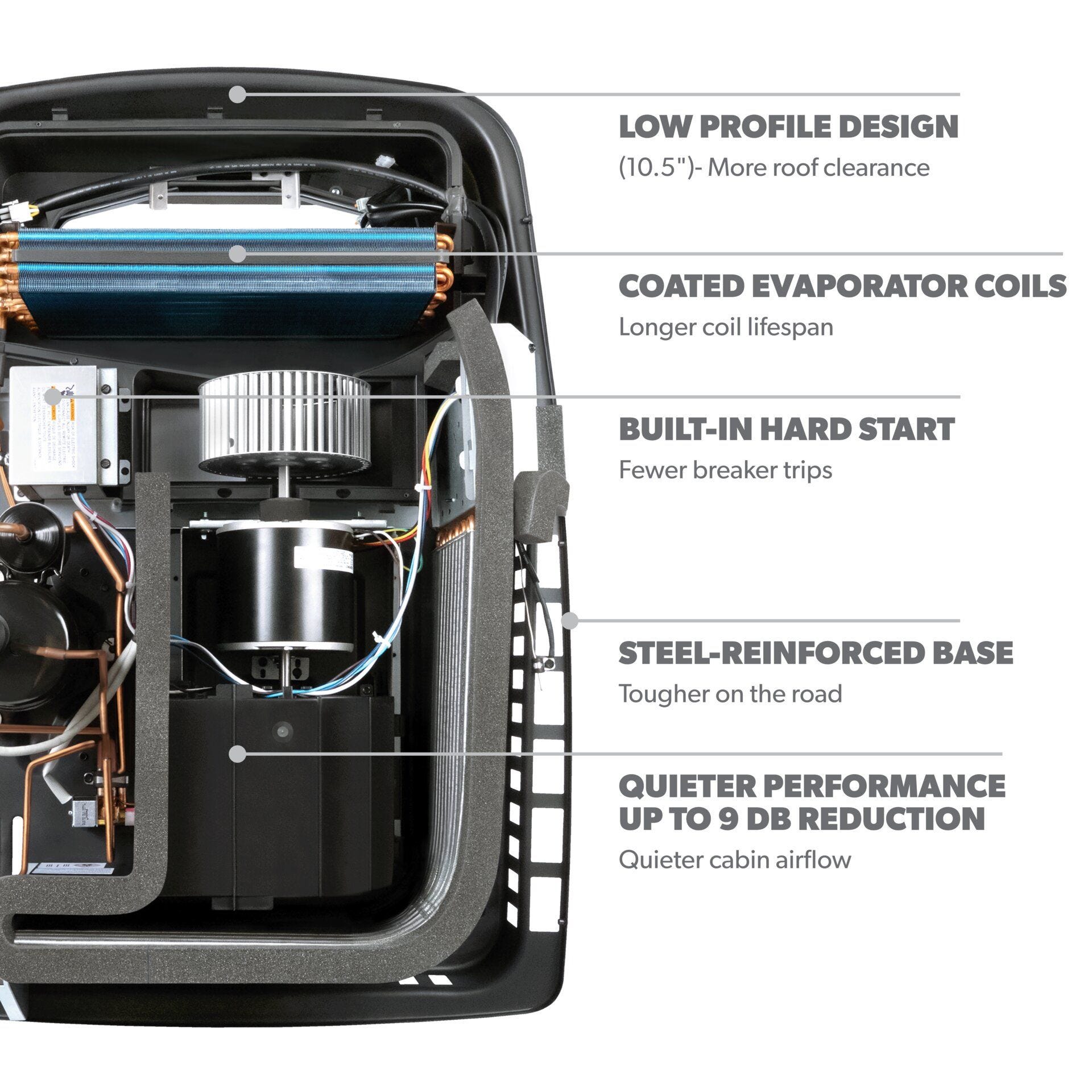

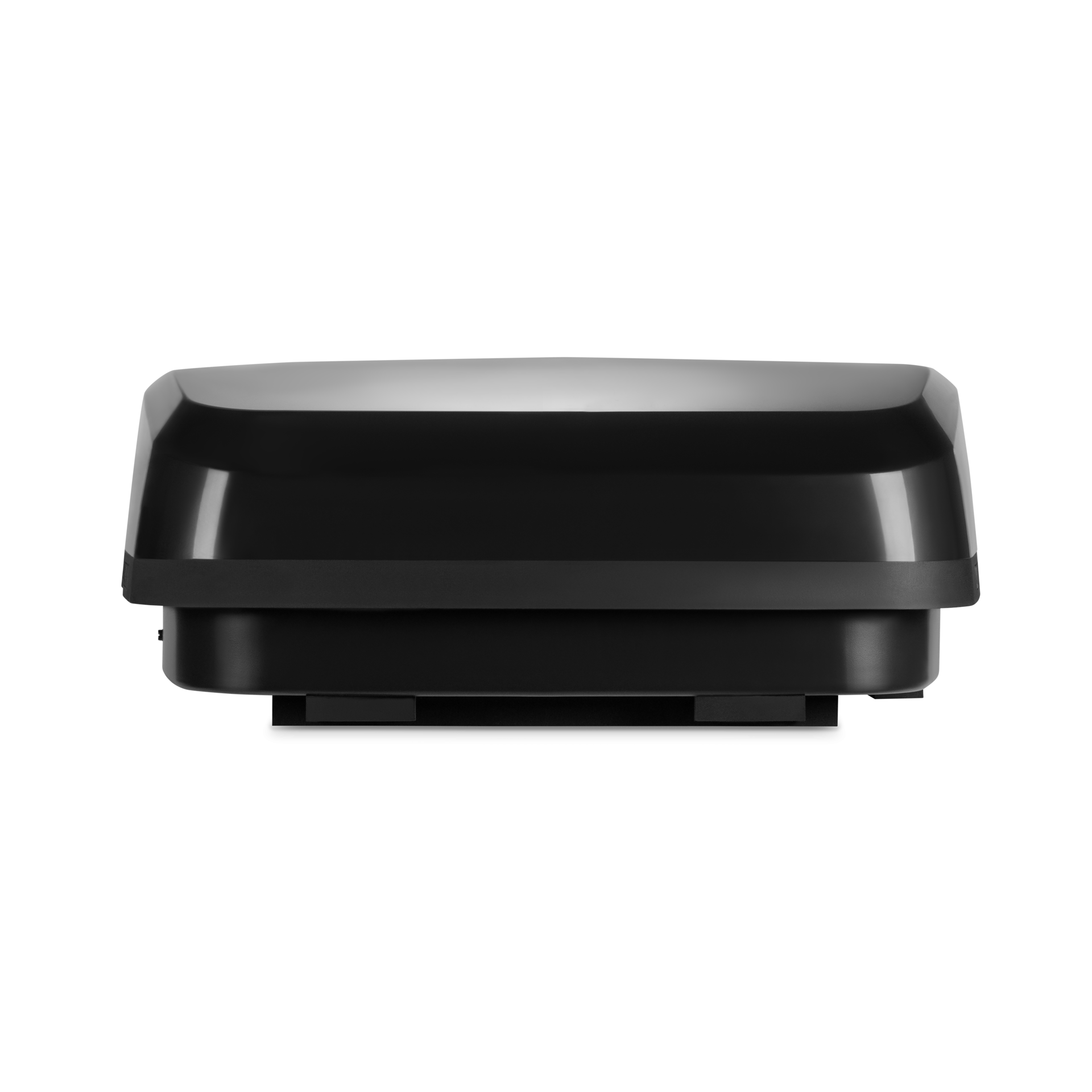

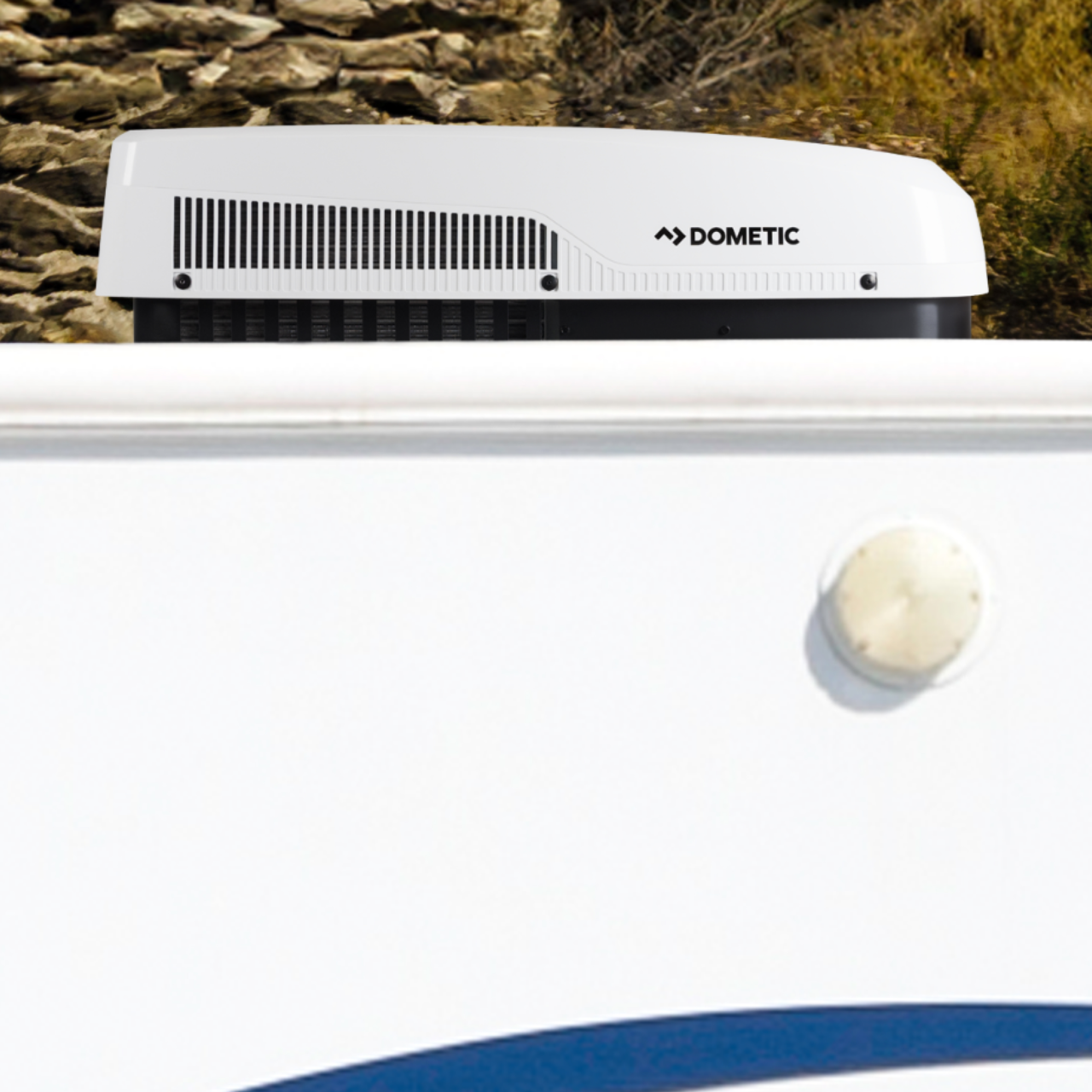

More Clearance Flexibility

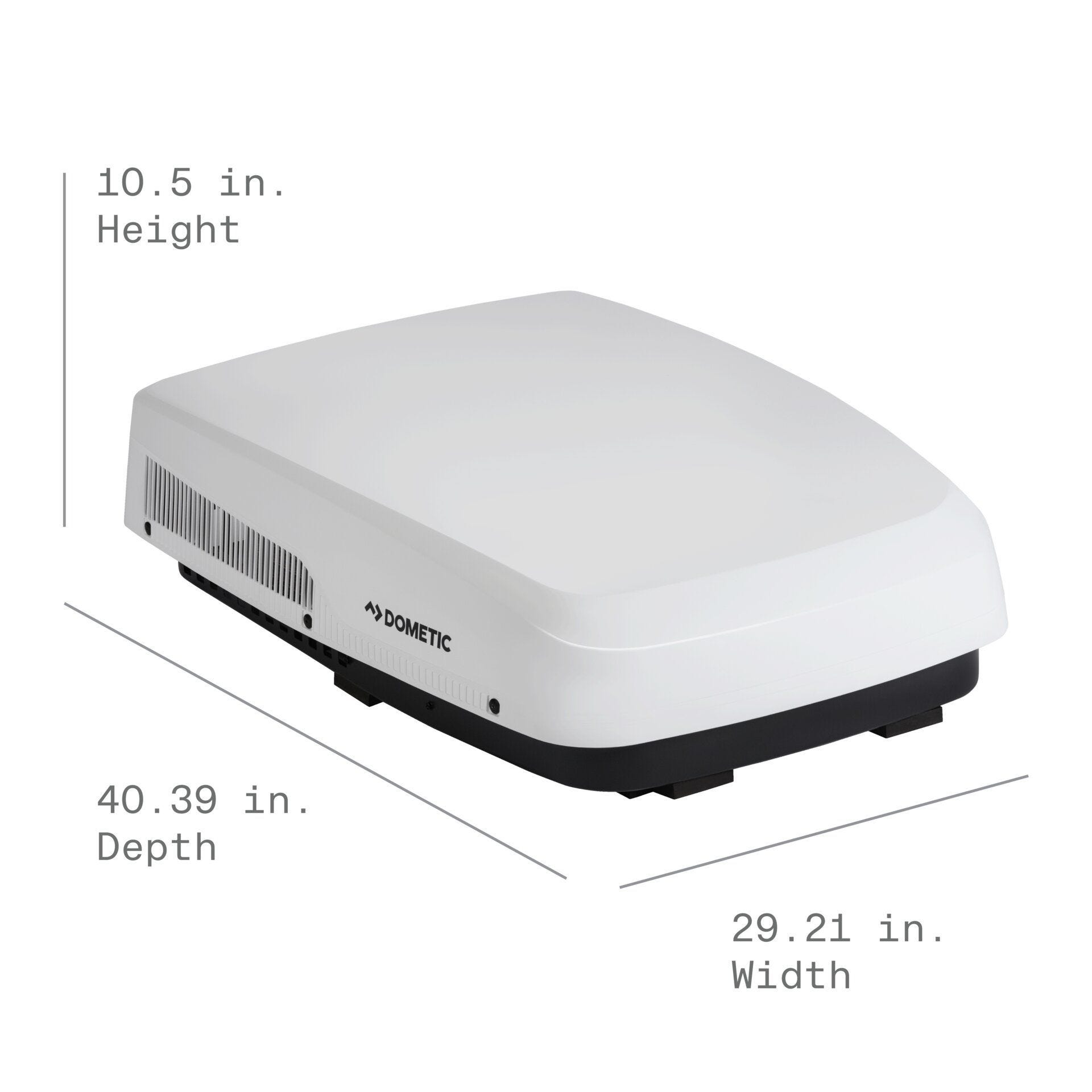

10.5" low profile fits tall vehicles.

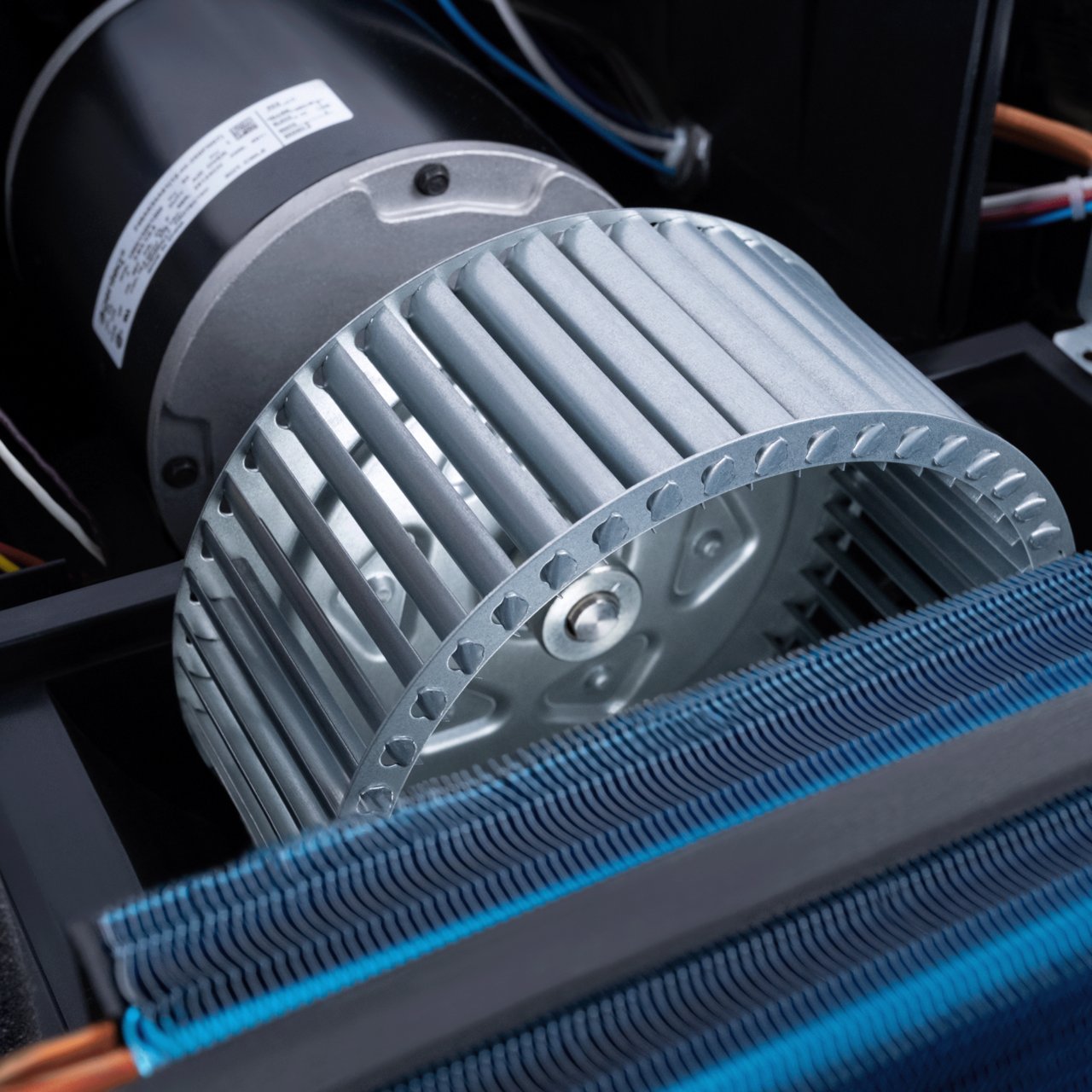

Quieter Cabin Comfort
Upgraded motor and optimized blower system reduce noise by up to 9 dB.
Reliable Startup Power

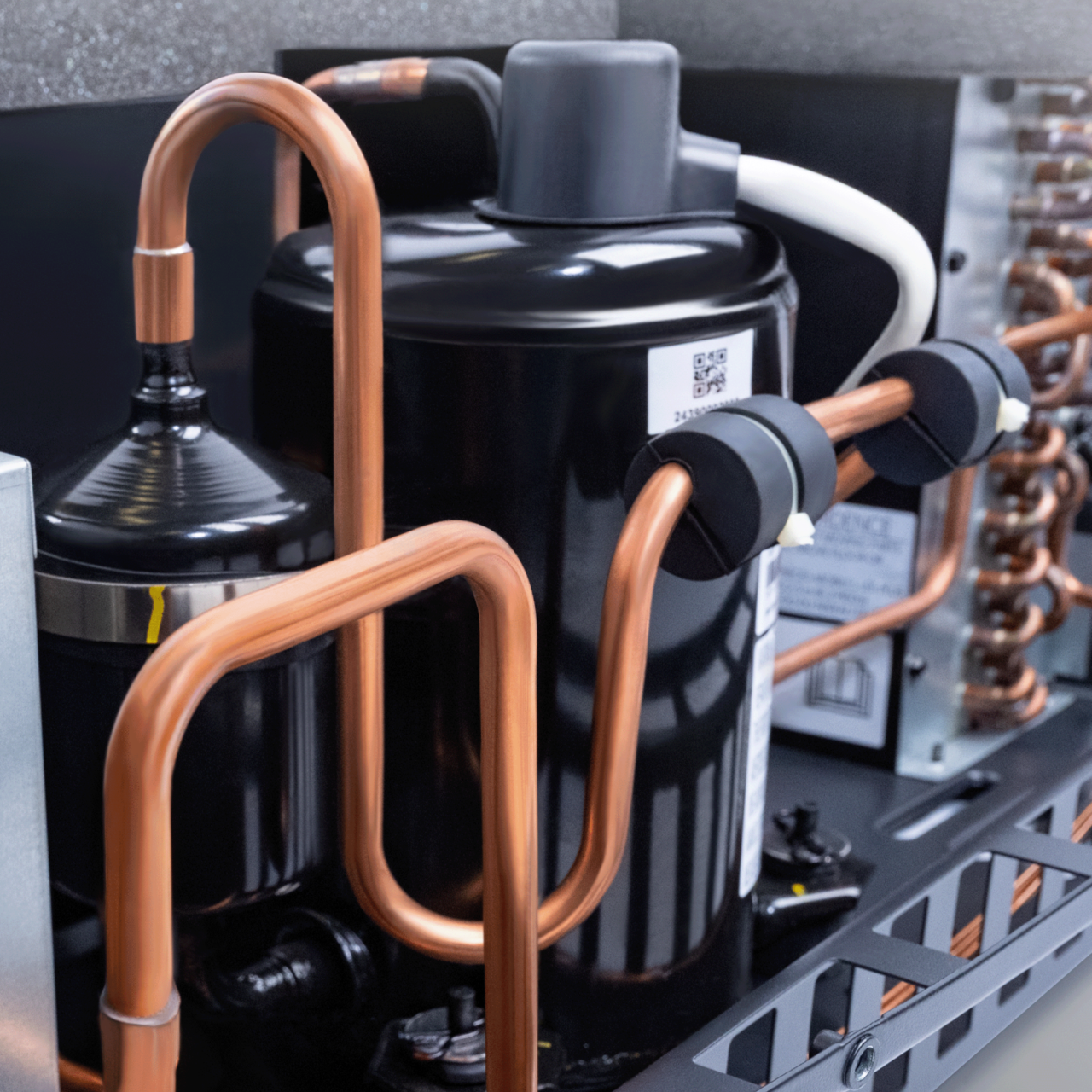

Built-in hard start supports smooth compressor startup every time.
Long-Term Durability
Steel-reinforced base and UV-resistant shroud handle tough road wear.

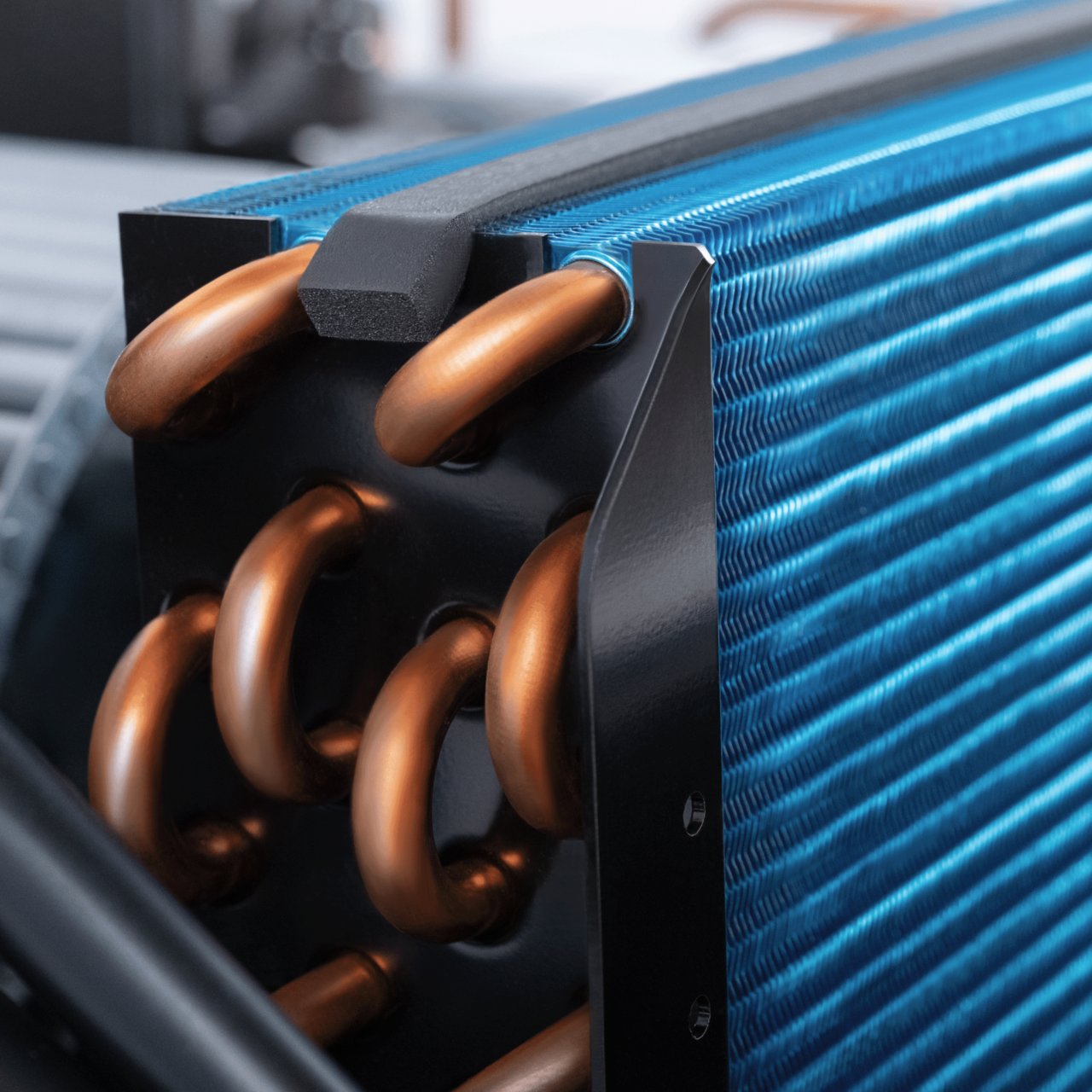

Enhanced Cooling Longevity
Coated evaporator coils improve cooling efficiency and extend coil life.

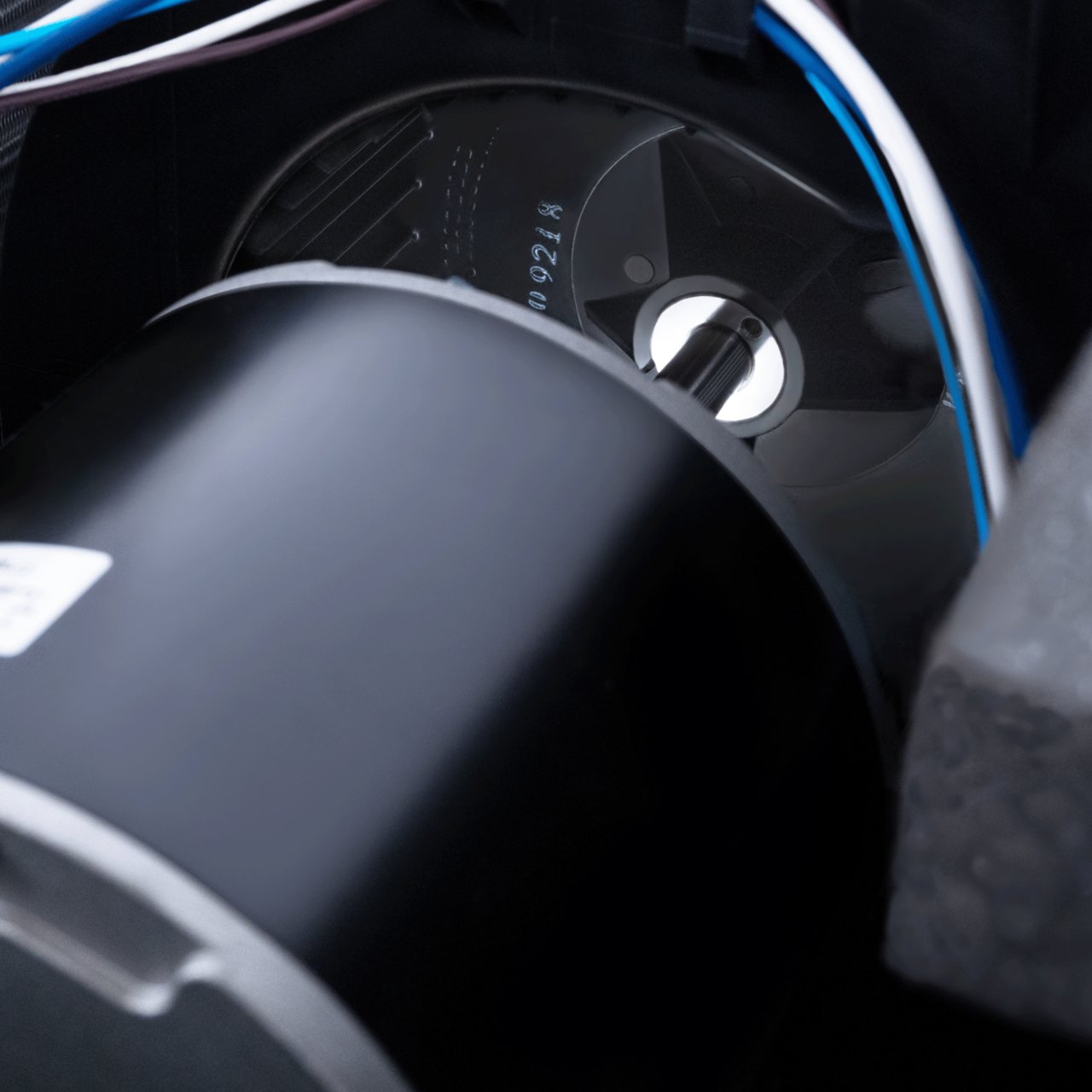

Simplified Mechanical System
Single-motor, fixed-speed design reduces noise and increases reliability.
