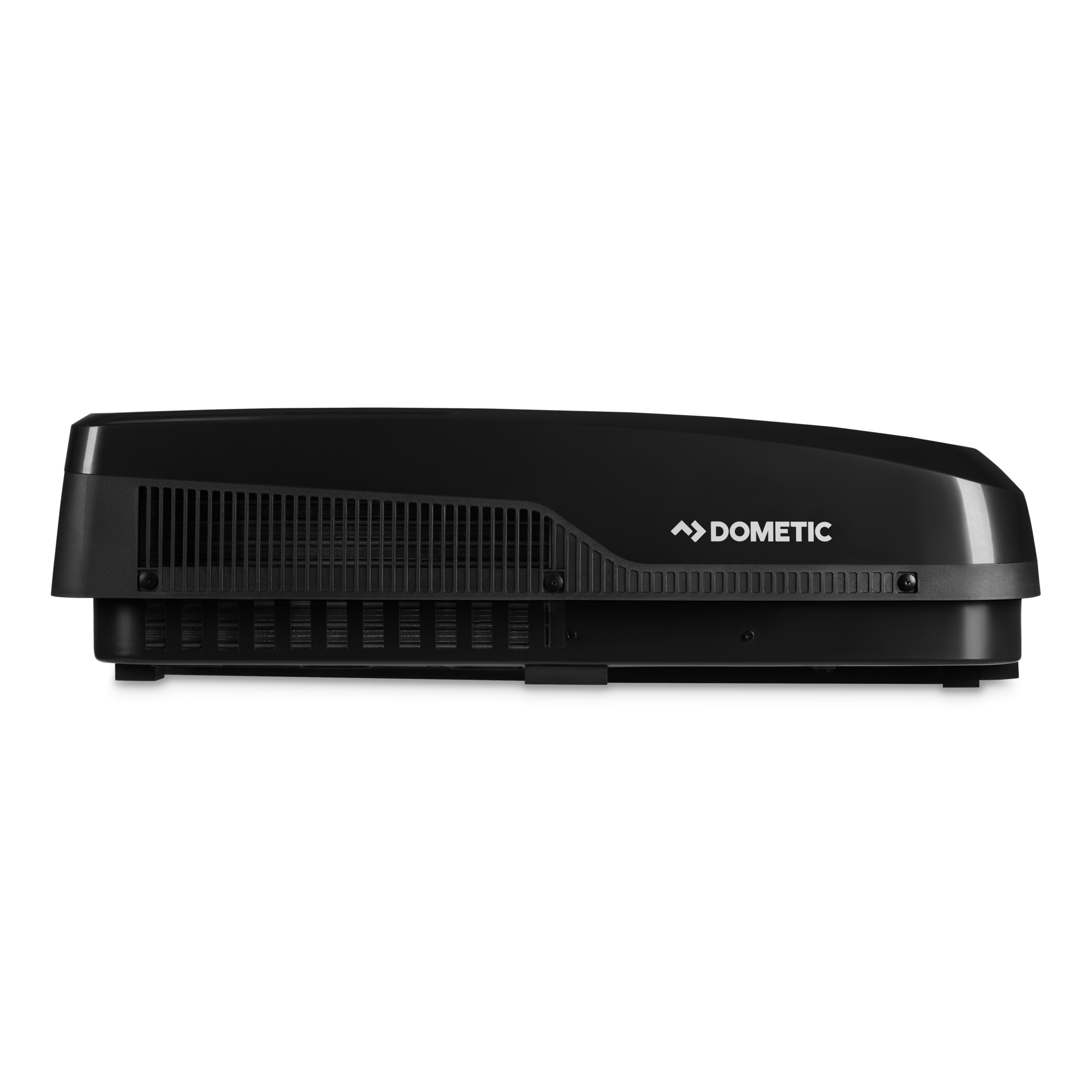

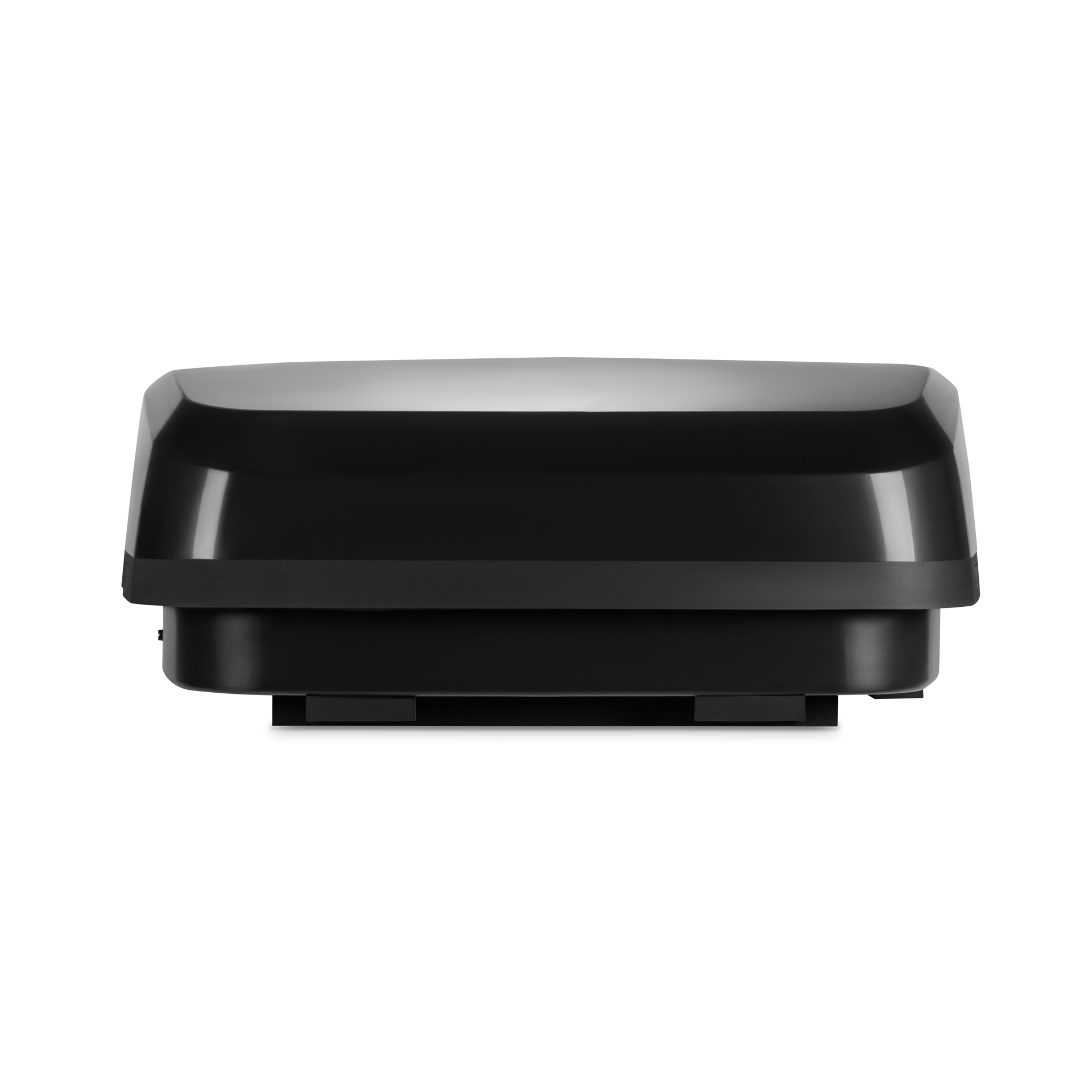

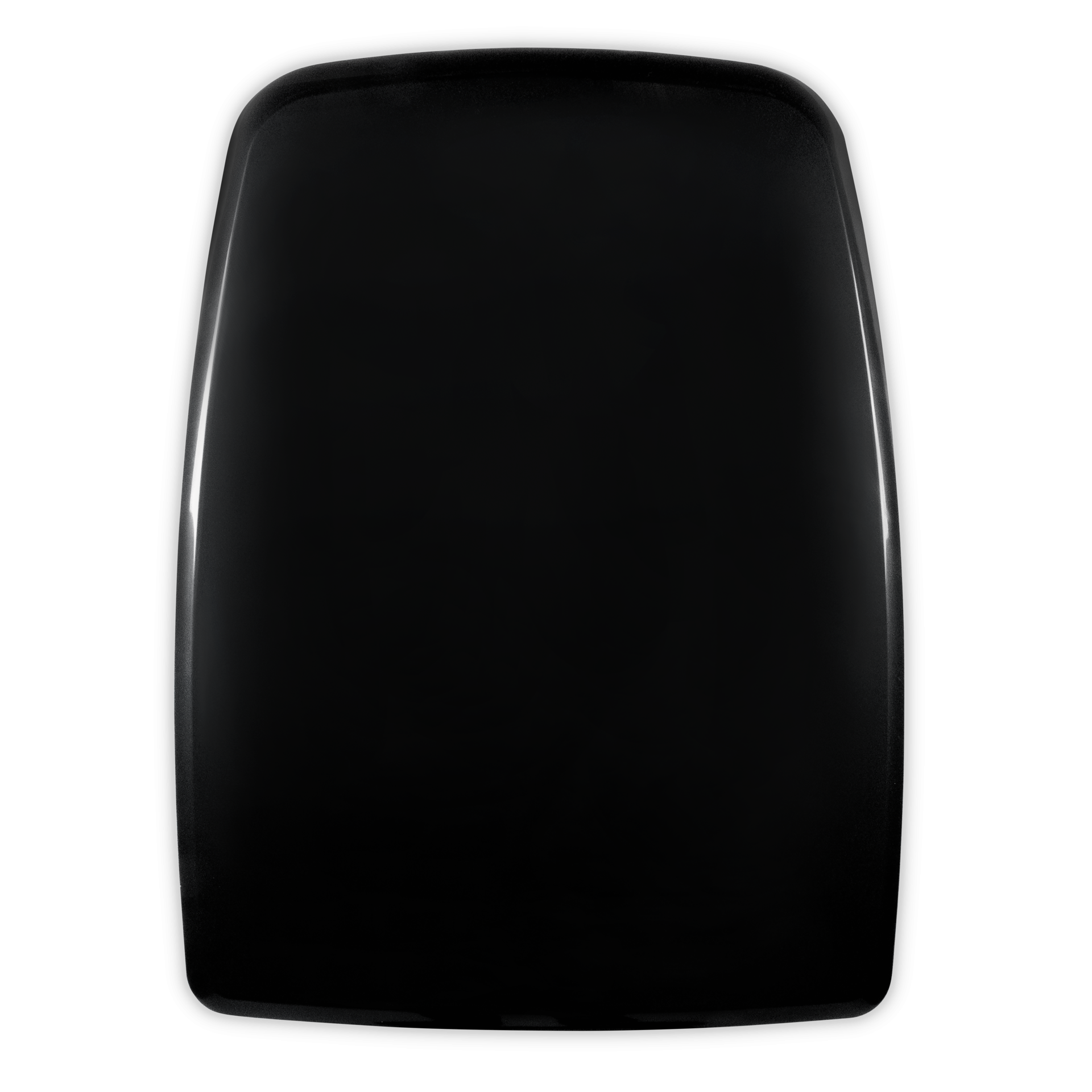

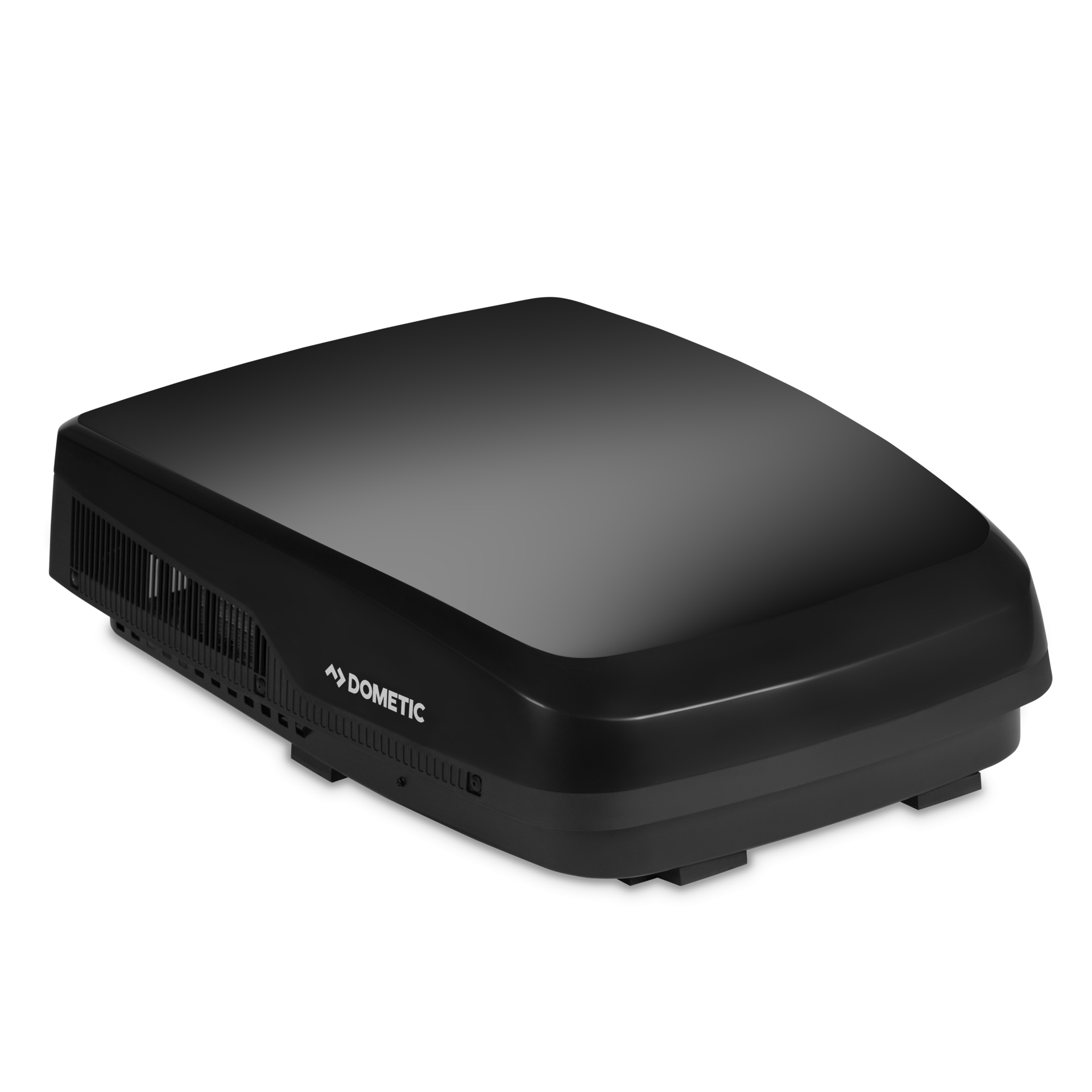

Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black

Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black

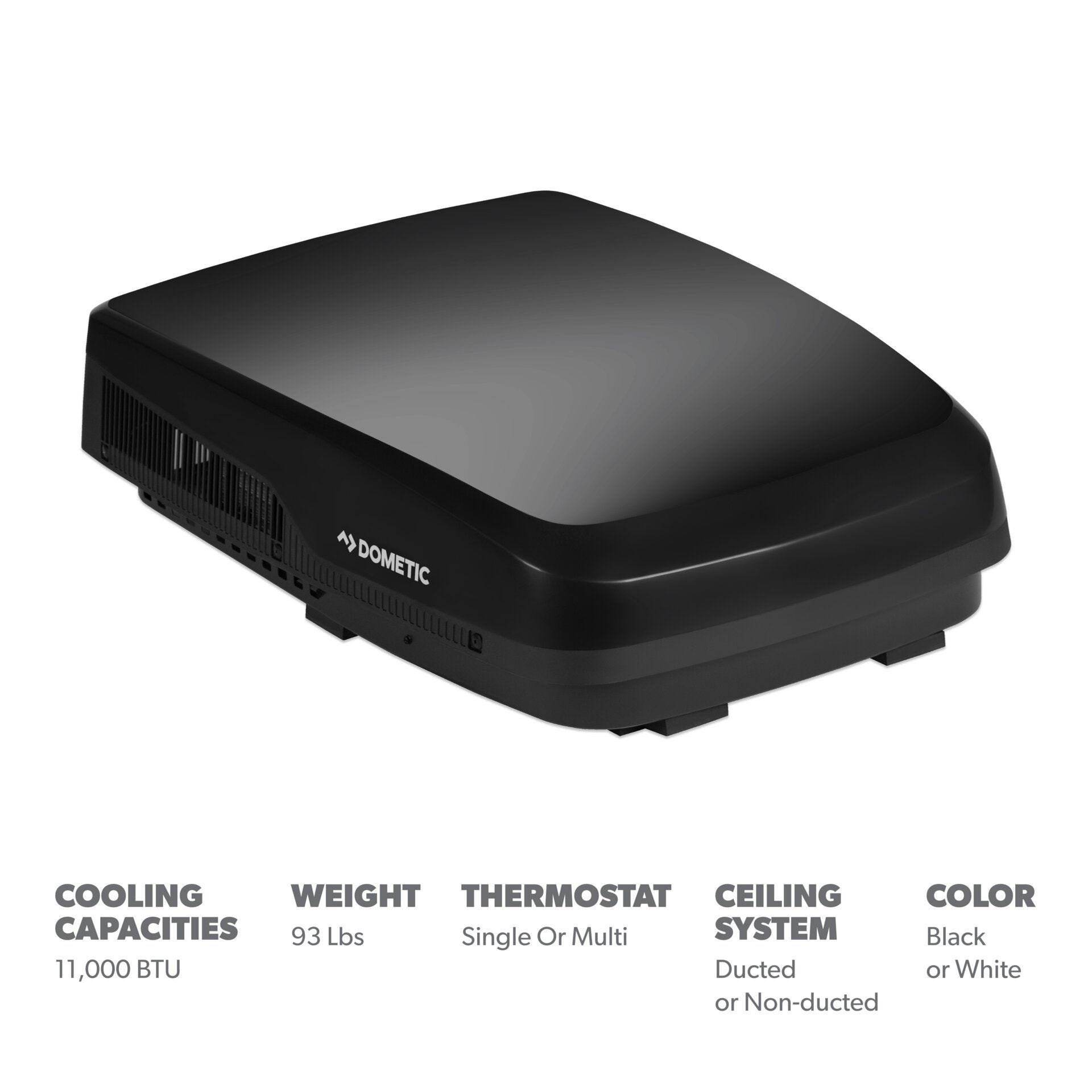

High Efficiency (Approximately 11,000 BTU) - Rooftop Low Profile Air Conditioner - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required, sold separately (PACKAGE

SKU: 9620015932

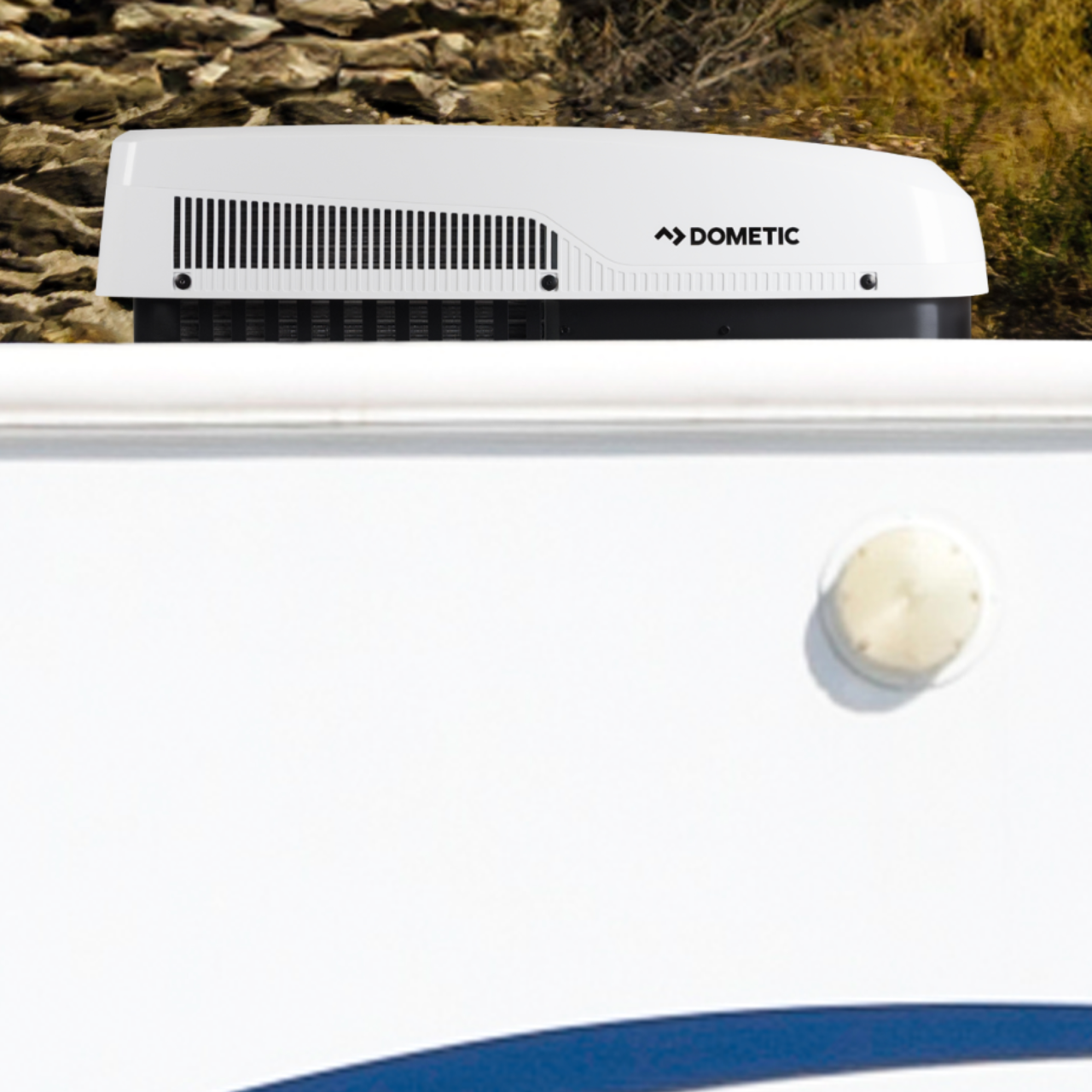

FreshJet 5 is Dometic’s low-profile rooftop air conditioner designed as a direct Penguin II replacement. The approximately 11,000 BTU High Efficiency model offers reliable cooling performance with reduced power consumption. With built-in hard start, quieter operation, and a reinforced steel base, it’s ideal for new RV builds, universal replacements, and upgrades—delivering modern comfort without changing the fit.
  • []

    More Clearance Flexibility

  • []

    Quieter Cabin Comfort

  • []

    Reliable Startup Power

  • []

    Long-Term Durability

  • []

    Enhanced Cooling Longevity

  • []

    Energy-Efficient Cooling

Technical Information

Technical Information

Colour
Black
Brand
Dometic
Scope of delivery
1 Air-conditioner, 1 warranty card
EAN-13
6975399594260
Publication Model Name
Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - Black
Product Description
High Efficiency (Approximately 11,000 BTU) - Rooftop Low Profile Air Conditioner - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required, sold separately (PACKAGE

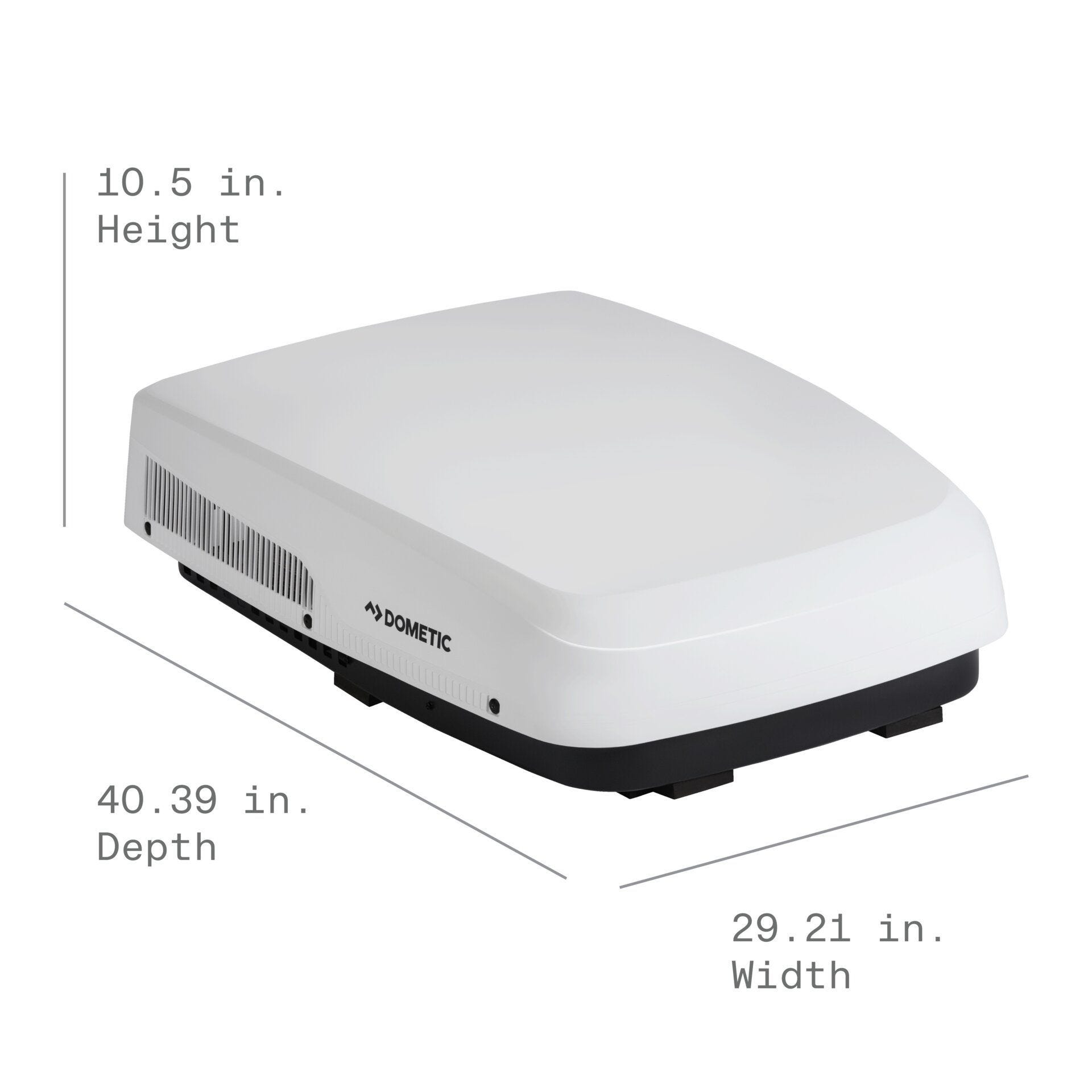

Dimensions product depth, [mm]
1026.20
Dimensions product height, [mm]
742.30
Dimensions product width, [mm]
282
Net weight, [kg]
42.10
Net weight, [lbs]
92.83
Dimensions parcel depth, [mm]
1060
Dimensions parcel height, [mm]
315
Dimensions parcel width, [mm]
755
Parcel weight, [kg]
47.10
Parcel weight, [lbs]
103.86
GWP
675
CO2 equivalent, [t]
0.162
SKUCertificates
CSA
Standard mount. material thickness 1 min, [mm]
18
Standard mount. material thickness 1 max, [mm]
68
Hermetically Sealed
Yes
Refrigerant, type
R32
Input voltage (AC), [V]
115
Input frequency, [Hz]
60
AirFlow, [m<sup>3</sup>h]
492.730000
Current consumption min cooling, [A]
8.560000
Current consumption max cooling, [A]
13.900000
Operating temperature min, [°C]
-1.100000
Operating temperature max, [°C]
51.700000
Cut out depth, [mm]
360.000000
Cut out width, [mm]
360.000000
Dimensions product width, ["] - Display
11.10
Item Description
FJX,HE-MECH LOW-PRO,BLK
Technical Information
Documentation & Downloads
Get the Highlights

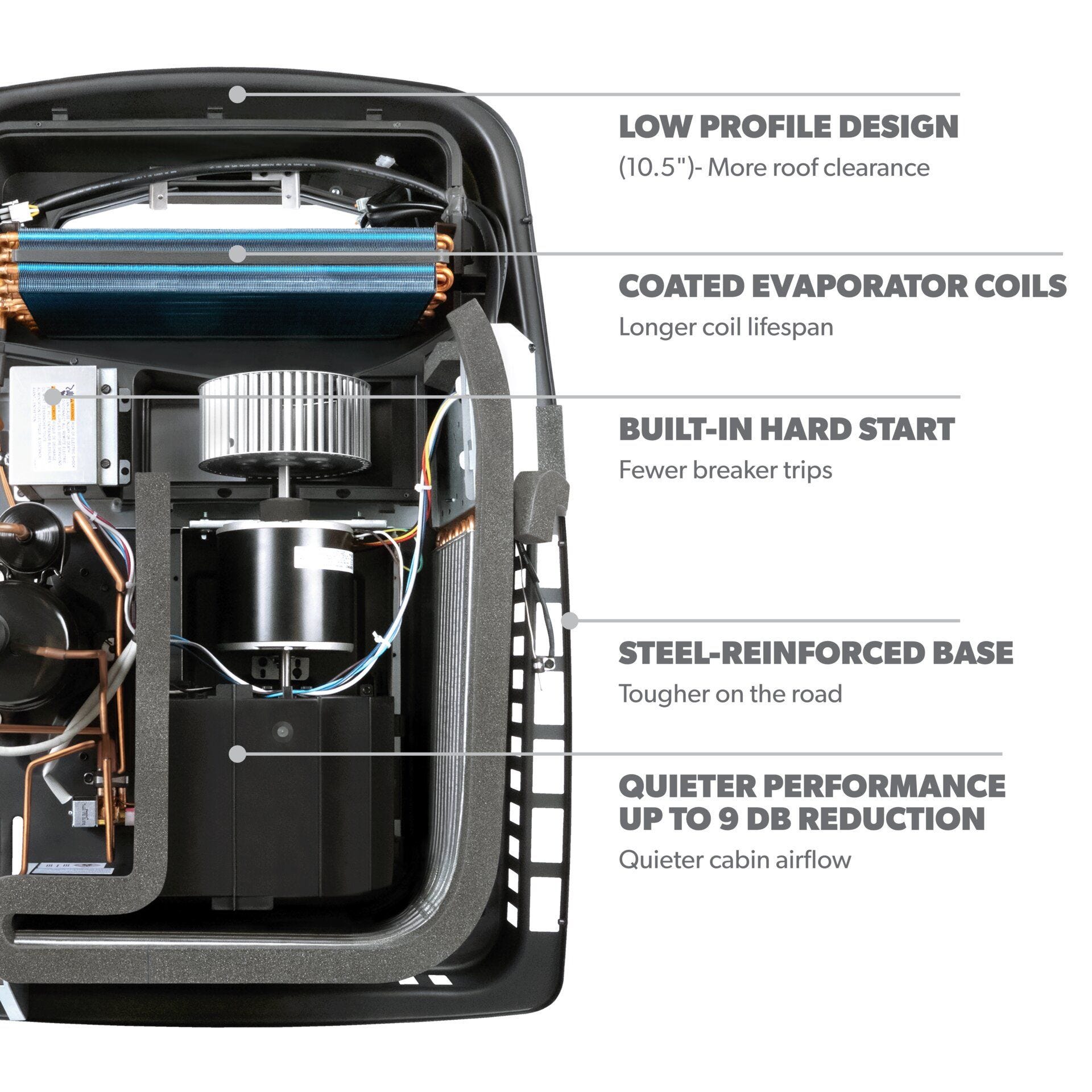

More Clearance Flexibility

More Clearance Flexibility

10.5" low profile fits tall vehicles.

Quieter Cabin Comfort

Quieter Cabin Comfort

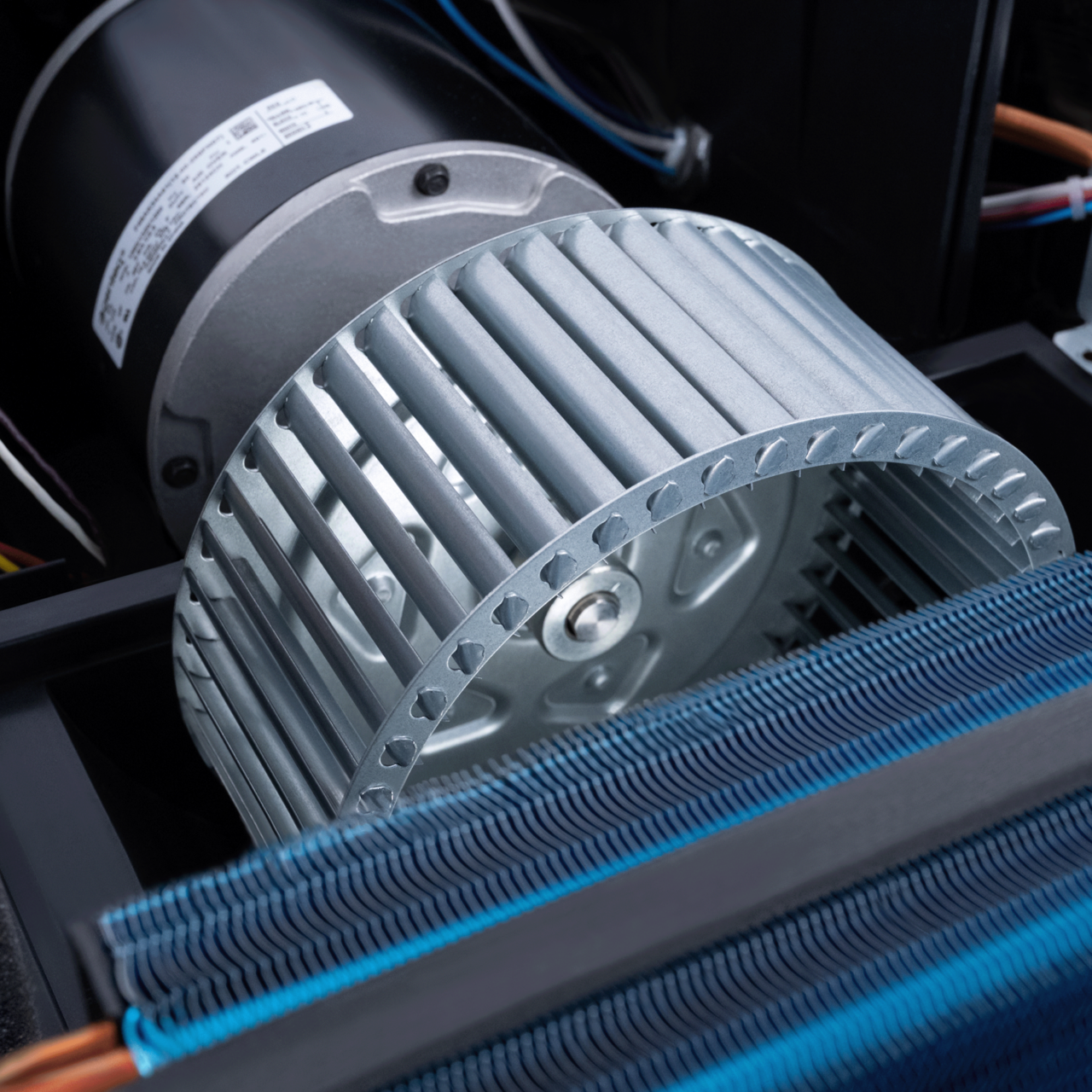

Upgraded motor and optimized blower system reduce noise by up to 9 dB.

Reliable Startup Power

Reliable Startup Power

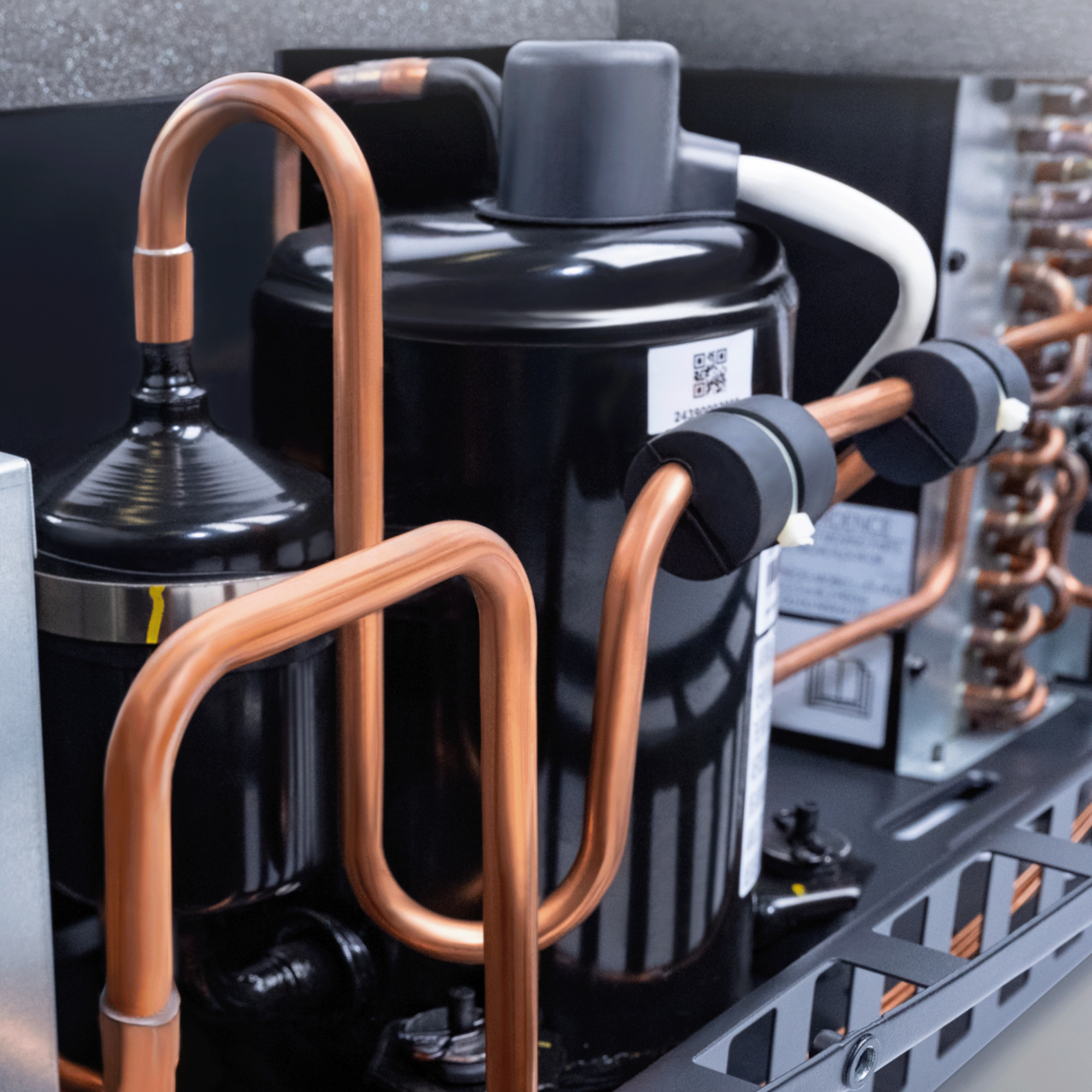

Built-in hard start supports smooth compressor startup every time.

Long-Term Durability

Long-Term Durability

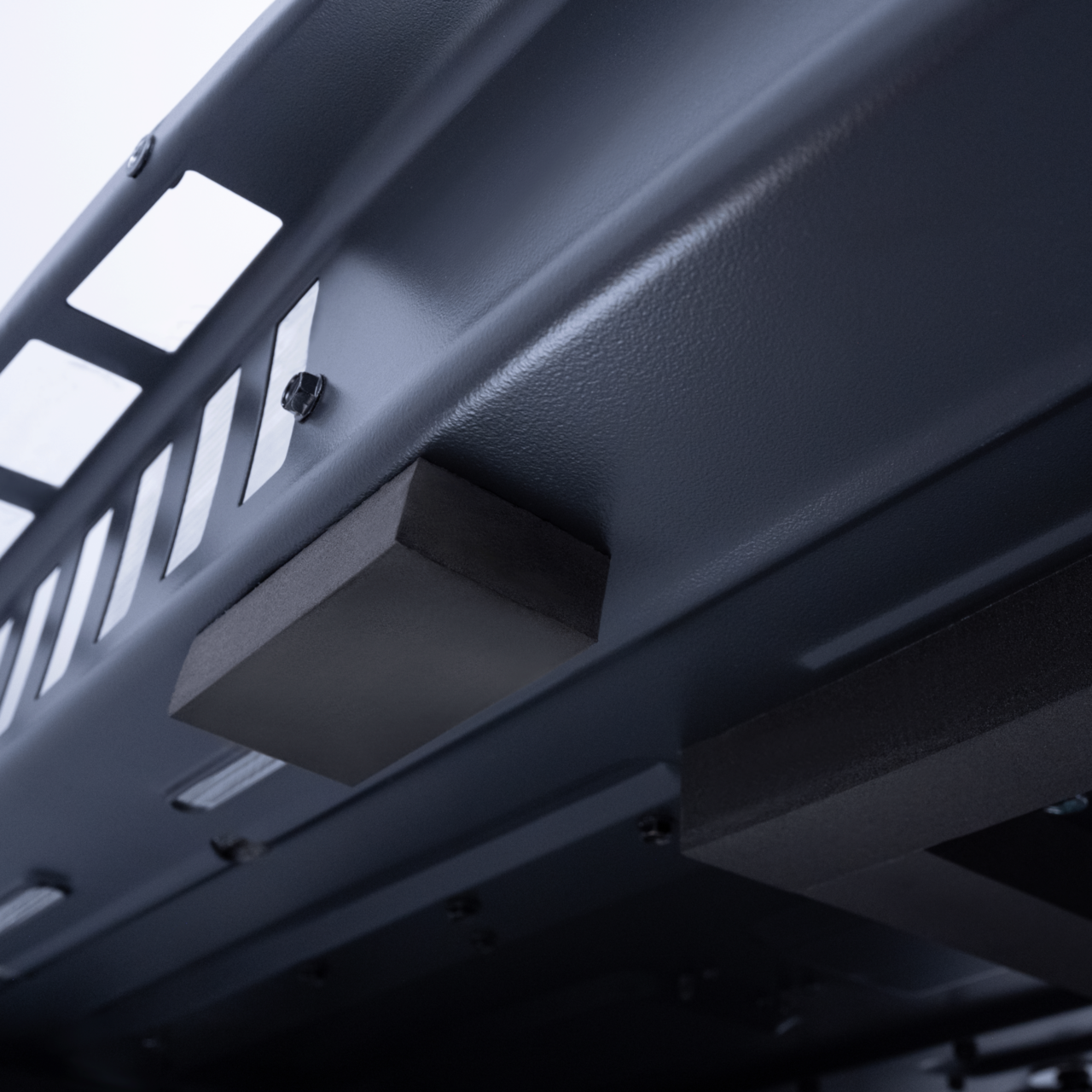

Steel-reinforced base and UV-resistant shroud handle tough road wear.

Enhanced Cooling Longevity

Enhanced Cooling Longevity

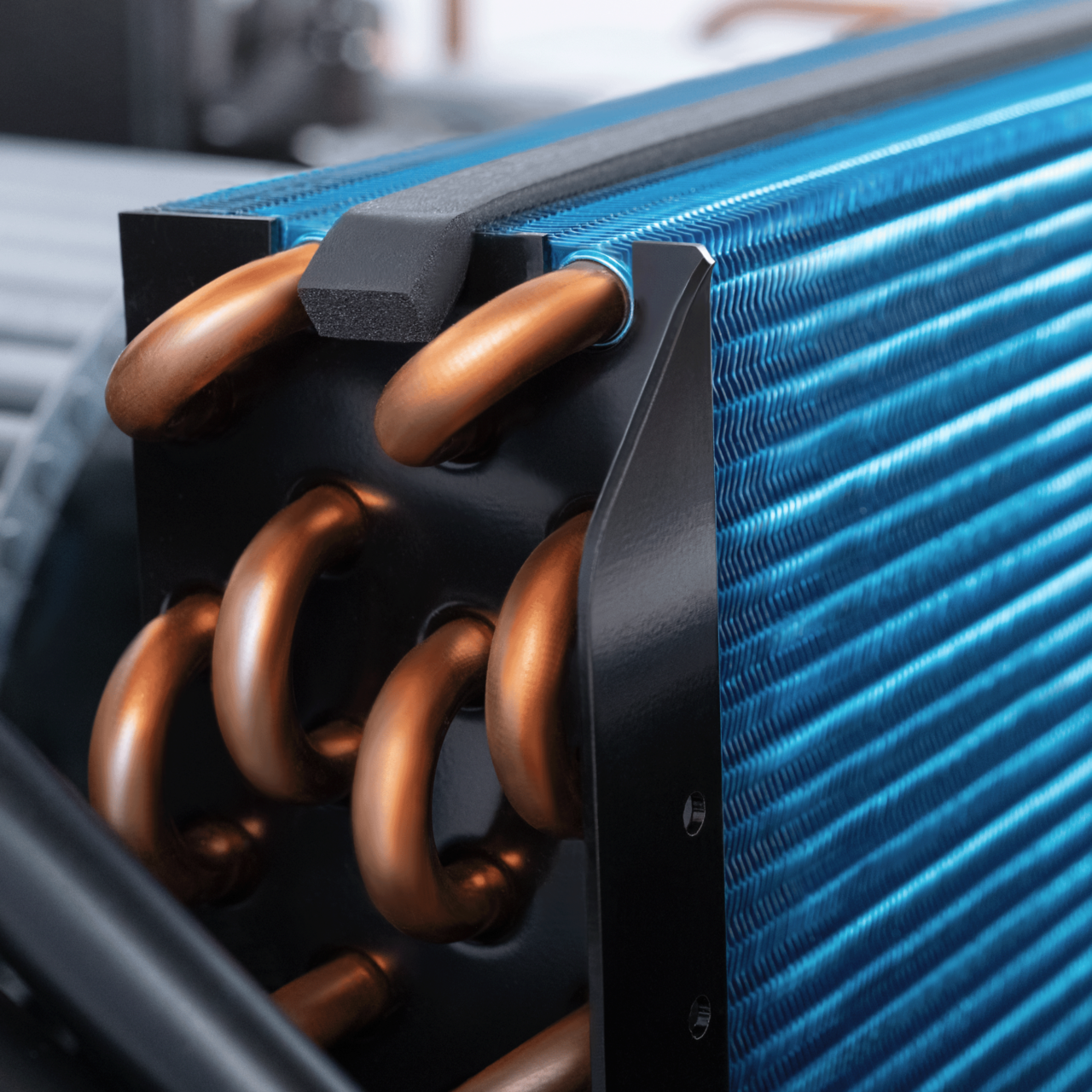

Coated evaporator coils improve cooling efficiency and extend coil life.

Energy-Efficient Cooling

Energy-Efficient Cooling

Approximately 11,000 BTU High Efficiency model provides optimized cooling performance with reduced power consumption—ideal for off-grid or solar setups.
