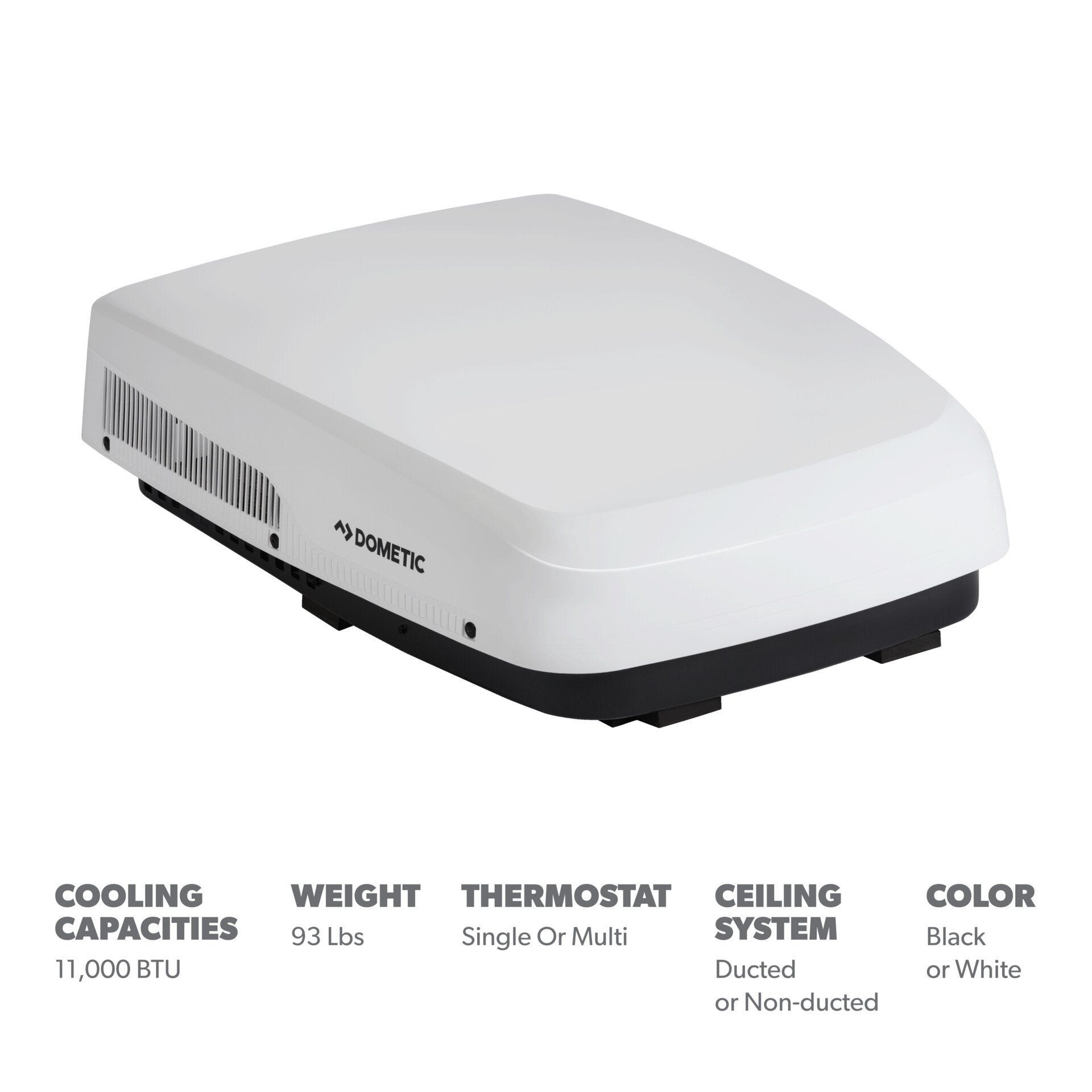

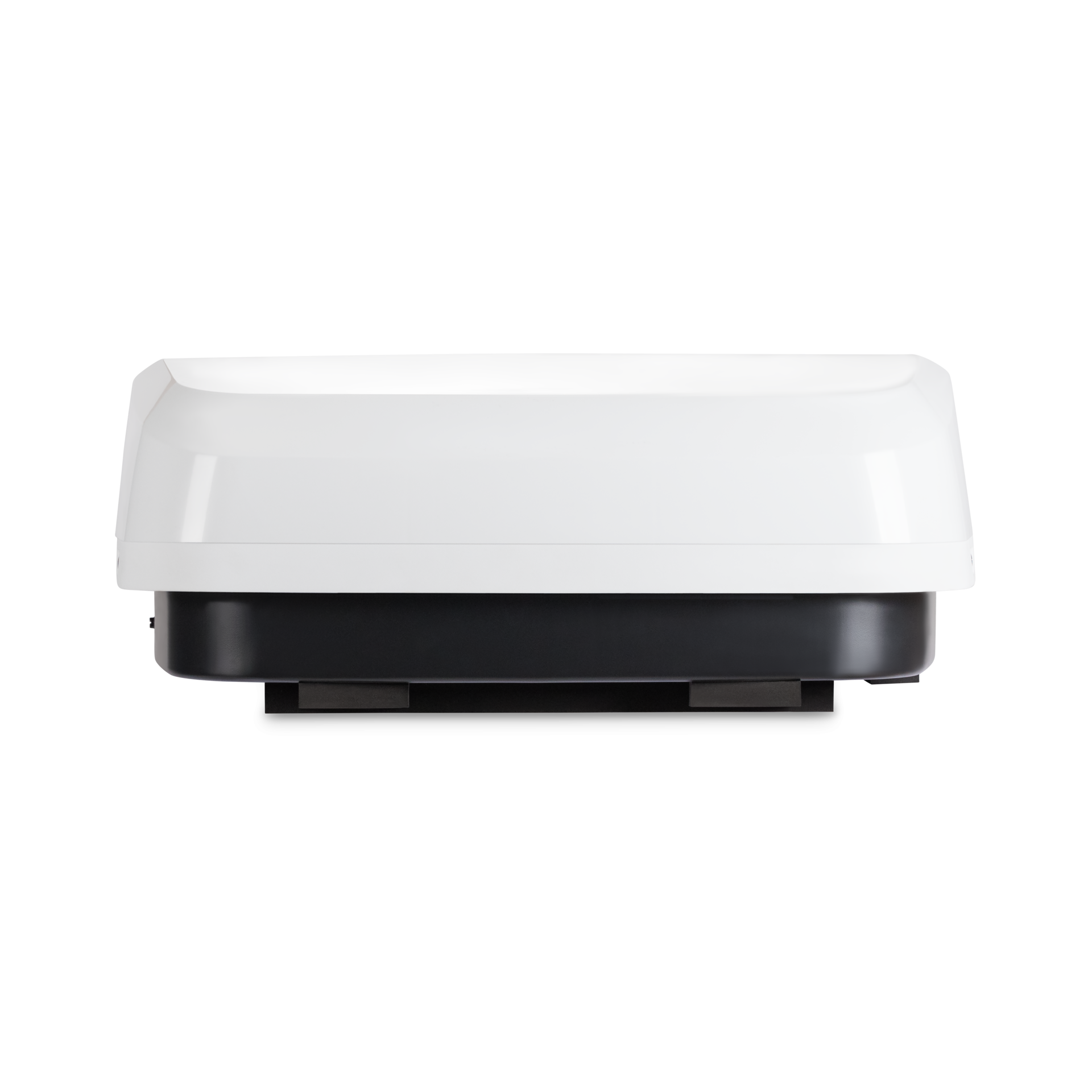

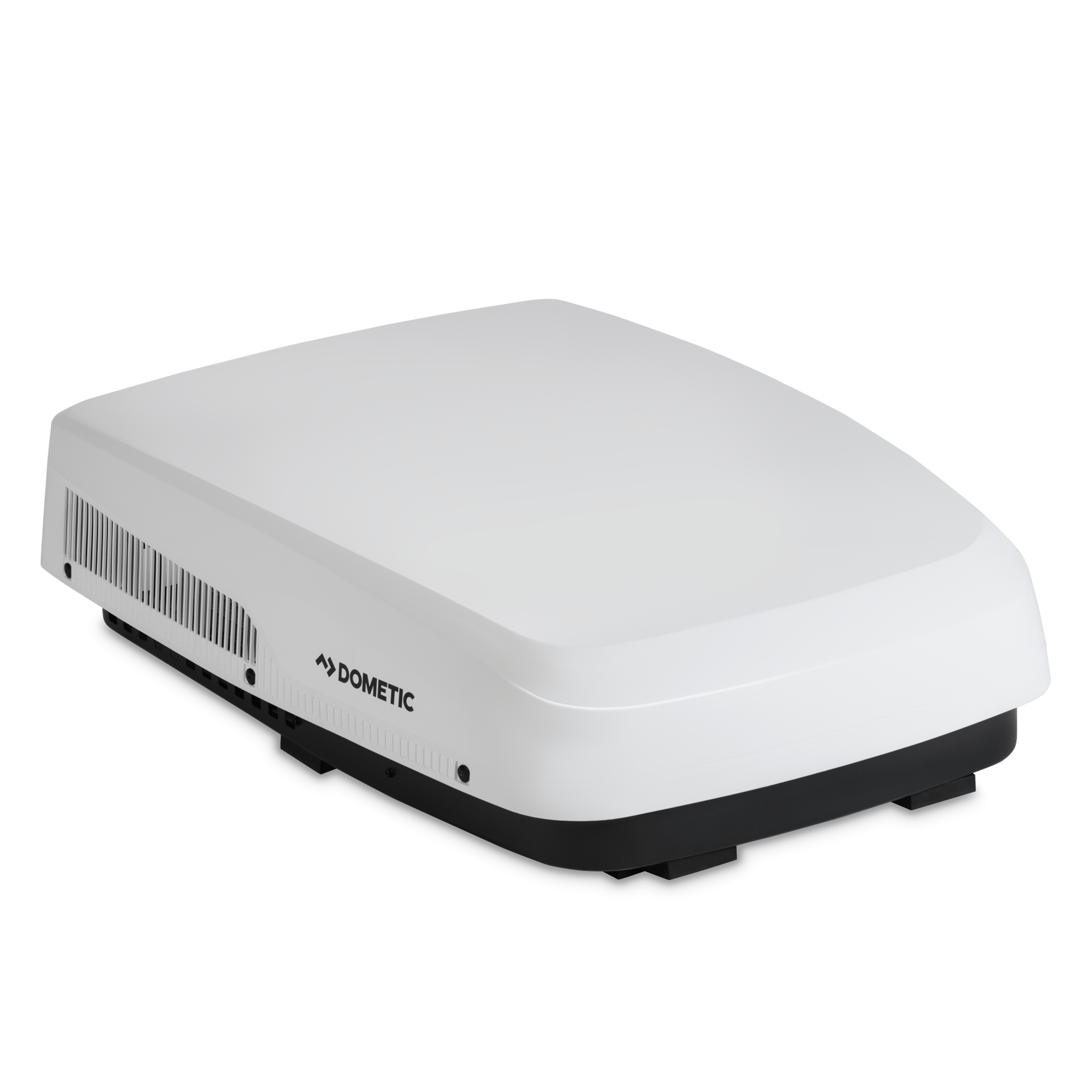

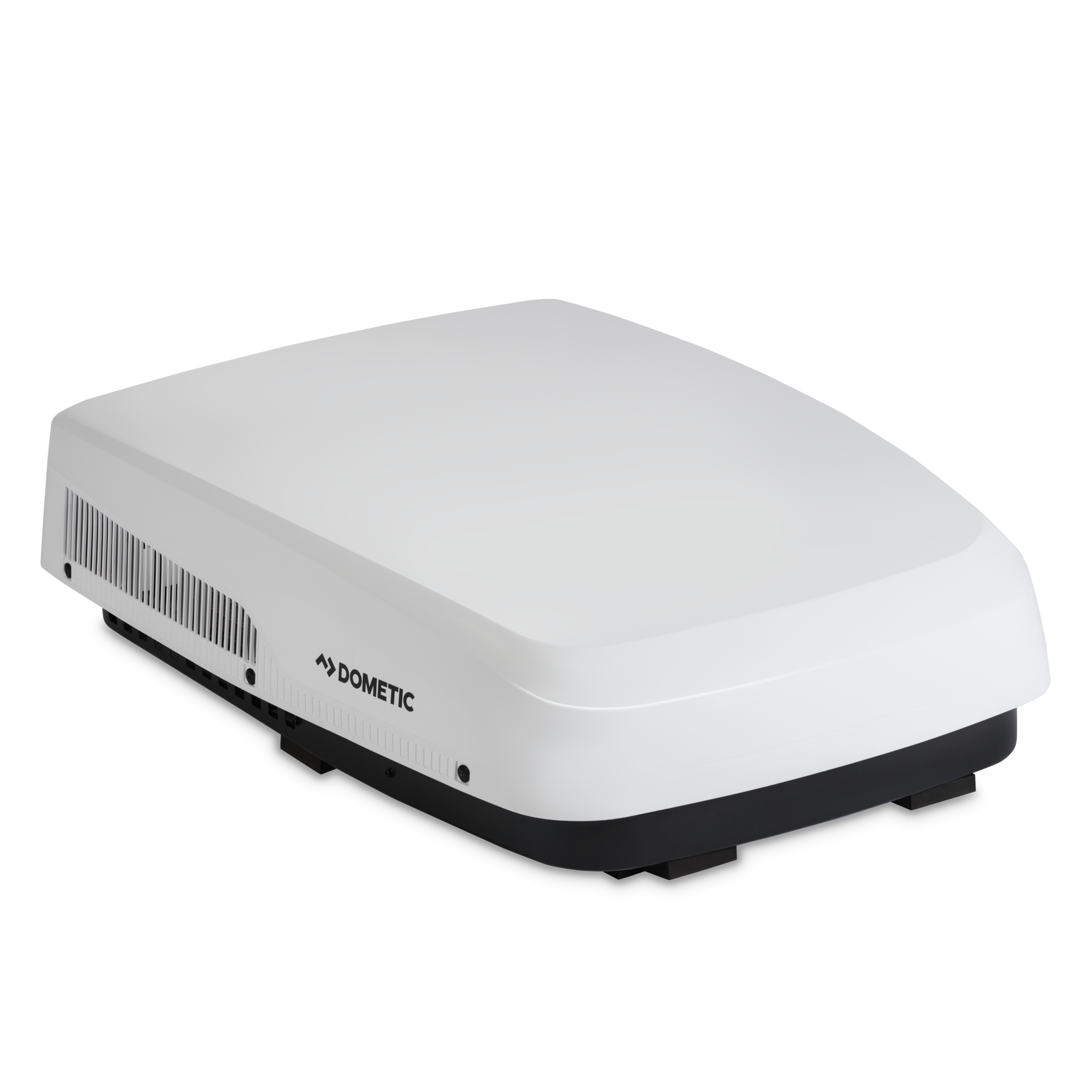

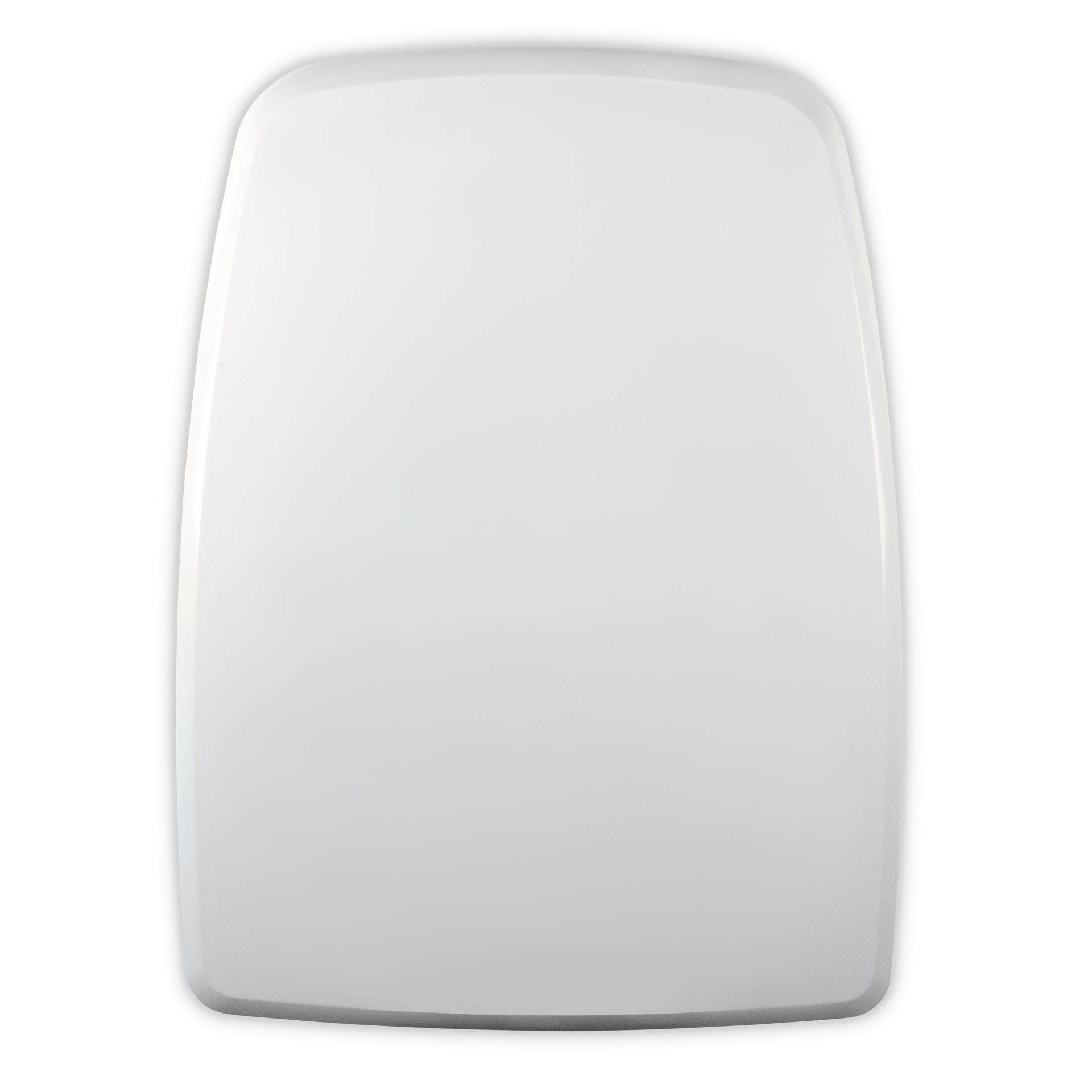

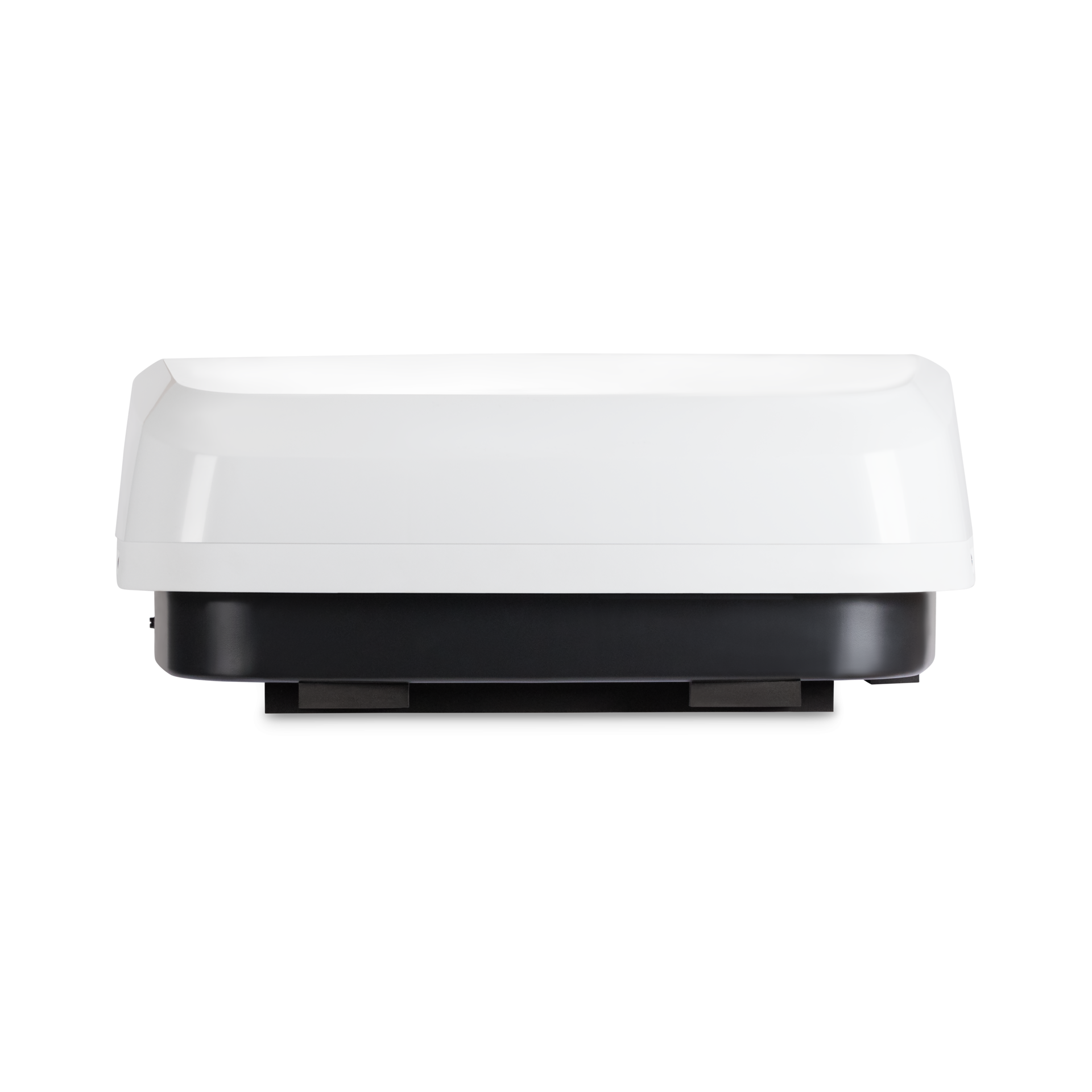

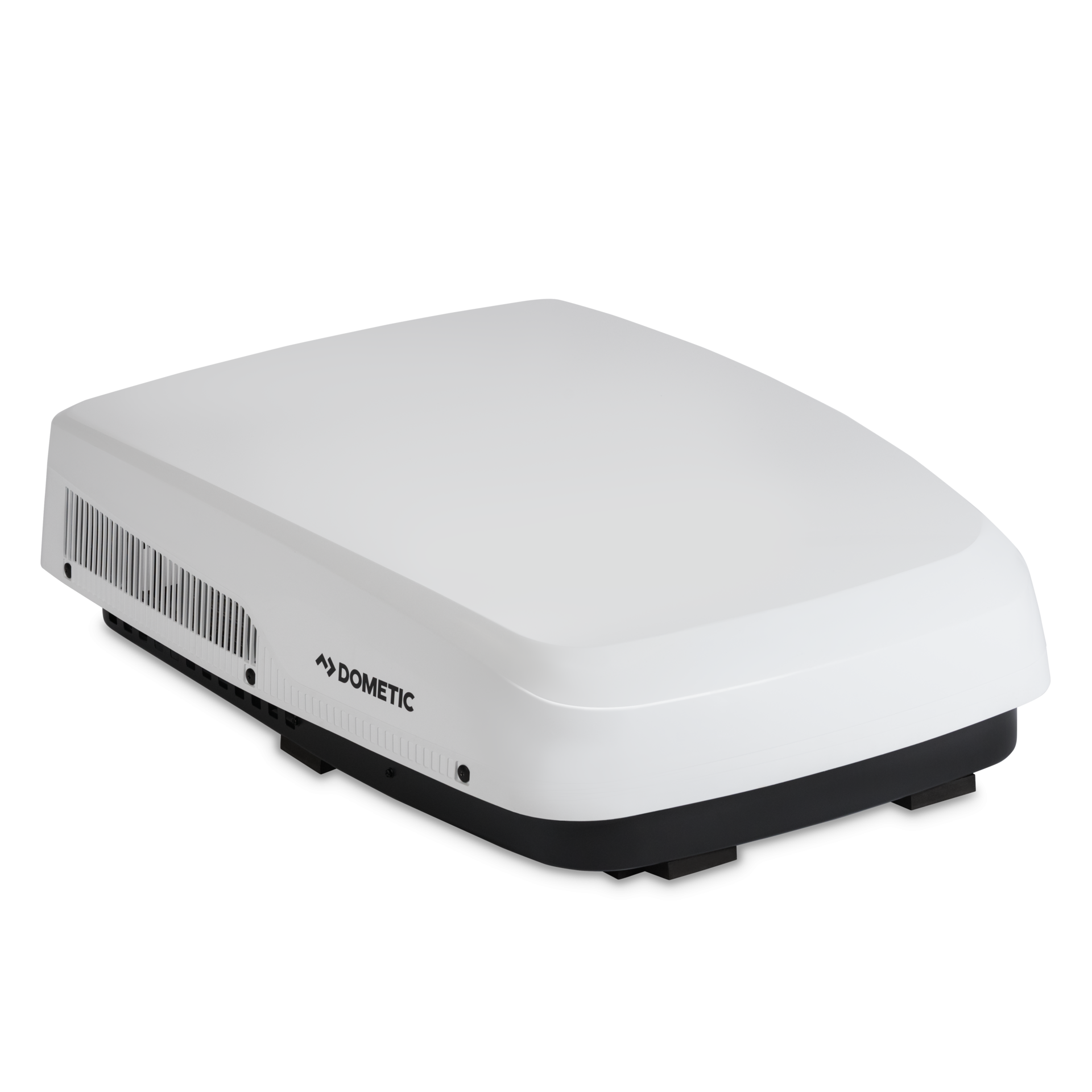

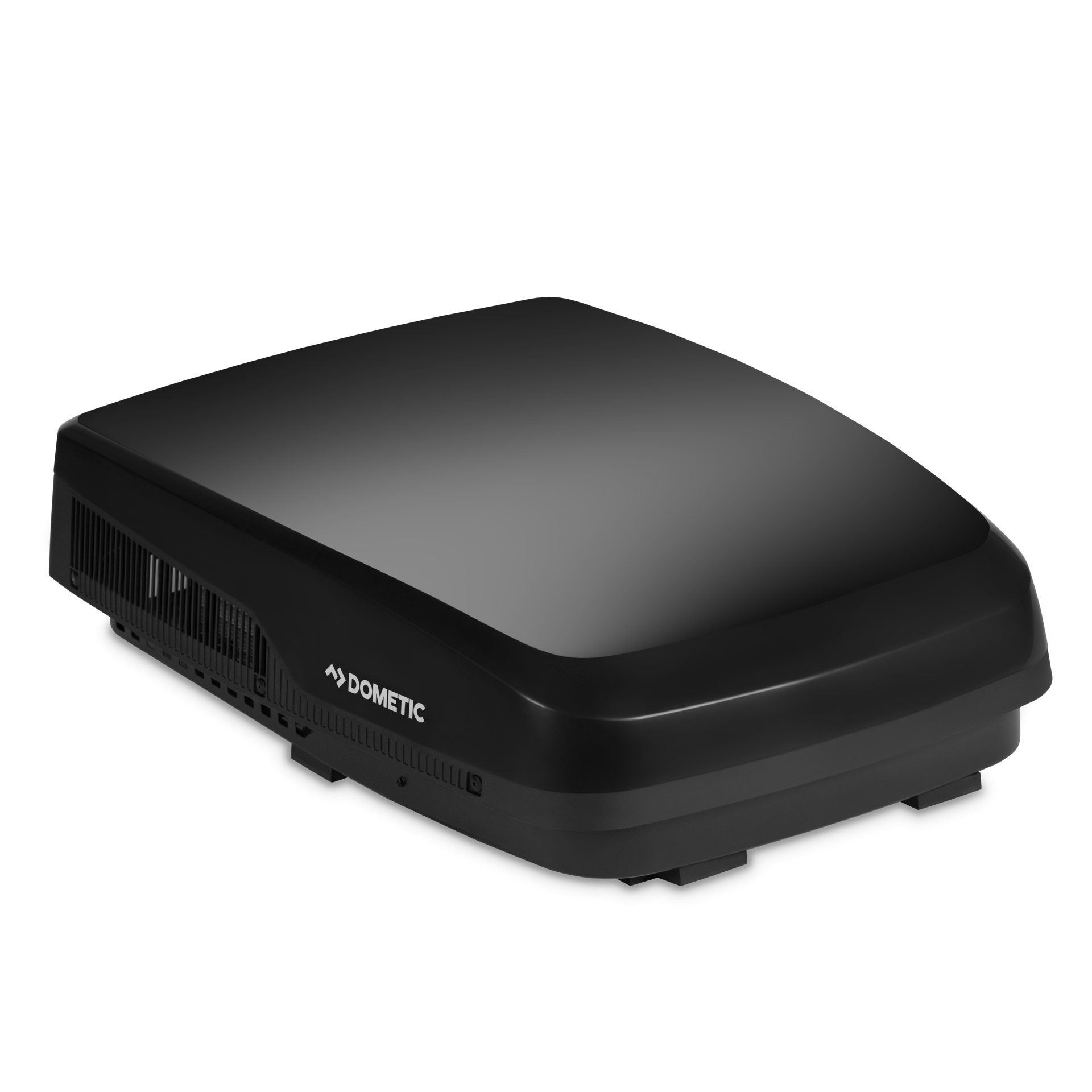

Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - White

Technical Information

Colour

Black

Brand

Dometic

Scope of delivery

1 Air-conditioner, 1 warranty card

EAN-13

6975399594253

Publication Model Name

Dometic FreshJet 5 Series Mechanical High Efficiency Low-Profile Air Conditioner - White

Product Description

High Efficiency (Approximately 11,000 BTU) - Rooftop Low Profile Air Conditioner with R32 Refrigerant - No Pre-installed controls - Non-Ducted application: air distribution box required - Ducted application: return air grille and control kit required, sol

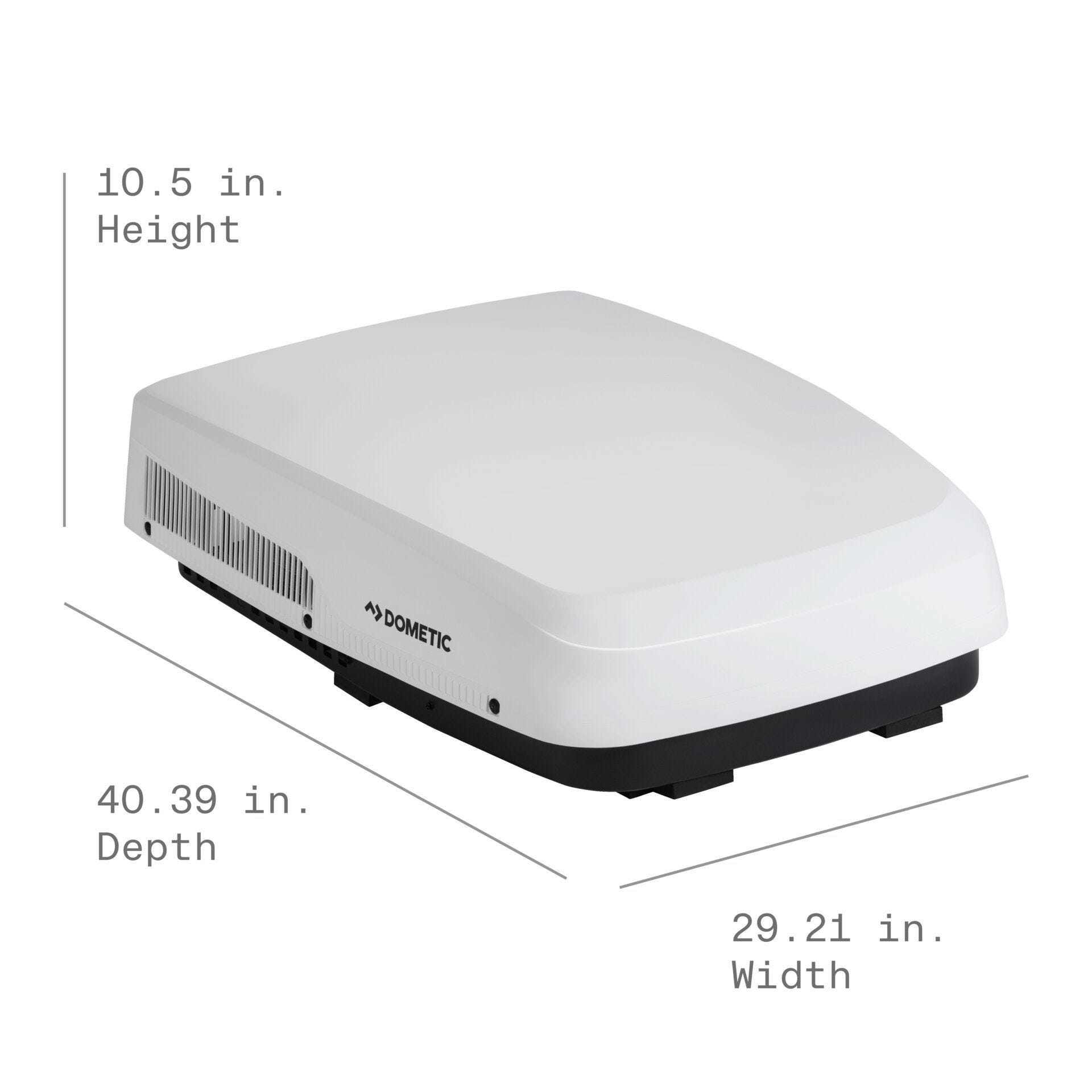

Dimensions product depth, [mm]

1026.20

Dimensions product height, [mm]

742.30

Dimensions product width, [mm]

282

Net weight, [kg]

42.10

Net weight, [lbs]

92.83

Dimensions parcel depth, [mm]

1060

Dimensions parcel height, [mm]

315

Dimensions parcel width, [mm]

755

Parcel weight, [kg]

47.10

Parcel weight, [lbs]

103.86

GWP

675

CO2 equivalent, [t]

0.162

SKUCertificates

CSA

Standard mount. material thickness 1 min, [mm]

18

Standard mount. material thickness 1 max, [mm]

68

Hermetically Sealed

Yes

Refrigerant, type

R32

Input voltage (AC), [V]

115

Input frequency, [Hz]

60

AirFlow, [m³h]

492.730000

Current consumption min cooling, [A]

8.560000

Current consumption max cooling, [A]

13.900000

Operating temperature min, [°C]

-1.100000

Operating temperature max, [°C]

51.700000

Cut out depth, [mm]

360.000000

Cut out width, [mm]

360.000000

Dimensions product width, ["] - Display

11.10

SKUSKURequiredAccessories

9105304486,9105304487

Item Description

FJX,HE-MECH LOW-PRO,WHT
