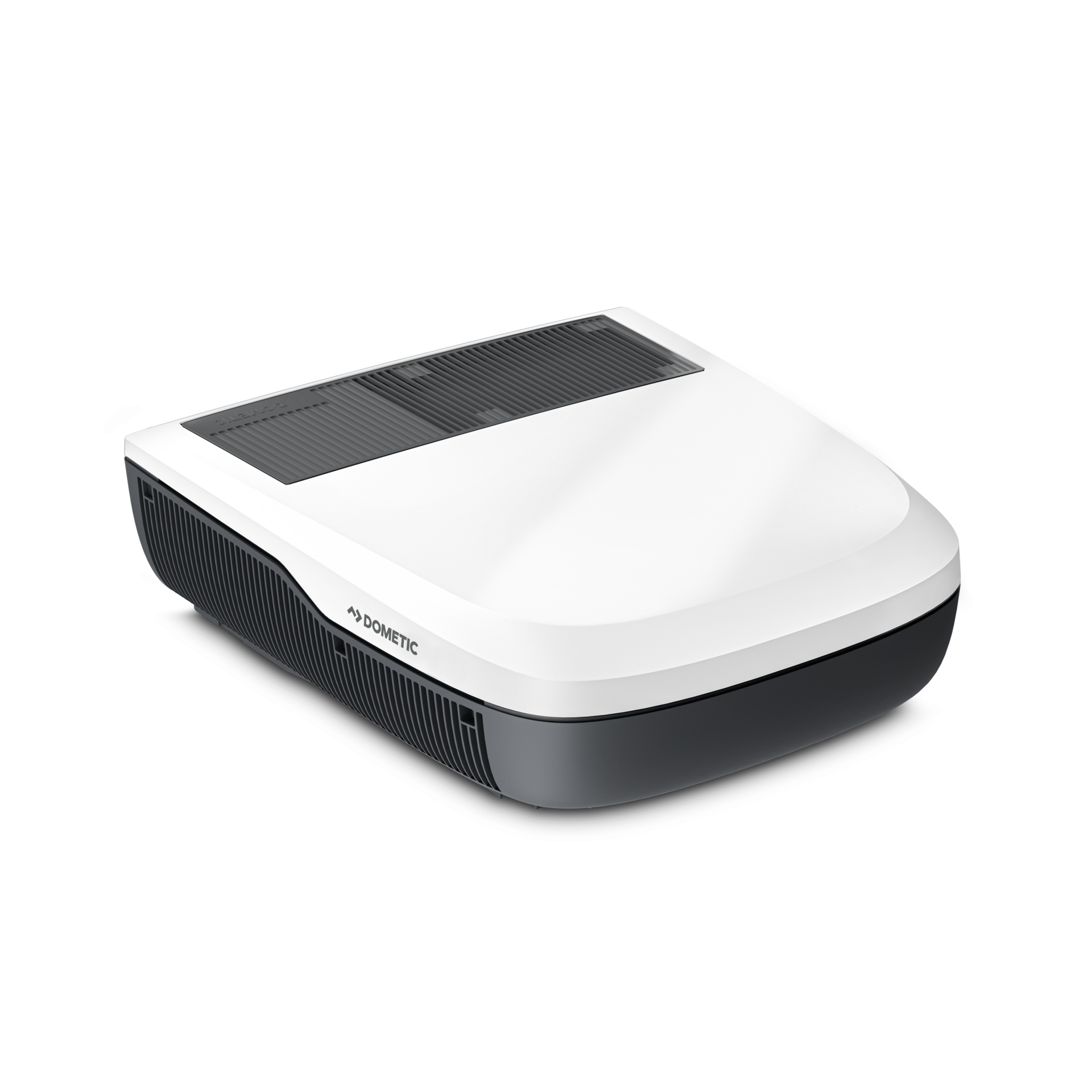

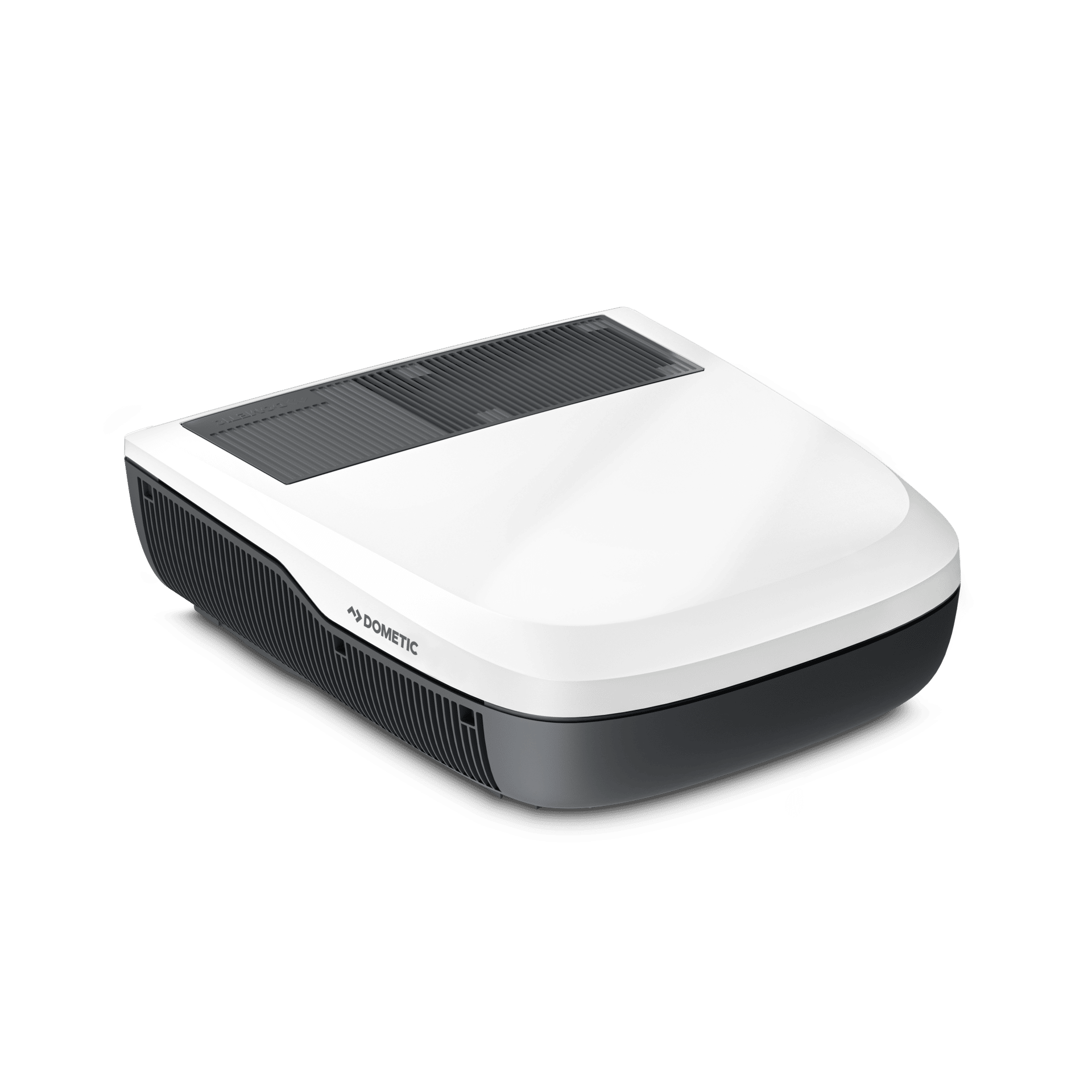

Dometic FreshJet 7 Series Lite

RV air conditioner

  • Superior energy efficiency
  • CleanAir technology
  • Premium air distribution box (ADB) with full connectivity

The FreshJet 7 Series RV air conditioner features a streamlined design throughout the range, combined with superior cooling performance, optimised airflow, and the quietest operation yet. The Dometic FreshJet 7 Series Lite is designed for small to medium caravan and campervans and is much smaller and lighter than previous models. The CleanAir technology ensures circulating air is fresh and clean thanks to the built-in air purification system. The Series 7 features the next generation of Dometic’s leading inverter technology, Dometic’s most energy efficient range yet, perfect for off-grid adventures.

Description

  1. Superior cooling and heating performance. Heating Capacity: 2285W. Cooling Capacity: 2537W
  2. Optimised airflow
  3. Quiet operation
  4. Remote and full Wi-Fi/Bluetooth connectivity, controlled using the Dometic Climate app
  5. CleanAir technology
  6. Current Consumption Cooling Max (A): 6.9
  7. Installation dimensions: 702mm x 752mm x 225mm
  8. Suitable for vehicles up to approximately 4.5m (15ft)

Specifications

SKU: 9620008762

Dometic FreshJet 7 Series Lite — General specifications
ModelFJX7333IHP
Scope of deliveryRoof top unit, manuals
SKUCertificatesCB;CE;ECER10;RCM
Product DescriptionRV air conditioner

Dometic FreshJet 7 Series Lite — Dimensions specifications
Dimensions product depth, [mm]752
Dimensions product height, [mm]225
Dimensions product width, [mm]702
Dimensions product width, [in]27.64
Net weight, [kg]30.60
Net weight, [lbs]67.47
Standard mount. material thickness 1 min, [mm]25
Standard mount. material thickness 1 max, [mm]60

Dometic FreshJet 7 Series Lite — Electrical specifications
Input voltage (AC), [V]220-240
Input frequency, [Hz]50/60

Dometic FreshJet 7 Series Lite — Performance specifications
Hermetically SealedYes
Refrigerant, typeR32
GWP675
CO2 equivalent, [t]0.28
AirFlow, [m<sup>3</sup>h]426
Current consumption max cooling, [A]7.5
Operating temperature min, [°C]-2
Operating temperature max, [°C]52

Dometic FreshJet 7 Series Lite — Logistics specifications
Dimensions parcel depth, [mm]816
Dimensions parcel height, [mm]278
Dimensions parcel width, [mm]756
Parcel weight, [kg]36
Parcel weight, [lbs]79.38

Dometic FJX4333EEH, FJX7337IHP, FJX7457IHP - Operating Manual APAC(en)
Operating Manual
Dometic FJX4333EEH, FJX7337IHP, FJX7457IHP - Installation Manual APAC(en)
Installation Manual
Dometic Mini ADB/Core ADB - Installation Manual APAC3
Installation Manual
Download the app
Download on the App StoreGet it on Google Play

Product size & weight

W 702 x H 225 x D 752 mm

Weight: 30.60 kg

Loading products…

Highlights

Superior energy efficiency

Reduced power consumption allows a longer run time on batteries and generators

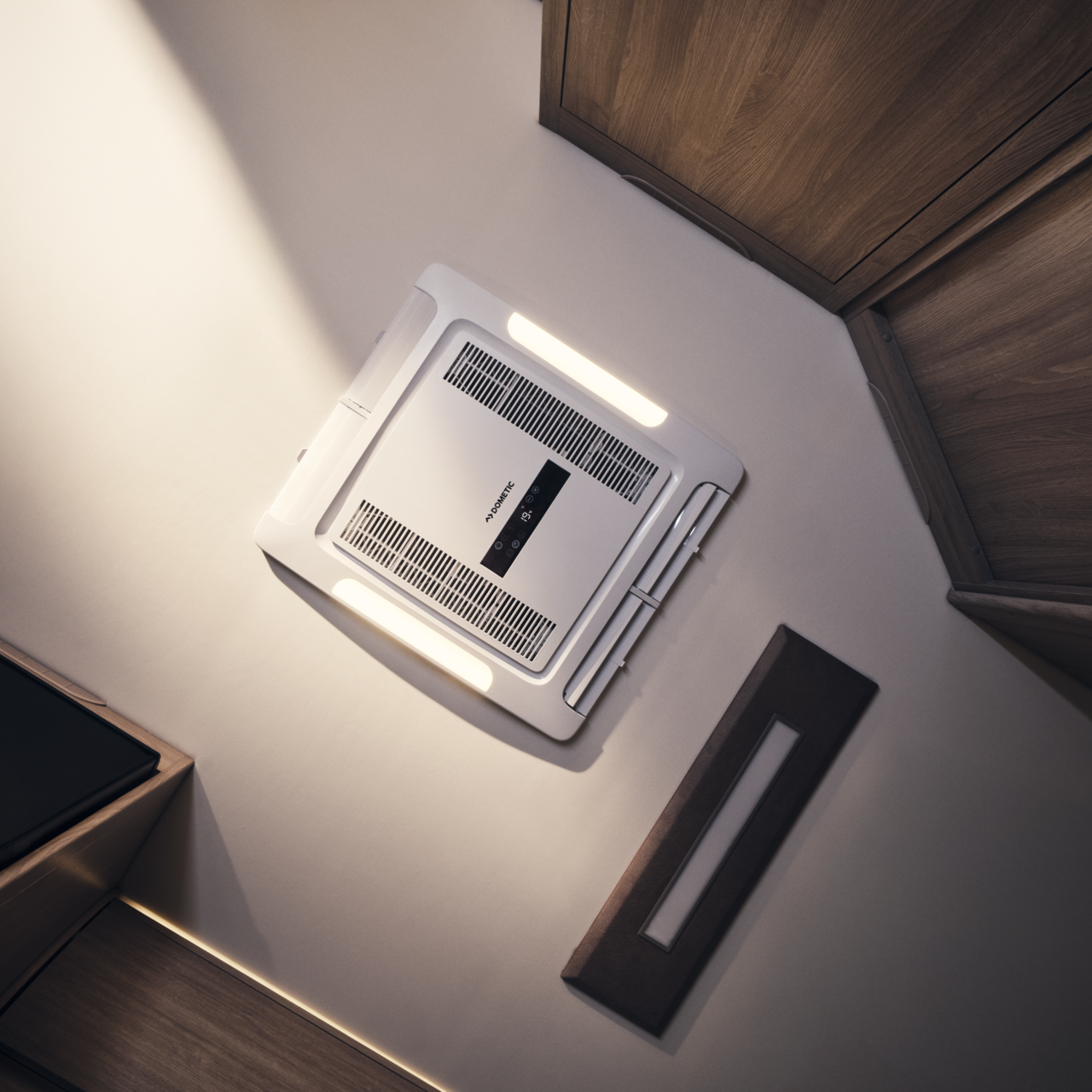

CleanAir technology

Keeps your RV smelling fresh and clean thanks to the inbuilt air purification system

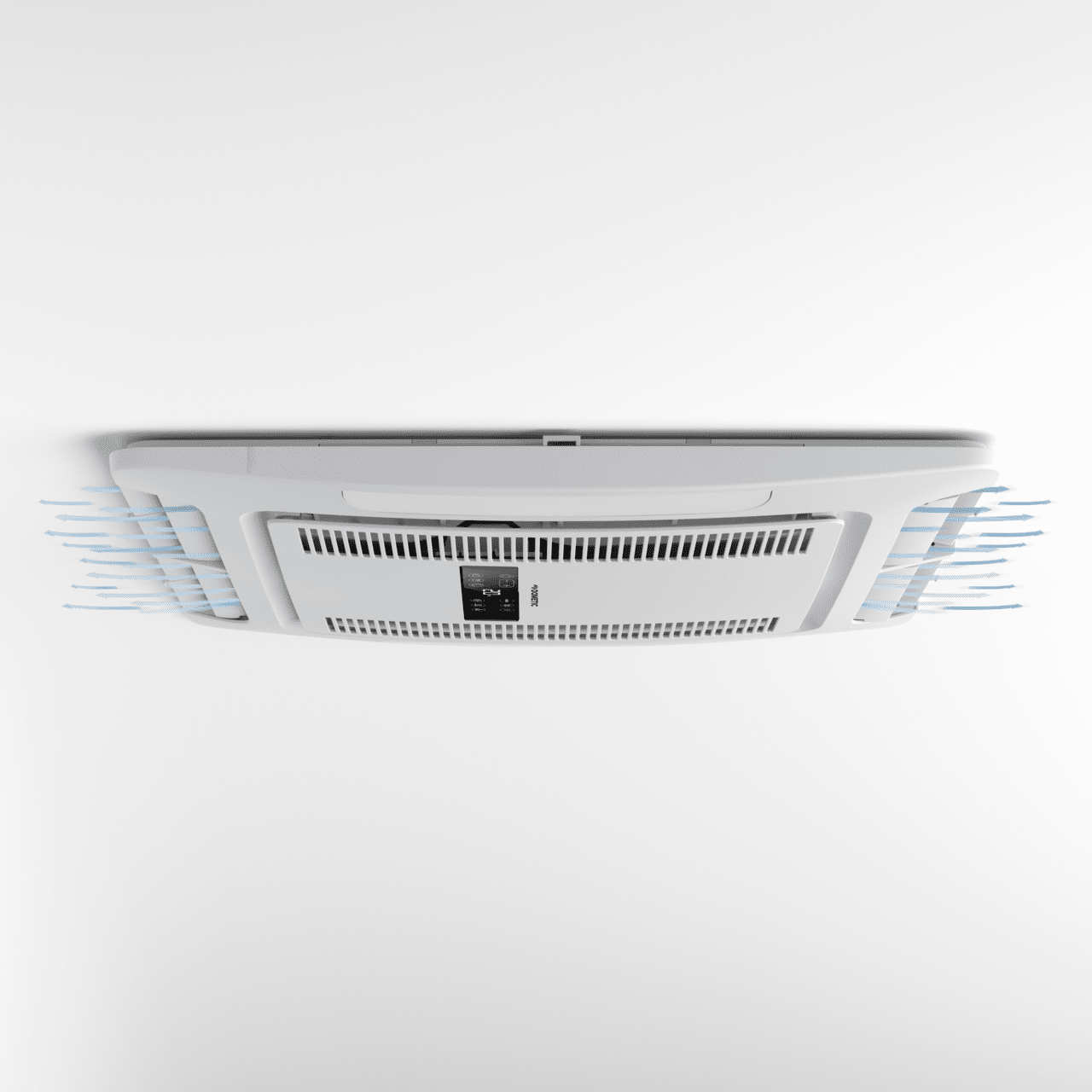

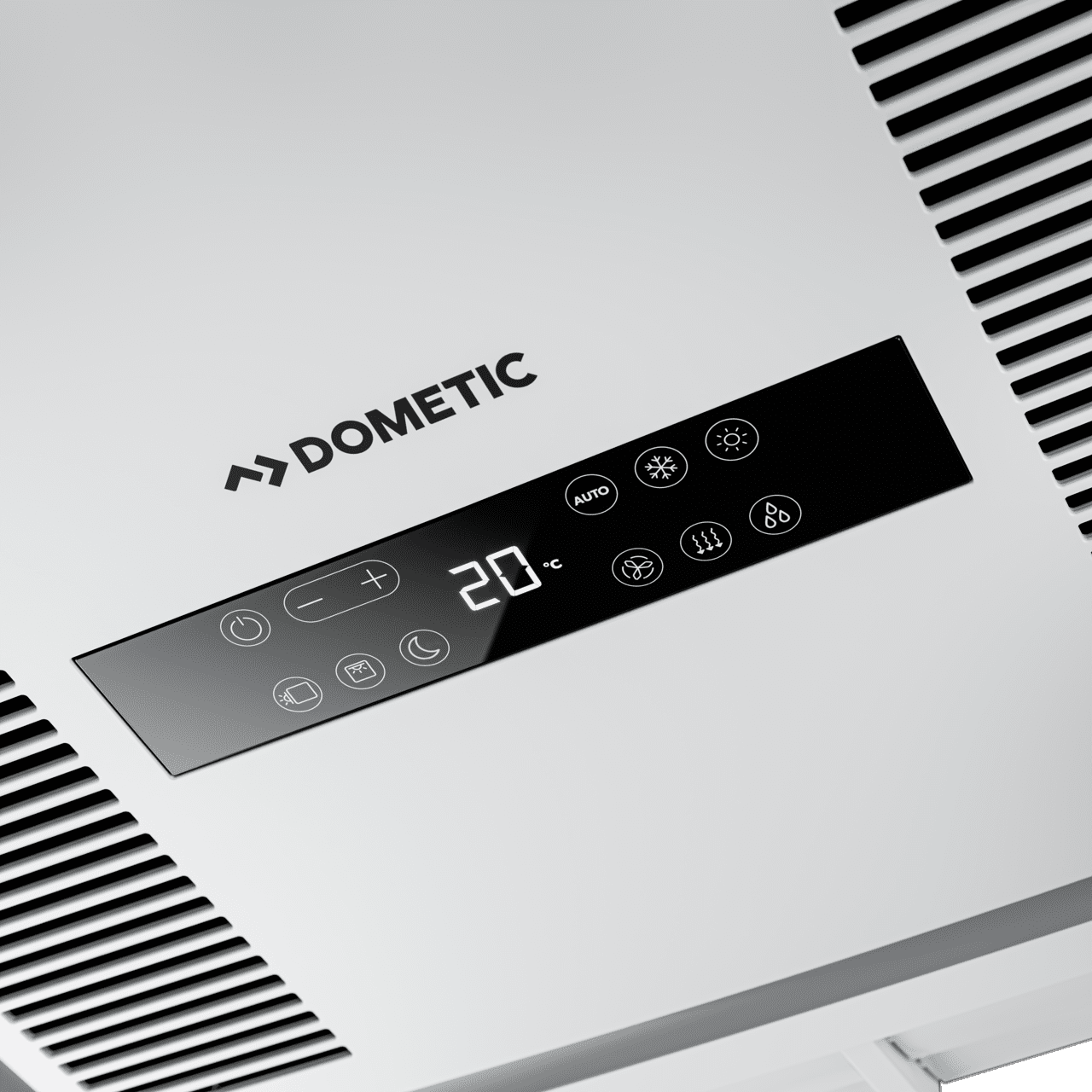

Premium air distribution box (ADB) with full connectivity

The air distribution box (sold separately), is packed with new technology and features such as touch control panel and remote, integrated ambient LED light and Wifi/Bluetooth connectivity

Next generation of Dometic inverter technology

The quietest and smoothest operation ever, perfect for off-grid adventures

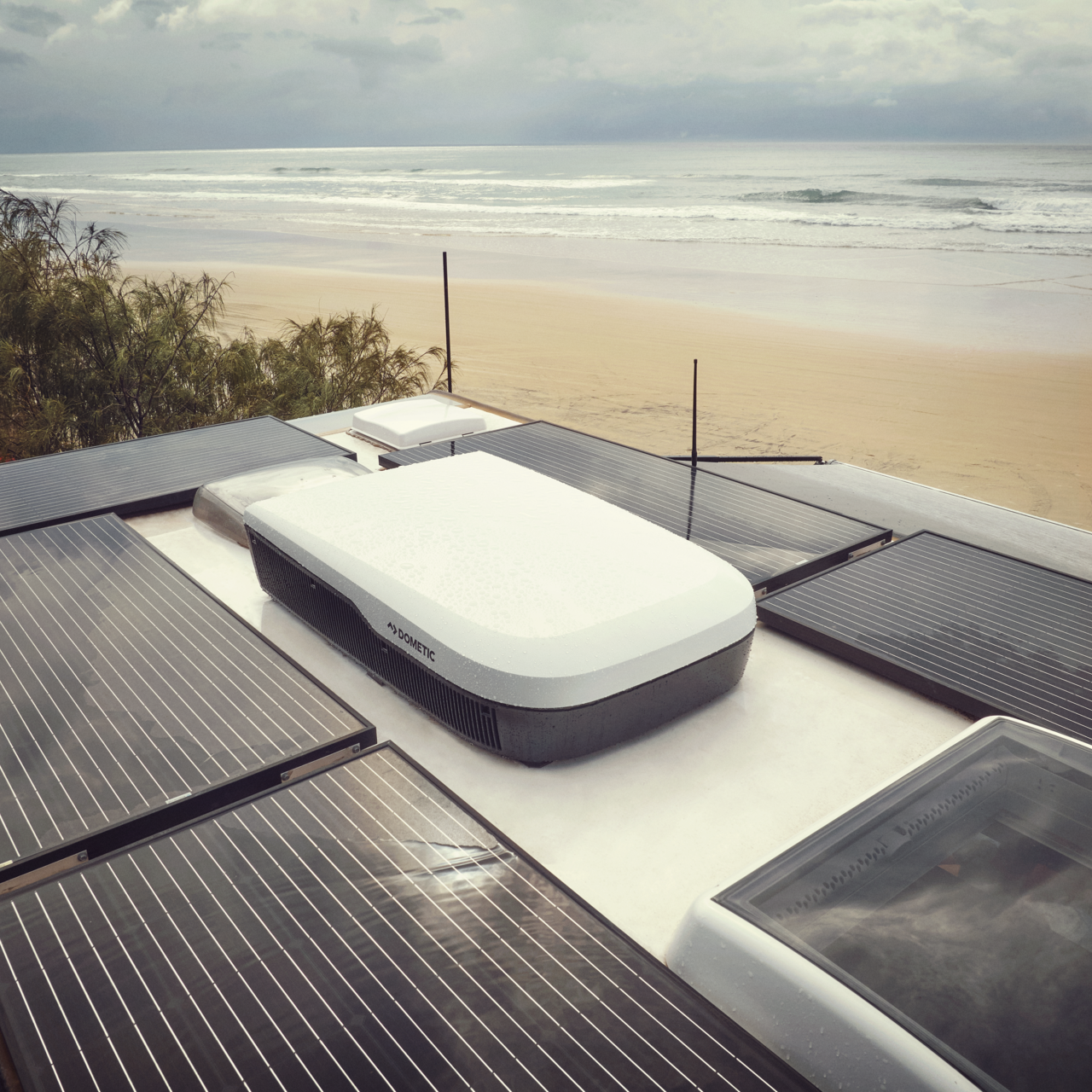

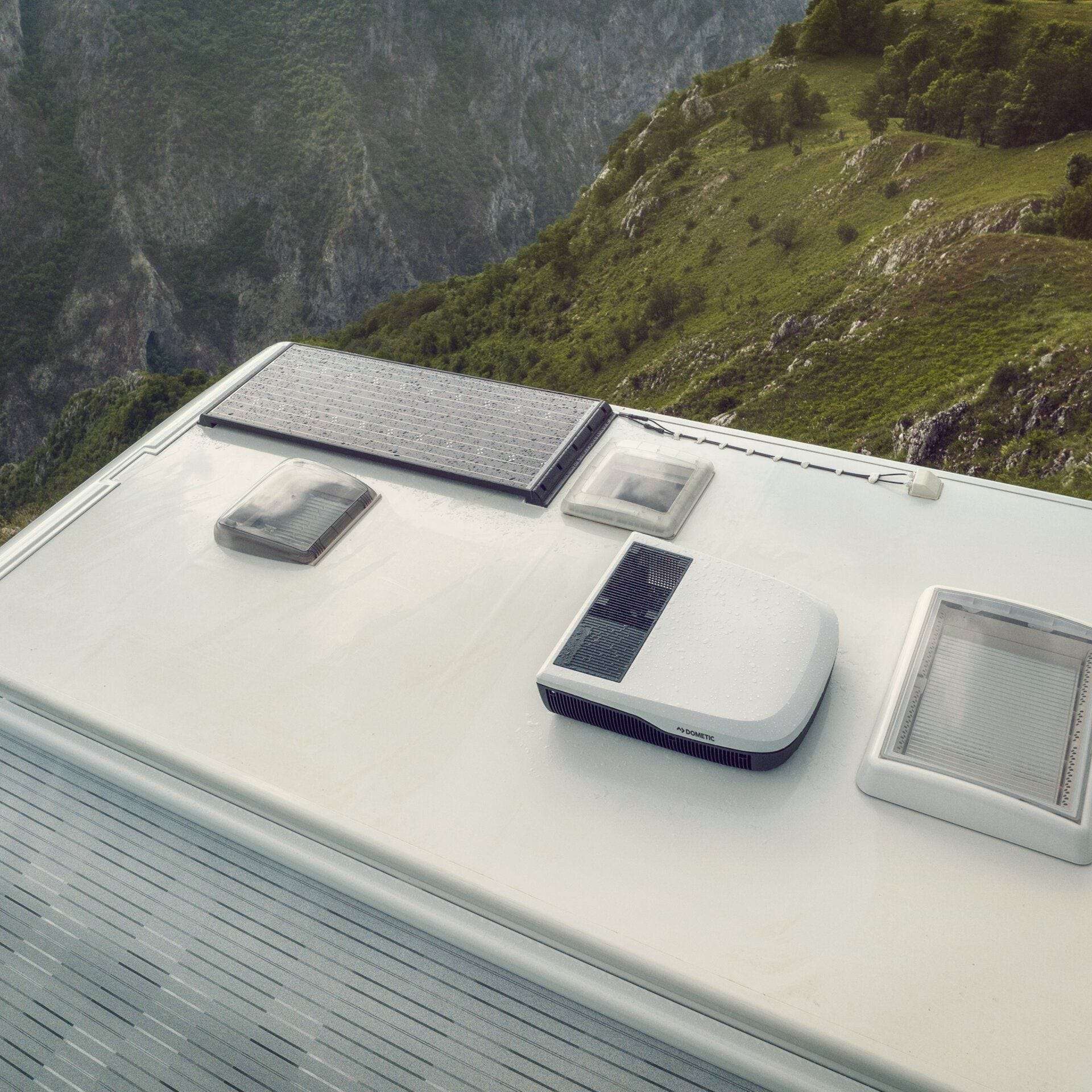

Lightweight and compact

Ideal for optimised rooftop layout with solar panels and other devices

Modern and fresh design

Aerodynamically shaped rooftop unit

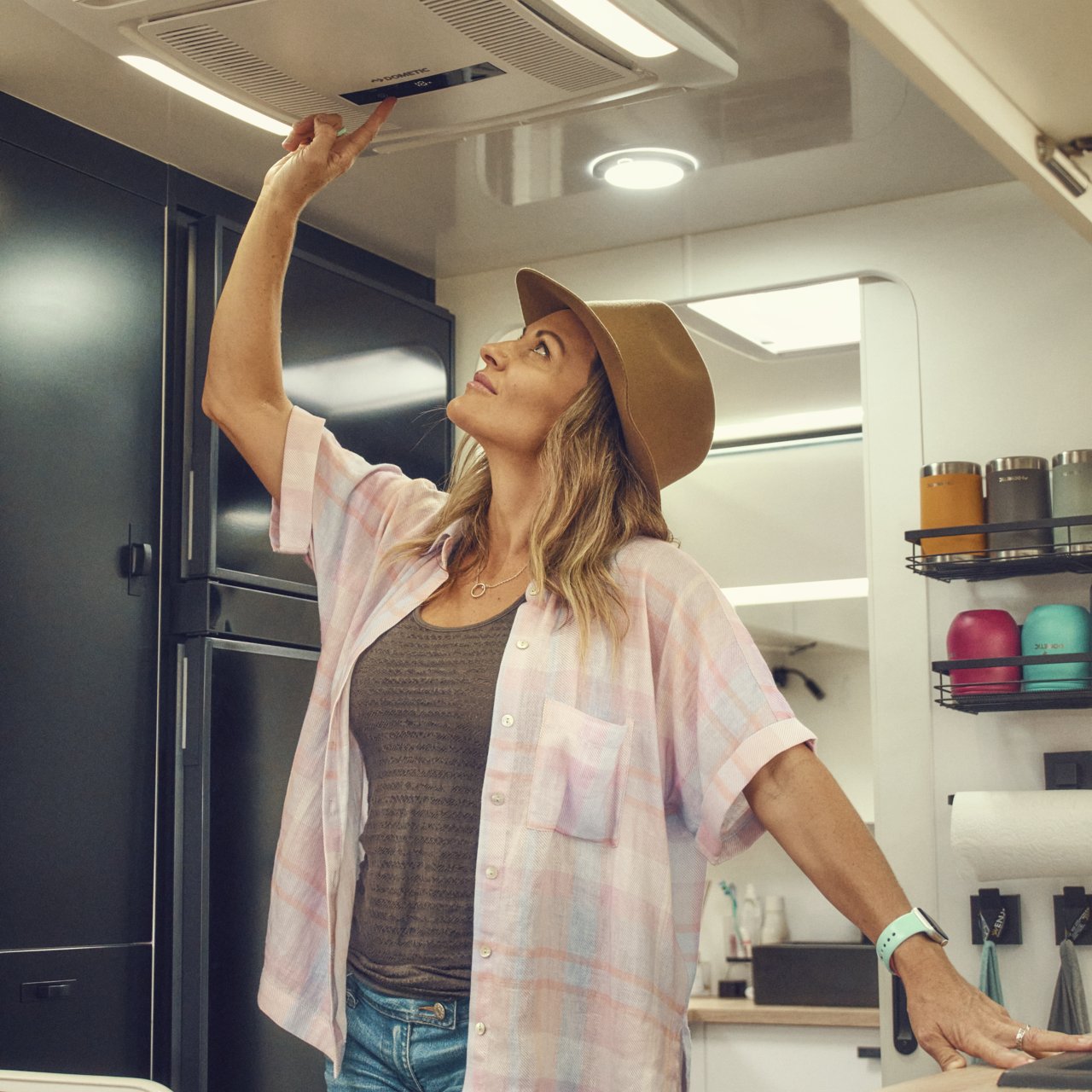

Dream complement for digital models

Dream complement for digital models

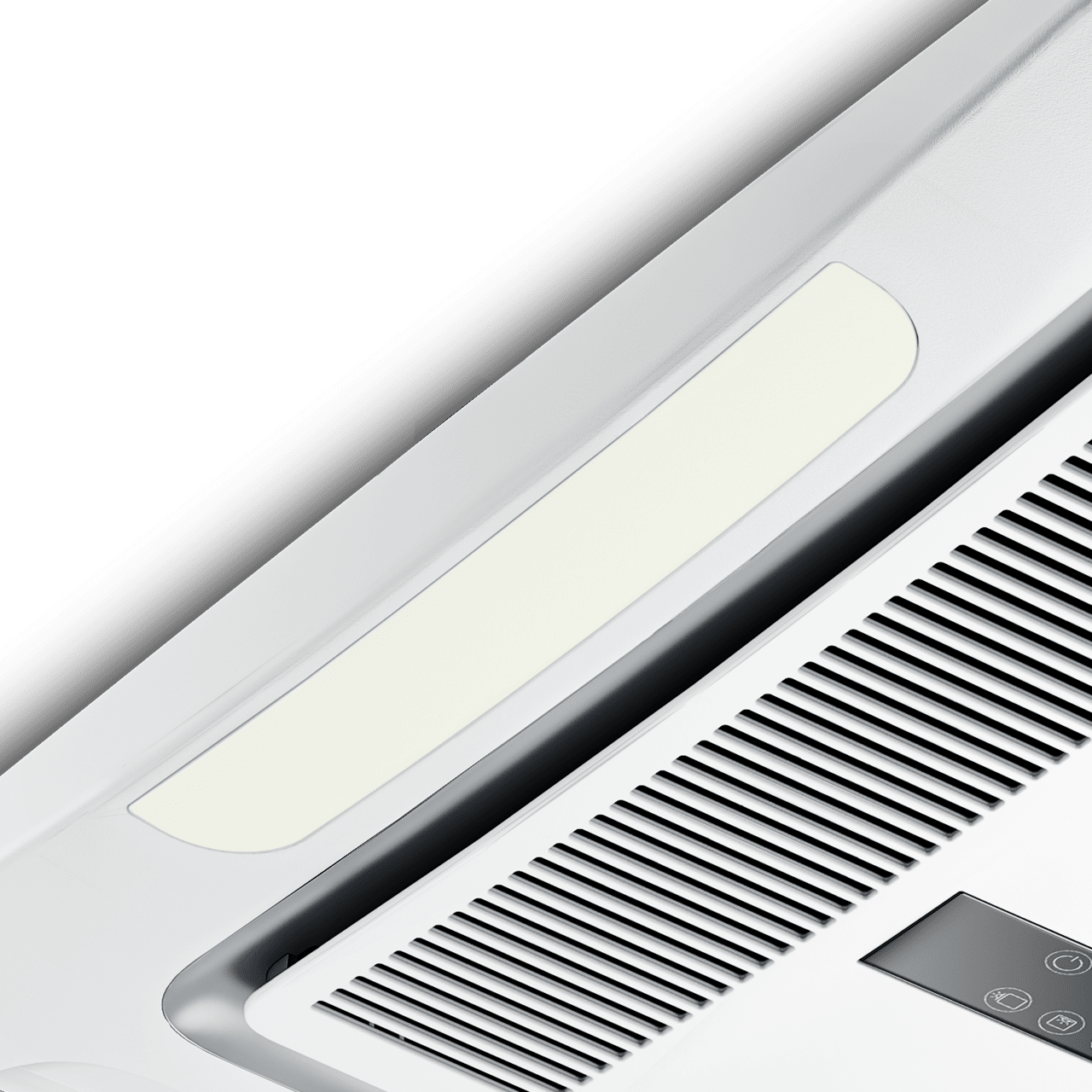

If you have decided on buying one of our electronic rooftop air conditioners, this elegant air distribution box is a must-have complement. Just add it to your purchase to enjoy all the benefits of our new FreshJet FJX generation! The low-profile unit generates a refreshing airflow to the front and back – efficiently and amazingly quietly. The nicely integrated touch control panel allows intuitive control of the temperature and blower level and the built-in lights create a cozy atmosphere in the cabin. Dometic CleanAir technology ensures you can always breathe fresh and healthy air. The Dometic FreshJet FJX ADB air distribution box fits all digital FreshJet FJX air conditioners (electronic FJX4 models and all FJX7 models). Please note that it has to be ordered separately.

Questions, answered.

A few things worth knowing before you decide.

Still need a hand?

Contact product support

4 questions

If you are travelling to cooler climates then this will not challenge the air conditioners to the extremes, a unit with a smaller power rating will do for these types of trips. You should not save on power, though, if you regularly travel to warmer climates and even less so if you have children or pets on board as staying in a recreational vehicle can quickly become uncomfortable on a hot summer day. When the nights are not cooler either, rest and recuperation is only possible with an adequate air conditioner.

Air conditioners work on basically the same principle as the cooling units of kitchen refrigerators. Their cooling efficiency is way higher though. In either system a refrigerant extracts heat from the space to be cooled and dissipates it to the outside. An RV air conditioner should additionally reduce the humidity. AC systems most commonly used for recreational vehicles:

  • Evaporation systems: Water is vapourised in a roof-mounted unit and collected in a filter. A fan draws ambient air in through the filter, which results in a heat exchange. Benefits: low current consumption, lightweight. Drawback: The energy efficiency depends on the ambient humidity; so the performance of the system varies. It drops when the humidity is > 85% – and that's exactly the level where air conditioning is needed. Moreover, evaporation systems will, by nature increase the humidity in the vehicle, regardless of the ambient conditions.

The temperature conditions in recreational vehicles and the reasons behind them RV and caravans are no houses and they don't have thick walls, even if they are reasonably insulated they will heat up in the sun. The temperature inside can quickly rise to 30°C or more and not only in the hot and sunny south, but also in moderate climate zones. Besides insulation, the temperature conditions inside the vehicle depend on other factors, too: the size and number of windows, for instance. A caravan with small windows will heat up less quickly than a RV with generously sized glass surfaces and it does of course matter where you park your vehicle – in the blazing sun or in the shade of a tree. Do you take every opportunity to air the vehicle out? Or are all the windows closed and the heat can spread throughout the interior?

Travelling off the beaten track with all the comfort you are accustomed to – Dometic generators make it possible. They ensure reliable power supply wherever mains power is unavailable. This makes them a must-have accessory for outdoor enthusiasts striving for maximum freedom and independence.

Air conditioners have the highest start-up current of all electrical devices commonly used in recreational vehicles. However, this current level is only required for fractions of a second; the level required in continuous operation is much lower. As the mains hookups on most campsites are fitted with a delay fuse, the short-time peaks are normally no problem.
