The FreshJet 7 Series RV air conditioner features a streamlined design throughout the range, combined with superior cooling performance, optimised airflow, and the quietest operation yet. The Dometic FreshJet 7 Series Plus is designed for large caravans and motorhomes whilst taking up less space on the roof compared to previous generations. The CleanAir technology ensures circulating air is fresh and clean thanks to the built-in air purification system. The Series 7 features the next generation of Dometic’s leading inverter technology, Dometic’s most energy efficient range yet, perfect for off-grid adventures.
[]
Superior energy efficiency
[]
CleanAir technology
[]
Premium air distribution box (ADB) with full connectivity
[]
Next generation of Dometic inverter technology
[]
Modern and fresh design
[]
Lightweight and compact
Technical Information
Technical Information
Colour
Black
Brand
Dometic
Scope of delivery
RTU with packing, includes manuals
EAN-13
6975399590033
Publication Model Name
Dometic FreshJet 7 Series Plus
Product Description
RV air conditioner
Dimensions product depth, [mm]
1090
Dimensions product height, [mm]
282.96
Dimensions product width, [mm]
700
Net weight, [kg]
38.90
Net weight, [lbs]
85.77
Dimensions parcel depth, [mm]
1150
Dimensions parcel height, [mm]
328
Dimensions parcel width, [mm]
780
Parcel weight, [kg]
46
Parcel weight, [lbs]
101.43
GWP
675
CO2 equivalent, [t]
0.439
Power consumption - Heat pump (ISO 5151)
1349
Thermostat control
Electronic Thermostat
SKUCertificates
CB;CE;ECER10;RCM
Hermetically Sealed
Yes
Refrigerant, type
R32
Input voltage (AC), [V]
220-240
Input frequency, [Hz]
50/60
Required AC circuit protection max, [A]
8.000000
AirFlow, [m<sup>3</sup>h]
496.000000
Current consumption max cooling, [A]
7.800000
Operating temperature min, [°C]
-2.000000
Operating temperature max, [°C]
52.000000
Cut out depth, [mm]
400.000000
Cut out width, [mm]
400.000000
Dimensions product width, ["] - Display
27.56
Item Description
Dometic Shape++ Inv 3500 HP WHT R32 RTU, APAC
Dimensions Product Width Metric Display
700
Pack Size
Yes
Marketing Product Description
RV air conditioner
Dimensions Product Width Imperial Display
27.56
Legacy Item Number
FJX7457IHPWHCS-B
Air Flow
496
Marketing Publication Model Name
Dometic FreshJet 7 Series Plus
Net Weight Imperial Display
85.77
Technical Information
Documentation & Downloads
Download the app
Get the Highlights
Superior energy efficiency
Reduced power consumption allows a longer run time on batteries and generators

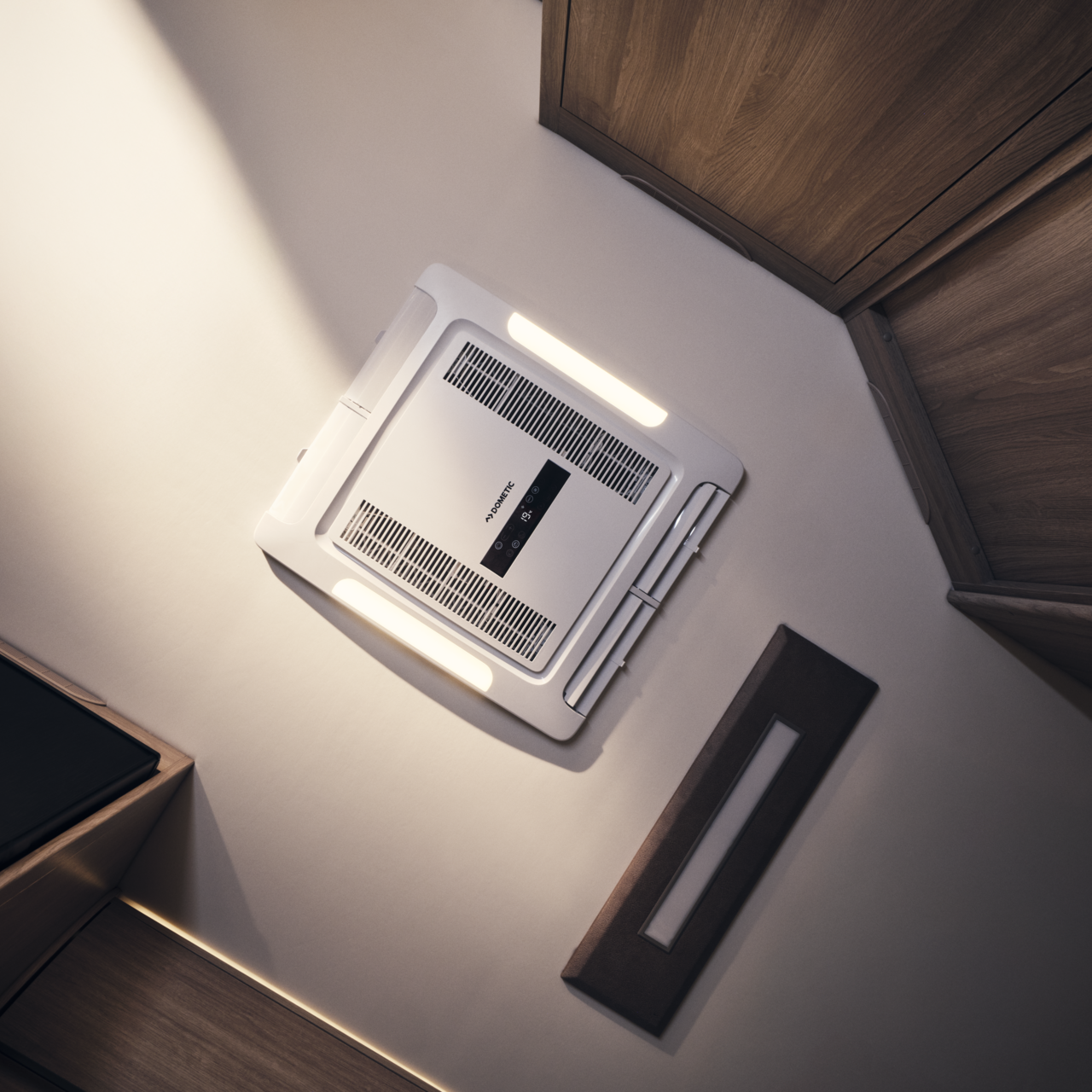

CleanAir technology
Keeps your RV smelling fresh and clean thanks to the inbuilt air purification system

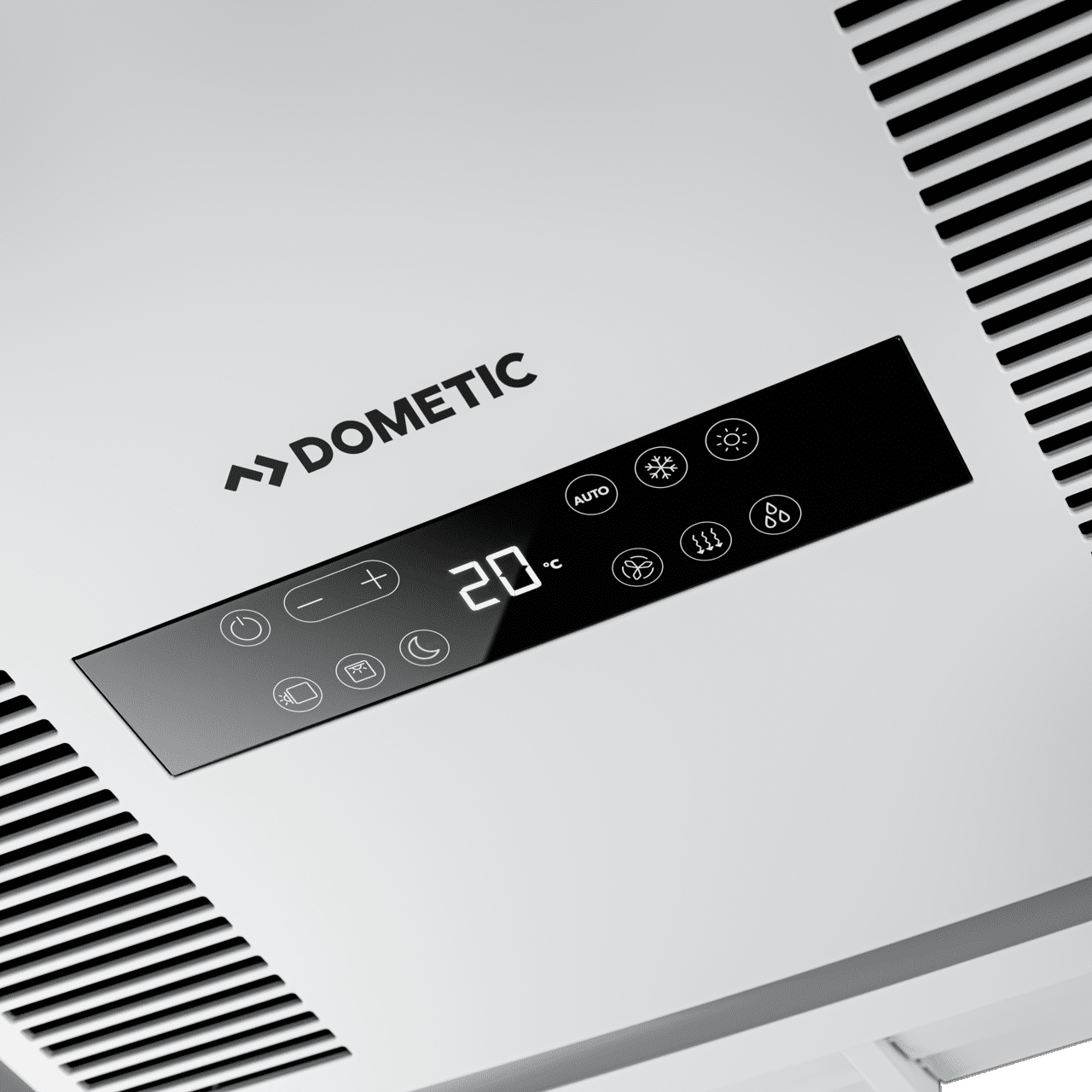

Premium air distribution box (ADB) with full connectivity
The air distribution box (sold separately), is packed with new technology and features such as touch control panel and remote, integrated ambient LED light and Wifi/Bluetooth connectivity
Next generation of Dometic inverter technology
The quietest and smoothest operation ever, perfect for off-grid adventures

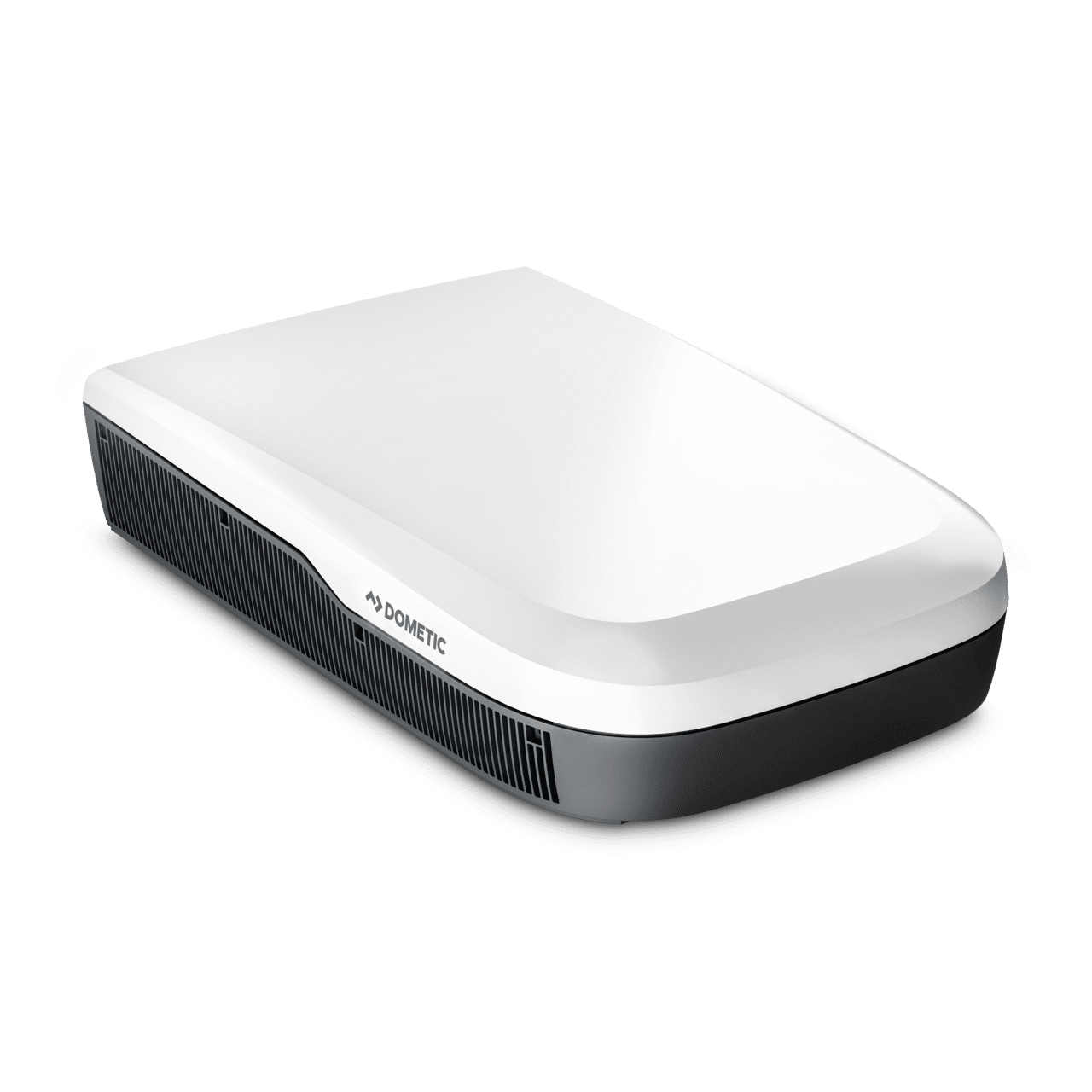

Modern and fresh design
Aerodynamically shaped rooftop unit

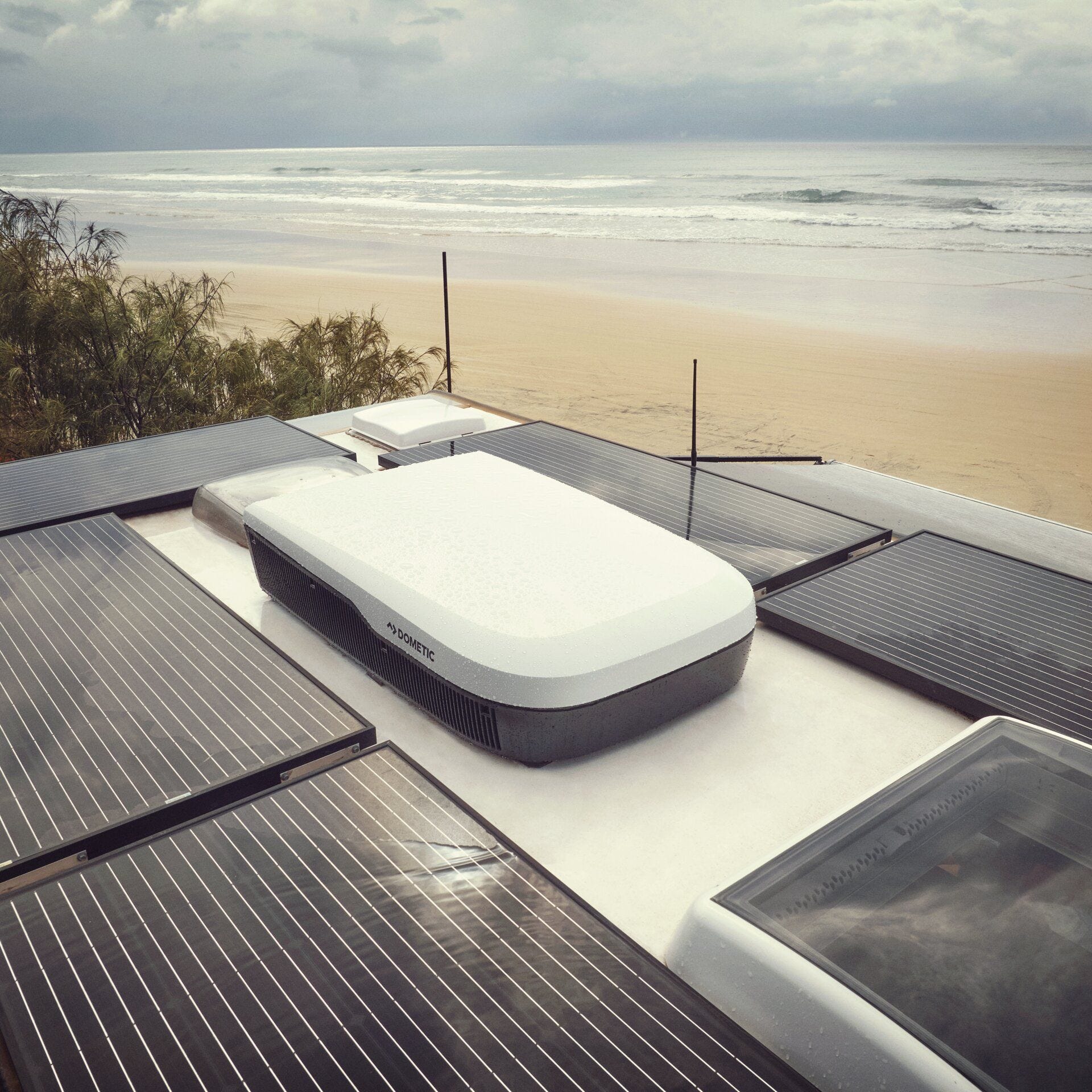

Lightweight and compact
Ideal for optimised rooftop layout with solar panels and other devices
