Description
- Optimized airflow for increased efficiency and reduced noise
- Integrated touch control display – unique in the market
- Integrated lighting – cool white LEDs for soft ambient light
- Vertically adjustable outlet vents for individual airflow regulation
- CleanAir air purifier system – keeps your RV smelling fresh and clean
- Low-profile design (just 68 mm high) leaves more headroom in the cabin
- Reusable dust filter – easy to remove for cleaning
Specifications
SKU: 9620001693
| Model | FJXADBD |
|---|---|
| Scope of delivery | ADB, Remote control, installation material |
| SKUCertificates | CB;CE;ECER10;KC;RCM |
| Product Description | Air distribution box, electronic controls, LED light |
| Dimensions product depth, [mm] | 579 |
|---|---|
| Dimensions product height, [mm] | 48 |
| Dimensions product width, [mm] | 518 |
| Dimensions product width, [in] | 20.39 |
| Net weight, [kg] | 3.90 |
| Net weight, [lbs] | 8.60 |
| Dimensions parcel depth, [mm] | 630 |
|---|---|
| Dimensions parcel height, [mm] | 140 |
| Dimensions parcel width, [mm] | 550 |
| Parcel weight, [kg] | 6 |
| Parcel weight, [lbs] | 13.23 |
Highlights

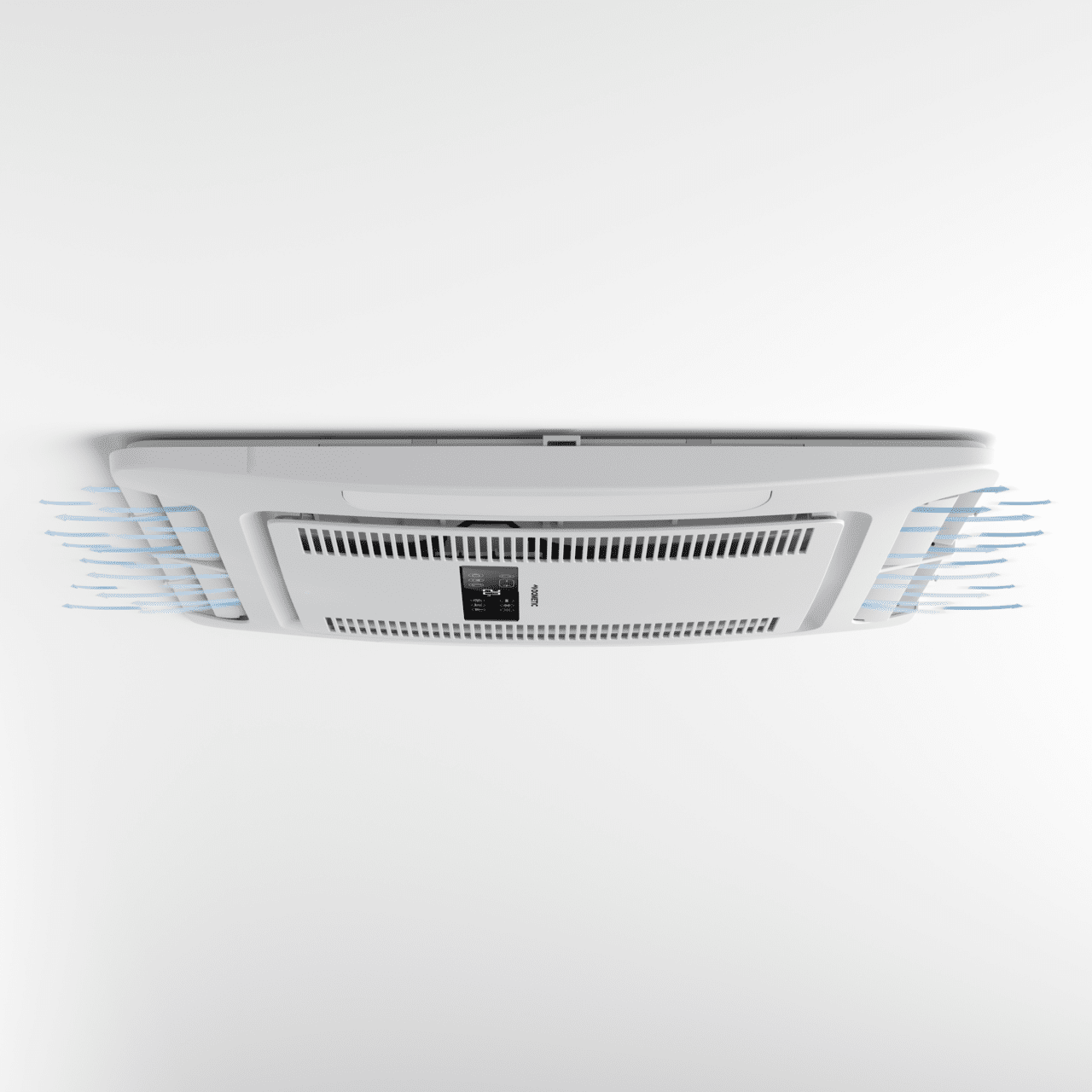

Optimized airflow
Low-profile air distribution box with powerful front and back airflow

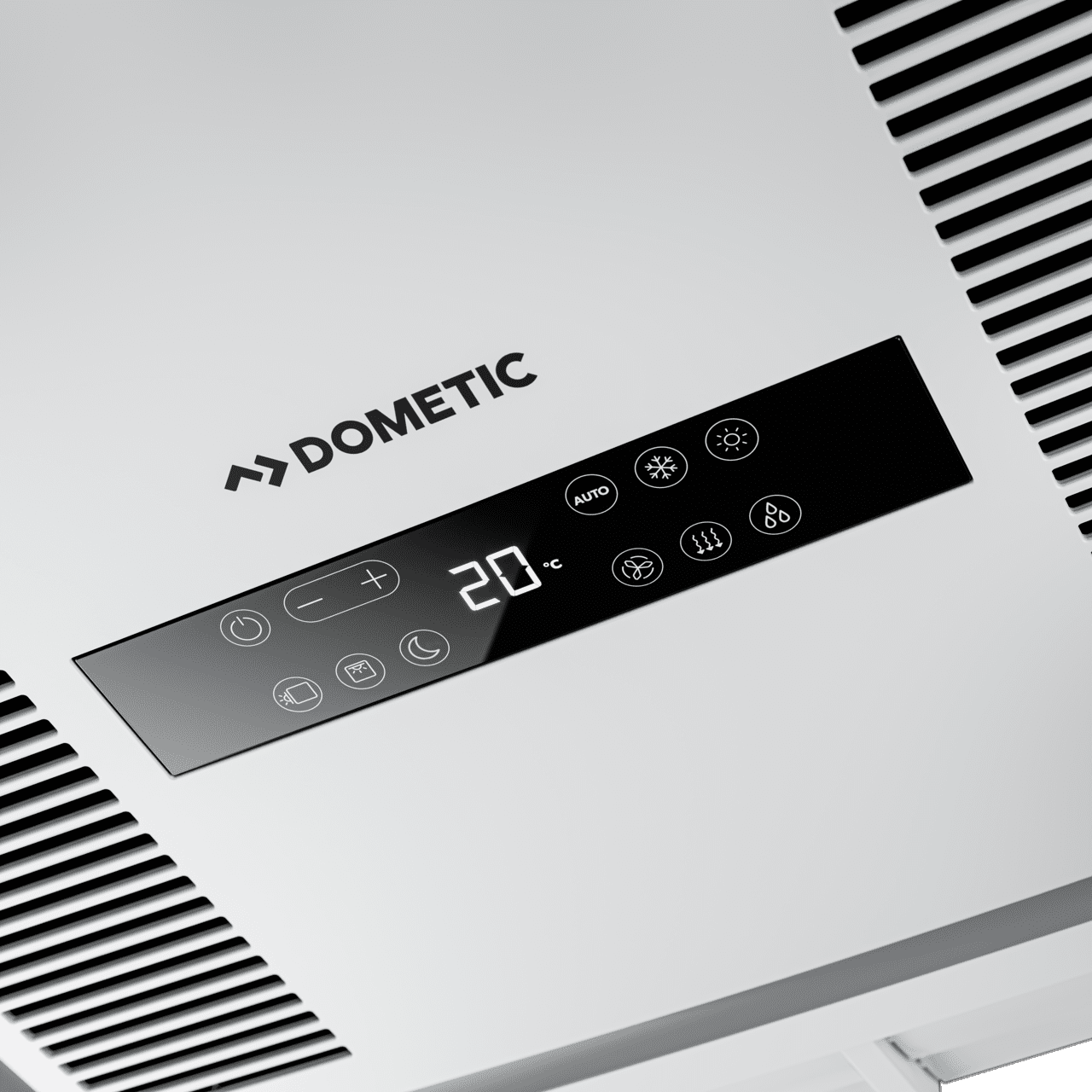

Intuitive touch control
Simply set the temperature and blower level you want

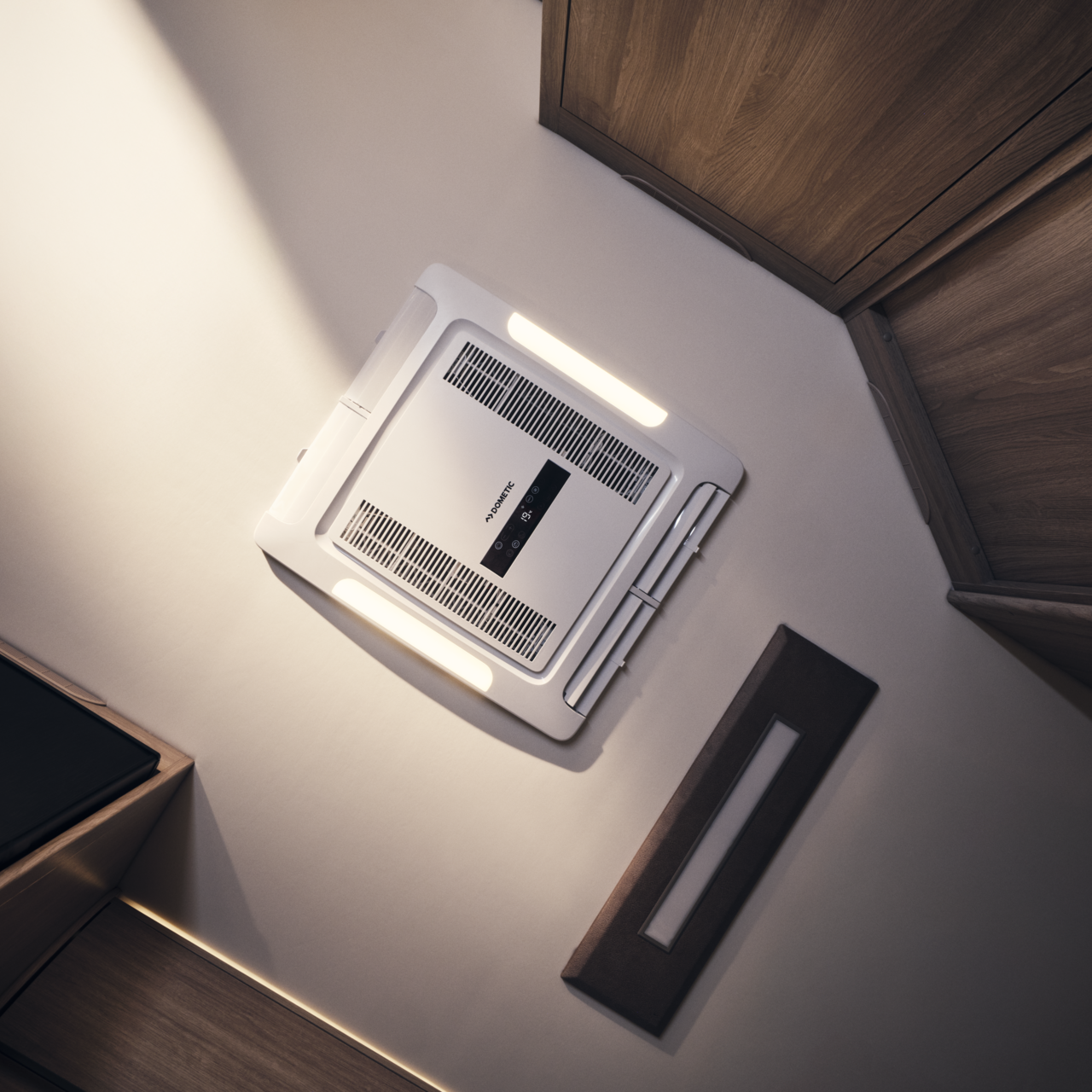

CleanAir technology
Effectively reduces bacteria and odors to keep your RV smelling fresh and clean

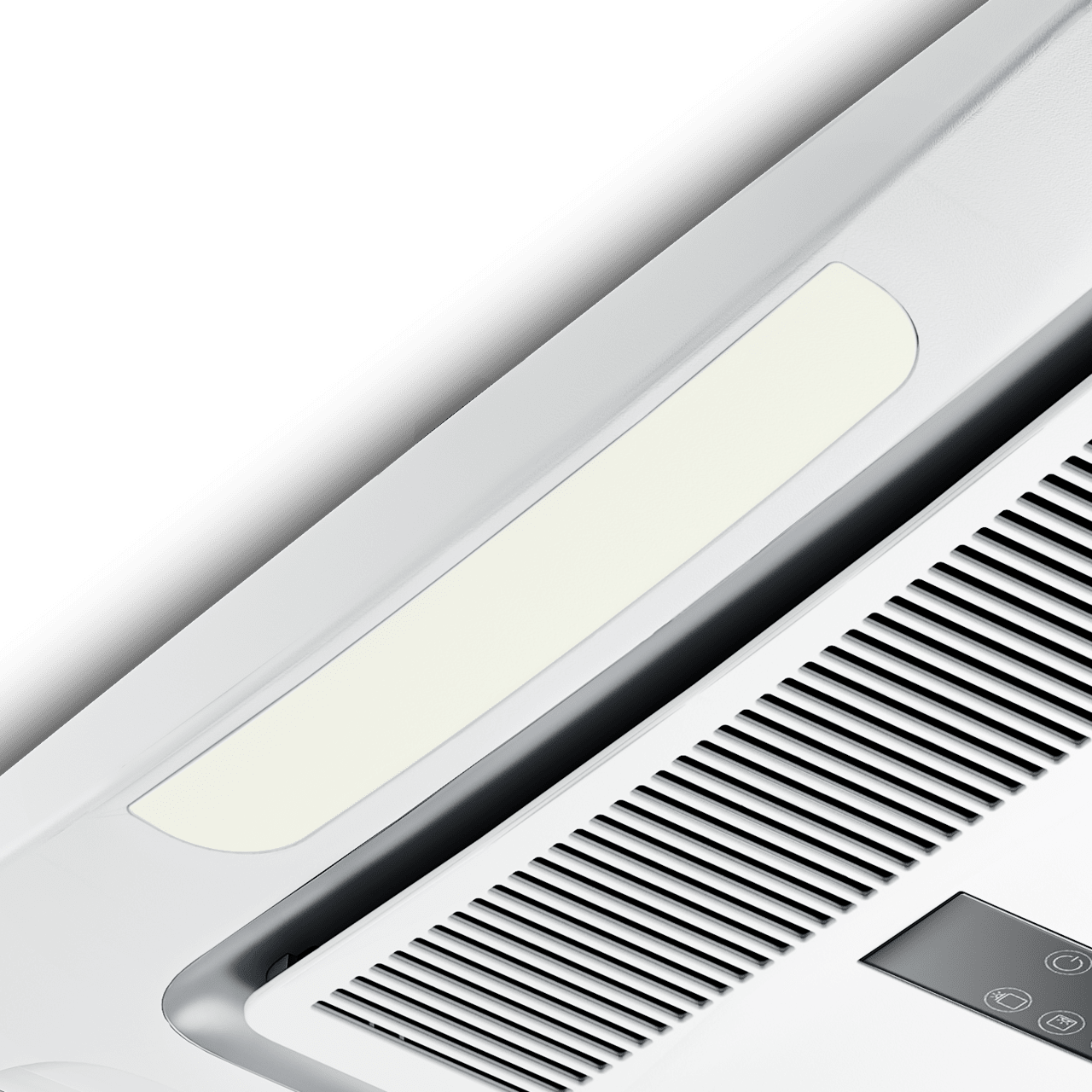

Integrated lighting
Warm white LEDs create a beautiful, soft ambient light

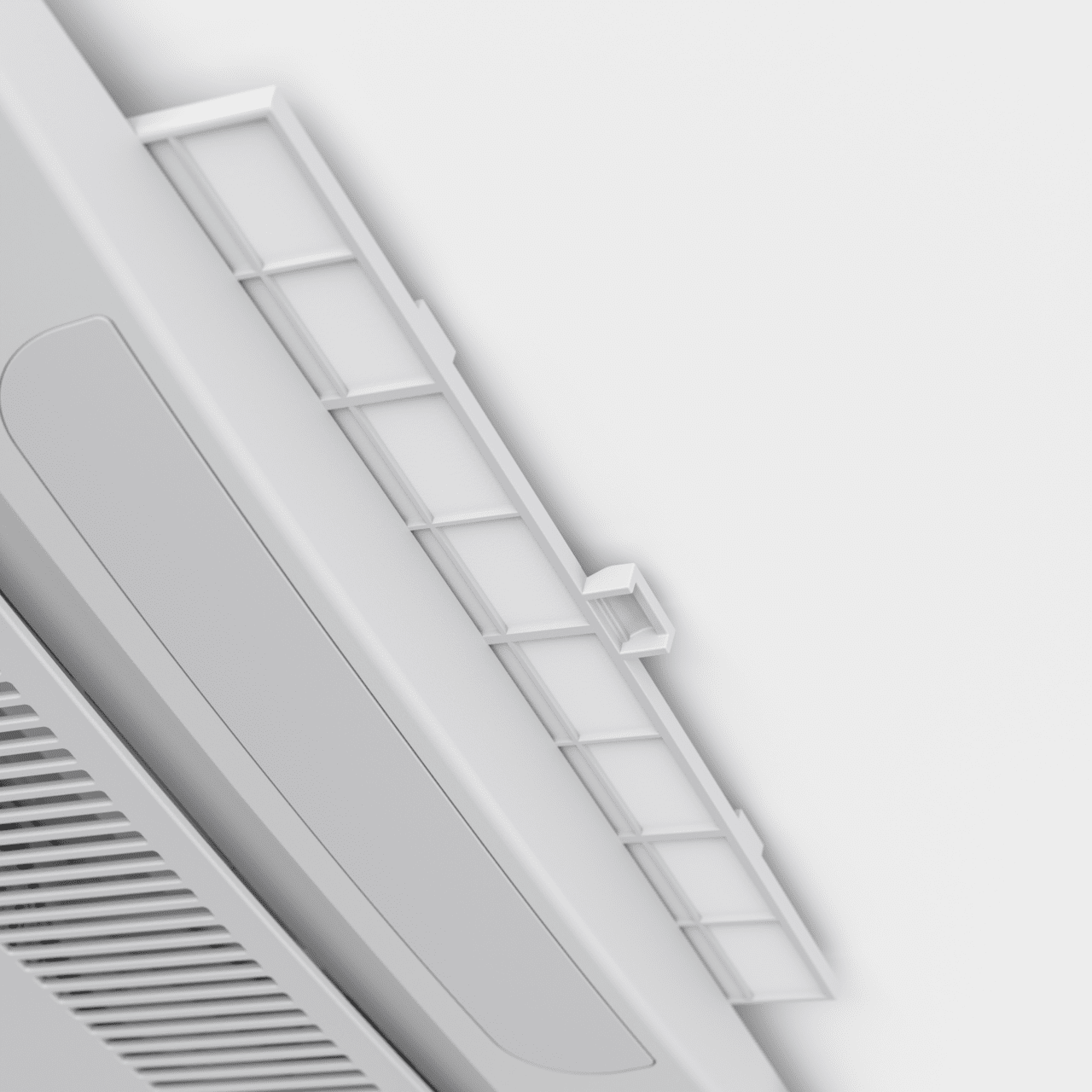

Reusable dust filter
Easy to remove for cleaning

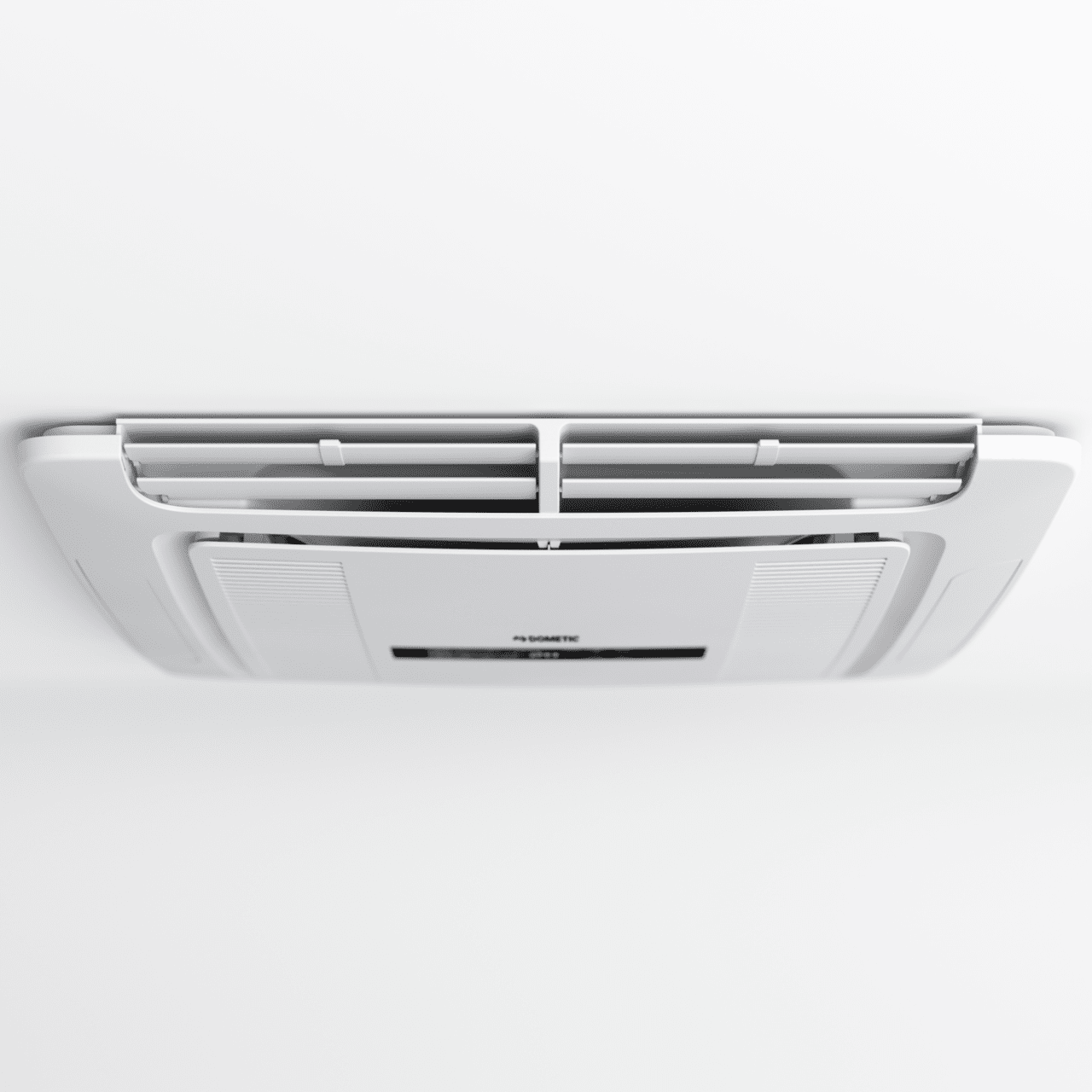

Adjustable outlet vents
Simply adjust the direction of the airflow with your fingertips

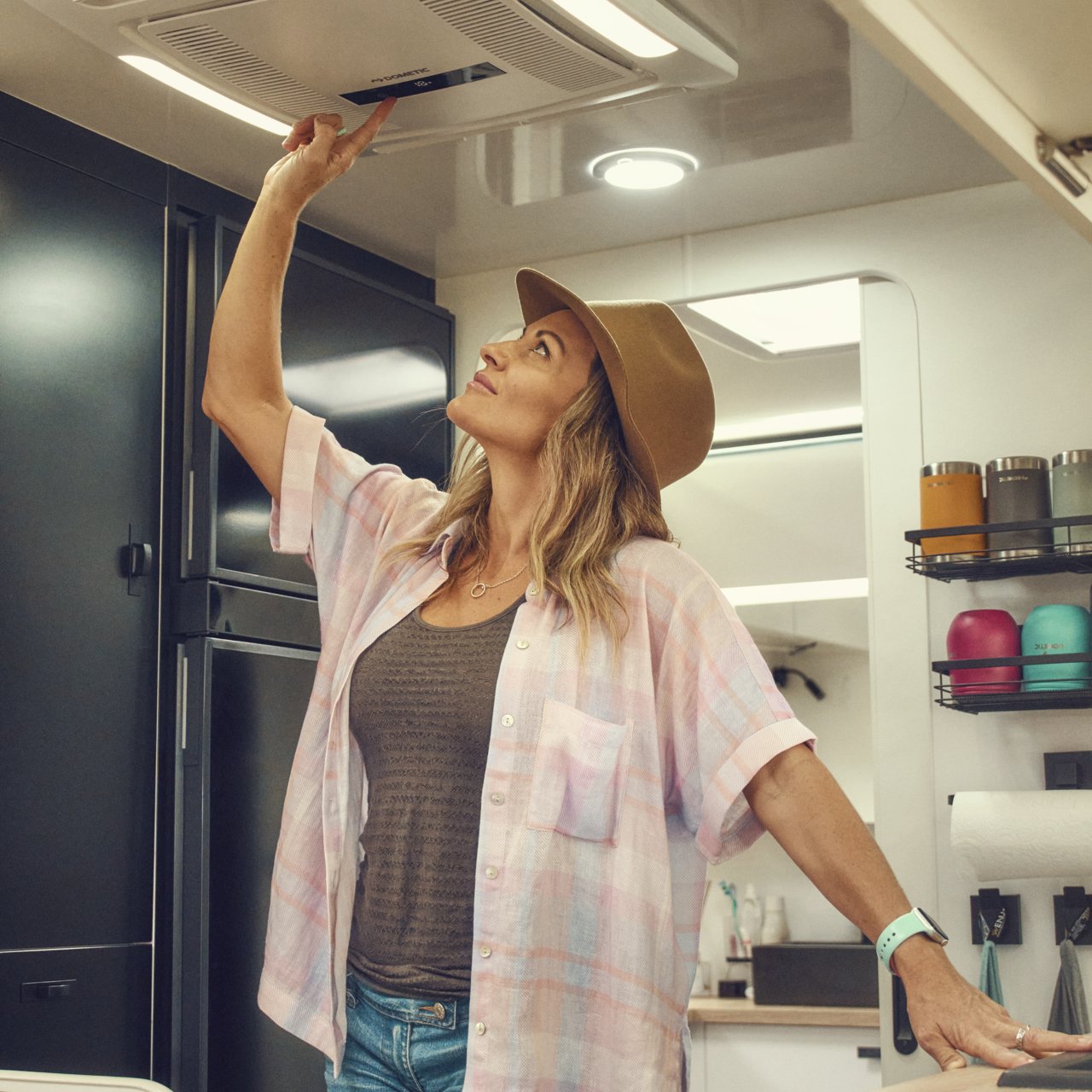

Dream complement for digital models

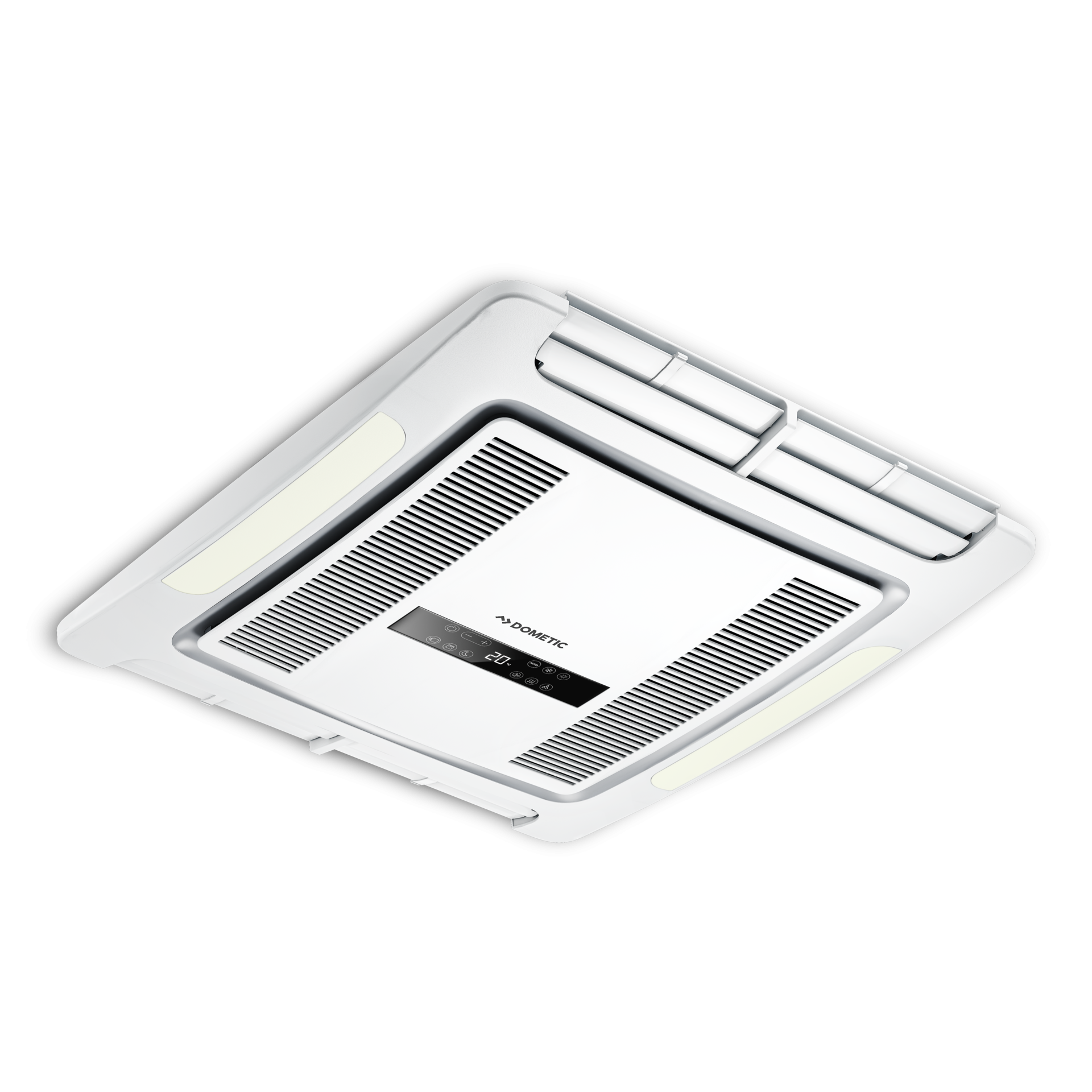

If you have decided on buying one of our electronic rooftop air conditioners, this elegant air distribution box is a must-have complement. Just add it to your purchase to enjoy all the benefits of our new FreshJet FJX generation! The low-profile unit generates a refreshing airflow to the front and back – efficiently and amazingly quietly. The nicely integrated touch control panel allows intuitive control of the temperature and blower level and the built-in lights create a cozy atmosphere in the cabin. Dometic CleanAir technology ensures you can always breathe fresh and healthy air. The Dometic FreshJet FJX ADB air distribution box fits all digital FreshJet FJX air conditioners (electronic FJX4 models and all FJX7 models). Please note that it has to be ordered separately.
2 questions
If you are travelling to cooler climates then this will not challenge the air conditioners to the extremes, a unit with a smaller power rating will do for these types of trips. You should not save on power, though, if you regularly travel to warmer climates and even less so if you have children or pets on board as staying in a recreational vehicle can quickly become uncomfortable on a hot summer day. When the nights are not cooler either, rest and recuperation is only possible with an adequate air conditioner.
Air conditioners work on basically the same principle as the cooling units of kitchen refrigerators. Their cooling efficiency is way higher though. In either system a refrigerant extracts heat from the space to be cooled and dissipates it to the outside. An RV air conditioner should additionally reduce the humidity. AC systems most commonly used for recreational vehicles:
Evaporation systems: Water is vapourised in a roof-mounted unit and collected in a filter. A fan draws ambient air in through the filter, which results in a heat exchange. Benefits: low current consumption, lightweight. Drawback: The energy efficiency depends on the ambient humidity; so the performance of the system varies. It drops when the humidity is > 85% – and that's exactly the level where air conditioning is needed. Moreover, evaporation systems will, by nature increase the humidity in the vehicle, regardless of the ambient conditions.
The temperature conditions in recreational vehicles and the reasons behind them RV and caravans are no houses and they don't have thick walls, even if they are reasonably insulated they will heat up in the sun. The temperature inside can quickly rise to 30°C or more and not only in the hot and sunny south, but also in moderate climate zones. Besides insulation, the temperature conditions inside the vehicle depend on other factors, too: the size and number of windows, for instance. A caravan with small windows will heat up less quickly than a RV with generously sized glass surfaces and it does of course matter where you park your vehicle – in the blazing sun or in the shade of a tree. Do you take every opportunity to air the vehicle out? Or are all the windows closed and the heat can spread throughout the interior?
