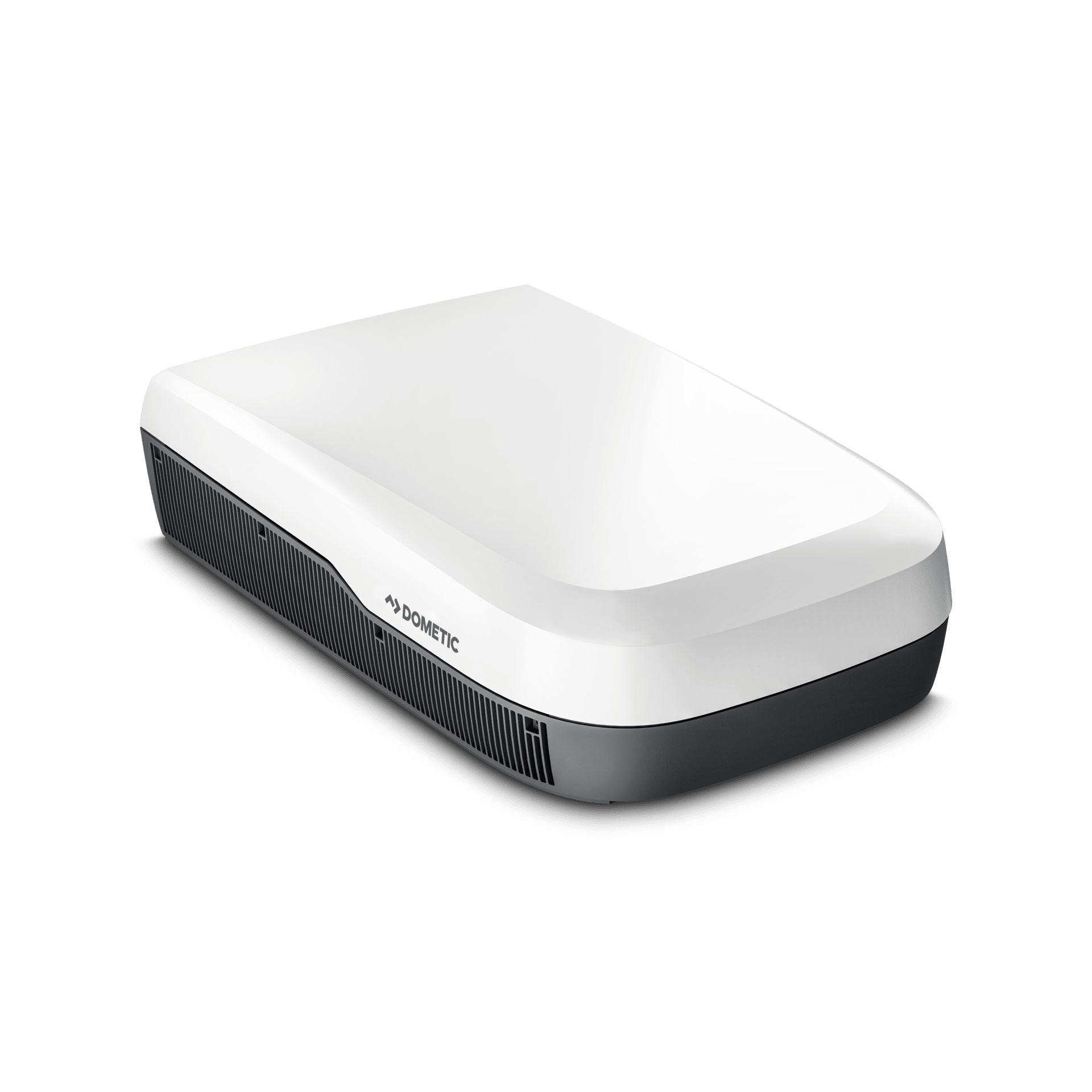

Dometic FreshJet FJX7 3500
RV air conditioner
SKU: 9620001689
Technical Information
Specifications
- General
- Scope of delivery
- Air conditioner, packaging material including user manual
- SKUCertificates
- CB;CE;ECER10;RCM
- Product Description
- RV air conditioner
- Dimensions
- Dimensions product depth, [mm]
- 1090
- Dimensions product height, [mm]
- 283
- Dimensions product width, [mm]
- 700
- Dimensions product width, ["] - Display
- 27.56
- Net weight, [kg]
- 38.90
- Net weight, [lbs]
- 85.77
- Cut out depth, [mm]
- 400.000000
- Cut out width, [mm]
- 400.000000
- Electrical
- Input voltage (AC), [V]
- 220-240
- Input frequency, [Hz]
- 50/60
- Required AC circuit protection max, [A]
- 8.000000
- Performance
- Hermetically Sealed
- Yes
- Refrigerant, type
- R32
- GWP
- 675
- CO2 equivalent, [t]
- 0.439
- AirFlow, [m<sup>3</sup>h]
- 496.000000
- Power consumption - Heat pump (ISO 5151)
- 1349
- Current consumption max cooling, [A]
- 7.800000
- Operating temperature min, [°C]
- -2.000000
- Operating temperature max, [°C]
- 52.000000
- Properties
- Connectivity Type
- Bluetooth
- Thermostat control
- Electronic Thermostat
- Logistics
- Dimensions parcel depth, [mm]
- 1150
- Dimensions parcel height, [mm]
- 328
- Dimensions parcel width, [mm]
- 780
- Parcel weight, [kg]
- 46
- Parcel weight, [lbs]
- 101.43
Get the Highlights

Superior energy efficiency
Reduced power consumption allows a longer run time on batteries and generators

CleanAir technology
Keeps your RV smelling fresh and clean thanks to the inbuilt air purification system

Premium air distribution box (ADB) with full connectivity
The air distribution box (sold separately), is packed with new technology and features such as touch control panel and remote, integrated ambient LED light and Wifi/Bluetooth connectivity

Next generation of Dometic inverter technology
The quietest and smoothest operation ever, perfect for off-grid adventures

Modern and fresh design
Aerodynamically shaped rooftop unit

Lightweight and compact
Ideal for optimised rooftop layout with solar panels and other devices
