Description
- 484 x 476 x 40 mm – 37% less volume, 8 mm lower height and 27% less weight than the FJZ ADBD
- Smallest air distribution box in the market – ideal for installation in tight spaces or on suspended ceilings
- Efficient and quiet airflow in two directions, front and back
- Simply set the temperature and blower level you want
- Engineered to deliver superior performance and long‑term durability – benefit from 5 years of guaranteed spare‑parts coverage for Dometic FJZ units. For the exact terms and conditions, find the warranty agreement in the Downloads section.
- Dimmable warm white LEDs for soft ambient light
- Effectively reduces bacteria and odors to keep your RV smelling fresh and clean
- Easily accessible, exchangeable dust filter
- Front or rear outlet can be closed to use the full airflow capacity in one direction
- Fits all digital Dometic roof air conditioners (FJZ and FJX series)
Specifications
SKU: 9630000064
| Model | FJZADBDS |
|---|---|
| Scope of delivery | ADB, installation kit, remote control, 2x battery, 4x air duct, installation manual, operating manual |
| Product Description | Small air distribution box, electronic controls, LED light |
| Dimensions product depth, [mm] | 484 |
|---|---|
| Dimensions product height, [mm] | 40 |
| Dimensions product width, [mm] | 476 |
| Dimensions product width, [in] | 18.74 |
| Net weight, [kg] | 2.50 |
| Net weight, [lbs] | 5.51 |
| Cut out height, [mm] | 400 |
| Cut out width, [mm] | 400 |
| Connectivity Type | Bluetooth |
|---|
| Dimensions parcel depth, [mm] | 525 |
|---|---|
| Dimensions parcel height, [mm] | 135 |
| Dimensions parcel width, [mm] | 525 |
| Parcel weight, [kg] | 4.30 |
| Parcel weight, [lbs] | 9.48 |
Highlights

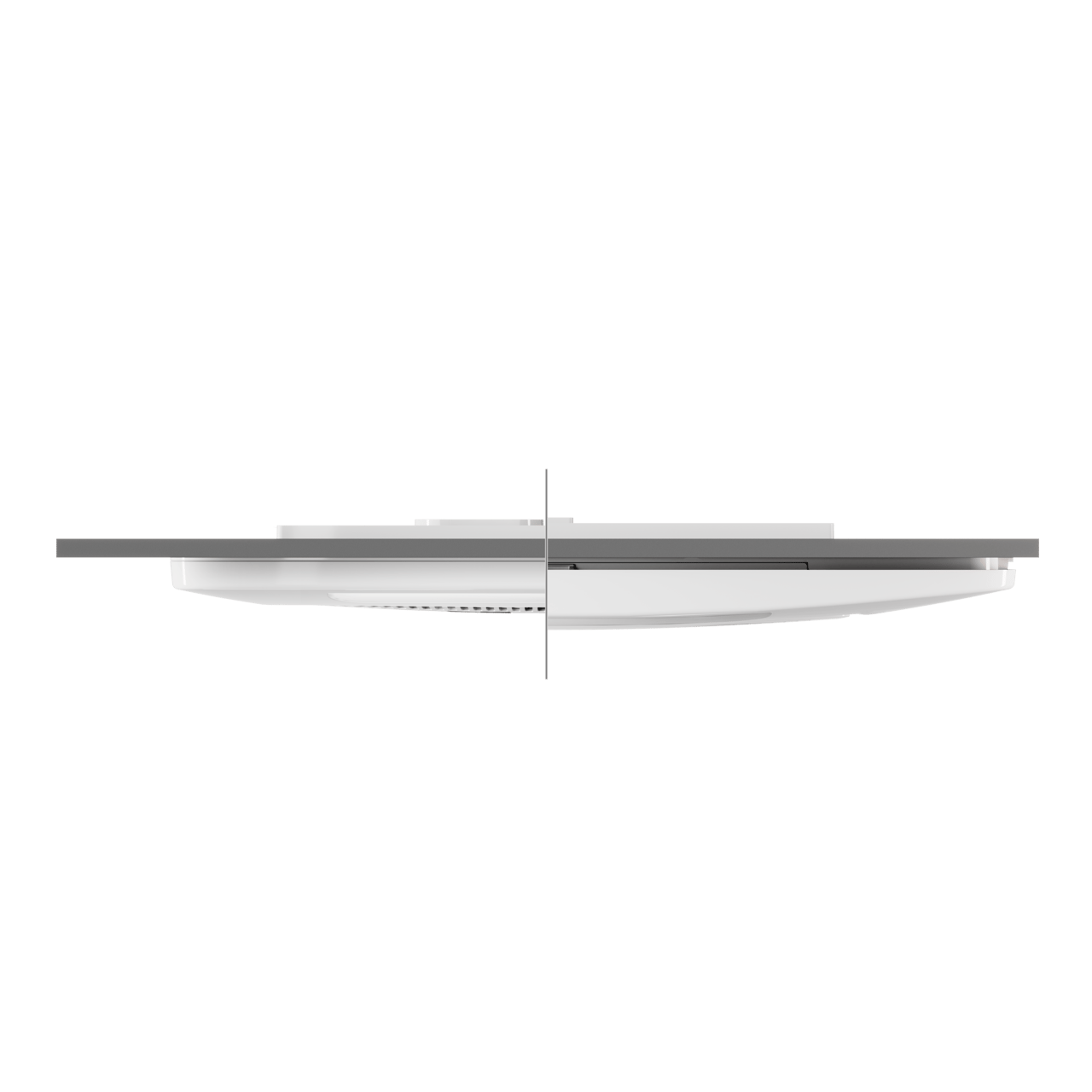

Smaller size, less weight
484 x 476 x 40 mm – 37% less volume, 8 mm lower height and 27% less weight than the FJZ ADBD
Fits where others won't
Smallest air distribution box in the market – ideal for installation in tight spaces or on suspended ceilings
Pleasant airflow
Efficient and quiet airflow in two directions, front and back
Intuitive touch control
Simply set the temperature and blower level you want
5-year warranty on spare parts
Engineered to deliver superior performance and long‑term durability – benefit from 5 years of guaranteed spare‑parts coverage for Dometic FJZ units. For the exact terms and conditions, find the warranty agreement in the Downloads section.
CleanAir technology
Effectively reduces bacteria and odors to keep your RV smelling fresh and clean
Quick filter exchange
Easily accessible, exchangeable dust filter
Flexible airflow control
Front or rear outlet can be closed to use the full airflow capacity in one direction
Backwards compatible
Fits all digital Dometic roof air conditioners (FJZ and FJX series)
Dimmable light
Dimmable warm white LEDs for soft ambient light
Dometic CleanAir air purifier
Our new air purification system uses advanced bipolar ionizer technology to keep your RV smelling fresh and clean while greatly reducing allergens, viruses, bacteria and pollutants. Ionizers purify air through several methods. First, they create positive and negative ions to help reduce pathogens, odors, and mold. Bacteria and virus cells are robbed of their life-sustaining hydrogen, reducing their number. Secondly, odors are reduced when they oxidize on contact with the charged ions. Last but not least, the positive and negative ions attach to the particles in the air. Their attractive forces make the particles bigger. This in turn allows the standard dust filter of your air conditioning system to remove more particles from the air.
