Description
- Cooling capacity of 3.0 kW
- Dual cylinder inverter compressor means lower energy consumption, noise and vibration
- 4-speed fan including Turbo mode for rapid cooling or heating

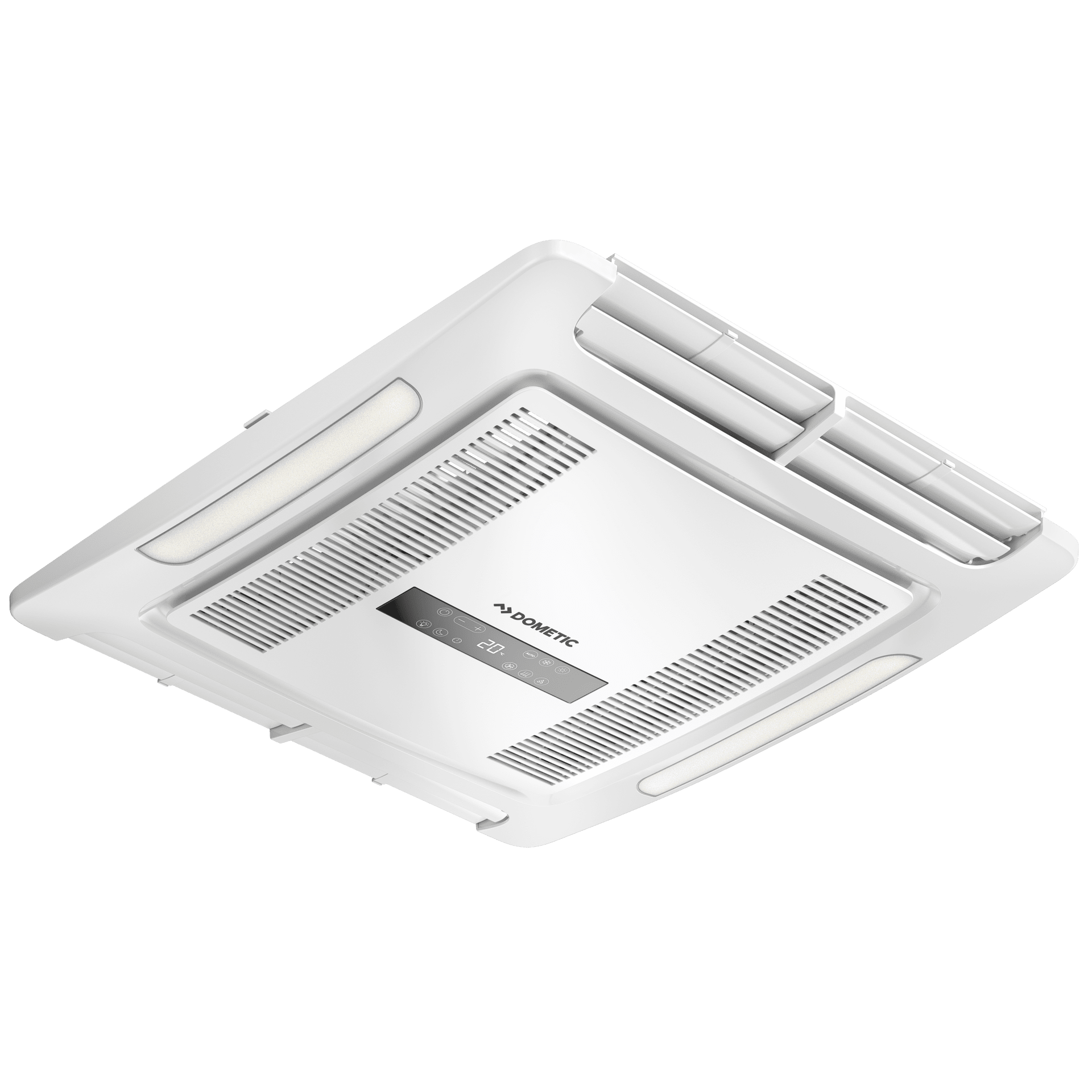

- Low profile ADB with optimised airflow
- Lightweight at 44 kg
- Wide operating temperature range of - 2˚C to + 52˚C
- Fitment to both 360 and 400 mm roof opening sizes possible
Specifications
SKU: 9600027171

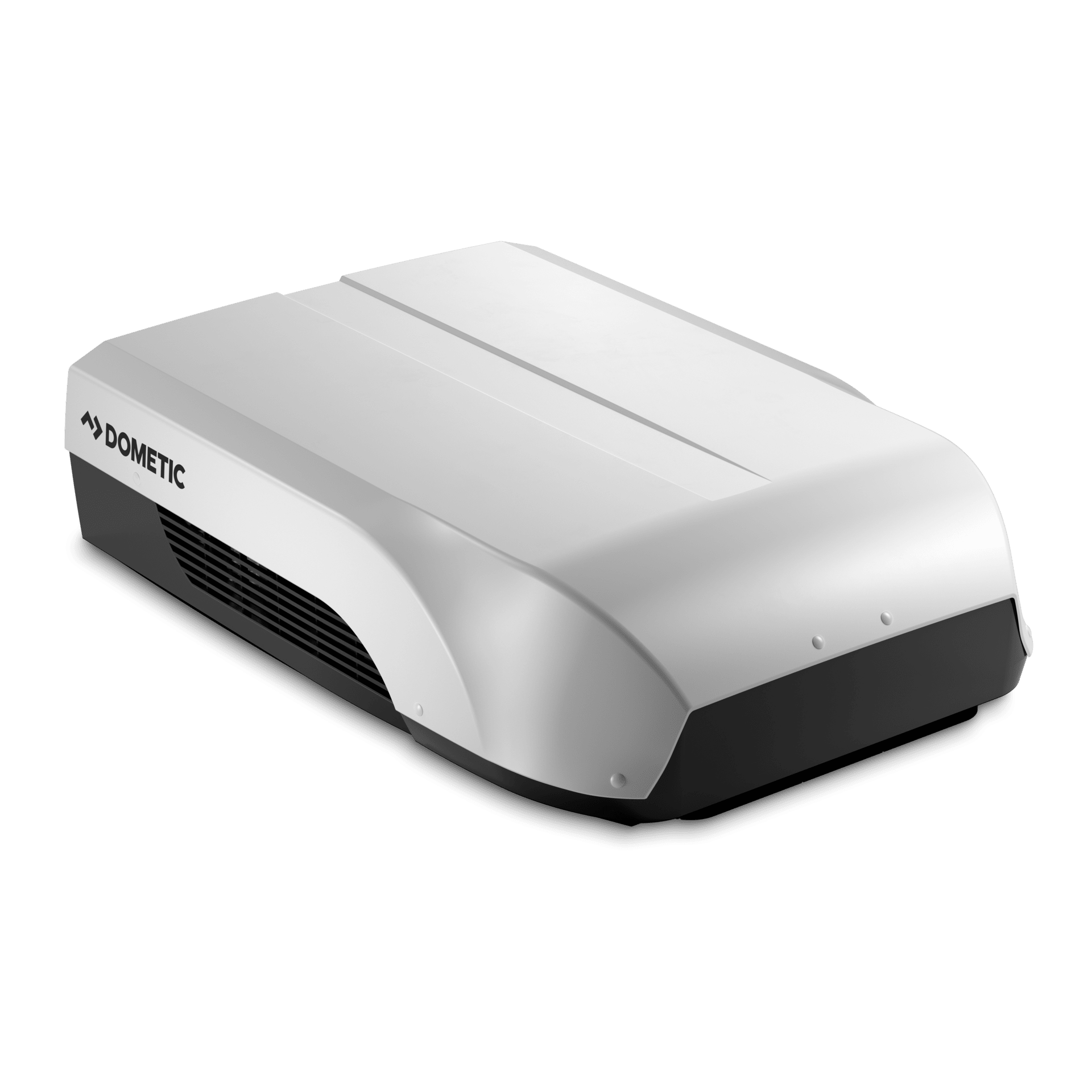

| Model | Harrier Plus |
|---|---|
| Scope of delivery | Roof top Unit, Warranty card |
| SKUCertificates | CB;CE |
| Product Description | Roof air conditioner |
| Dimensions product depth, [mm] | 1070 |
|---|---|
| Dimensions product height, [mm] | 280 |
| Dimensions product width, [mm] | 750 |
| Dimensions product width, [in] | 29.53 |
| Net weight, [kg] | 41 |
| Net weight, [lbs] | 90.40 |
| Standard mount. material thickness 1 min, [mm] | 20 |
| Standard mount. material thickness 1 max, [mm] | 100 |
| Cut out depth, [mm] | 400 |
| Cut out width, [mm] | 400 |
| Input voltage (AC), [V] | 220-240 |
|---|---|
| Input frequency, [Hz] | 50 |
| Required AC circuit protection min, [A] | 2.3 |
| Required AC circuit protection max, [A] | 8 |
| Hermetically Sealed | Yes |
|---|---|
| Refrigerant, type | R410A |
| GWP | 2088 |
| CO2 equivalent, [t] | 1.57 |
| Refrigerant, type | R410A |
| Cooling Capacity ISO5151 Display | 3028 |
| Cooling Capacity Display | 10331.96 |
| Current consumption min cooling, [A] | 3.3 |
| Current consumption max cooling, [A] | 8 |
| Operating temperature min, [°C] | -2 |
| Operating temperature max, [°C] | 52 |
| Thermostat control | Digital |
|---|
| Dimensions parcel depth, [mm] | 1130 |
|---|---|
| Dimensions parcel height, [mm] | 320 |
| Dimensions parcel width, [mm] | 830 |
| Parcel weight, [kg] | 45 |
| Parcel weight, [lbs] | 99.22 |
Videos
Highlights

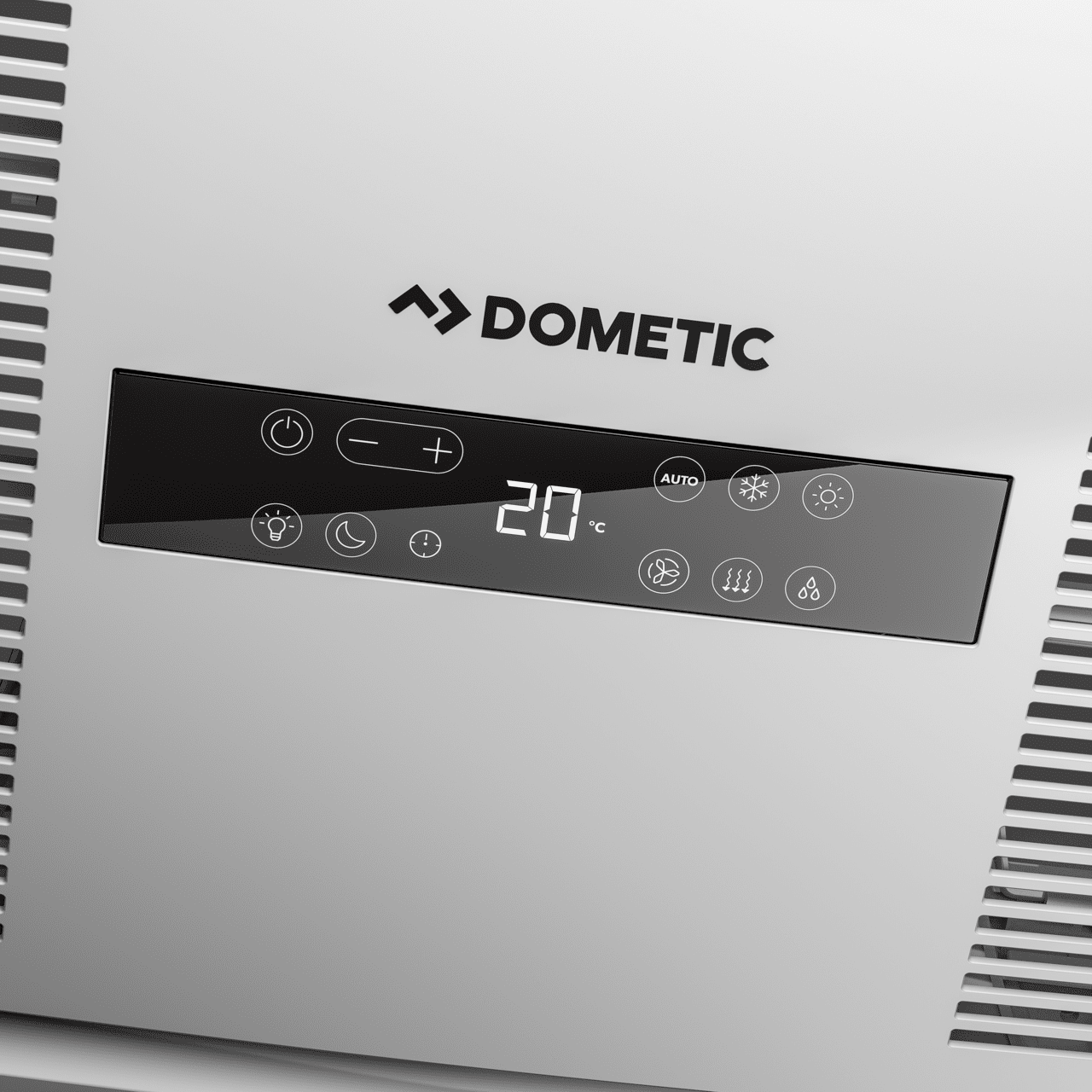

Easy to control
Simple touch control on air distribution box
LED Lights
Cool white LED activated via remote control

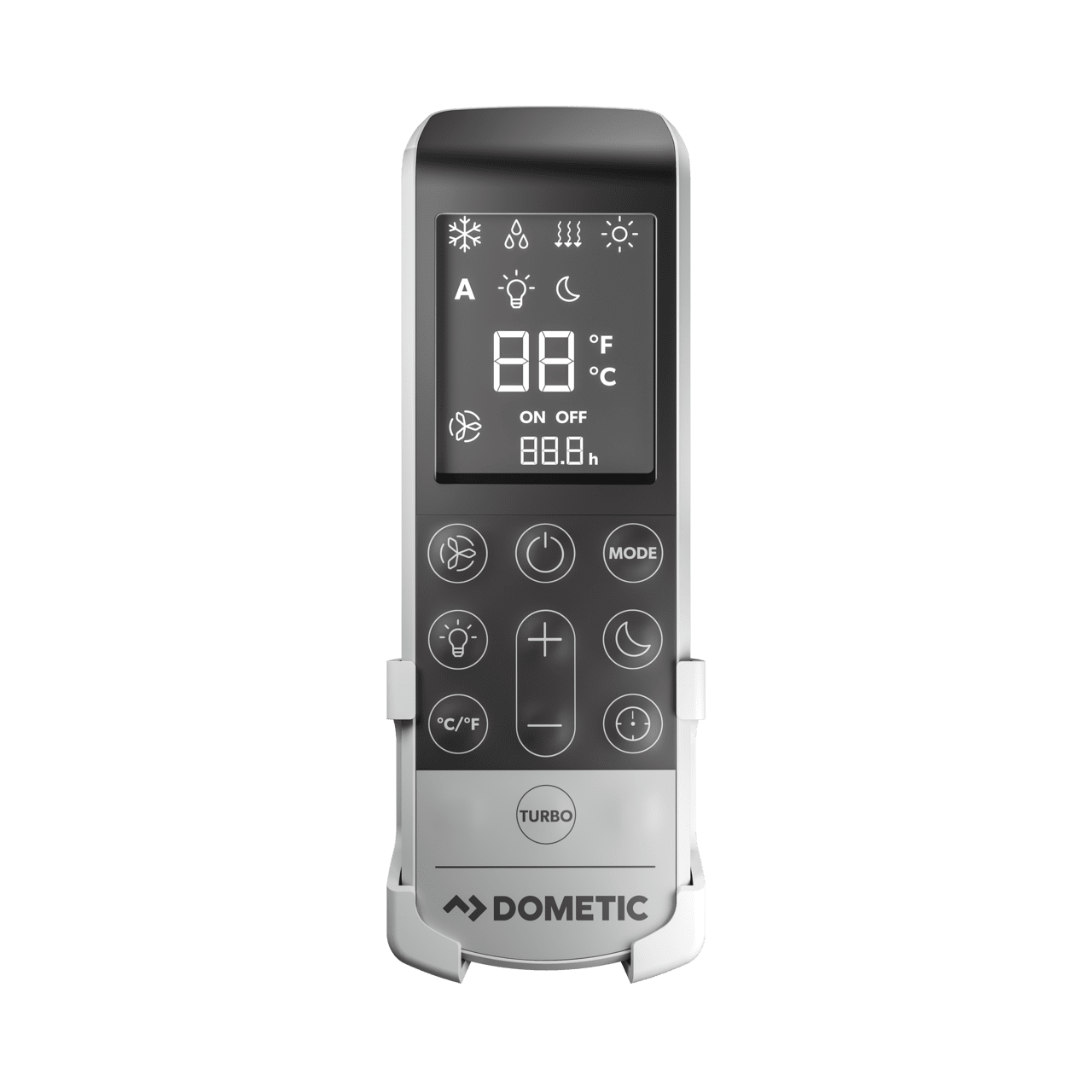

Convenient
Remote control operation and energy-saving sleep mode

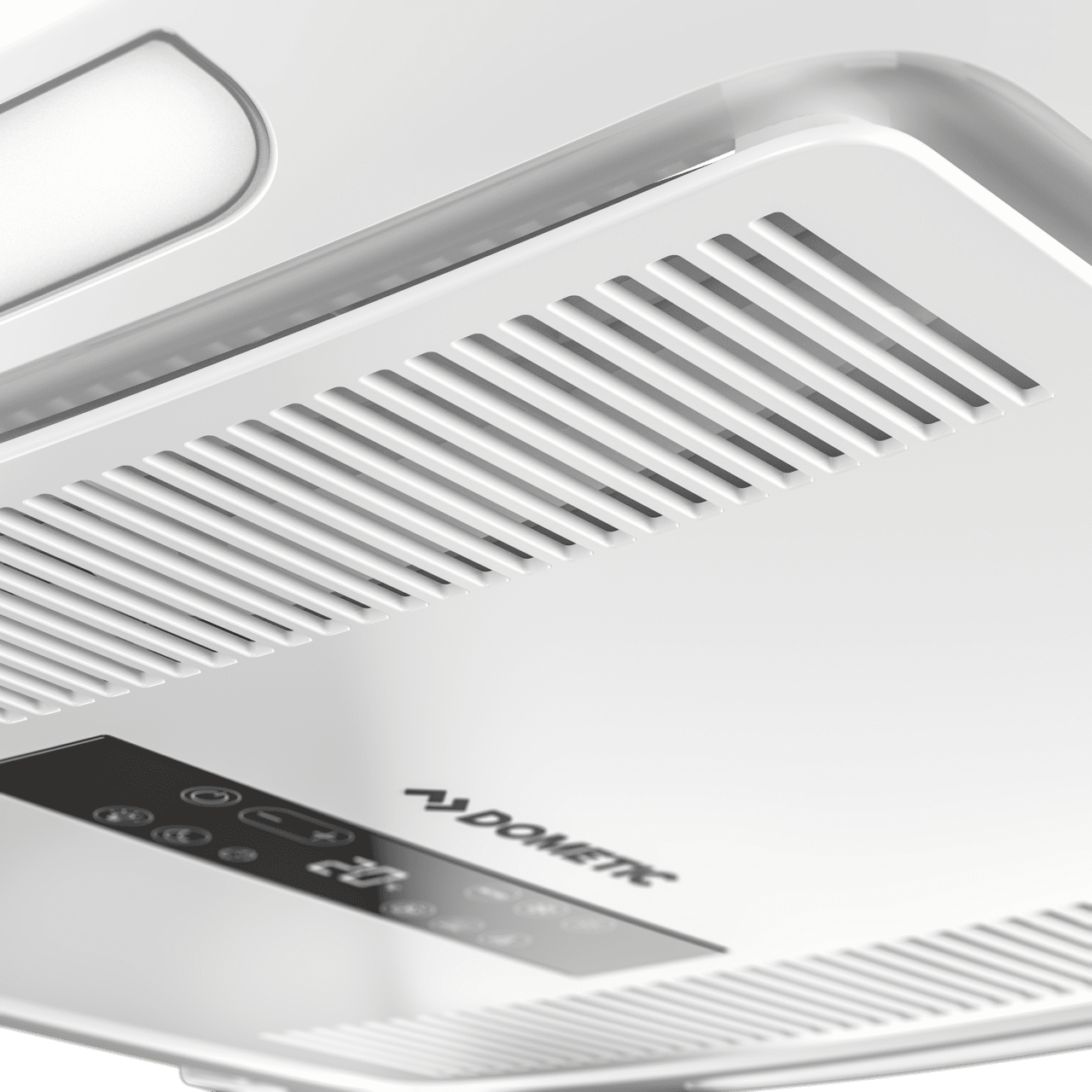

Two-piece ADB
Simplified assembly thanks to fewer parts

Dual cylinder inverter compressor
The innovative dual-cylinder inverter compressor has a patented design that helps reduce vibration and provides improved performance over conventional compressors. It’s the kind of smart design that puts Dometic air-conditioners in a league of their own and allows RV owners to enjoy cool and refreshing air at the touch of a button.
3 questions
If you are travelling to cooler climates then this will not challenge the air conditioners to the extremes, a unit with a smaller power rating will do for these types of trips. You should not save on power, though, if you regularly travel to warmer climates and even less so if you have children or pets on board as staying in a recreational vehicle can quickly become uncomfortable on a hot summer day. When the nights are not cooler either, rest and recuperation is only possible with an adequate air conditioner.
Air conditioners work on basically the same principle as the cooling units of kitchen refrigerators. Their cooling efficiency is way higher though. In either system a refrigerant extracts heat from the space to be cooled and dissipates it to the outside. An RV air conditioner should additionally reduce the humidity. AC systems most commonly used for recreational vehicles:
Evaporation systems: Water is vapourised in a roof-mounted unit and collected in a filter. A fan draws ambient air in through the filter, which results in a heat exchange. Benefits: low current consumption, lightweight. Drawback: The energy efficiency depends on the ambient humidity; so the performance of the system varies. It drops when the humidity is > 85% – and that's exactly the level where air conditioning is needed. Moreover, evaporation systems will, by nature increase the humidity in the vehicle, regardless of the ambient conditions.
The temperature conditions in recreational vehicles and the reasons behind them RV and caravans are no houses and they don't have thick walls, even if they are reasonably insulated they will heat up in the sun. The temperature inside can quickly rise to 30°C or more and not only in the hot and sunny south, but also in moderate climate zones. Besides insulation, the temperature conditions inside the vehicle depend on other factors, too: the size and number of windows, for instance. A caravan with small windows will heat up less quickly than a RV with generously sized glass surfaces and it does of course matter where you park your vehicle – in the blazing sun or in the shade of a tree. Do you take every opportunity to air the vehicle out? Or are all the windows closed and the heat can spread throughout the interior?
