Description
- Double-pleated honeycomb blind
- Pleated, black gauze fly screen
- Double acrylic glazing

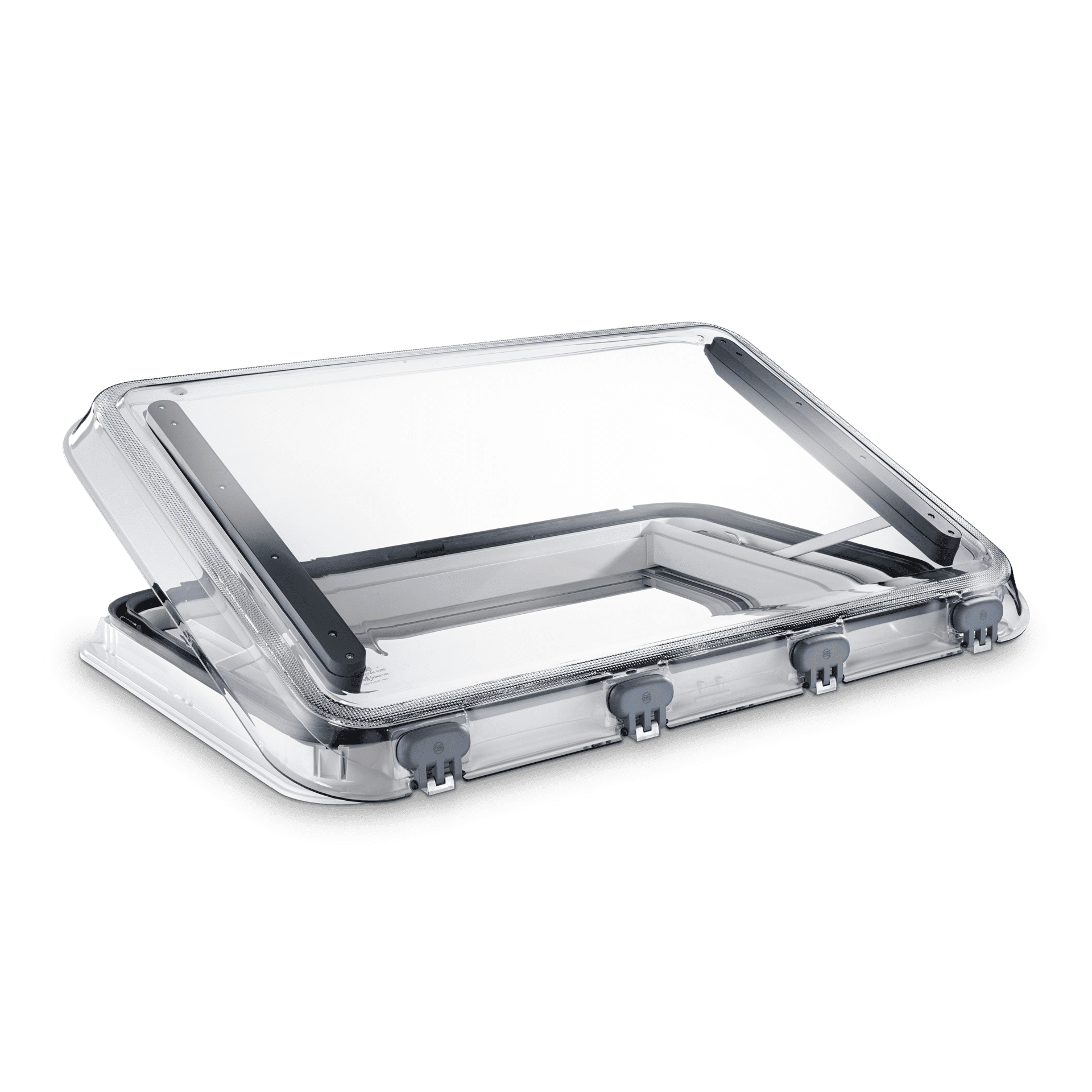

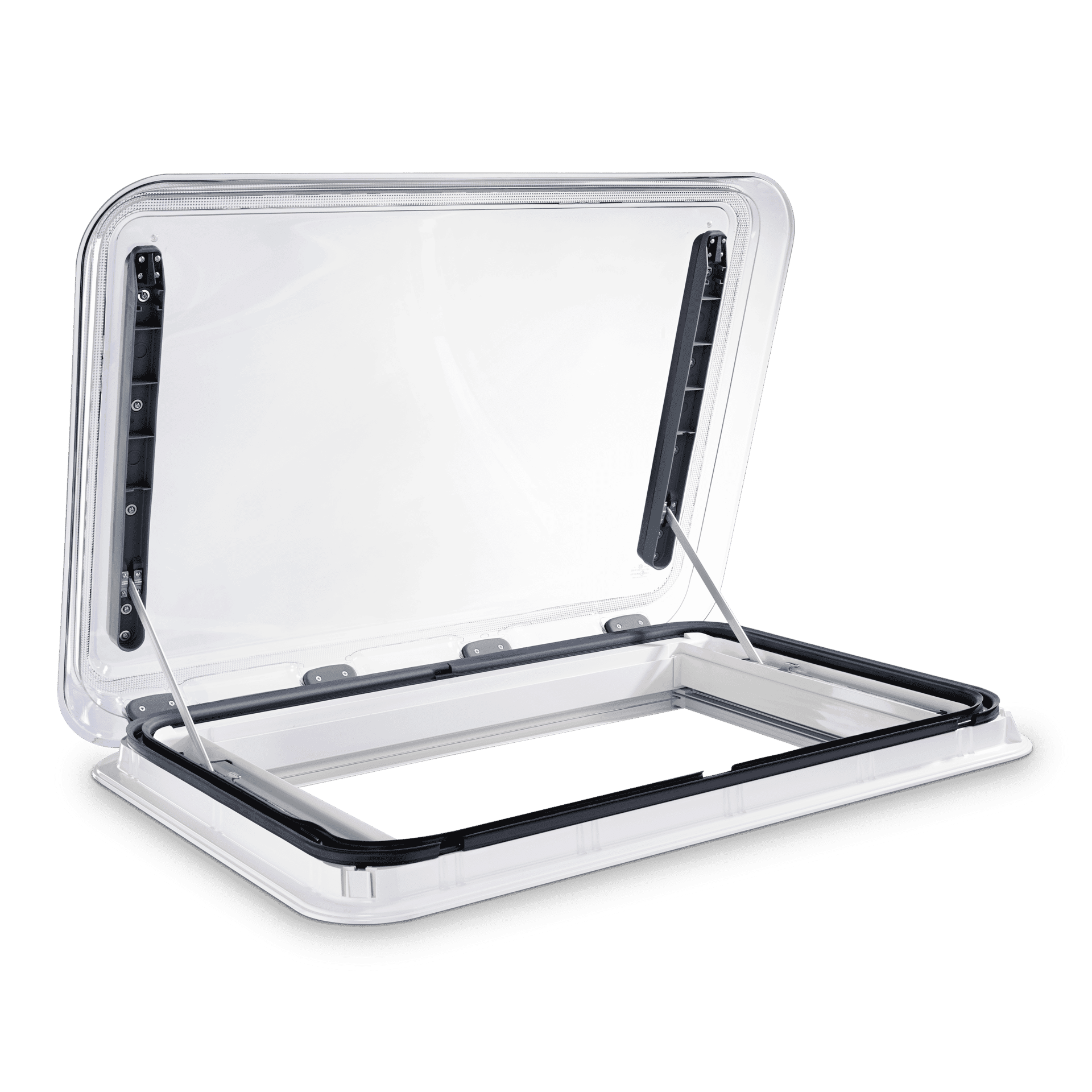

If you enjoy plenty of daylight and fresh air in your motorhome or caravan, this sturdy tilting roof window perfectly fits the bill. Among other things, the double-pleated honeycomb roller blind provides perfect protection from the sun.
Specifications
SKU: 9104115635
| Model | Heki 3 plus |
|---|---|
| Scope of delivery | Rooflight with manual in box |
| SKUCertificates | ECER43 |
| Product Description | Roof light (without lighting) |
| Dimensions product depth, [mm] | 750 |
|---|---|
| Dimensions product height, [mm] | 750 |
| Dimensions product width, [mm] | 1050 |
| Dimensions product width, [in] | 41 5/16 |
| Dimensions ordered height, [mm] | 655 |
| Dimensions ordered width, [mm] | 960 |
| Net weight, [kg] | 14.50 |
| Net weight, [lbs] | 31.97 |
| Standard mount. material thickness 1 min, [mm] | 25 |
| Standard mount. material thickness 1 max, [mm] | 32 |
| Possible material thickness 1 min, [mm] | 33 |
| Possible material thickness 1 max, [mm] | 60 |
| Cut out height, [mm] | 655 |
| Cut out width, [mm] | 960 |
| Opening angle max, [°] | 70 |
|---|---|
| Positions variable | Variable |
| Dimensions parcel depth, [mm] | 830 |
|---|---|
| Dimensions parcel height, [mm] | 200 |
| Dimensions parcel width, [mm] | 1120 |
| Parcel weight, [kg] | 17.50 |
| Parcel weight, [lbs] | 38.59 |
