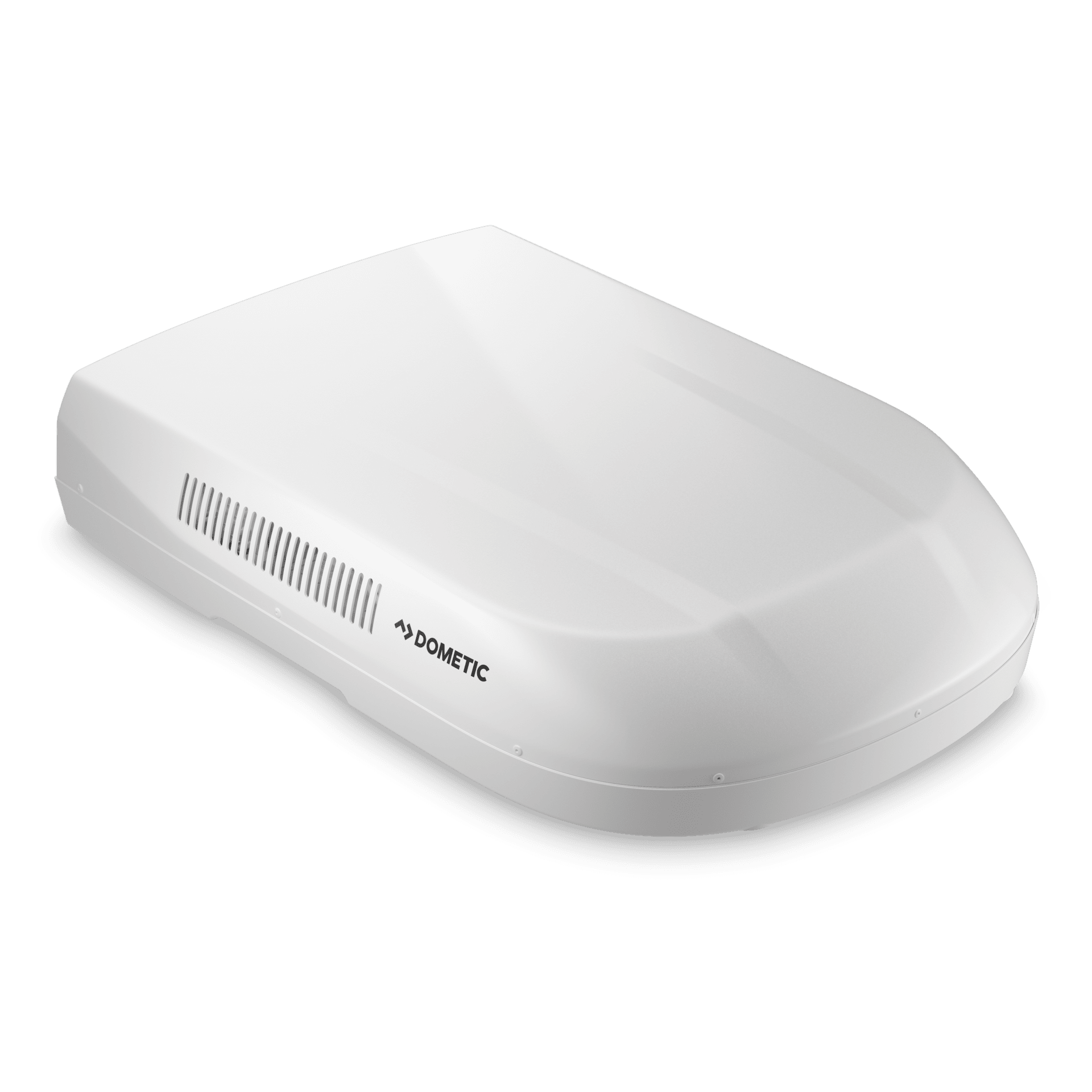

The Dometic Ibis 4 makes improvements on many of the industry-leading features of the highly sought-after Ibis 3 and packages them in a more lightweight roof top unit. The new-generation compressor with inverter technology used in the Dometic Ibis 4 ensures that vibration is minimized, creating a more pleasant environment.
[]
Low profile
[]
Easy control
[]
Optimized airflow
[]
Two-piece ADB
[]
Lightweight
[]
Convenient
Technical Information
Specifications
General
Scope of delivery
Roof Top Unit
SKUCertificates
RCM;CE;SAA
Product Description
ROOF AIR CONDITIONER
Dimensions
Dimensions product depth, [mm]
1112
Dimensions product height, [mm]
240
Dimensions product width, [mm]
758
Dimensions product width, ["] - Display
29.84
Net weight, [kg]
37
Net weight, [lbs]
81.59
Standard mount. material thickness 1 min, [mm]
20
Standard mount. material thickness 1 max, [mm]
100
Cut out depth, [mm]
400.000000
Cut out width, [mm]
400.000000
Electrical
Input voltage (AC), [V]
220-240
Input frequency, [Hz]
50
Performance
Hermetically Sealed
Yes
Refrigerant, type
R410A
GWP
2088
CO2 equivalent, [t]
1.566
Refrigerant, type
R410A
AirFlow, [m<sup>3</sup>h]
470.000000
Power consumption - Heat pump (ISO 5151)
1560
Current consumption min cooling, [A]
2.300000
Current consumption max cooling, [A]
8.000000
Operating temperature min, [°C]
-2.000000
Operating temperature max, [°C]
52.000000
Logistics
Dimensions parcel depth, [mm]
1130
Dimensions parcel height, [mm]
260
Dimensions parcel width, [mm]
800
Parcel weight, [kg]
42
Parcel weight, [lbs]
92.61
FAQ
Get the Highlights

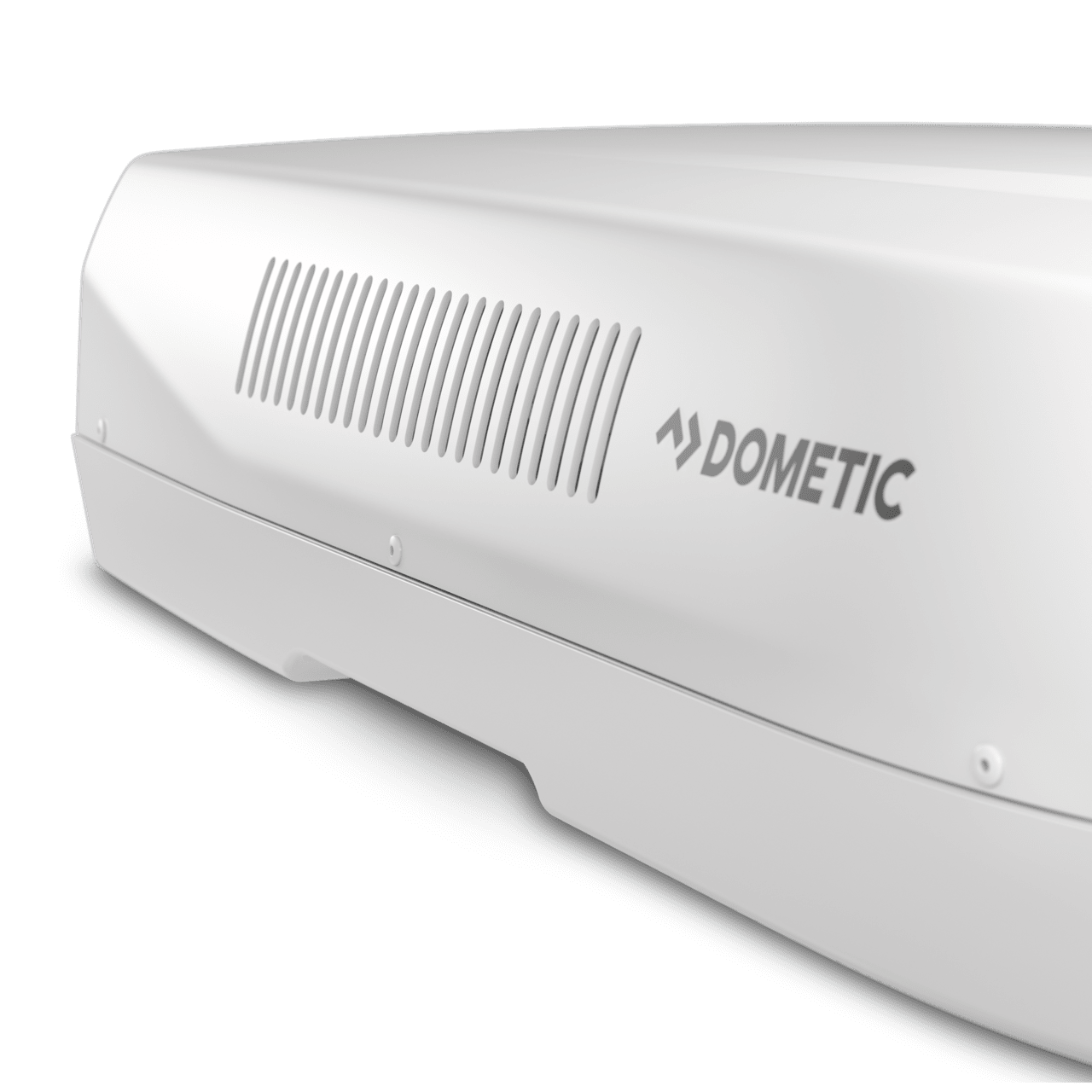

Low profile
Reduces clearance height

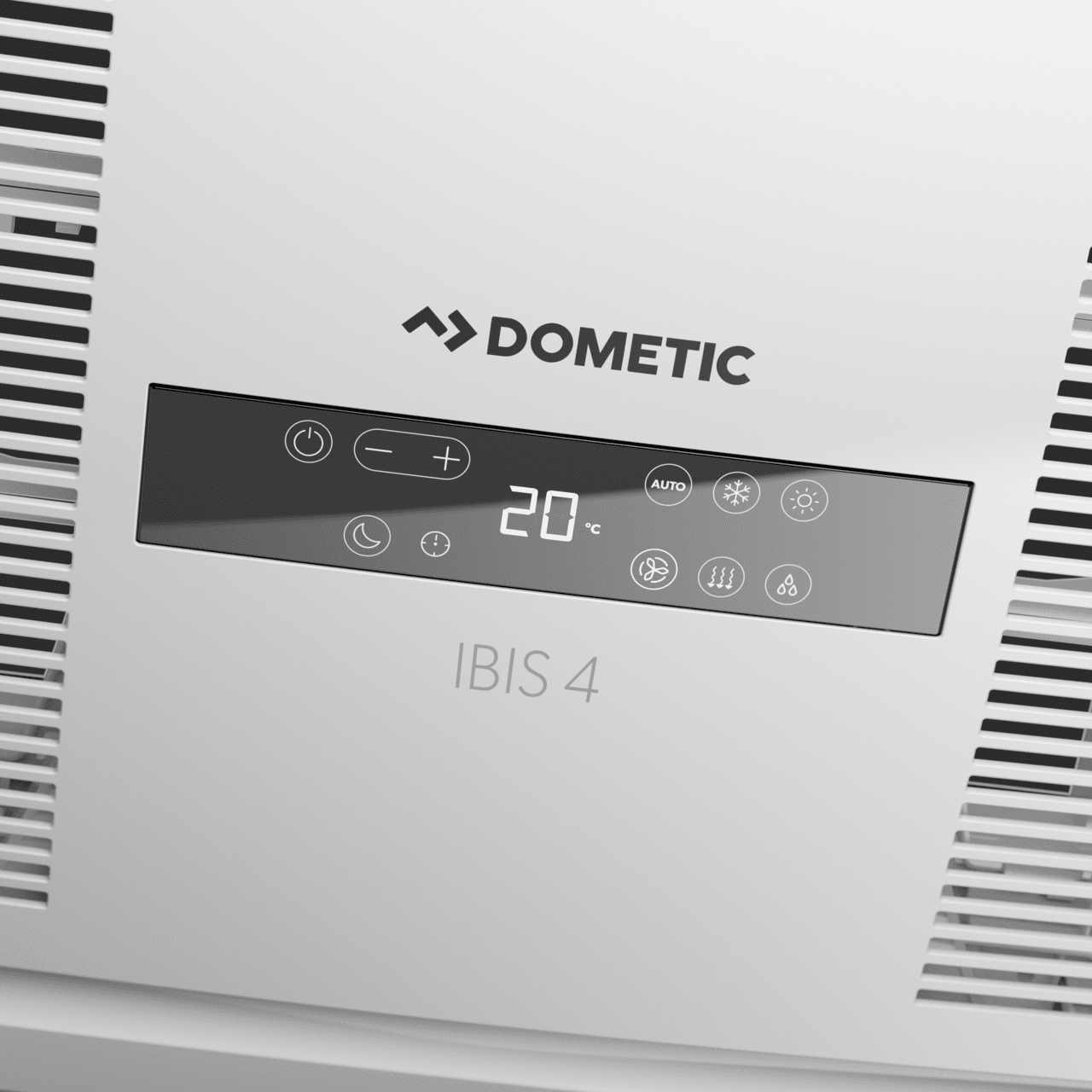

Easy control
Simple touch control on air distribution box

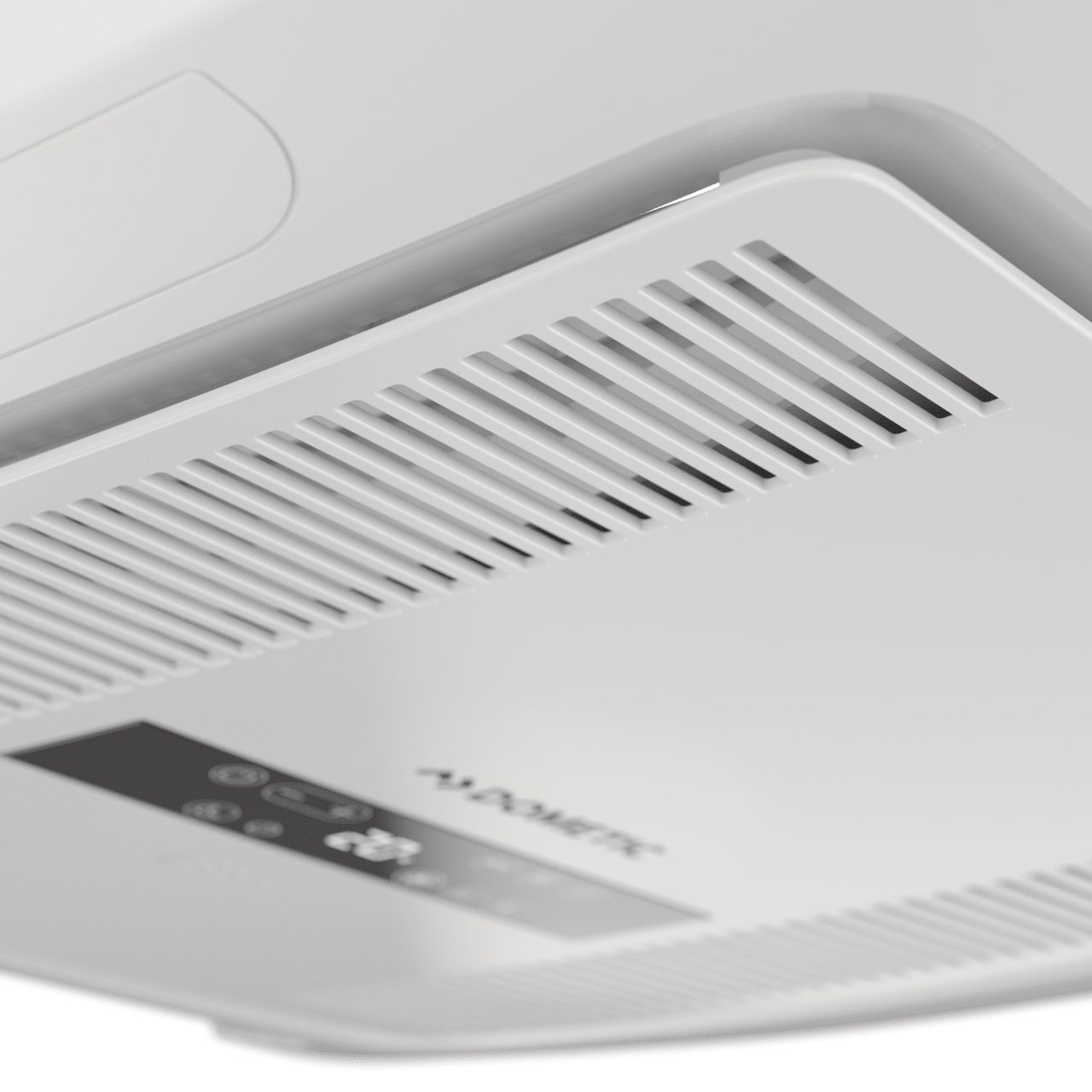

Optimized airflow
Increased efficiency and reduced noise

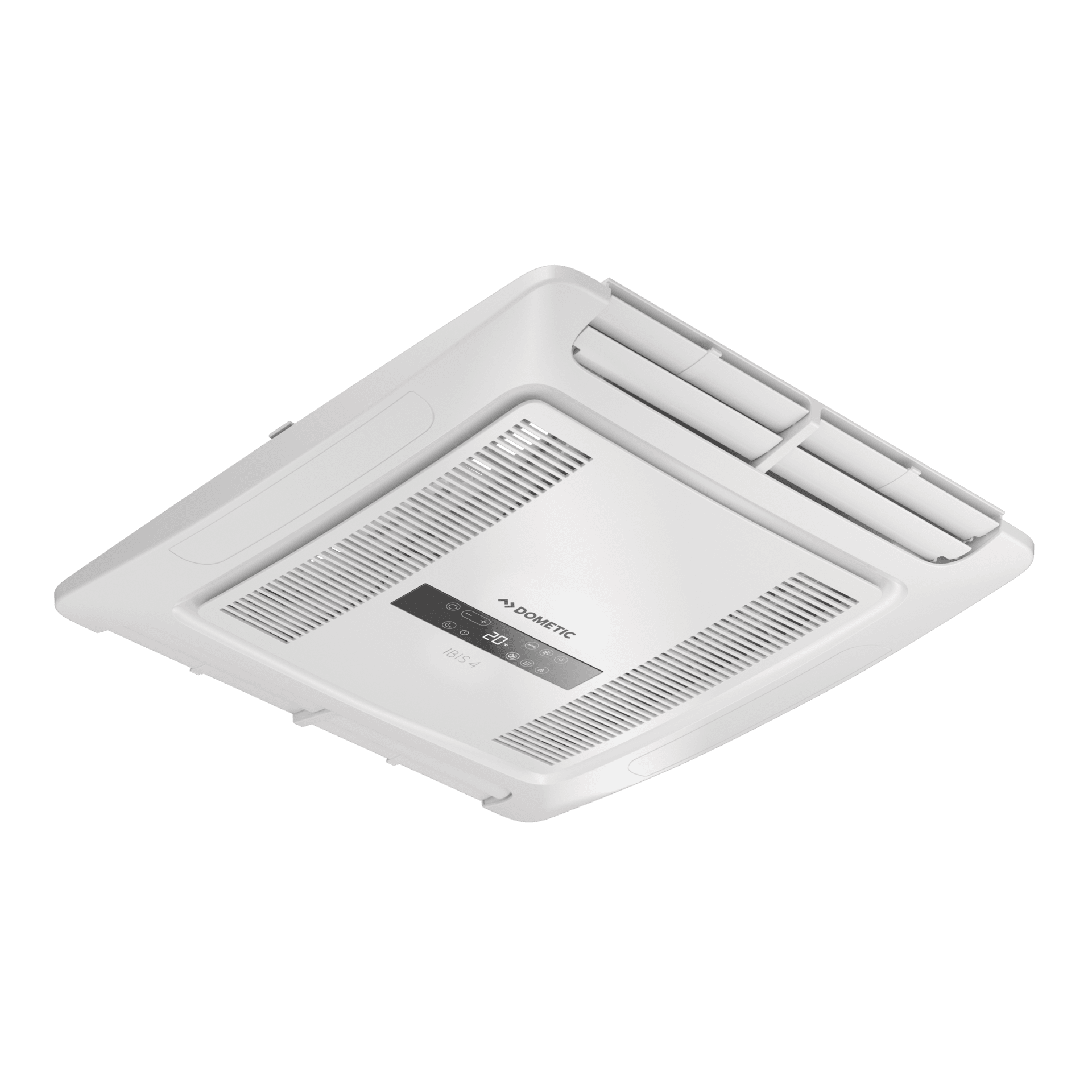

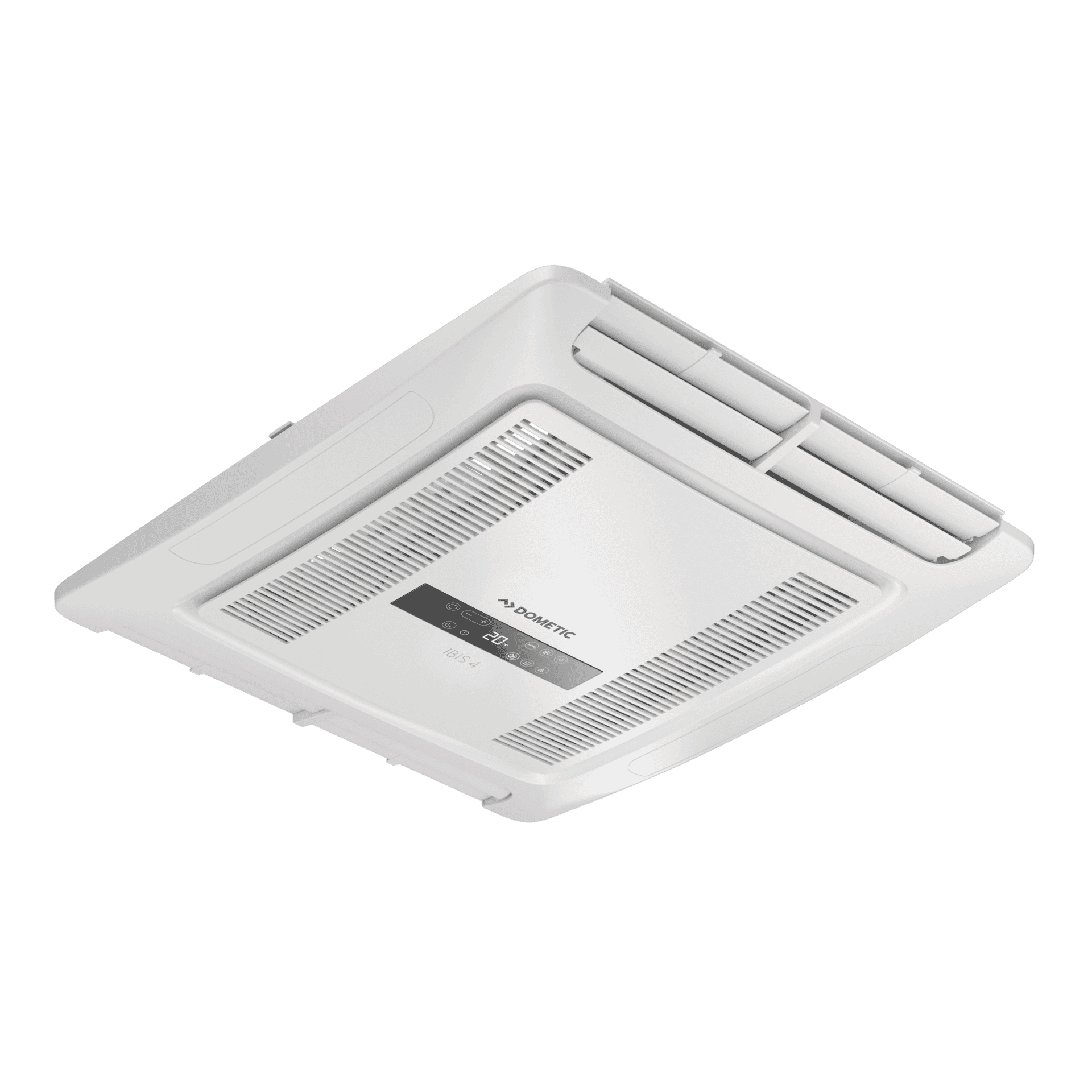

Two-piece ADB
Simplified assembly thanks to fewer parts

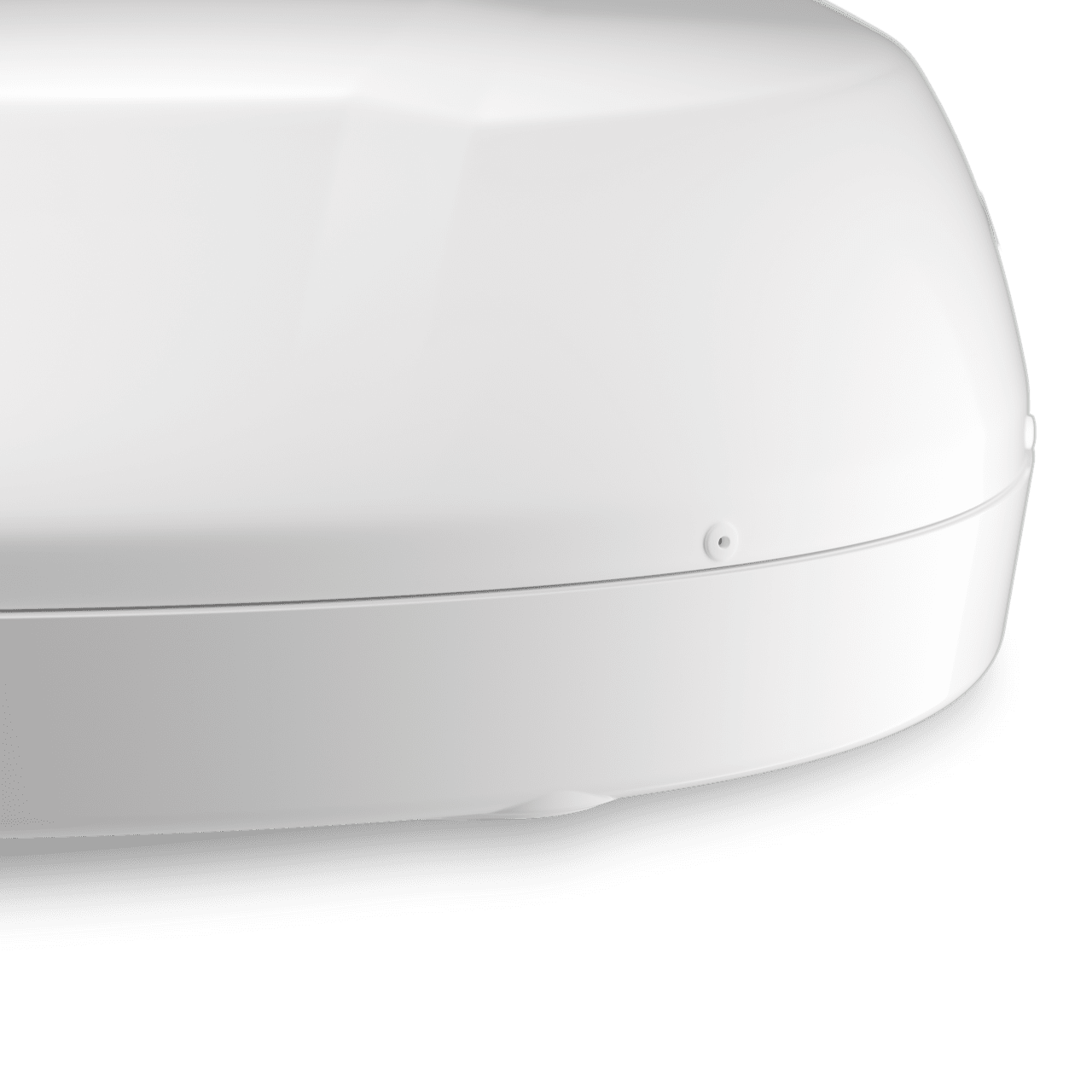

Lightweight
EPP base pan ensures a lighter build

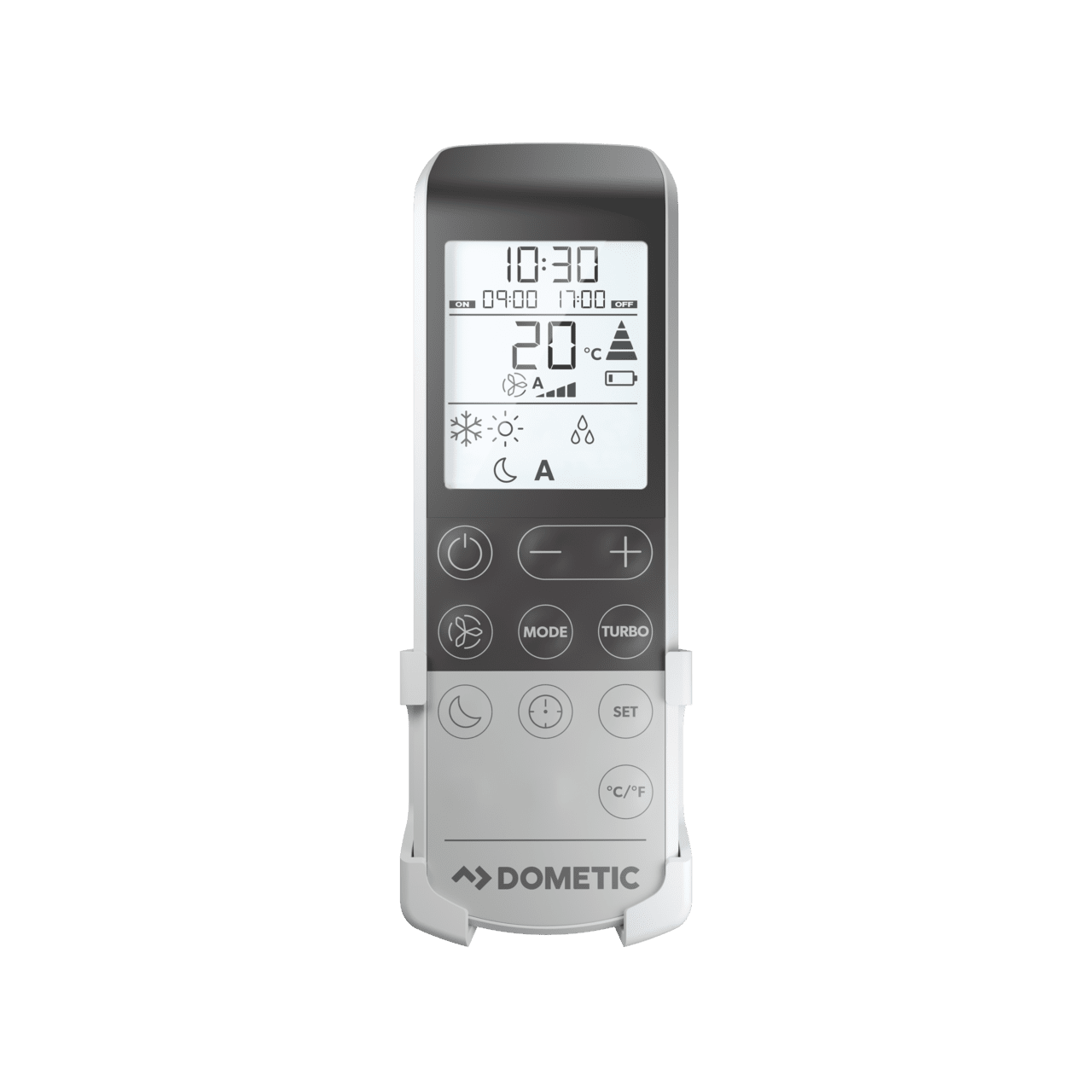

Convenient
Remote control operation and energy-saving sleep mode
