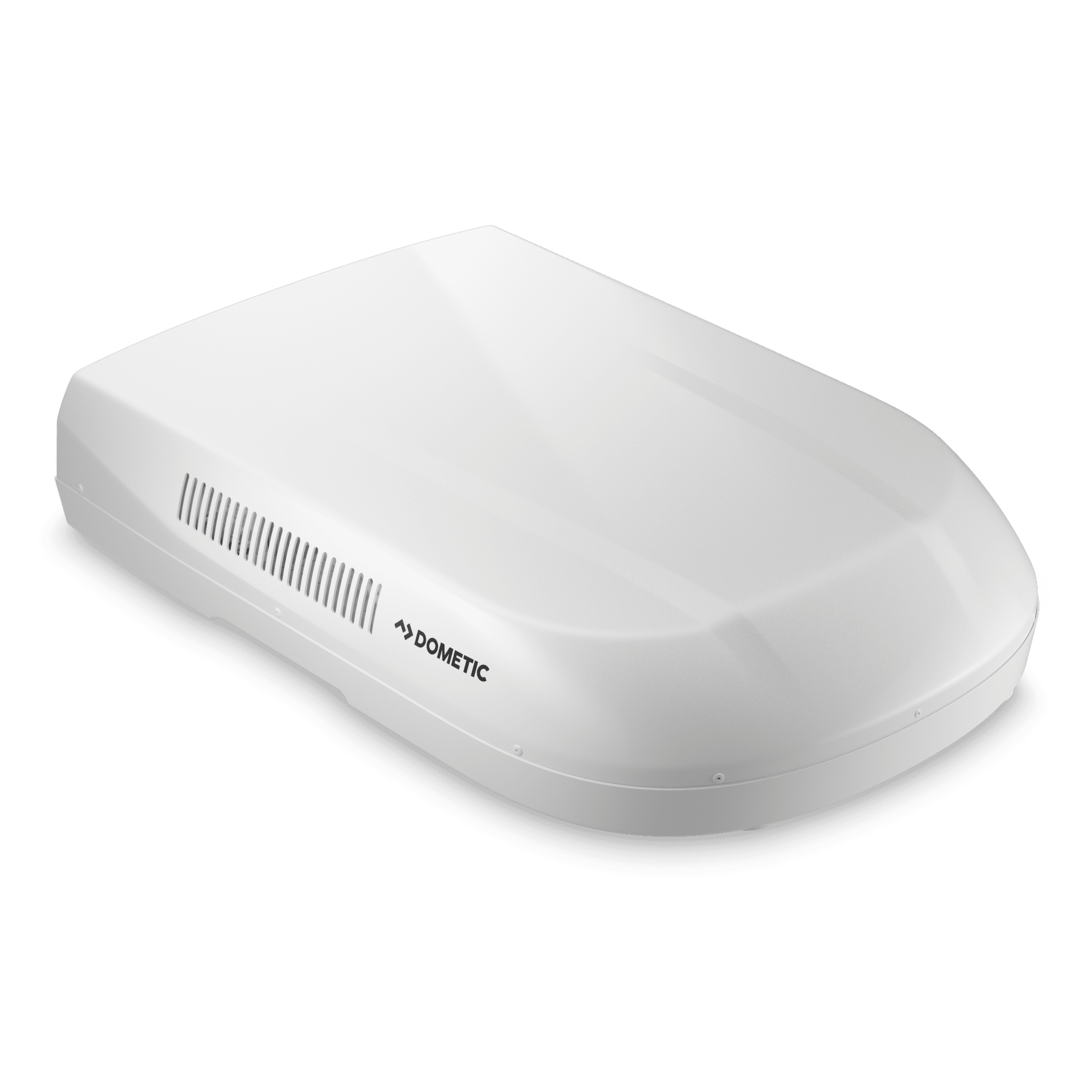

Dometic IBIS4

Roof air conditioner

The Dometic Ibis 4 makes improvements on many of the industry-leading features of the highly sought-after Ibis 3 and packages them in a more lightweight roof top unit. The new-generation compressor with inverter technology used in the Dometic Ibis 4 ensures that vibration is minimized, creating a more pleasant environment.

Description

The Dometic Ibis 4 makes improvements on many of the industry-leading features of the highly sought-after Ibis 3 and packages them in a more lightweight roof top unit. The new-generation compressor with inverter technology used in the Dometic Ibis 4 ensures that vibration is minimized, creating a more pleasant environment.

Specifications

SKU: 9600009454

Dometic IBIS4 — General specifications
ModelIBIS4 Roof Top
Scope of deliveryRoof Top Unit
SKUCertificatesRCM;CE;SAA
Product DescriptionRoof air conditioner

Dometic IBIS4 — Dimensions specifications
Dimensions product depth, [mm]1112
Dimensions product height, [mm]240
Dimensions product width, [mm]758
Dimensions product width, [in]29.84
Net weight, [kg]37
Net weight, [lbs]81.59
Standard mount. material thickness 1 min, [mm]20
Standard mount. material thickness 1 max, [mm]100
Cut out depth, [mm]400
Cut out width, [mm]400

Dometic IBIS4 — Electrical specifications
Input voltage (AC), [V]220-240
Input frequency, [Hz]50

Dometic IBIS4 — Performance specifications
Hermetically SealedYes
Refrigerant, typeR410A
GWP2088
CO2 equivalent, [t]1.57
Refrigerant, typeR410A
AirFlow, [m<sup>3</sup>h]470
Cooling Capacity ISO5151 Display2625
Power consumption - Heat pump (ISO 5151)1560
Current consumption min cooling, [A]2.3
Current consumption max cooling, [A]8
Operating temperature min, [°C]-2
Operating temperature max, [°C]52

Dometic IBIS4 — Logistics specifications
Dimensions parcel depth, [mm]1130
Dimensions parcel height, [mm]260
Dimensions parcel width, [mm]800
Parcel weight, [kg]42
Parcel weight, [lbs]92.61

Dometic IB36H401RI/IB36H401RIY - Operating Manual APAC(en)
Operating Manual
Dometic IB36H401RI, IB36H401RIY - Installation Manual APAC(en)
Installation Manual

Product size & weight

W 758 x H 240 x D 1112 mm

Weight: 37 kg

Questions, answered.

A few things worth knowing before you decide.

Still need a hand?

Contact product support

3 questions

If you are travelling to cooler climates then this will not challenge the air conditioners to the extremes, a unit with a smaller power rating will do for these types of trips. You should not save on power, though, if you regularly travel to warmer climates and even less so if you have children or pets on board as staying in a recreational vehicle can quickly become uncomfortable on a hot summer day. When the nights are not cooler either, rest and recuperation is only possible with an adequate air conditioner.

Air conditioners work on basically the same principle as the cooling units of kitchen refrigerators. Their cooling efficiency is way higher though. In either system a refrigerant extracts heat from the space to be cooled and dissipates it to the outside. An RV air conditioner should additionally reduce the humidity. AC systems most commonly used for recreational vehicles:

  • Evaporation systems: Water is vapourised in a roof-mounted unit and collected in a filter. A fan draws ambient air in through the filter, which results in a heat exchange. Benefits: low current consumption, lightweight. Drawback: The energy efficiency depends on the ambient humidity; so the performance of the system varies. It drops when the humidity is > 85% – and that's exactly the level where air conditioning is needed. Moreover, evaporation systems will, by nature increase the humidity in the vehicle, regardless of the ambient conditions.

The temperature conditions in recreational vehicles and the reasons behind them RV and caravans are no houses and they don't have thick walls, even if they are reasonably insulated they will heat up in the sun. The temperature inside can quickly rise to 30°C or more and not only in the hot and sunny south, but also in moderate climate zones. Besides insulation, the temperature conditions inside the vehicle depend on other factors, too: the size and number of windows, for instance. A caravan with small windows will heat up less quickly than a RV with generously sized glass surfaces and it does of course matter where you park your vehicle – in the blazing sun or in the shade of a tree. Do you take every opportunity to air the vehicle out? Or are all the windows closed and the heat can spread throughout the interior?
