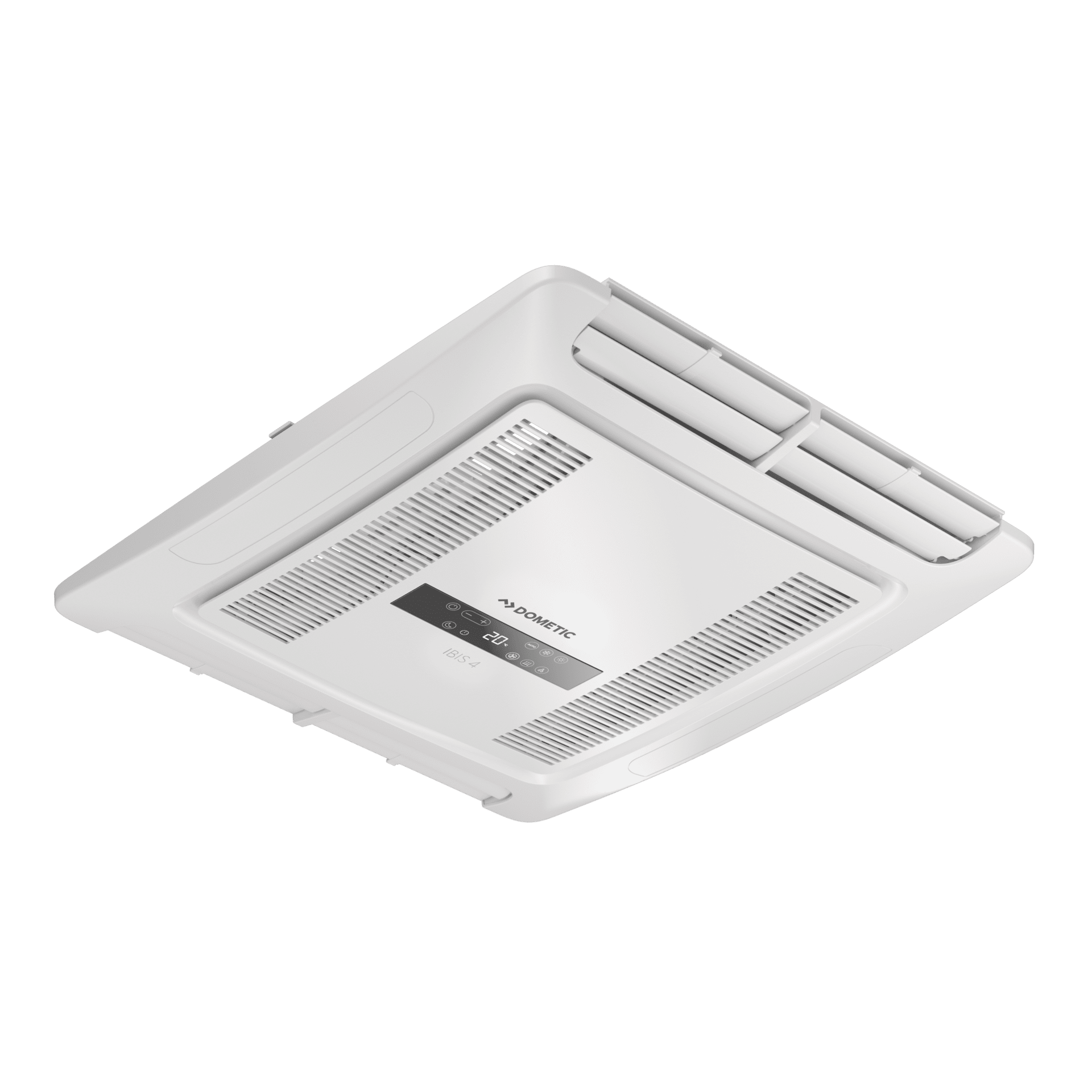

Dometic IBIS4 ADB

Air Distribution Box

  • Easy control
  • Optimized airflow
  • Two-piece ADB

The Dometic Air Distribution Box is perfect for distributing cool A/C to your entire mobile living space.

Description

  1. Adjustable vents for even air distribution
  2. Simple touch control on air distribution box
  3. Optimised airflow to increase efficiency and reduce noise
  4. Remote control operation and energy-saving sleep mode

Specifications

SKU: 9600009455

Dometic IBIS4 ADB — General specifications
ModelIBIS4 ADB
Scope of deliveryADB, Remote Control, Installation Material, Installation Manual, Operation Manual
SKUCertificatesRCM
Product DescriptionAir Distribution Box

Dometic IBIS4 ADB — Dimensions specifications
Dimensions product depth, [mm]579
Dimensions product height, [mm]48
Dimensions product width, [mm]518
Dimensions product width, [in]20.39
Net weight, [kg]3
Net weight, [lbs]6.62

Dometic IBIS4 ADB — Electrical specifications
Input voltage (AC), [V]220-240
Input frequency, [Hz]50

Dometic IBIS4 ADB — Performance specifications
Cooling Capacity ISO5151 Display2625
Cooling Capacity Display769.31
Power consumption - Heat pump (ISO 5151)1560

Dometic IBIS4 ADB — Logistics specifications
Dimensions parcel depth, [mm]632
Dimensions parcel height, [mm]138
Dimensions parcel width, [mm]552
Parcel weight, [kg]5
Parcel weight, [lbs]11.02

Dometic IB36H401RI/IB36H401RIY - Operating Manual APAC(en)
Operating Manual
Dometic IB36H401RI, IB36H401RIY - Installation Manual APAC(en)
Installation Manual

Product size & weight

W 518 x H 48 x D 579 mm

Weight: 3 kg

Highlights

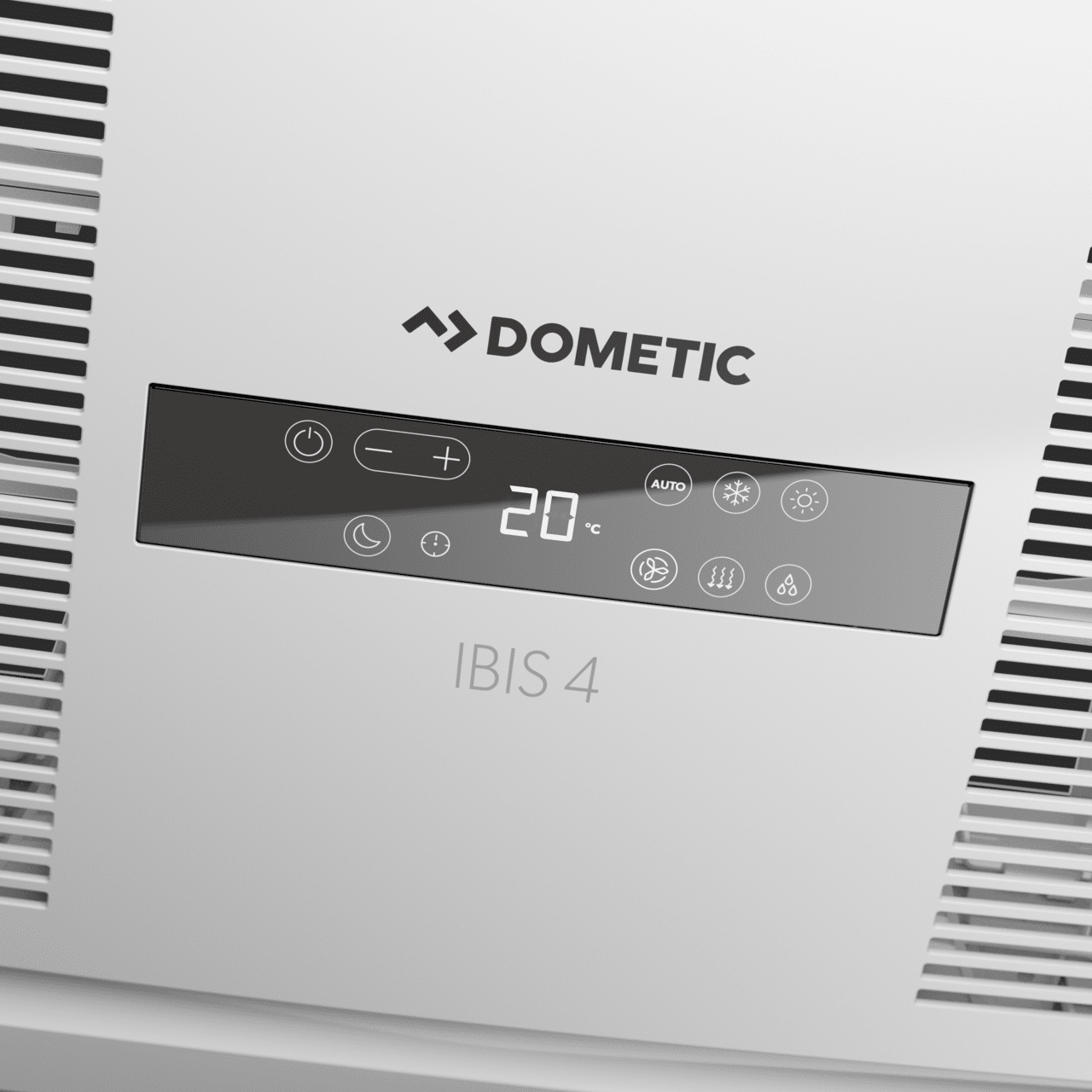

Easy control

Simple touch control on air distribution box

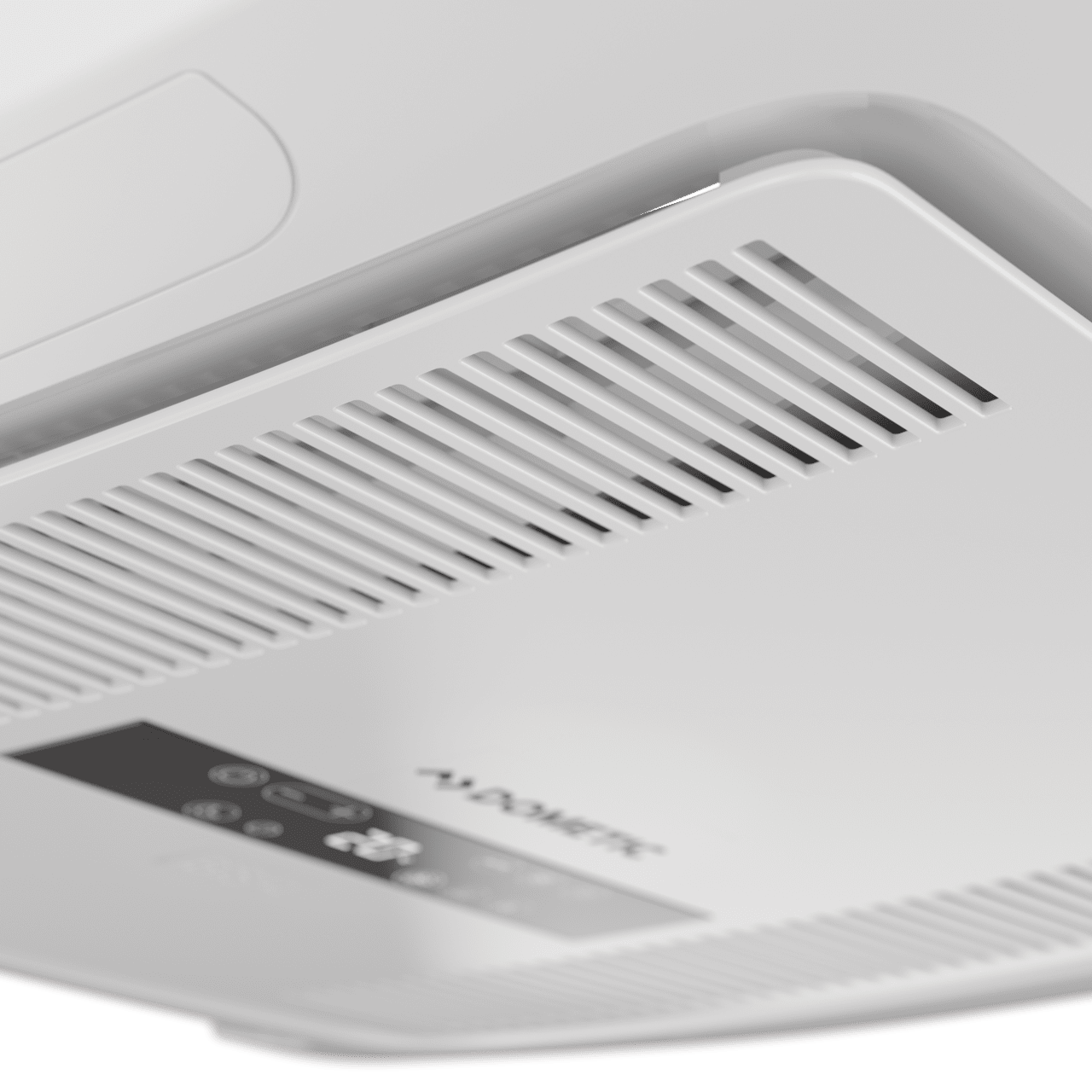

Optimized airflow

Increased efficiency and reduced noise

Two-piece ADB

Simplified assembly thanks to fewer parts

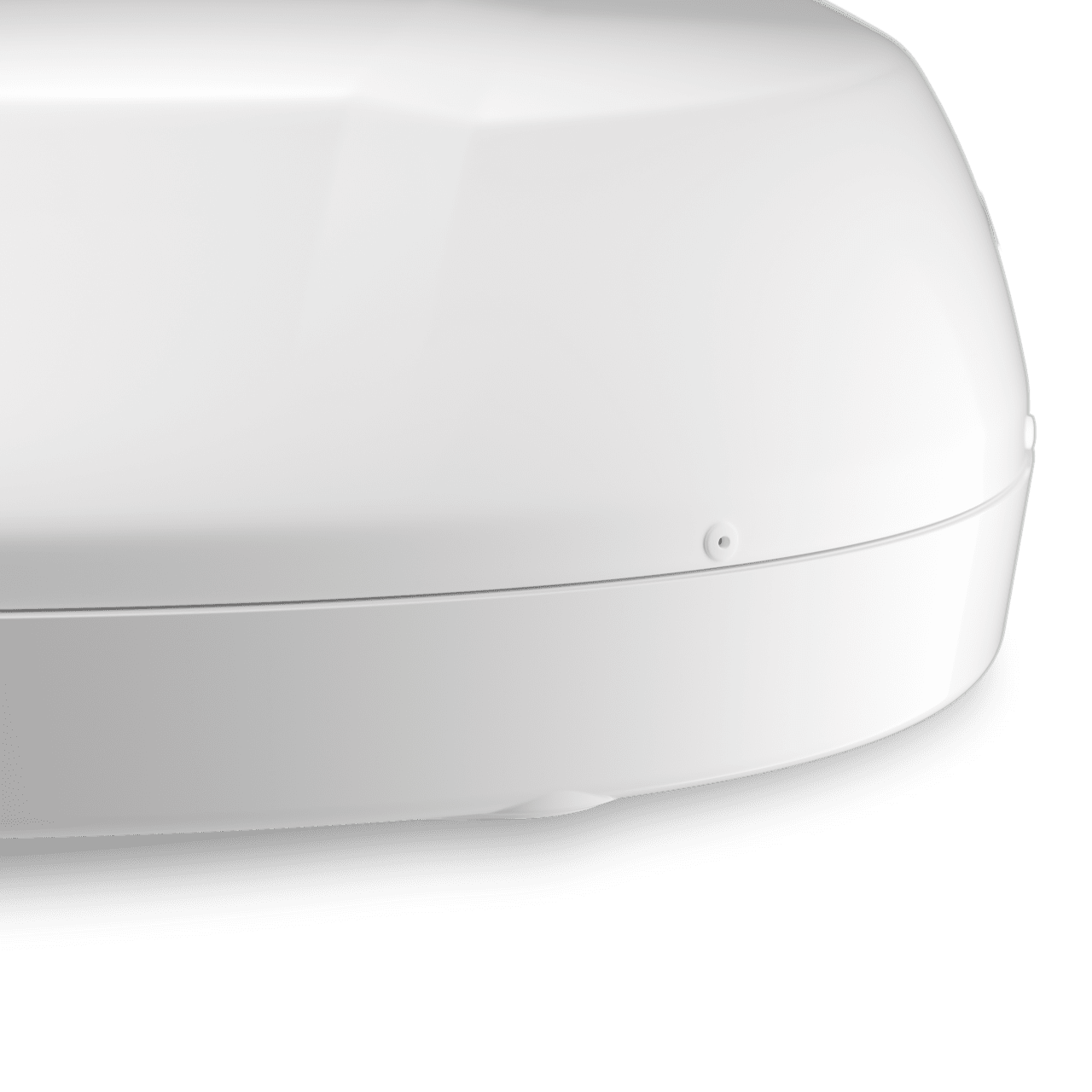

Lightweight

EPP base pan ensures a lighter build

Questions, answered.

A few things worth knowing before you decide.

Still need a hand?

Contact product support

3 questions

If you are travelling to cooler climates then this will not challenge the air conditioners to the extremes, a unit with a smaller power rating will do for these types of trips. You should not save on power, though, if you regularly travel to warmer climates and even less so if you have children or pets on board as staying in a recreational vehicle can quickly become uncomfortable on a hot summer day. When the nights are not cooler either, rest and recuperation is only possible with an adequate air conditioner.

Air conditioners work on basically the same principle as the cooling units of kitchen refrigerators. Their cooling efficiency is way higher though. In either system a refrigerant extracts heat from the space to be cooled and dissipates it to the outside. An RV air conditioner should additionally reduce the humidity. AC systems most commonly used for recreational vehicles:

  • Evaporation systems: Water is vapourised in a roof-mounted unit and collected in a filter. A fan draws ambient air in through the filter, which results in a heat exchange. Benefits: low current consumption, lightweight. Drawback: The energy efficiency depends on the ambient humidity; so the performance of the system varies. It drops when the humidity is > 85% – and that's exactly the level where air conditioning is needed. Moreover, evaporation systems will, by nature increase the humidity in the vehicle, regardless of the ambient conditions.

The temperature conditions in recreational vehicles and the reasons behind them RV and caravans are no houses and they don't have thick walls, even if they are reasonably insulated they will heat up in the sun. The temperature inside can quickly rise to 30°C or more and not only in the hot and sunny south, but also in moderate climate zones. Besides insulation, the temperature conditions inside the vehicle depend on other factors, too: the size and number of windows, for instance. A caravan with small windows will heat up less quickly than a RV with generously sized glass surfaces and it does of course matter where you park your vehicle – in the blazing sun or in the shade of a tree. Do you take every opportunity to air the vehicle out? Or are all the windows closed and the heat can spread throughout the interior?
