Description
- Dual-box system provides up to two refrigerator or freezer boxes with separate thermostat controls
- Highly durable pre-painted covers
- Can be mounted on a vertical bulkhead or horizontal shelf
- 1/4-HP compressor
- Self-sealing, quick connect fittings for easy installation
- Digital thermostat
- 404-A refrigerant responds quicker to loads, allows multiple cooling boxes to be served by one unit

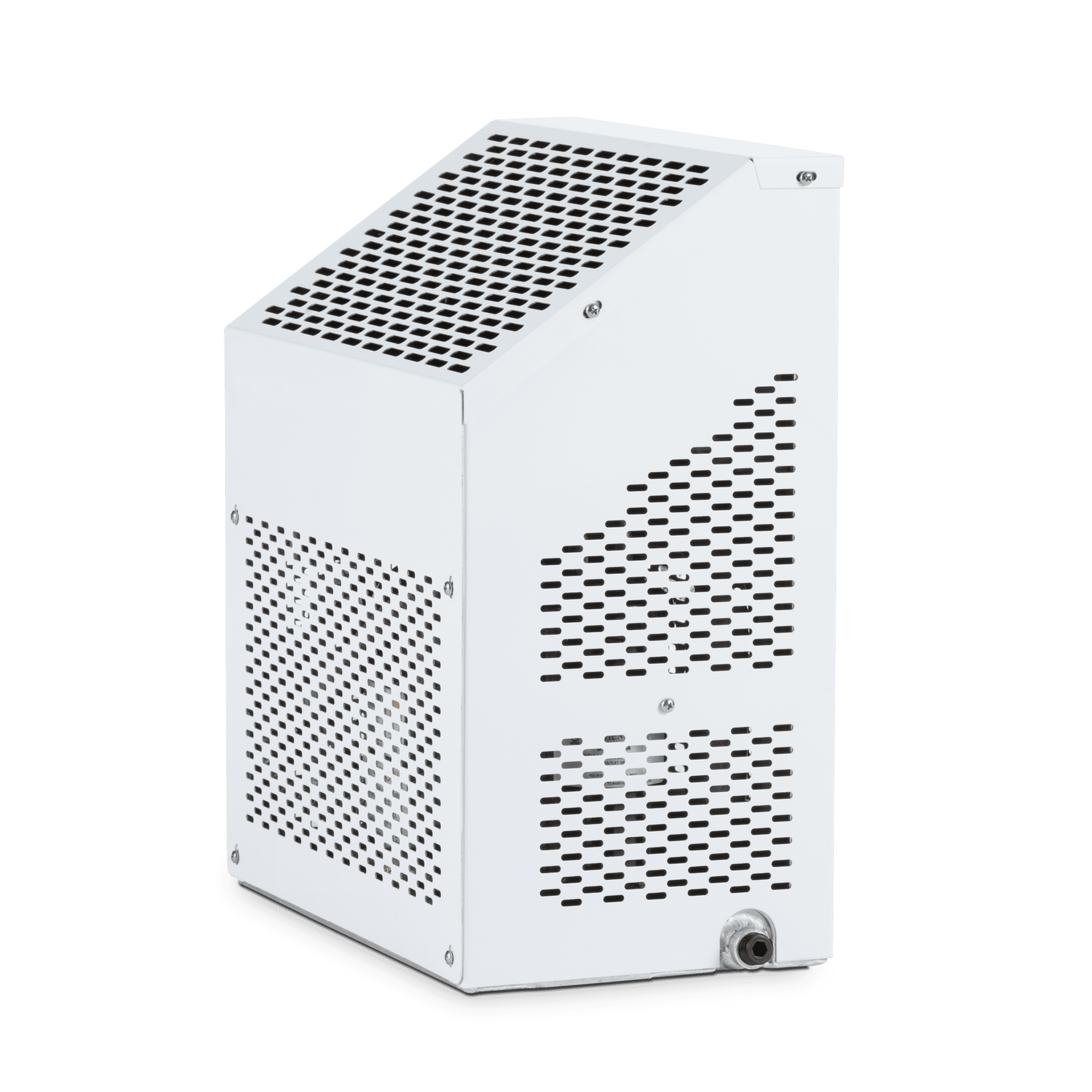

This condensing unit is housed in an attractive white aluminum enclosure, which can be mounted on a vertical bulkhead or shelf. Reliably achieves temperatures between -5 °F and 40 °F (-20 °C and 5 °C).
Specifications
SKU: 9610005407
| Model | KRA Unit |
|---|---|
| Product Description | Condensing Unit |
| Input voltage (AC), [V] | 115 |
|---|---|
| Input frequency, [Hz] | 60 |
| Required AC circuit protection min, [A] | 10 |
| Required AC circuit protection max, [A] | 15 |
| Refrigerant, type | R404A |
|---|---|
| GWP | 3922 |
| CO2 equivalent, [t] | 2.67 |
| Current consumption min cooling, [A] | 6.3 |
| Current consumption max cooling, [A] | 6.3 |
| Dimensions parcel depth, [mm] | 647.70 |
|---|---|
| Dimensions parcel height, [mm] | 723.90 |
| Dimensions parcel width, [mm] | 571.50 |
| Parcel weight, [kg] | 38.59 |
| Parcel weight, [lbs] | 85.09 |
