Dometic MagicComfort MSH 300

Carbon insert seat heater, 4 elements

Carbon insert seat heater for both the driver and front passenger seat

Description

  1. Cut-to-size carbon heating elements ensure a neat and bespoke fitting
  2. Heats up very fast for immediate warmth
  3. Three heat stages are incorprated from 10 to 70 W
  4. Two integrated temperature guards per seat
  5. Easy operation
  6. Elegant, ergonomic push button with LED display
  7. Resets when the ignition is turned off

Specifications

SKU: 9600000395

Dometic MagicComfort MSH 300 — General specifications
ModelMSH300

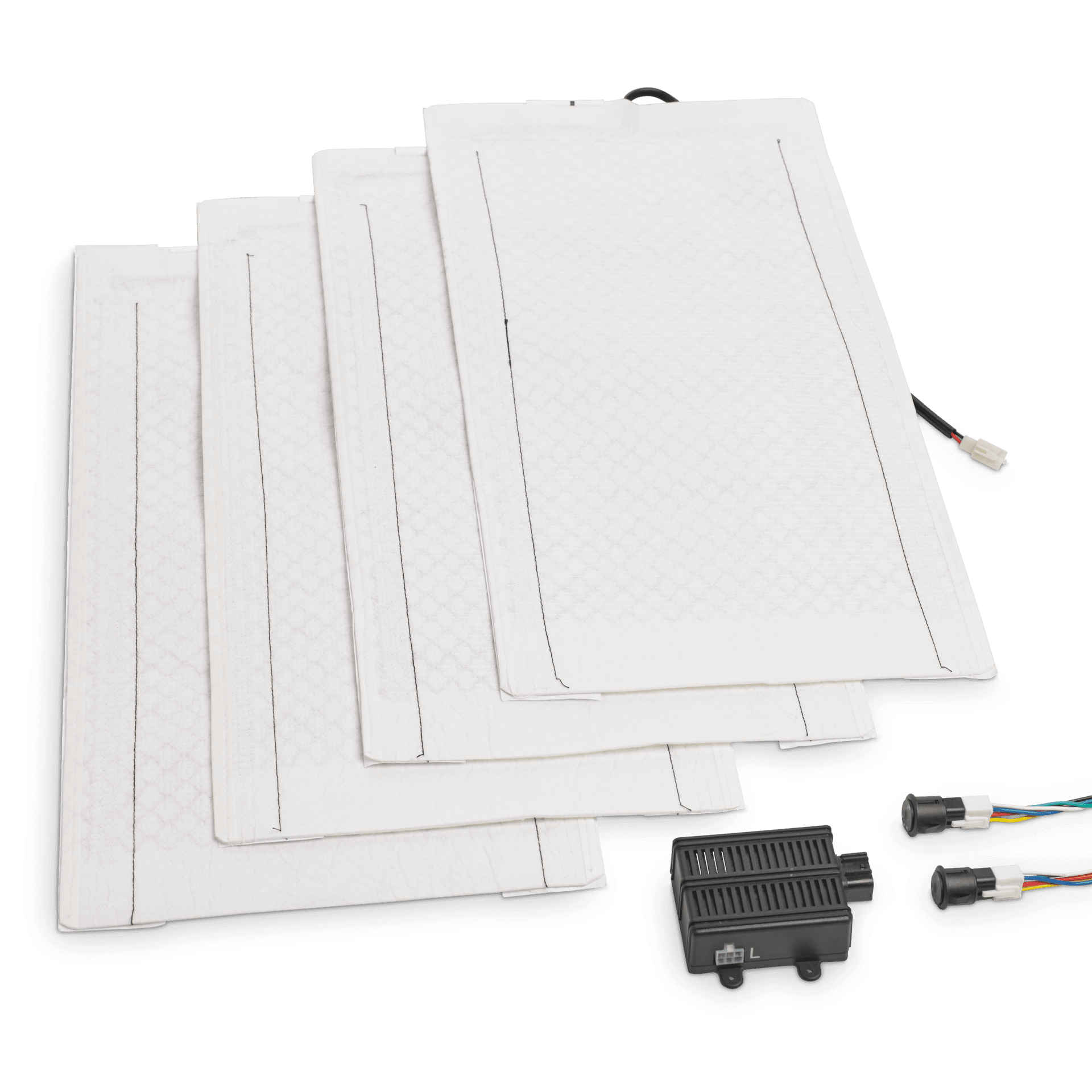

Scope of delivery4 carbon heating elements, pre-assembled set of cables with relay, 2 universal push buttons
SKUCertificatesECE R10
Product DescriptionCarbon insert seat heater, 4 elements

Dometic MagicComfort MSH 300 — Dimensions specifications
Dimensions product depth, [mm]580
Dimensions product height, [mm]2
Dimensions product width, [mm]270
Dimensions product width, [in]10.63
Net weight, [kg]1.32
Net weight, [lbs]2.91

Dometic MagicComfort MSH 300 — Electrical specifications
Input voltage (DC), [V]12

Dometic MagicComfort MSH 300 — Logistics specifications
Dimensions parcel depth, [mm]390
Dimensions parcel height, [mm]65
Dimensions parcel width, [mm]310
Parcel weight, [kg]1.56
Parcel weight, [lbs]3.44

DoC Seatsystems 20190430
Declaration Of Conformity
Dometic MSH300, MSH301 - Installation and Operating Manual EMEA16
Installation And Operating Manual

Product size & weight

W 270 x H 2 x D 580 mm

Weight: 1.32 kg

The Dometic MagicComfort MSH 301 is a bespoke, cut-to-size seat heater that is perfect for a retro-fit of one seat in a car, truck, RV or boat. It is comfortable and heats in super-fast time with a high quality carbon heating element. Simple to fit, just measure, cut and insert the pad between the upholstery of the seat and backrest, and the seat cover.
