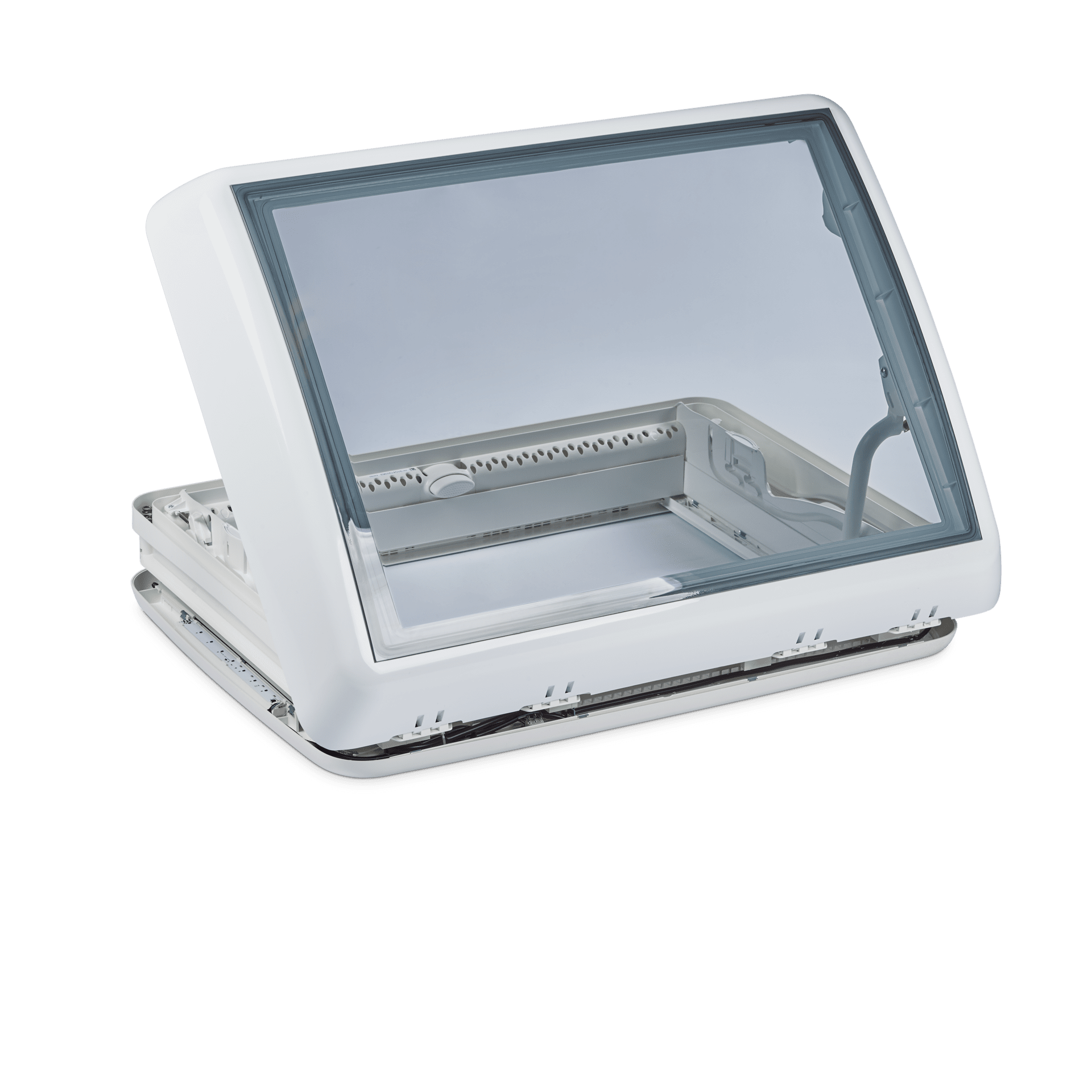

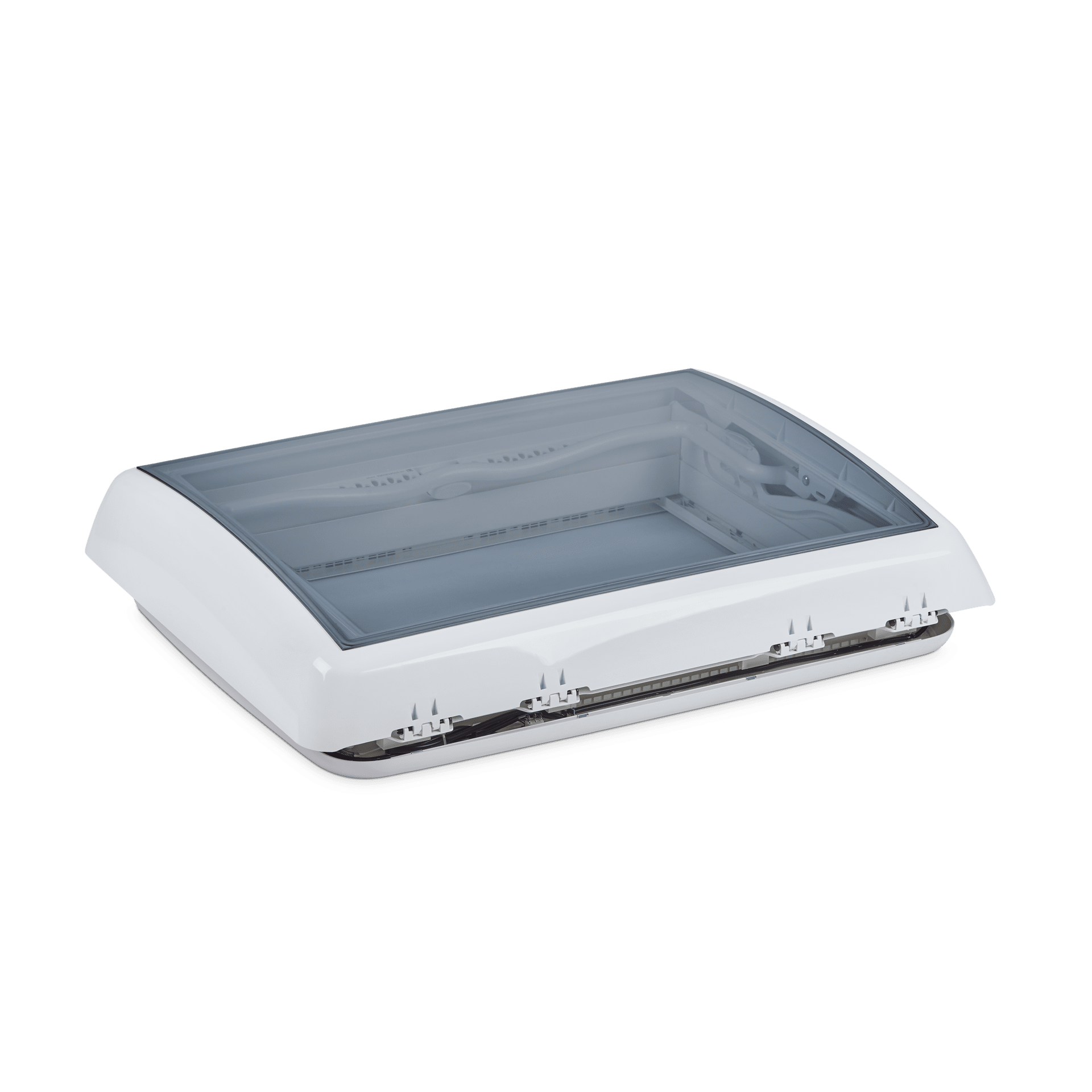

Dometic Midi Heki LED

Roof Light

  • Push bar operation
  • Heavy duty
  • Modern interior

This new Dometic Midi Heki light comes with a white edged double acrylic glazed dome, along with separately adjustable darkening and fly screens. Its large 700 x 500 mm opening lets you enjoy the natural light and enjoy the fresh air whilst taking in everything that mobile living has to offer.

Description

  1. Open and close the dome via push-up bar
  2. Dome with new double acrylic glazing
  3. Opening angle of 45 degrees
  4. Improved aerodynamics to reduce noise
  5. LED lights featuring day light white and night light blue
  6. Separately adjustable darkening and fly screens

Specifications

SKU: 9104120362

Dometic Midi Heki LED — General specifications
ModelMidi Heki GD
Scope of deliveryMidi Heki GD Art.1492 lever model
SKUCertificatesECE R43
Product DescriptionRoof Light

Dometic Midi Heki LED — Dimensions specifications
Dimensions product depth, [mm]617
Dimensions product height, [mm]617
Dimensions product width, [mm]846
Dimensions product width, [in]33.31
Dimensions ordered height, [mm]500
Dimensions ordered width, [mm]700
Net weight, [kg]8
Net weight, [lbs]17.64
Standard mount. material thickness 1 min, [mm]25
Standard mount. material thickness 1 max, [mm]29
Possible material thickness 1 min, [mm]25
Possible material thickness 1 max, [mm]60
Cut out height, [mm]500
Cut out width, [mm]700

Dometic Midi Heki LED — Properties specifications
Opening angle max, [°]45
Positions fixed3

Dometic Midi Heki LED — Logistics specifications
Parcel weight, [kg]8.20
Parcel weight, [lbs]18.08

Product size & weight

W 846 x H 617 x D 617 mm

Weight: 8 kg

Highlights

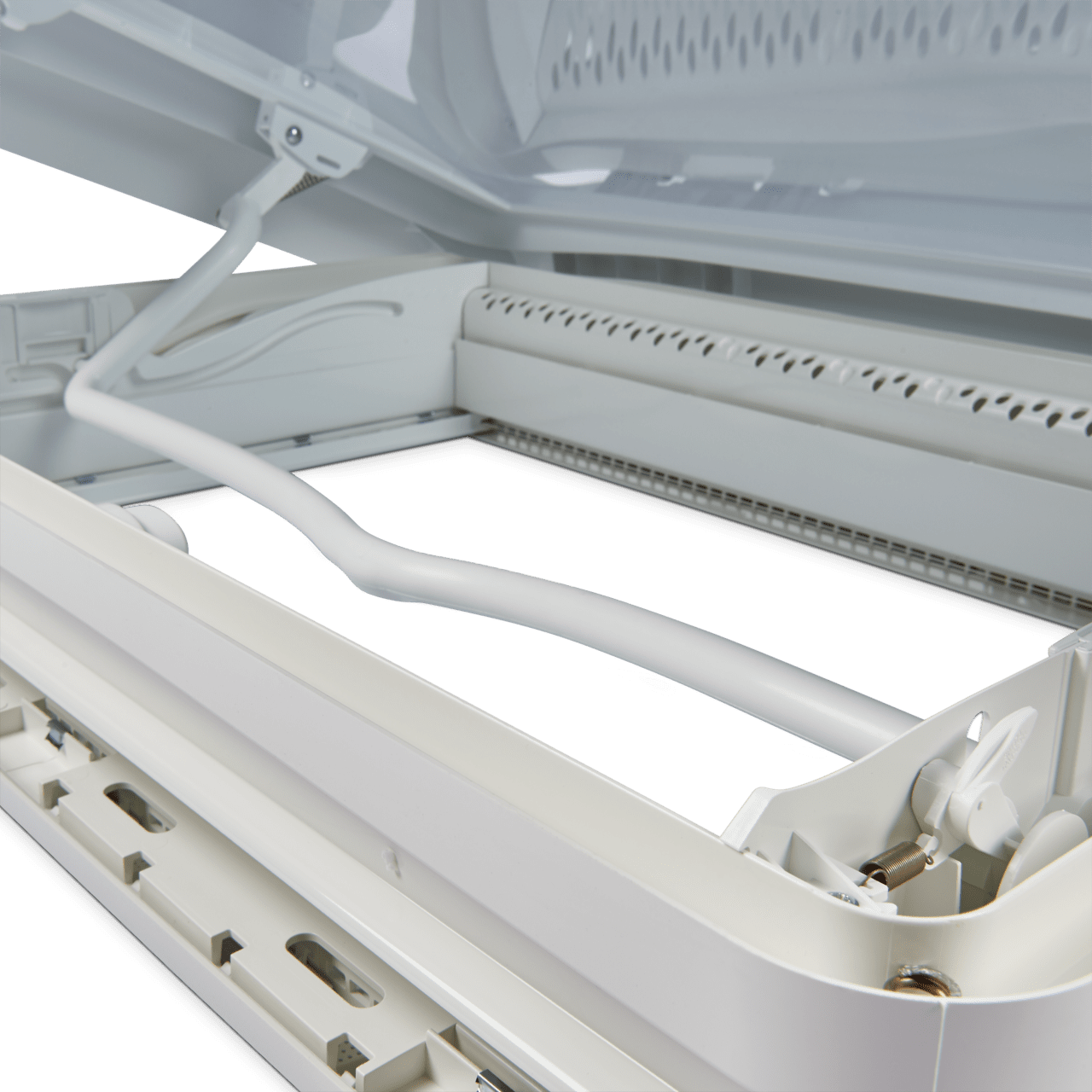

Push bar operation

For simple opening and closing of the skylight

Heavy duty

Constructed from durable materials

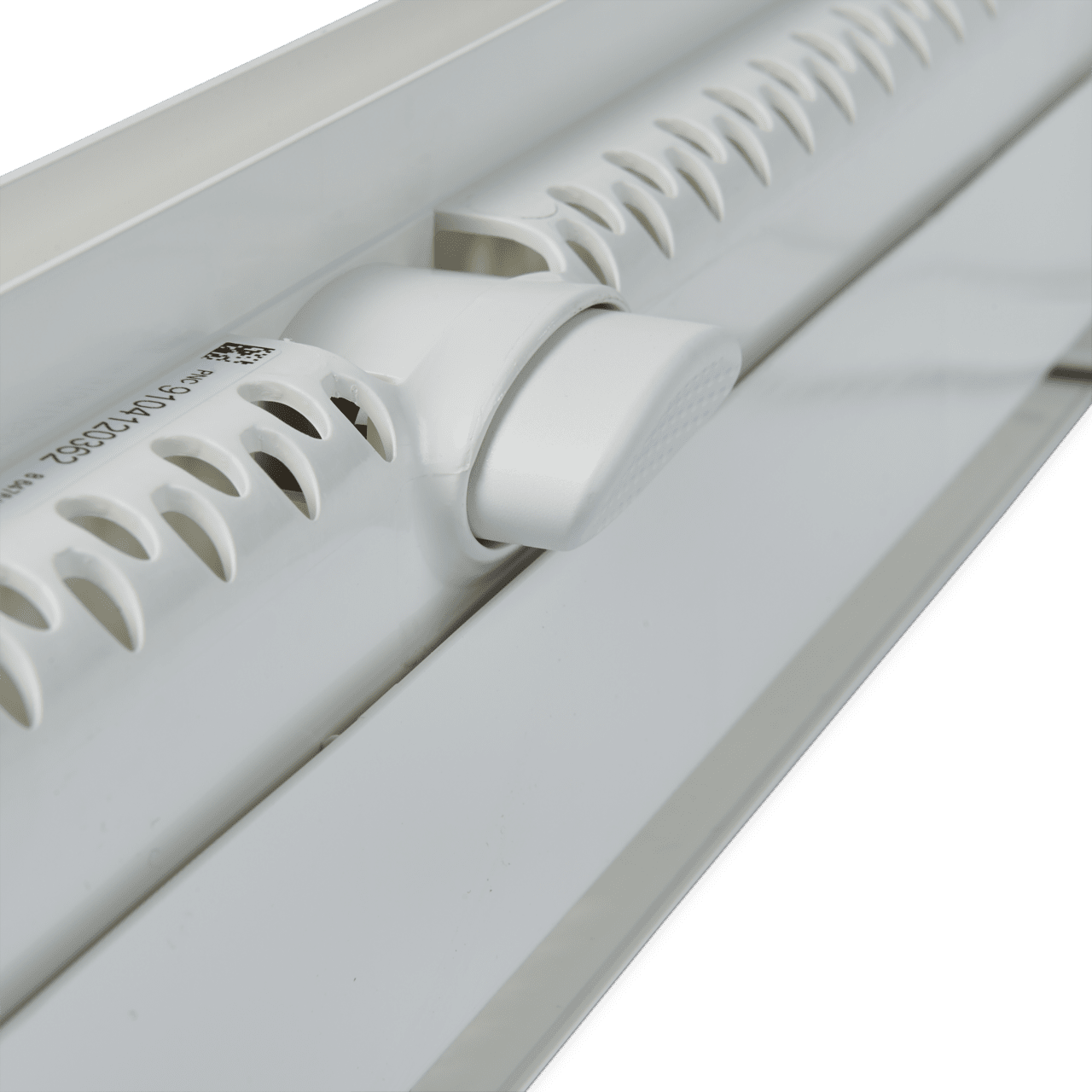

Modern interior

Stylish white suits modern caravans

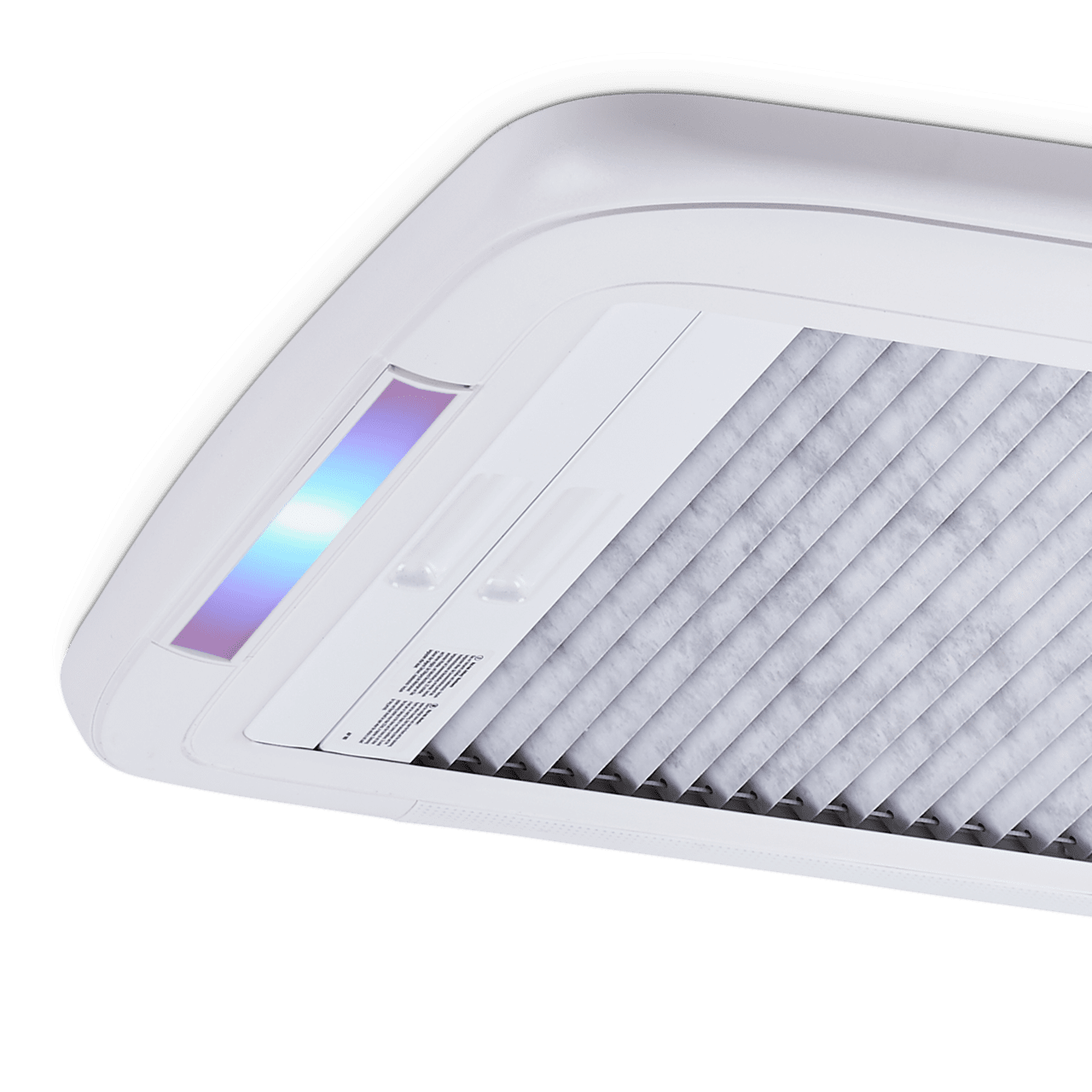

Blue LED

Perfect for use at night

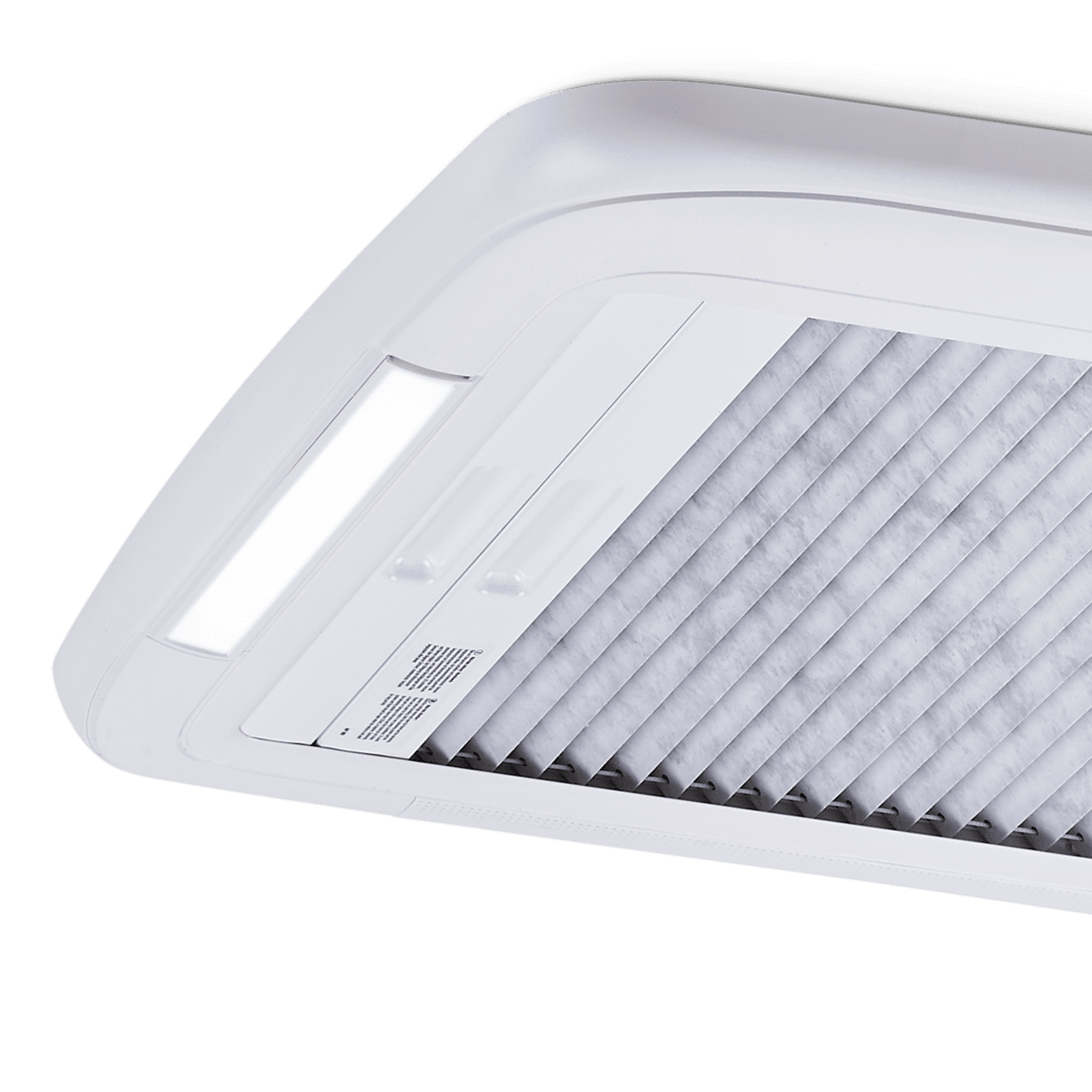

White LED

Strong lighting during the day

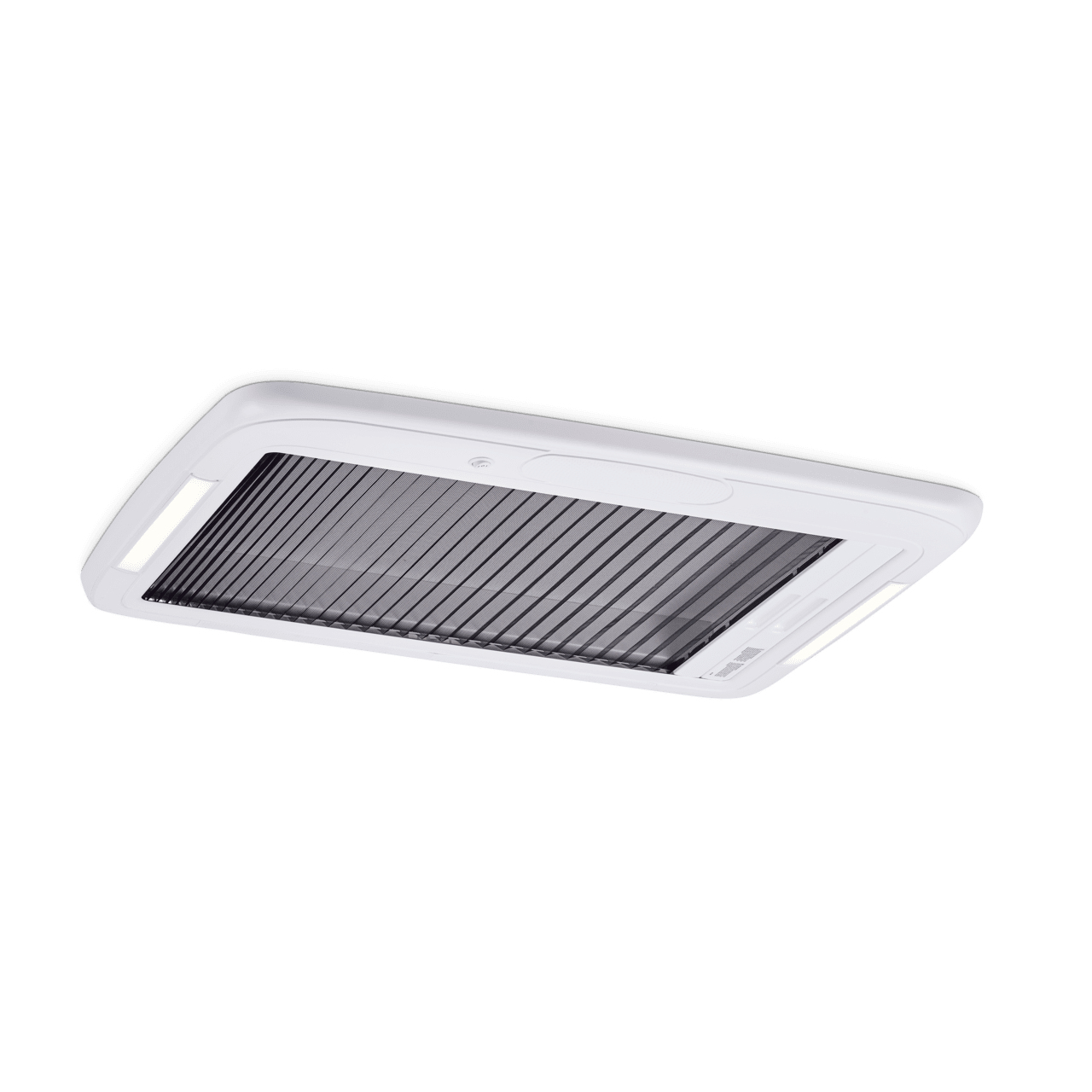

Built-in blinds

Keeps light and insects out
