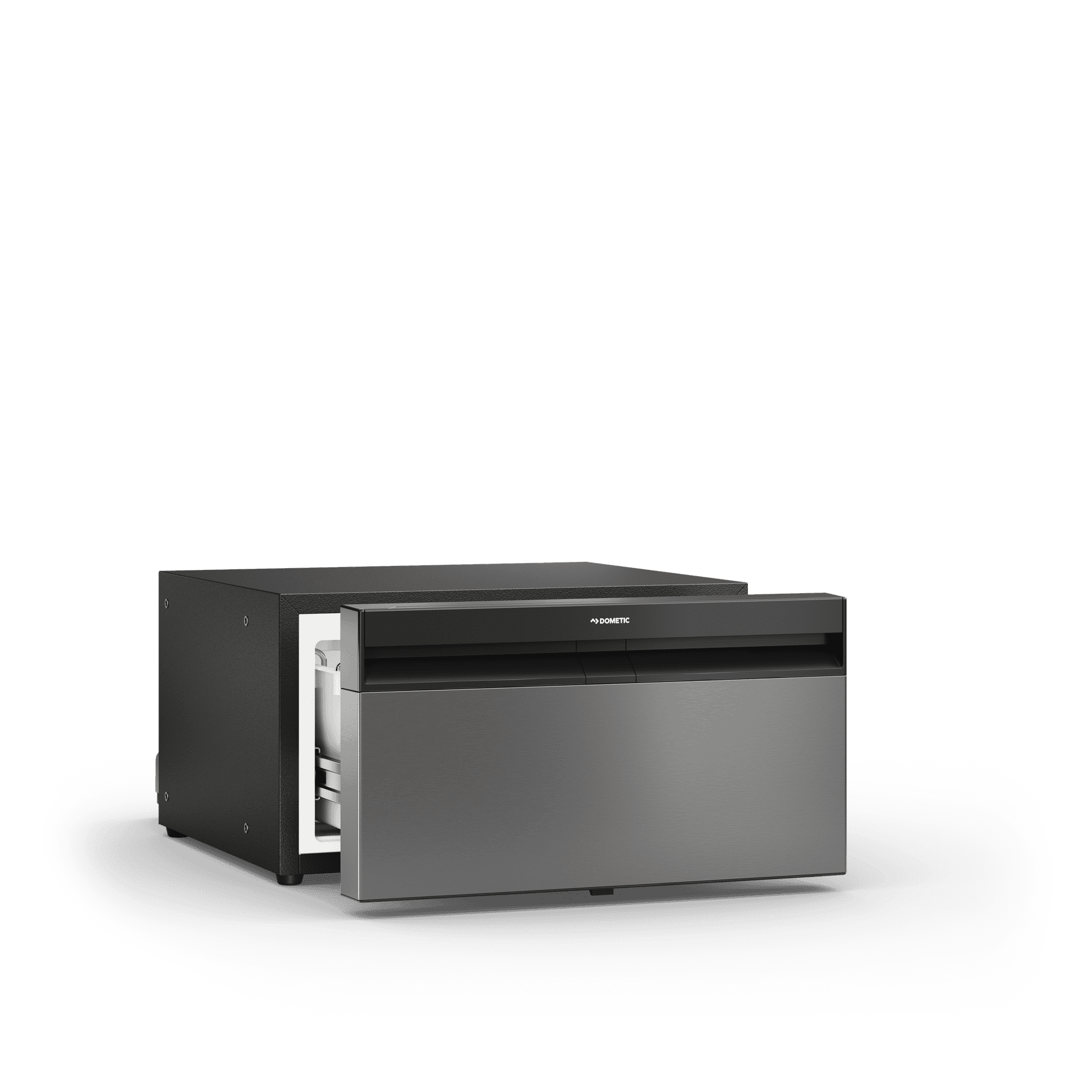

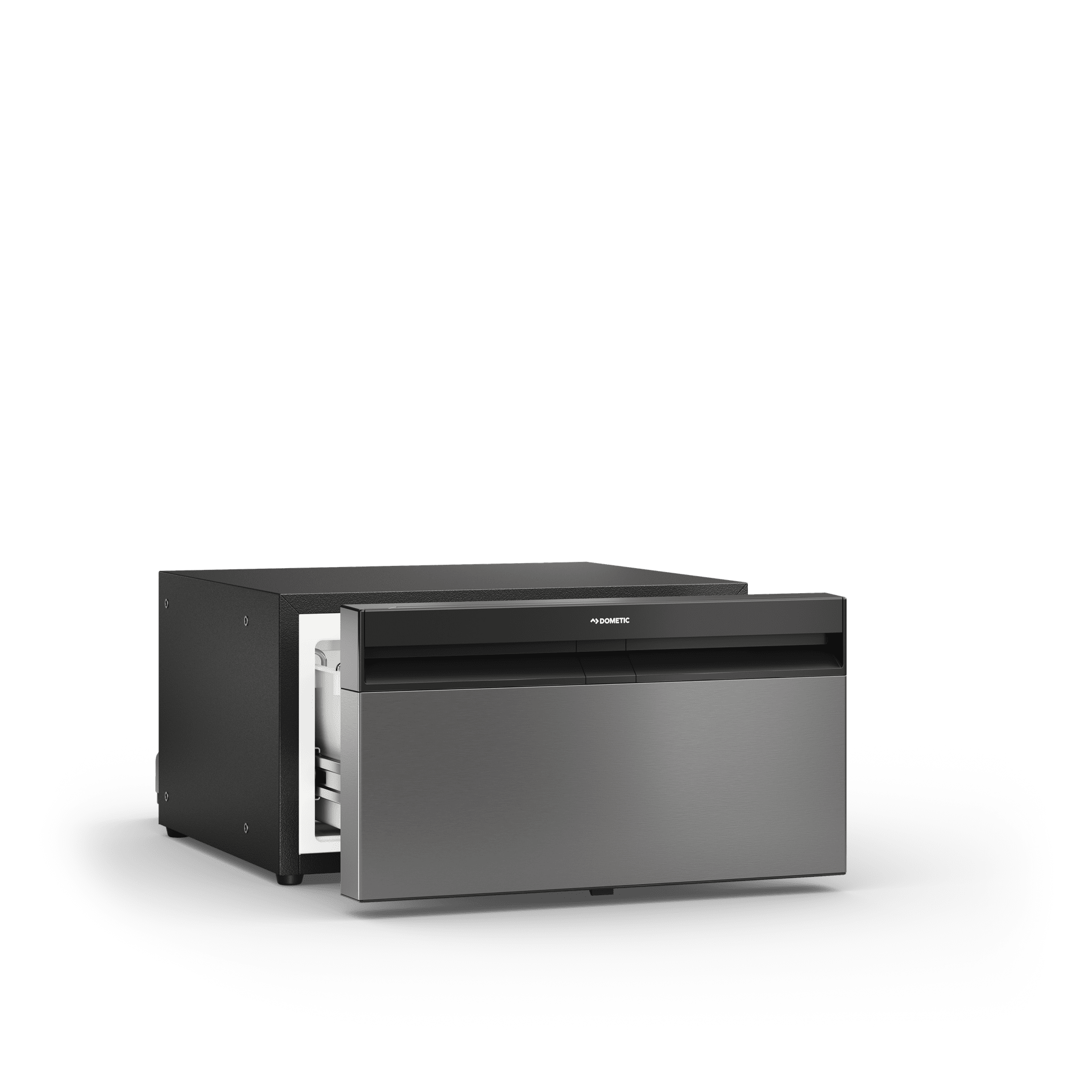

Dometic NRXD 20C Drawer refrigerator, 20 l, 12/24 V DC

Drawer-style refrigeration that slides right into your build

The Dometic NRXD-20 in Dark Grey puts drawer-style cooling exactly where you want it, built into your vehicle and ready for the road. With a 20L capacity, the aluminium-steel drawers glide on precision bearings, so access stays smooth whether you’re parked up or on the move. Run it on its own or pair it with an NRX upright for full-height refrigeration.

Description

  1. 20 Litres of chilled storage that leaves enough room for everything else. Reaches –15°C for proper freezing performance where other drawer fridges fall short
  2. Self-locking rails and a secure bottom latch keep the drawer stable on rough roads
  3. Pull-out drawer and full-width handle give easy access even in the tightest builds
  4. Designed for flush or standard mounting to fit cleanly into any compact interior
  5. An intuitive front panel lets you adjust temperature or switch modes at a glance. Run on mains power at campsites, marinas, or truck stops. No setup changes needed
  6. Pair with an NRX fridge for a seamless fridge and freezer setup with ergonomic access
  7. A remotable compressor frees up space behind the unit, ideal for tight installations
  8. Robust metal rails and smooth bearings deliver stable movement and lasting durability
  9. A frameless front panel and refined finishes blend cleanly into any interior
  10. Adjustable dividers keep bottles and food firmly separated so nothing shifts in transit

Specifications

SKU: 9630002176

Dometic NRXD 20C Drawer refrigerator, 20 l, 12/24 V DC — General specifications
ModelNRXD0020C
Scope of delivery1x refrigerator, 1 x SOM manual, 1 x INM manual, 4 x L-shape brackets
Product DescriptionDrawer-style refrigeration that slides right into your build

Dometic NRXD 20C Drawer refrigerator, 20 l, 12/24 V DC — Dimensions specifications
Net weight, [kg]13.60
Net weight, [lbs]29.99
Total volume (IEC 62552-3), [l]22

Dometic NRXD 20C Drawer refrigerator, 20 l, 12/24 V DC — Electrical specifications
Input voltage (DC), [V]12/24

Dometic NRXD 20C Drawer refrigerator, 20 l, 12/24 V DC — Performance specifications
Hermetically SealedYes
Refrigerant, typeR600a
Climate class (EN 62552)T
Insulation TypePU (Polyurethane)

Dometic NRXD 20C Drawer refrigerator, 20 l, 12/24 V DC — Properties specifications
Single or Dual ZoneSingle
Thermostat controlElectronic Thermostat

Dometic NRXD 20C Drawer refrigerator, 20 l, 12/24 V DC — Logistics specifications
Dimensions parcel depth, [mm]655
Dimensions parcel height, [mm]330
Dimensions parcel width, [mm]532
Parcel weight, [kg]16.50
Parcel weight, [lbs]36.38

Dometic NRXD15-30 - Installation Manual (zxx)
Installation Manual
Dometic NRXD15-30 - Short Operating Manual APAC4
Short Operating Manual

Product size & weight

Weight: 13.60 kg
