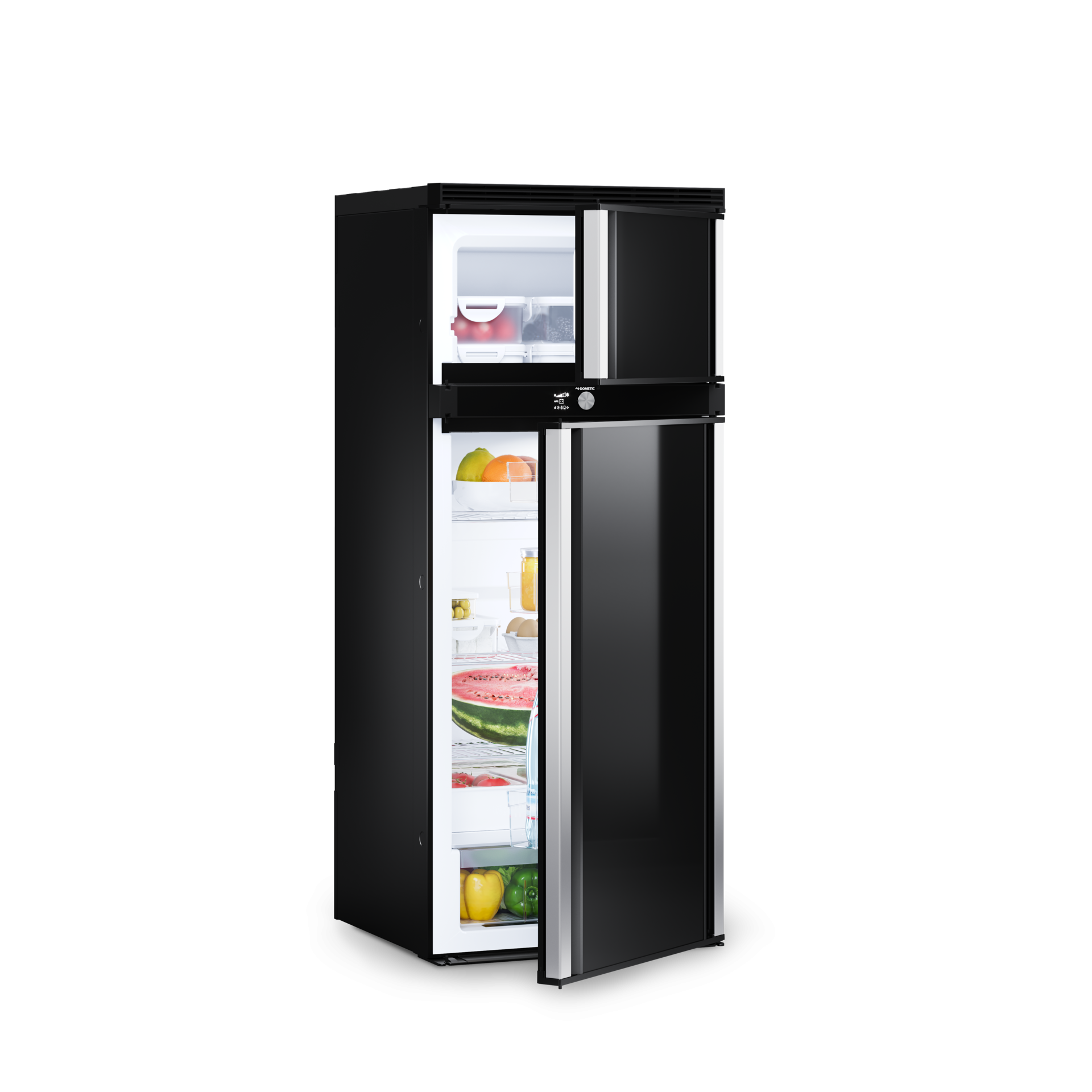

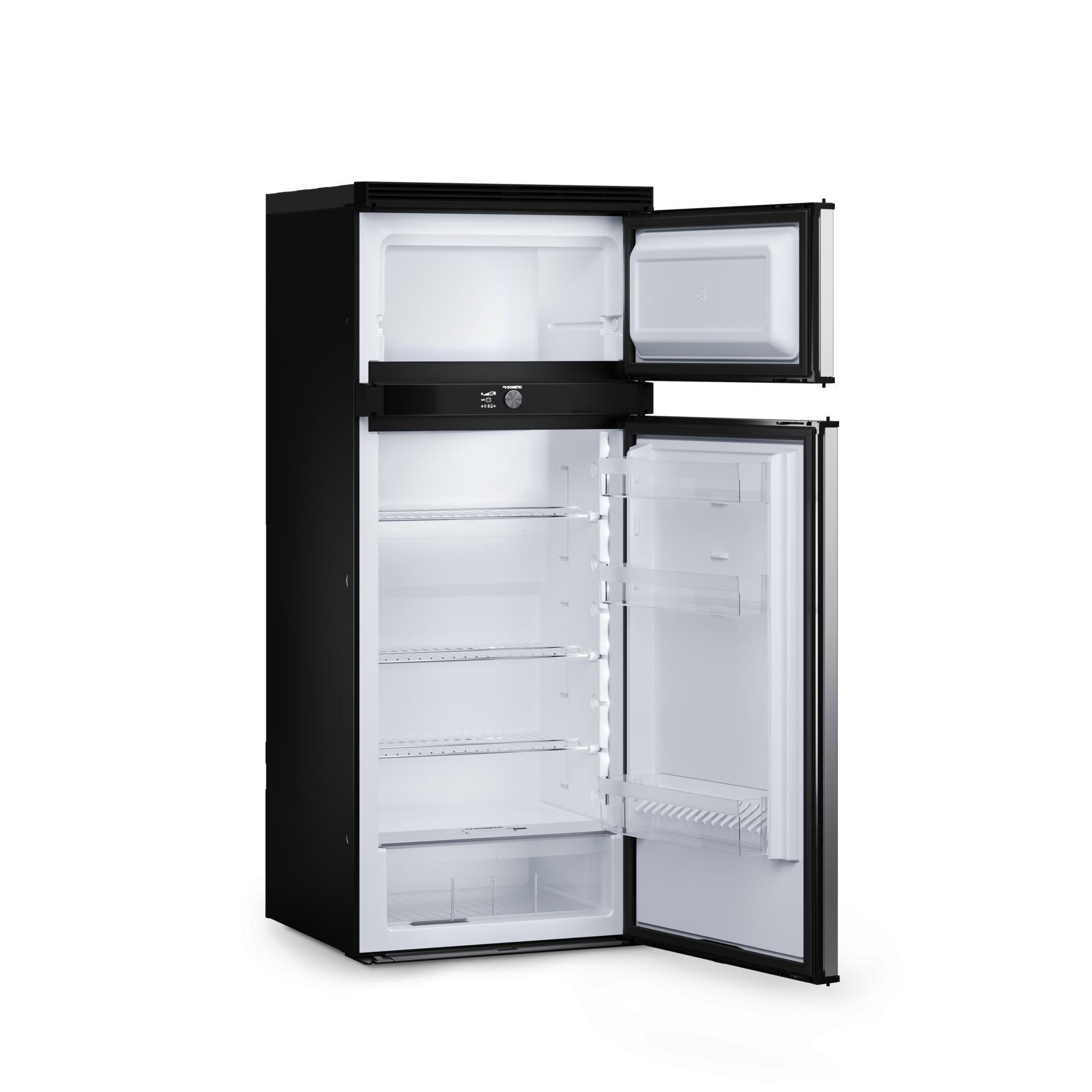

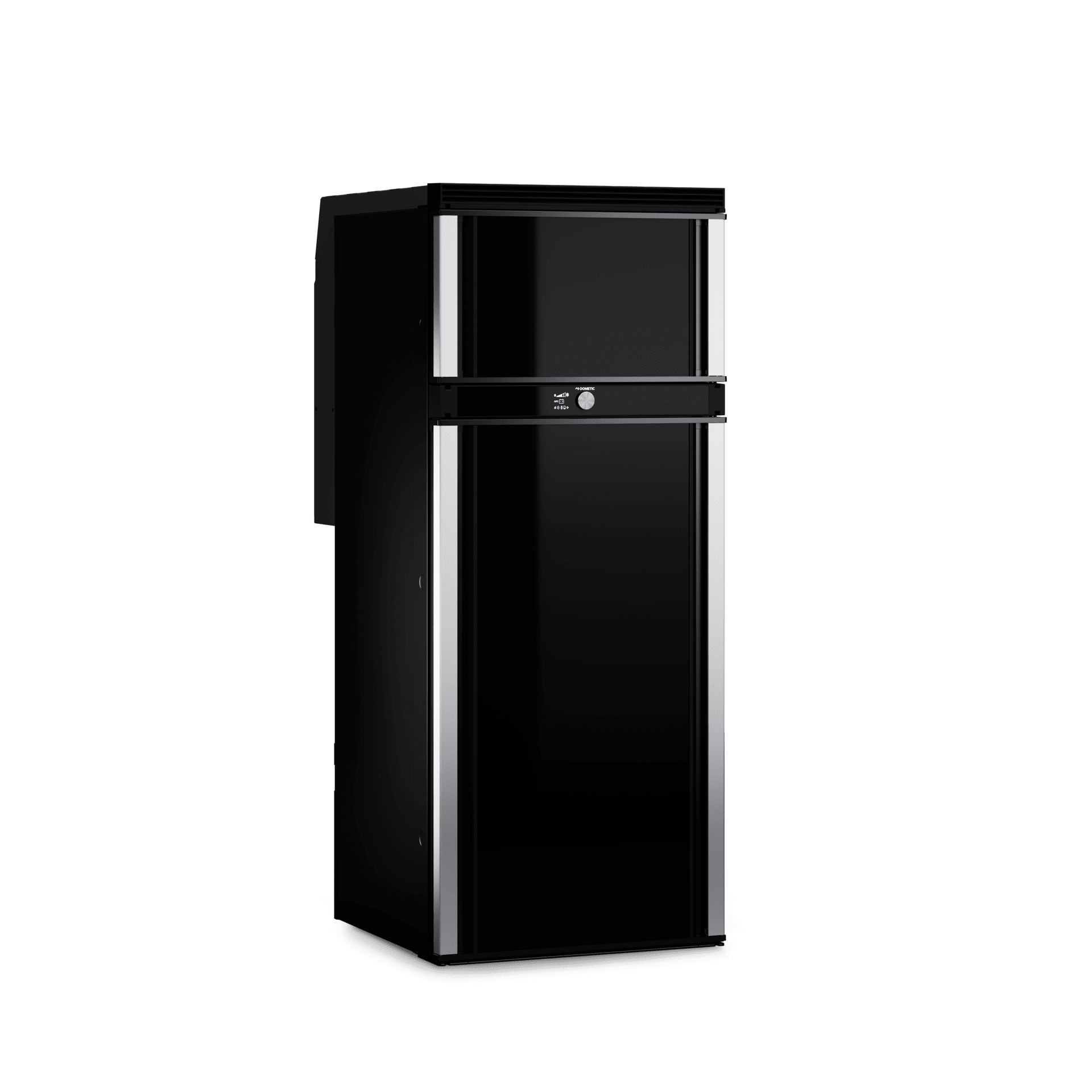

Dometic RCD 10.5XET

Compressor refrigerator, 200 l, TFT display, 2 double-hinged doors

  • VG-Fresh crisper
  • LED light bar
  • TFT control panel

This new generation compressor refrigerator gives you unprecedented convenience: two separate doors for the fridge and freezer that open left and right, high-performance compressor cooling technology, and a versatile interior for organized storage of your food and drink.

Description

  1. Double-hinged doors – open left and right without the need to change the hinge
  2. Extra-deep cabinet – with separate doors for the fridge and freezer
  3. VG Fresh crisper with adjustable humidity – keeps fruit and vegetables fresh for longer
  4. Elegant aluminum door handles extend over the complete fridge height
  5. Internal ventilation system – no further ventilation grills required for installation
  6. Easy to use controls with intuitive TFT color display and turn/push button
  7. Reliable compressor cooling – ST Class (up to 38 °C ambient temperature)

Specifications

SKU: 9600050530

Dometic RCD 10.5XET — General specifications
ModelRCD10.5XET
Scope of delivery1 fridge,QSG,SOM,INM,3 wire shelves, 3 door racks, 1 crisper & lid
SKUCertificatesUKCA;CB;CE;EMC
Product DescriptionCompressor refrigerator, 200 l, TFT display, 2 double-hinged doors

Dometic RCD 10.5XET — Dimensions specifications
Dimensions product depth, [mm]605
Dimensions product height, [mm]1283
Dimensions product width, [mm]523
Dimensions product width, [in]20.59
Net weight, [kg]39.50
Net weight, [lbs]87.10
Total volume (IEC 62552-3), [l]200

Dometic RCD 10.5XET — Electrical specifications
Input voltage (DC), [V]12/24
Rated input current (DC), [A]9.5

Dometic RCD 10.5XET — Performance specifications
Hermetically SealedYes
Refrigerant, typeR600a
Climate class (EN 62552)ST
Insulation TypePU (Polyurethane)

Dometic RCD 10.5XET — Properties specifications
Drain plugYes
Single or Dual ZoneDual
Thermostat controlAES
Interior lightYes, LED

Dometic RCD 10.5XET — Logistics specifications
Dimensions parcel depth, [mm]700
Dimensions parcel height, [mm]1315
Dimensions parcel width, [mm]610
Parcel weight, [kg]45.50
Parcel weight, [lbs]100.33

Dometic 10 Series - Declaration of Conformity EU
Declaration Of Conformity
Dometic RCD10.5ES, RCD10.5XES, RCD10.5ET, RCD10.5XET - Operating Manual EMEA18
Operating Manual
Dometic RCD10.5ES, RCD10.5XES, RCD10.5ET, RCD10.5XET - Installation Manual EMEA18
Installation Manual
Dometic REF10 Series (Decorative Plate, Door lock) - for RCD10.5ES, RCD10.5XES, RCD10.5ET, RCD10.5XET - Installation Manual APAC-EMEA(zxx)
Installation Manual
Dometic RCD10.5ES, RCD10.5XES, RCD10.5ET, RCD10.5XET - Quick Start Guide EMEA18
Quick Start Guide
Dometic RCD10.5ES, RCD10.5XES, RCD10.5ET, RCD10.5XET - Short Operating Manual EMEA18
Short Operating Manual

Videos

Product size & weight

W 523 x H 1283 x D 605 mm

Weight: 39.50 kg

Highlights

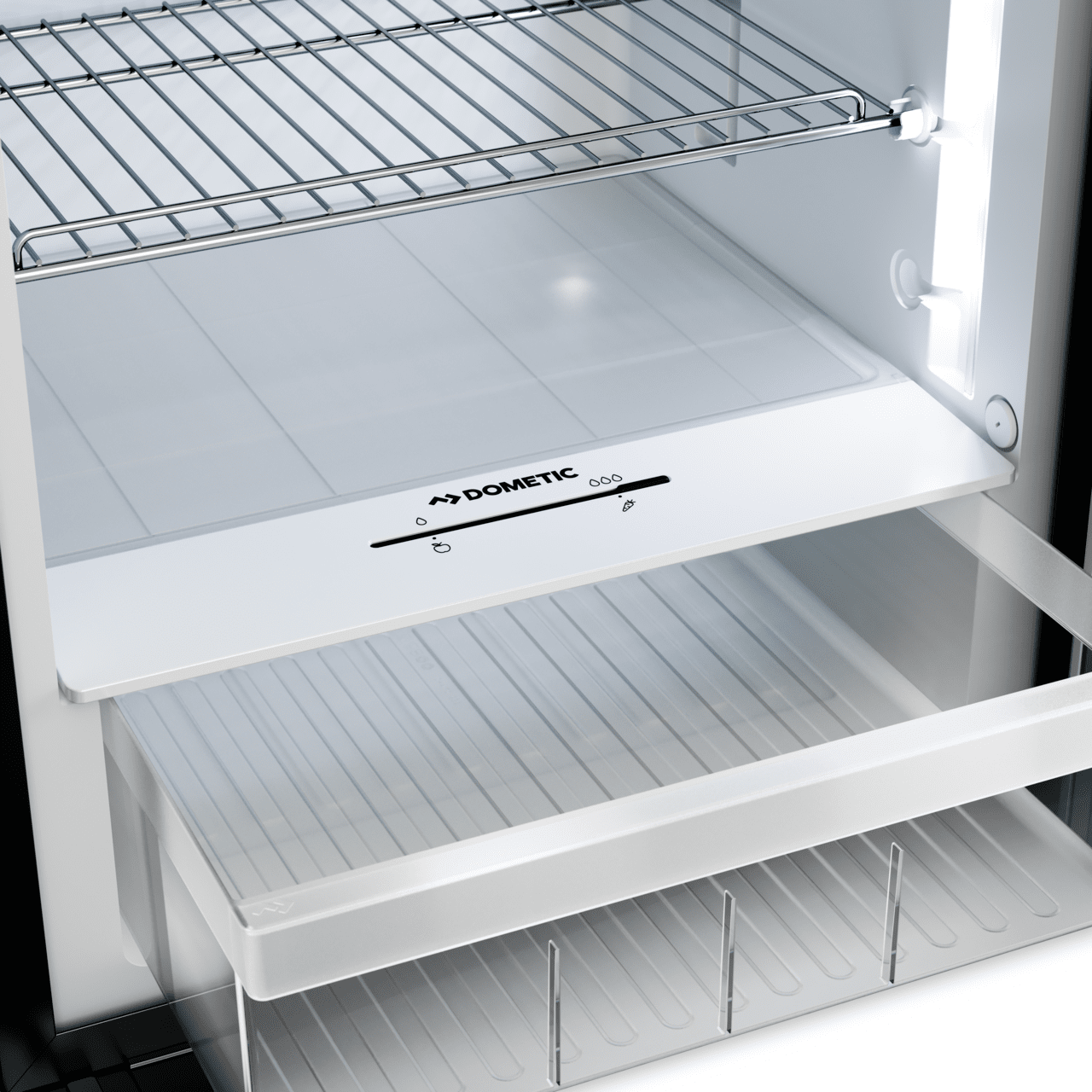

VG-Fresh crisper

With adjustable partitions, variable humidity and a lid that serves as extra storage shelf

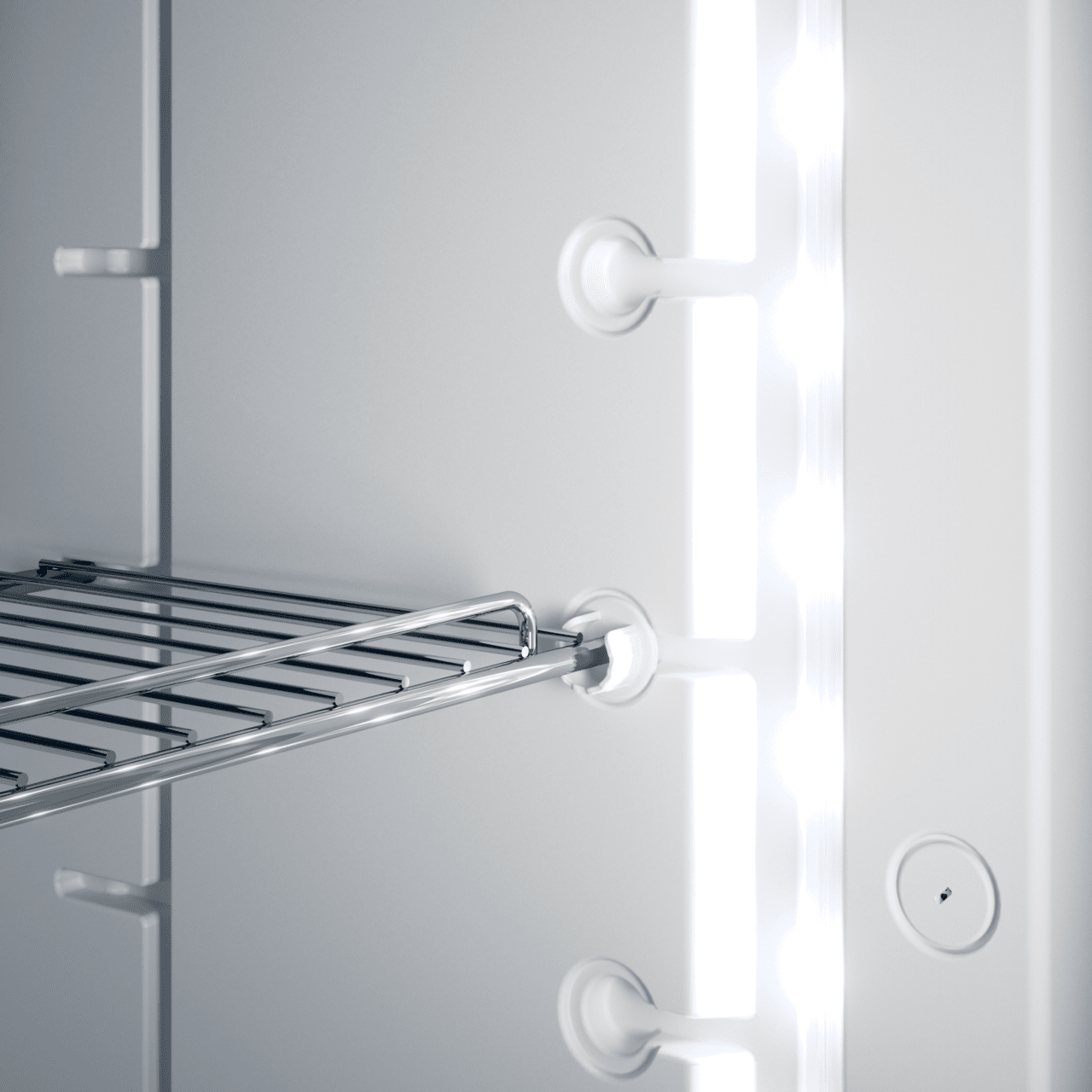

LED light bar

For bright, uniform illumination of the entire refrigerator compartment

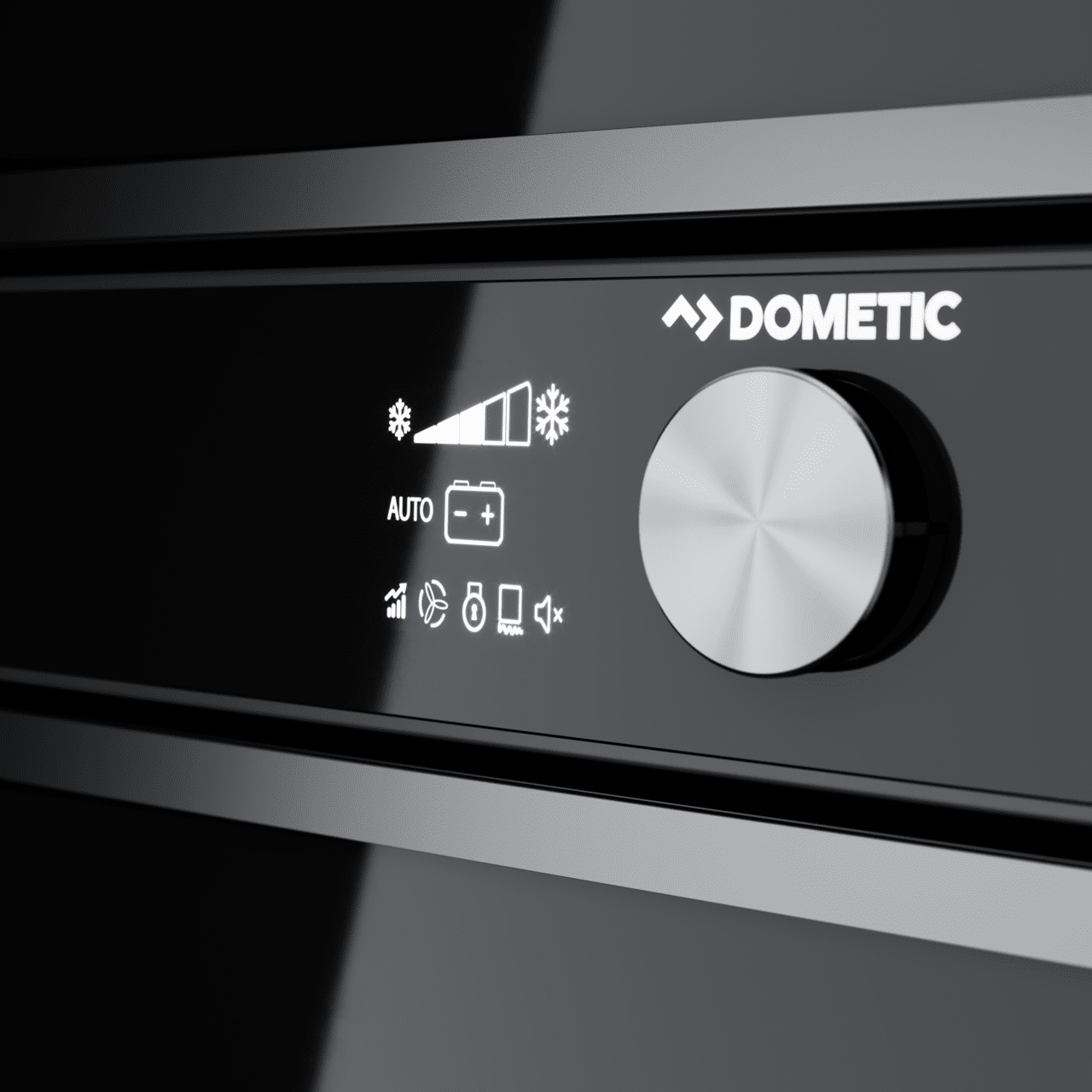

TFT control panel

Intuitive control of cooling temperature and comfort features

Versatile interior

Smart storage solutions for everything – even wine bottles

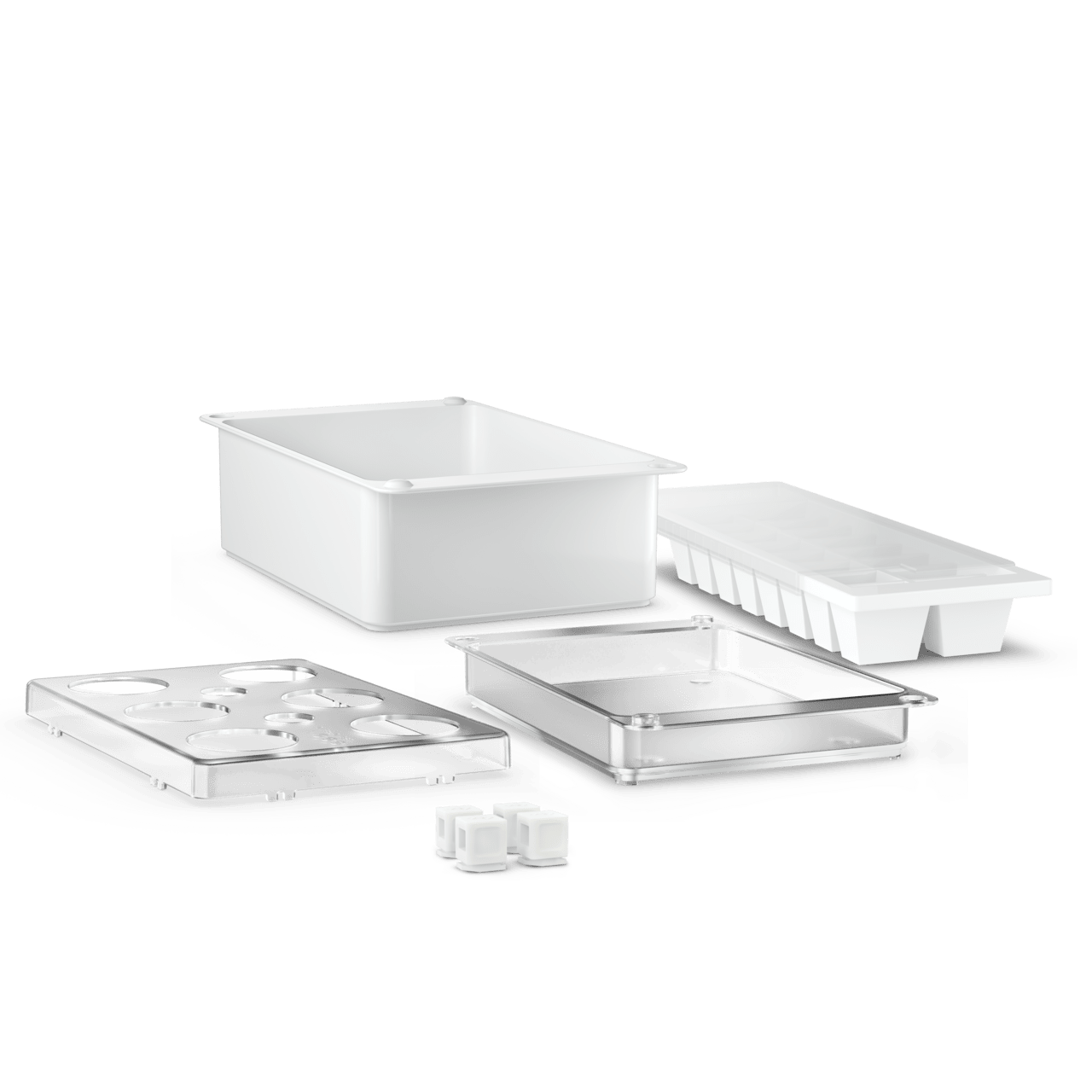

Practical accessories

Stackable containers, ice cube tray, egg shelf

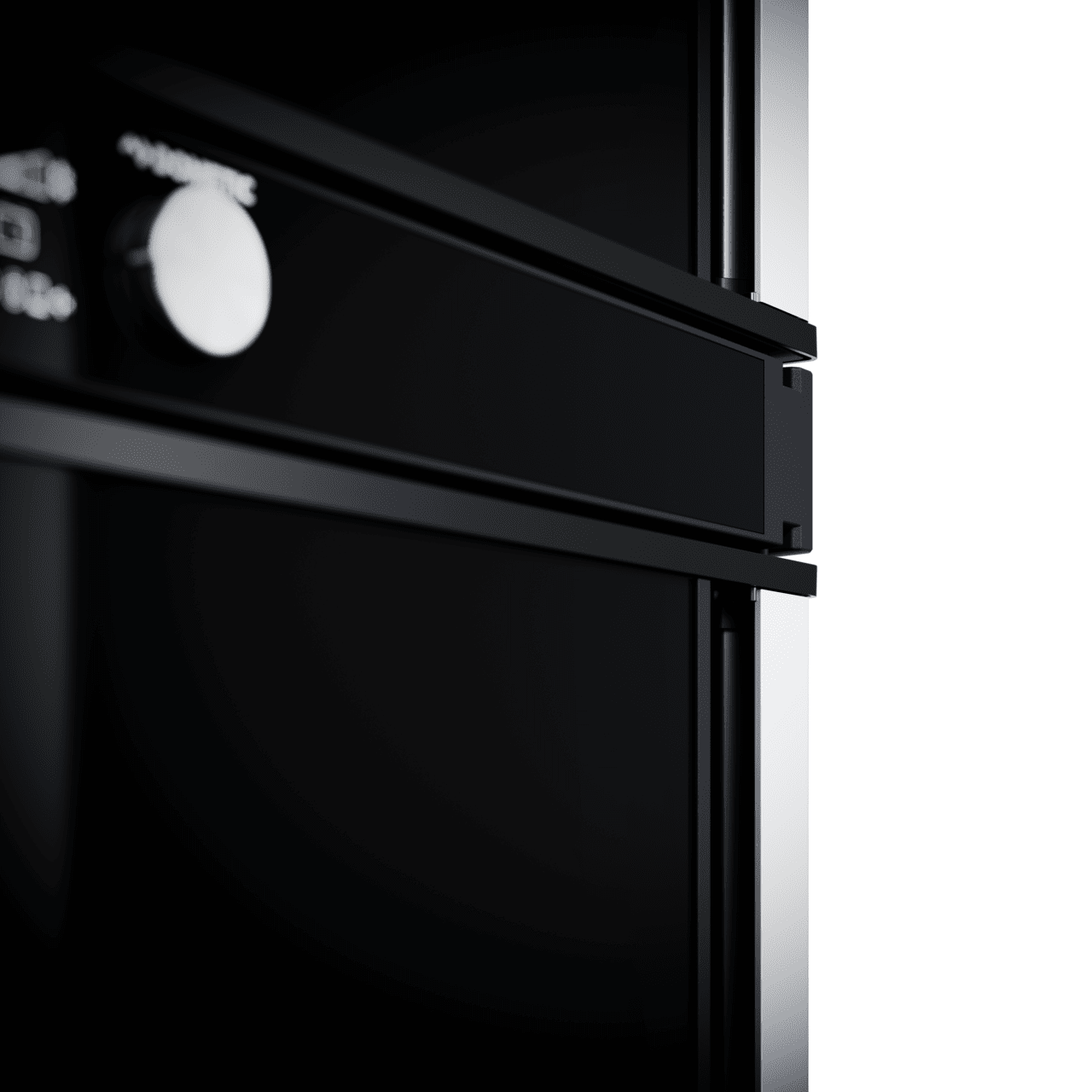

Aluminum door handles

Elegant full-height handles fitted on left and right for convenient opening

Questions, answered.

A few things worth knowing before you decide.

Still need a hand?

Contact product support

1 question

The RMXXXX fridge has climate class SN (Extended Temperate) means that the fridge must work reliably at an ambient temperature between +10°C and +32°C (measured at the lower ventilation grill outside the vehicle).
