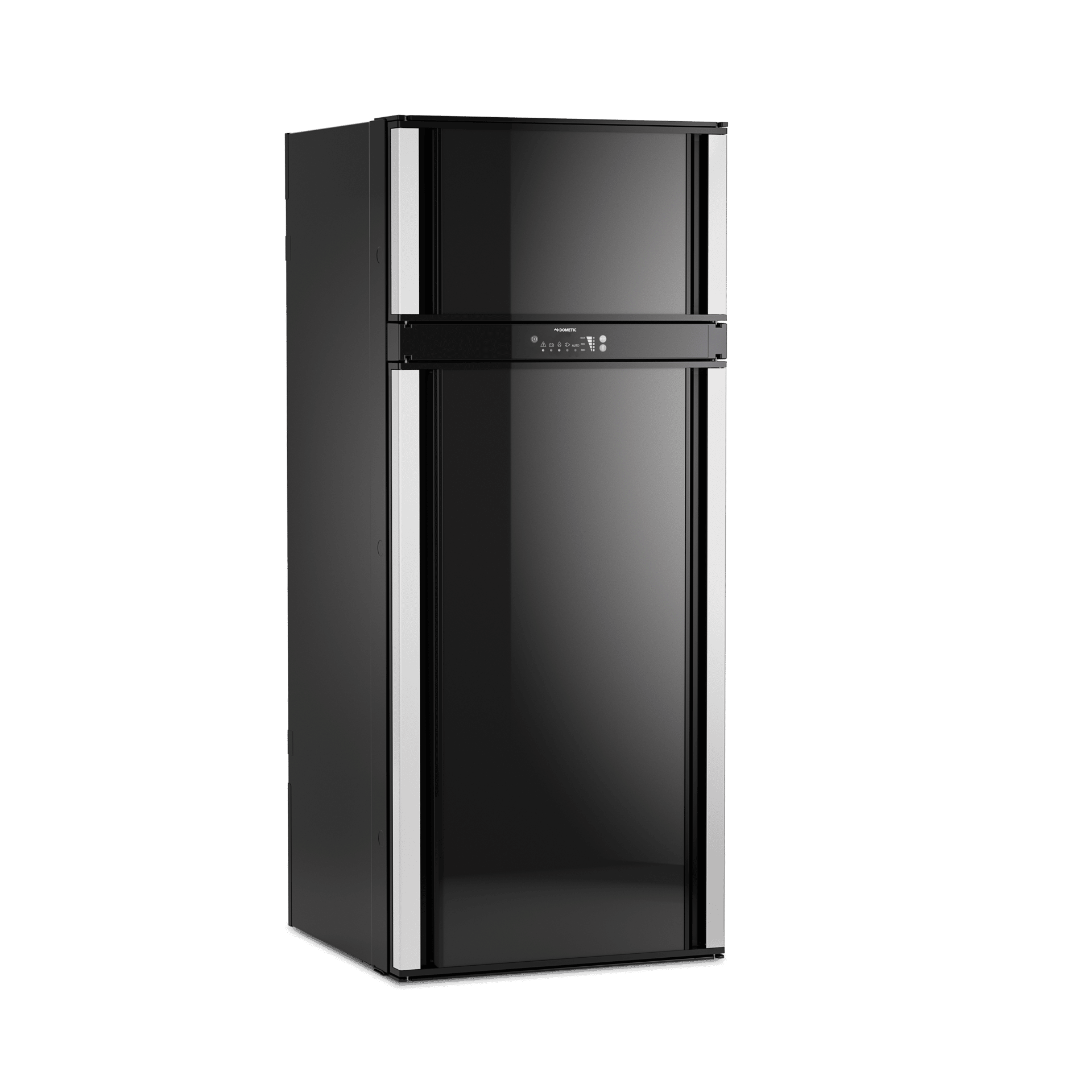

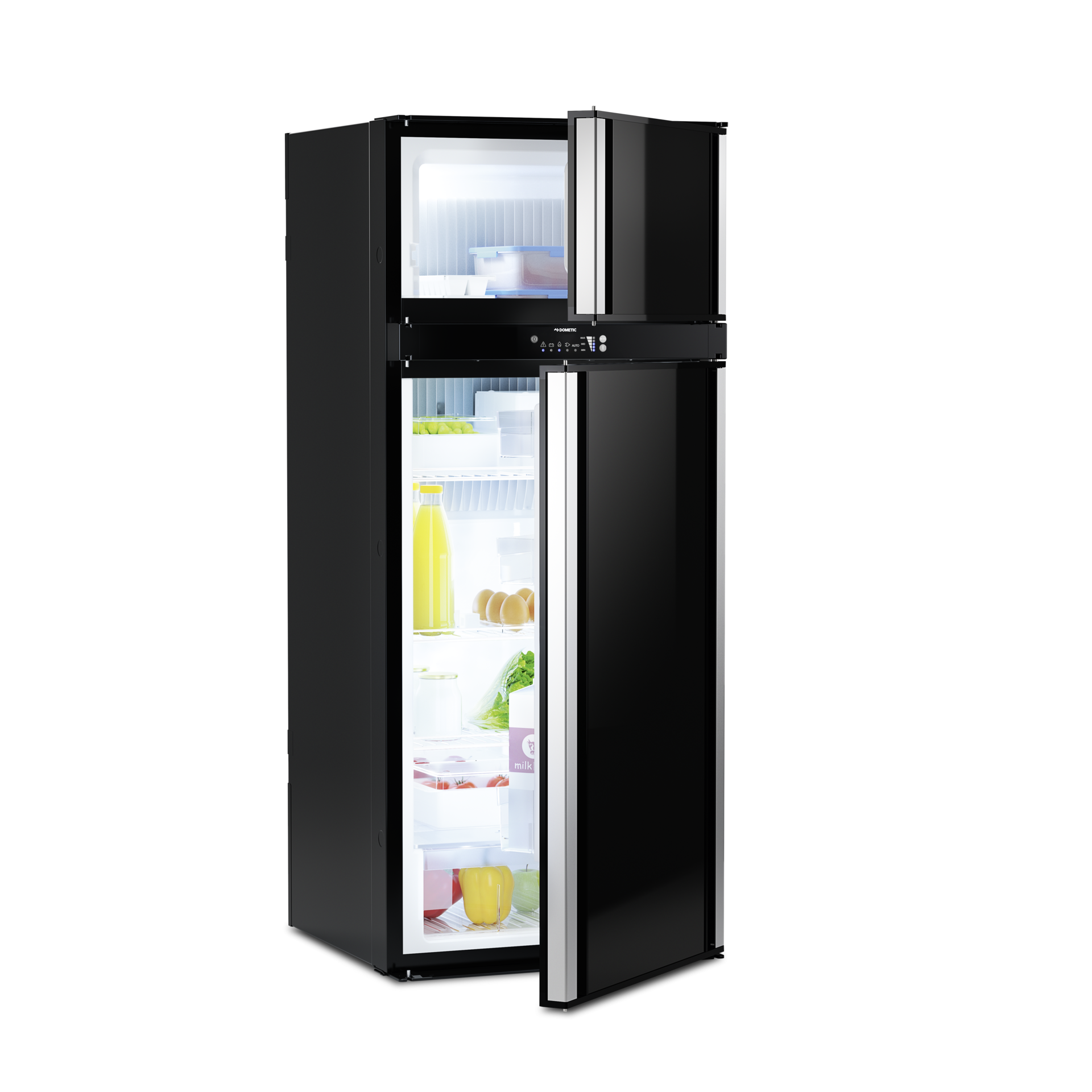

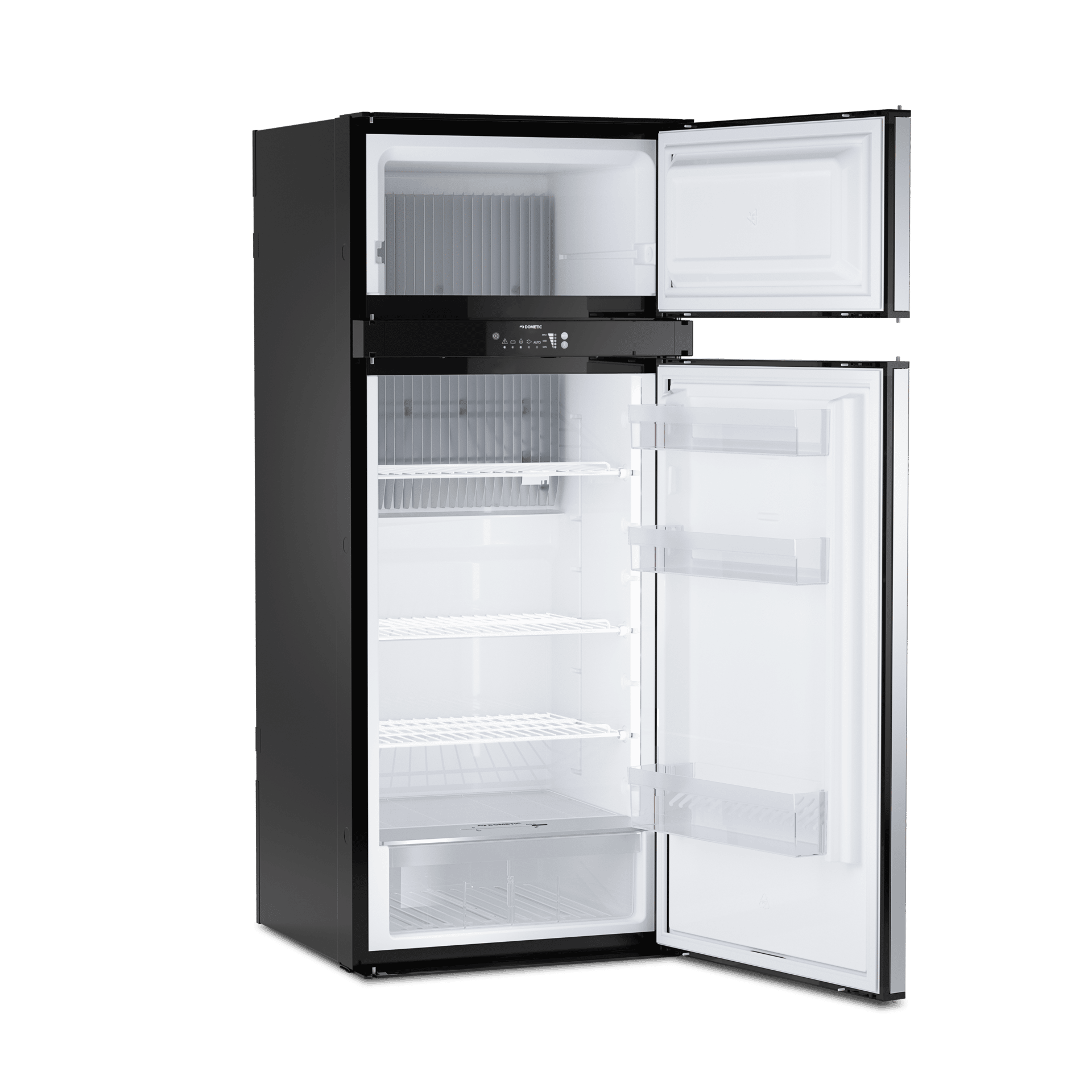

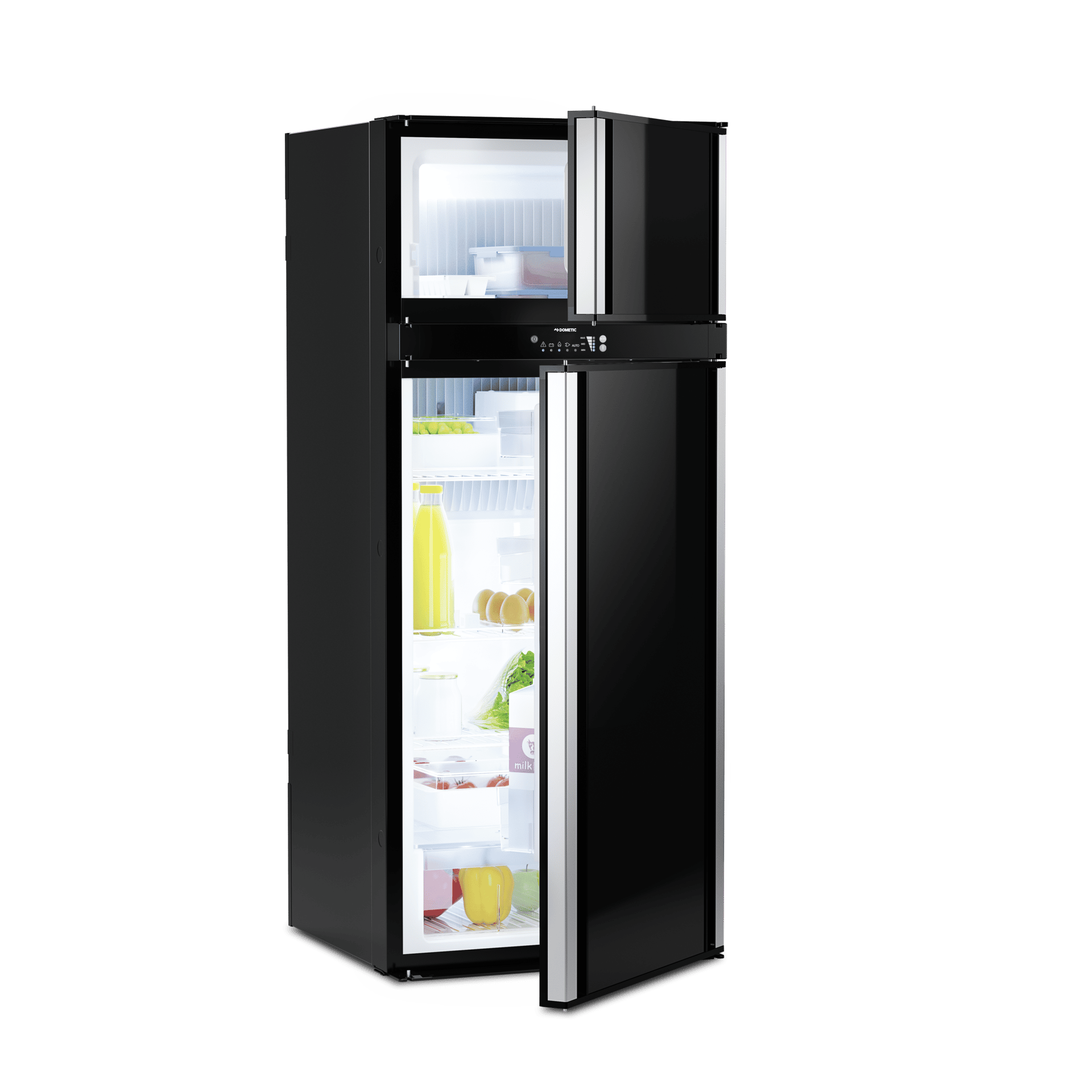

Dometic RMD10.5XP DH Absorption Refrigerator 173l

Absorption Refrigerator, 173l, LED display

  • Access from either side
  • Next Gen smart control

This new generation absorption refrigerator gives you unprecedented convenience: automatic selection of the energy source (12 V, 230V-240 V or gas), a door that opens to the left and right, and a versatile interior with plenty of room for your goodies. On top of all that, its cooling power is the best-in-class!

Description

  1. Double-hinged door – opens left and right without the need to change the hinge
  2. Best-in-class cooling performance – tested and proven in the Australian outback
  3. Standard-depth cabinet with two separate doors for fridge and freezer
  4. Ease of use with intuitive LED soft-touch controls located inside the fridge
  5. Ease of use with intuitive LED soft-touch controls
  6. Elegant aluminium door handles extending over the complete fridge height
  7. Two-point locking mechanism on either side for increased safety
  8. Flat door with customisable decor panel and variable thickness (1.2 mm – 3 mm)
  9. Powder coated white interior shelves

Specifications

SKU: 9630000156

Dometic RMD10.5XP DH Absorption Refrigerator 173l — General specifications
ModelRMD10.5XP
Scope of delivery1 fridge, Quickstart operating manuals
SKUCertificatesRCM;IAPMO
Product DescriptionAbsorption Refrigerator, 173l, LED display

Dometic RMD10.5XP DH Absorption Refrigerator 173l — Dimensions specifications
Dimensions product depth, [mm]615
Dimensions product height, [mm]1246
Dimensions product width, [mm]526
Dimensions product width, [in]20.71
Net weight, [kg]52.50
Net weight, [lbs]115.76
Total volume (IEC 62552-3), [l]169

Dometic RMD10.5XP DH Absorption Refrigerator 173l — Electrical specifications
Input voltage (AC), [V]240
Input voltage (DC), [V]12
Rated input current (AC), [A]Yes
Rated input current (DC), [A]13.8
Rated input power (AC), [W]250
Input frequency, [Hz]50/60

Dometic RMD10.5XP DH Absorption Refrigerator 173l — Performance specifications
Refrigerant, typeR717
Climate class (EN 62552)T
Gas consumption [g/24h]586
Insulation TypePU (Polyurethane)

Dometic RMD10.5XP DH Absorption Refrigerator 173l — Properties specifications
Thermostat controlAES
Interior lightYes, LED
Gas pressure (DIN732), [mbar]30
Gas categoryULPG (Universal LPG AUS(NZ))

Dometic RMD10.5XP DH Absorption Refrigerator 173l — Logistics specifications
Dimensions parcel depth, [mm]700
Dimensions parcel height, [mm]1315
Dimensions parcel width, [mm]610
Parcel weight, [kg]63
Parcel weight, [lbs]138.92

Dometic RMD10.5XS, 10.5XG, 10.5XP - Operating Manual APAC(en-US)
Operating Manual
Dometic RMD10.5XS, RMD10.5XG, RMD10.5XP - Installation Manual APAC(en)
Installation Manual
Dometic RMD10.5XS, 10.5XG, 10.5XP - Quick Start Guide APAC(zxx)
Quick Start Guide

Product size & weight

W 526 x H 1246 x D 615 mm

Weight: 52.50 kg

Highlights

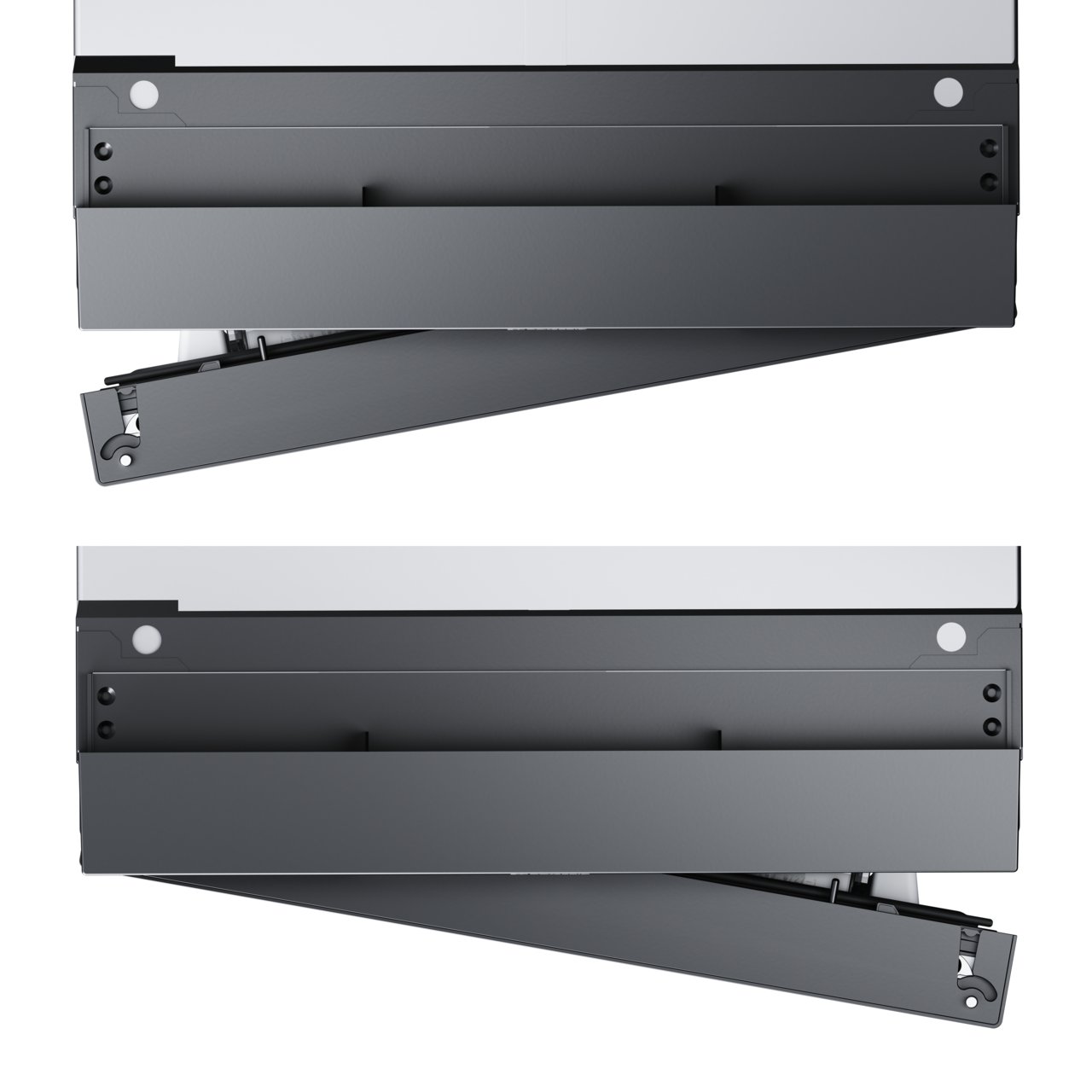

Access from either side

The patented dual-hinge door opens left and right without needing to change the hinge, making it perfect for tight campervan and caravan layouts

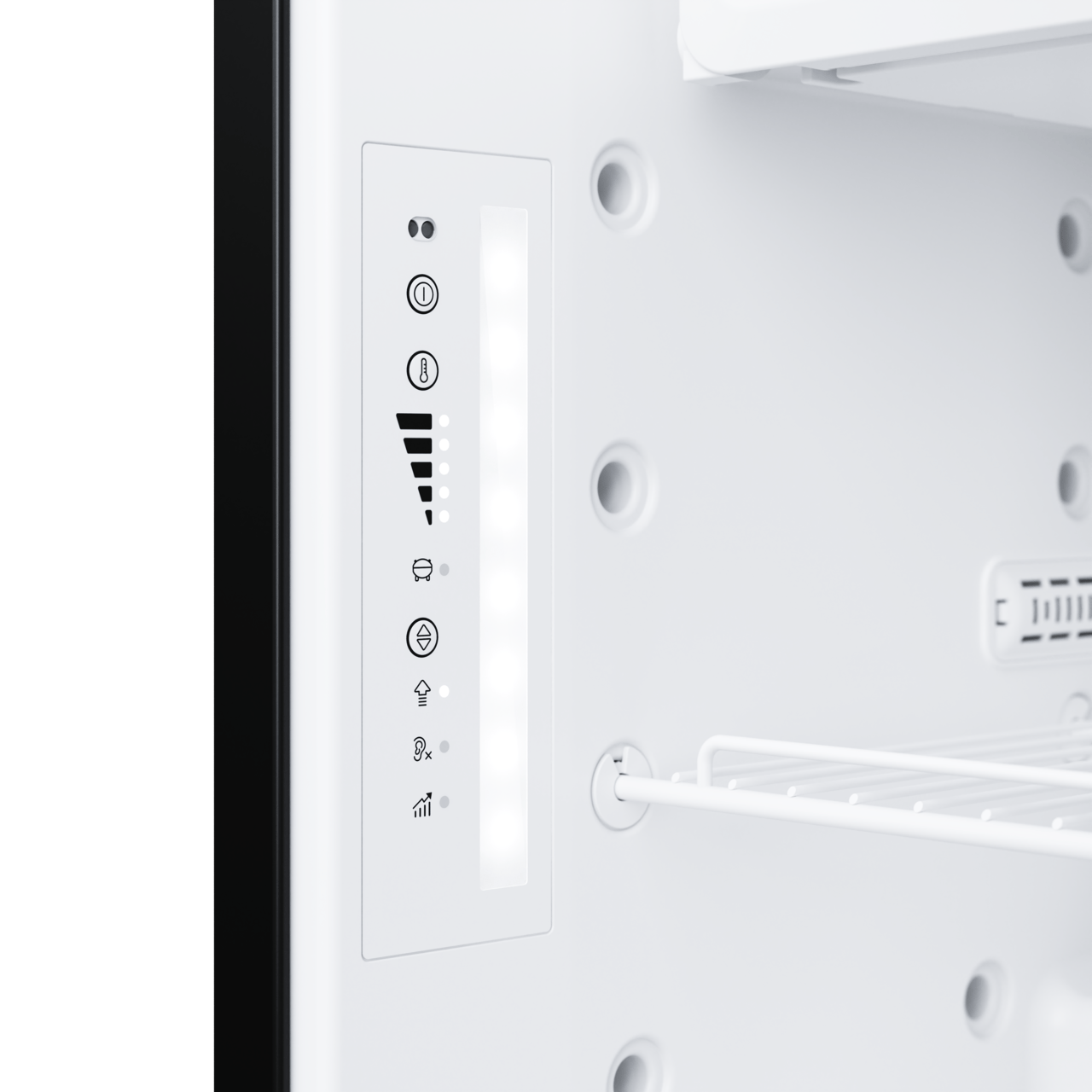

Next Gen smart control

Take command with a sleek, intuitive LED soft-touch control panel that makes it easy to manage your cooling settings at a glance
