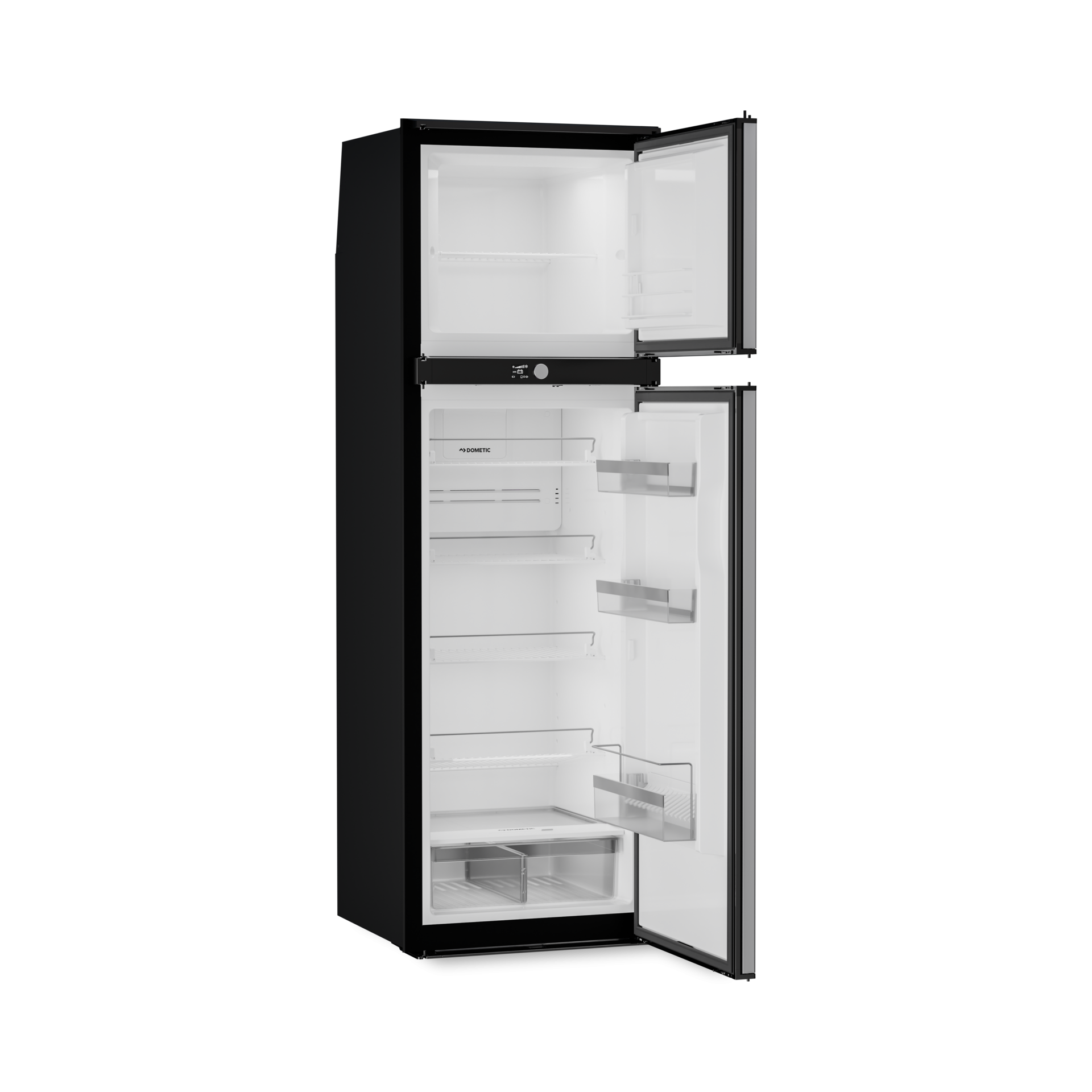

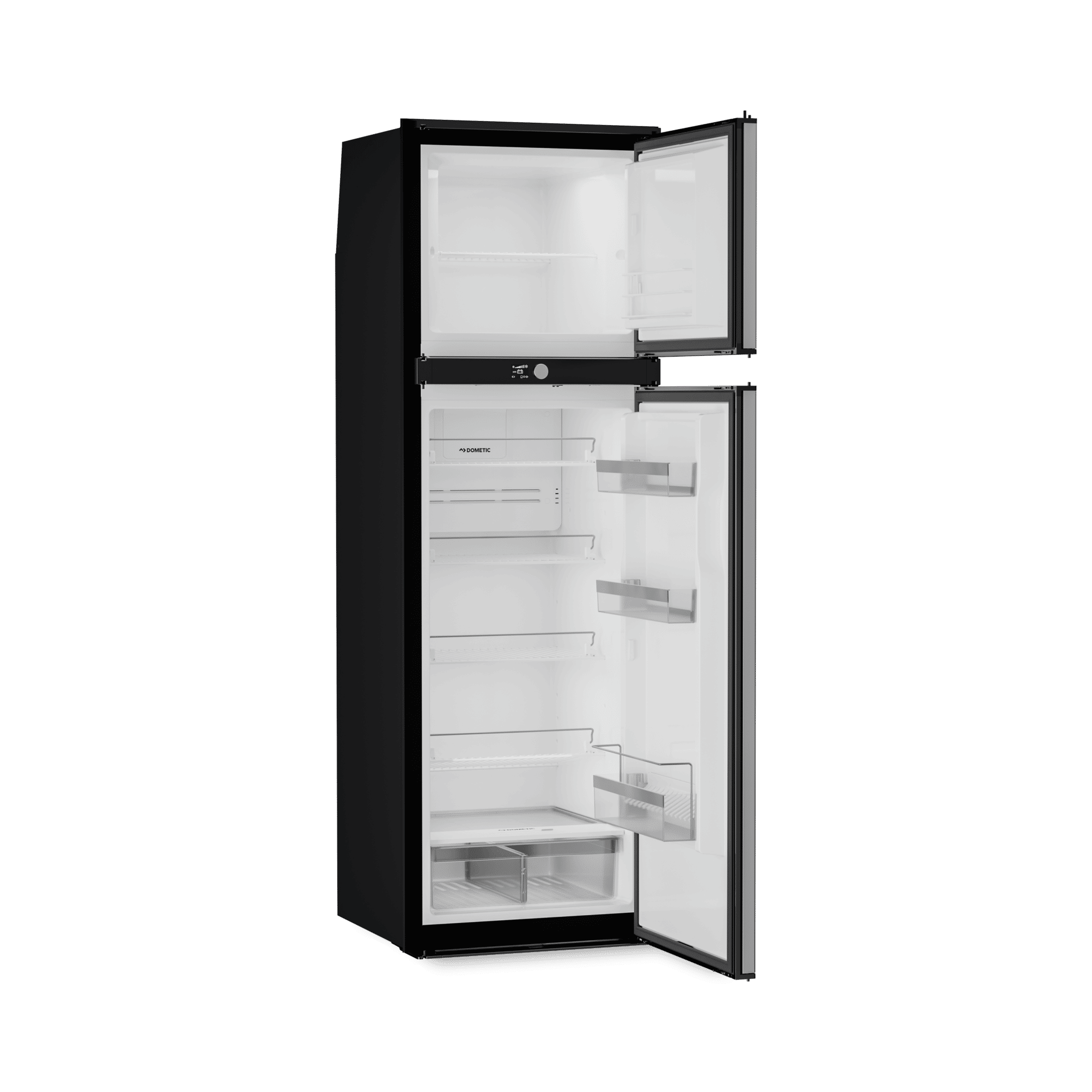

Dometic RUA 8508 X

Absorption refrigerator, 216 l

  • Perfectly controlled
  • Interior LED lighting
  • T-rated cooling unit

The Dometic RUA model is an upright absorption refrigerator that features a narrow cabinet design that allows for greater flexibility in the kitchen area of recreational vehicles without compromising on storage volume.

Description

  1. Generous capacity of 216 l
  2. Dimensions: 550 x 1661 x 677 mm
  3. Narrow cabinet design with slim footprint
  4. T-rated cooling systems ensure excellent cooling performance in all conditions
  5. Automatic switching from DC to AC power when AC mains is available
  6. Easy-to-use control panel with colour TFT display
  7. Adjustable shelves and door bins
  8. Double-hinged door – opens left and right without the need to change the hinge

Specifications

SKU: 9620017227

Dometic RUA 8508 X — General specifications
ModelRUA8508X
Scope of delivery1 refrigerator, 2 user manuals
SKUCertificatesEMC;CB;RCM
Product DescriptionAbsorption refrigerator, 216 l

Dometic RUA 8508 X — Dimensions specifications
Dimensions product depth, [mm]667
Dimensions product height, [mm]1661
Dimensions product width, [mm]550
Dimensions product width, [in]21.65
Net weight, [kg]73
Net weight, [lbs]160.96
Total volume (IEC 62552-3), [l]216

Dometic RUA 8508 X — Electrical specifications
Input voltage (AC), [V]230-240
Input voltage (DC), [V]12
Rated input current (AC), [A]1.4
Rated input power (AC), [W]325
Input frequency, [Hz]50/60

Dometic RUA 8508 X — Performance specifications
Refrigerant, typeR717
Climate class (EN 62552)N/T
Insulation TypePU (Polyurethane)

Dometic RUA 8508 X — Properties specifications
Thermostat controlUES
Interior lightYes, LED
Gas categoryULPG (Universal LPG AUS(NZ))

Dometic RUA 8508 X — Logistics specifications
Dimensions parcel depth, [mm]762
Dimensions parcel height, [mm]1765
Dimensions parcel width, [mm]622
Parcel weight, [kg]78
Parcel weight, [lbs]171.99

Dometic RUA5308X, RUA6508X, RUA8508X - Installation and Operating Manual APAC(zh-CN)Chinese (China)
Installation And Operating Manual

Product size & weight

W 550 x H 1661 x D 667 mm

Weight: 73 kg

Highlights

Perfectly controlled

Full-width crisper with humidity control

Interior LED lighting

Elegant LED lighting illuminates the cabin

T-rated cooling unit

Ensures great cooling performance even in harsh conditions

Narrow storage cabinet

Optimized storage cabinet holds a generous amount of food and drink

Built-in door storage

Perfect for storing bottles and cans
