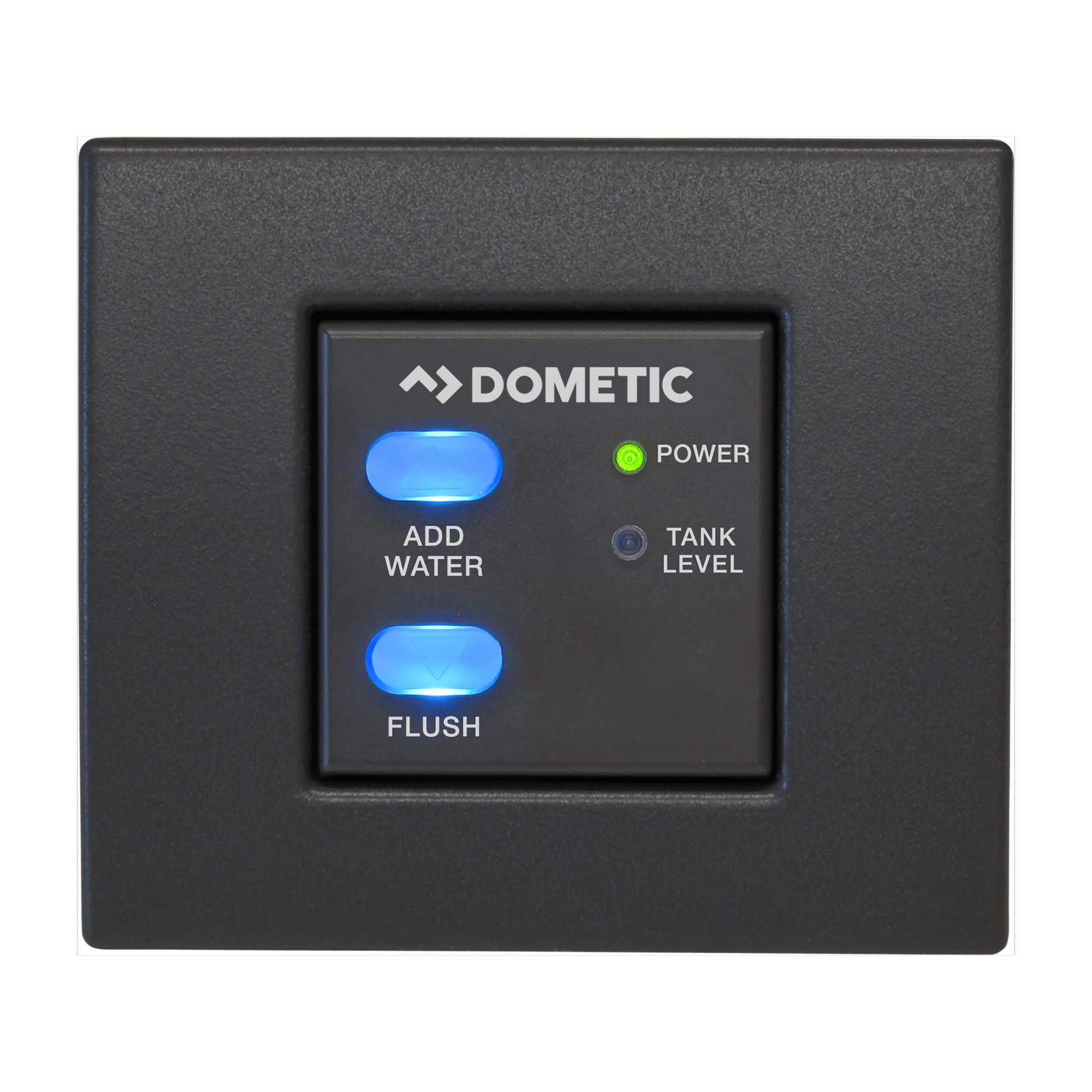

Dometic Wall-Mount Macerator Toilet Flush Switch Panel

Flush switch panel for electronic MasterFlush toilets

For electronic MasterFlush toilets, these wall-mounted flush switches and status panels feature streamlined styling while delivering user-friendly push-button operation. System status lights monitor vacuum level and indicate when the toilet is properly energized for the next flush.

Description

  1. The backlit buttons light the way
  2. Useful indicator lights show the status
  3. Includes a 3 m cable to connect the circuit board and flush switch

Specifications

SKU: 9108782202

Dometic Wall-Mount Macerator Toilet Flush Switch Panel — General specifications
ModelDFS
Scope of deliverySwitch, Mounting Hardware, Cable, Manual
Product DescriptionFlush switch panel for electronic MasterFlush toilets

Dometic Wall-Mount Macerator Toilet Flush Switch Panel — Dimensions specifications
Dimensions product depth, [mm]25.4
Dimensions product height, [mm]76.2
Dimensions product width, [mm]86.87
Dimensions product width, [in]3 6/16
Net weight, [kg]0.03
Net weight, [lbs]0.07

Dometic Wall-Mount Macerator Toilet Flush Switch Panel — Electrical specifications
Input voltage (DC), [V]12/24

Dometic Wall-Mount Macerator Toilet Flush Switch Panel — Logistics specifications
Dimensions parcel depth, [mm]203.2
Dimensions parcel height, [mm]101.6
Dimensions parcel width, [mm]152.4
Parcel weight, [kg]0.27
Parcel weight, [lbs]0.6

Dometic VFS, VFP, VFSHW, DFS, DFP, DFSHW - Installation and Operating Manual AMERICAS(en)
Installation And Operating Manual
Dometic VFS, VFP, VFSHW, DFS, DFP, DFSHW - Installation and Operating manual AMER(en)
Installation And Operating Manual

Product size & weight

W 86.87 x H 76.2 x D 25.4 mm

Weight: 0.03 kg

User-friendly buttons

Backlit toilet operation buttons are easy to see and use - even in the dark
