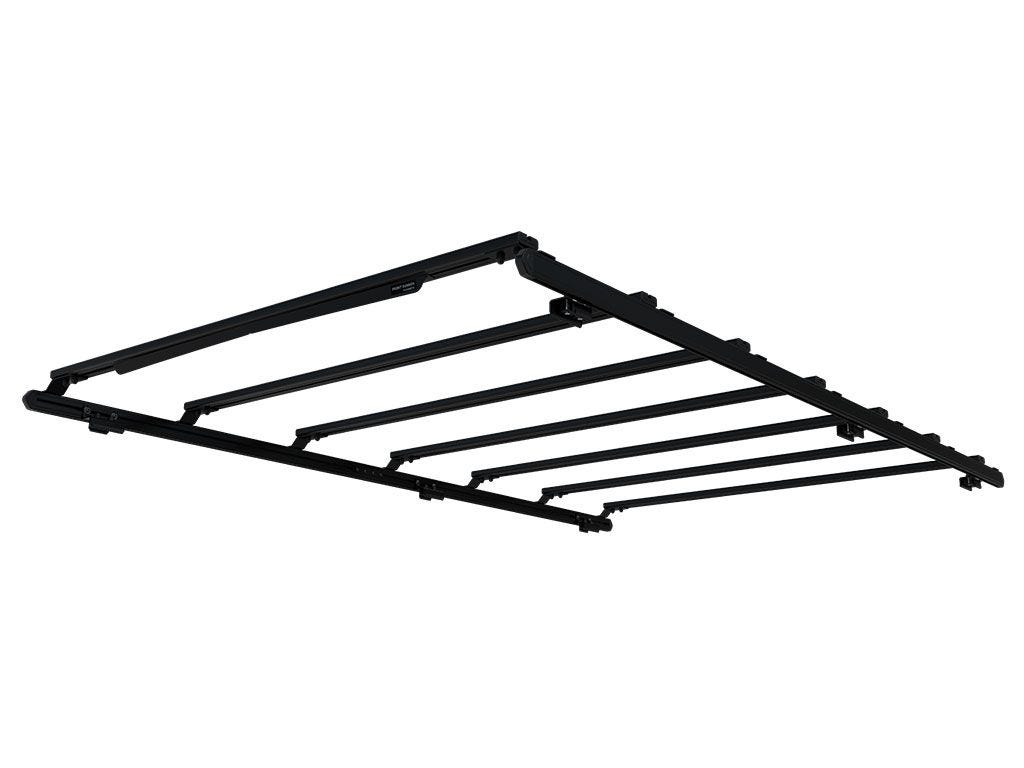

Fiat Ducato (L1H1/118" WB/Low Roof) (2014-Current) Slimpro Roof Rack Kit

KVFR001T - Fiat Ducato (L1H1/118" WB/Low Roof) (2014-Current) Van Rack Kit - by Front Runner

Consisting of:
3x FAVF002 - FPCR Foot Set - by Front Runner
1x RRAC207 - Van Rack Joiner Kit
2x RRAC208 - Van Rack Side Profile End Caps
4x RRNS1475 - Narrow Slat / 1475mm (Pair)
1x SPVT001 - Van Rack Side Profile / 1156mm
1x SPVT002 - Van Rack Side Profile / 1358mm
1x WDST013 - Wind Deflector Van Rack 30mm Lip

Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel

Assembled Rack Kit Dimensions:
2570mm (101.2") L x 1565mm (61.6") W x 127mm (5") H

Approximate Installed Weight: 30.99kg (68.32lbs)

Fiat Ducato Van Rack Kit heights are adjustable from 80mm (Z bracket inverted) to 130mm (Z bracket standard mounting) all measurements are taken from bottom of roof ditch to top of the rack slat.

The slat T slots and side profiles take standard M8 hex bolts top and bottom.

Shipping Dimensions:
Width: 300mm (12")
Length: 1805mm (71")
Height: 195mm (8")

Shipping Weight:
Weight: 35.35kg (78lbs)
