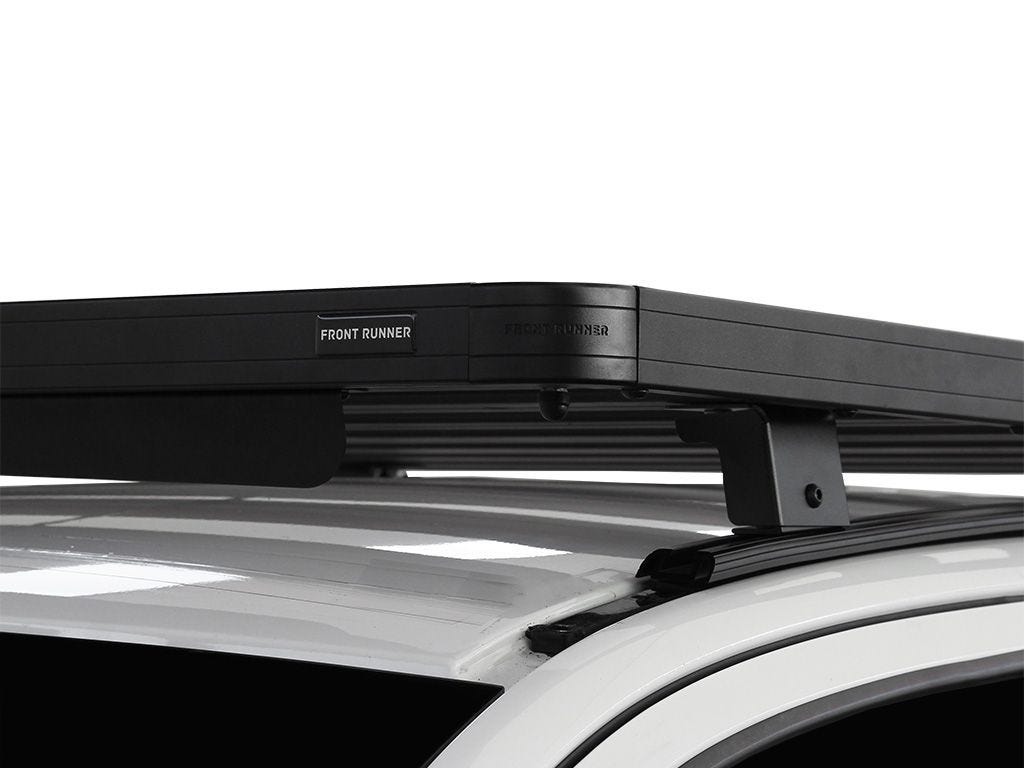

Ford DC (2012-2022) Slimline II Roof Rack Kit
SKU: KRFM005T
Technical Information
KRFM005T - Ford DC (2012-2022) Slimline II Roof Rack Kit - by Front Runner
Consisting of:
1x FASS024 - Foot Set / 50mm - 60mm
1x FASS014 - Foot Set - Angled / 65mm
1x RRSTD06 - SLII Tray - 1255mm(W)X1156mm(L)
1x TRFR001 - Ford Ranger (2012-Current) Tracks / 1200mm(L)
1x WDST010 - Wind Deflector 20mm Lip Narrow Pair /1255mm(W)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 25.11kg (55.36lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 450mm (18")
Length: 1730mm (68")
Height: 140mm (6")
Shipping Weight:
Weight: 28.43kg (63lbs)
