Description

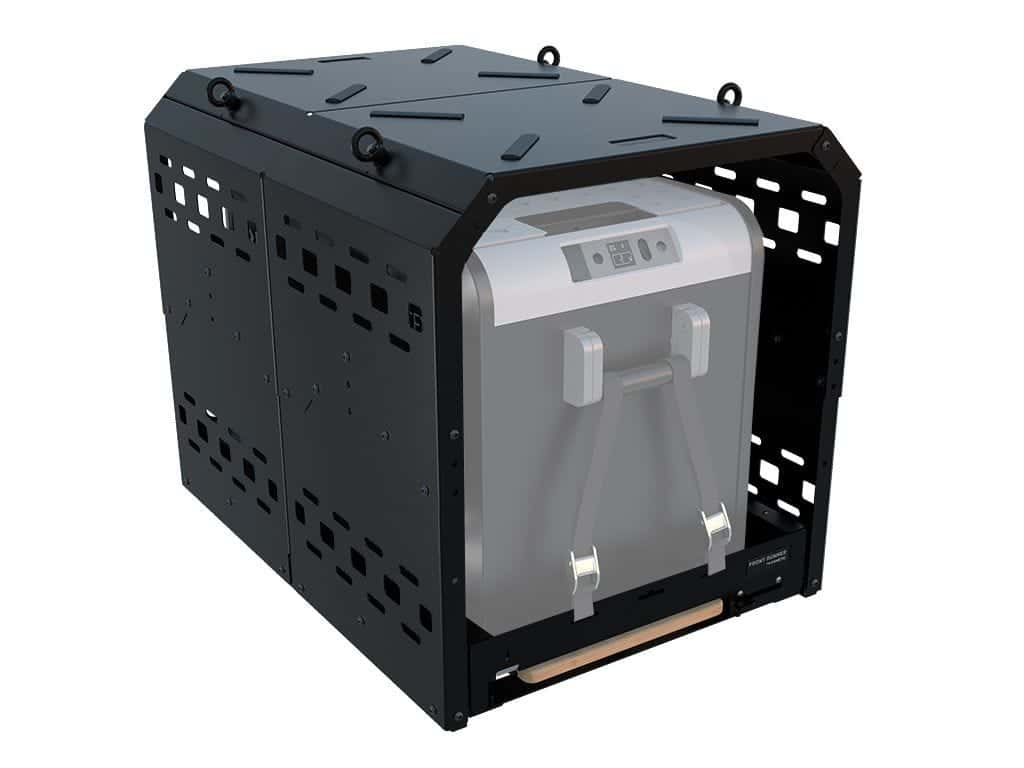

- A Fridge Slide and Cage Combo / Small that create a complete protective cove around your Dometic CFX3 35 / Dometic CFX5 35 or Dometic CFX3 45 / Dometic CFX5 45*

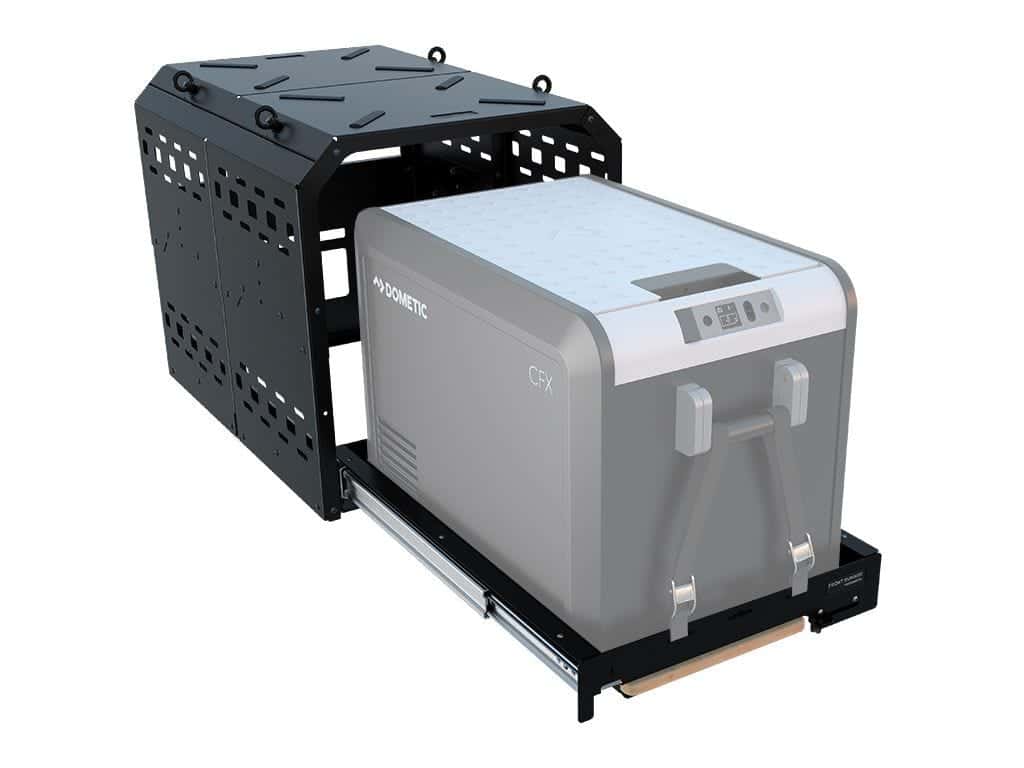

- This Fridge Slide and Cage Combo ensures packed cargo remains in place and free from the rear of the fridge slide when sliding the fridge out.
- Mountable to any flat surface, such as the rear loading area of a SUV or pickup truck beds.

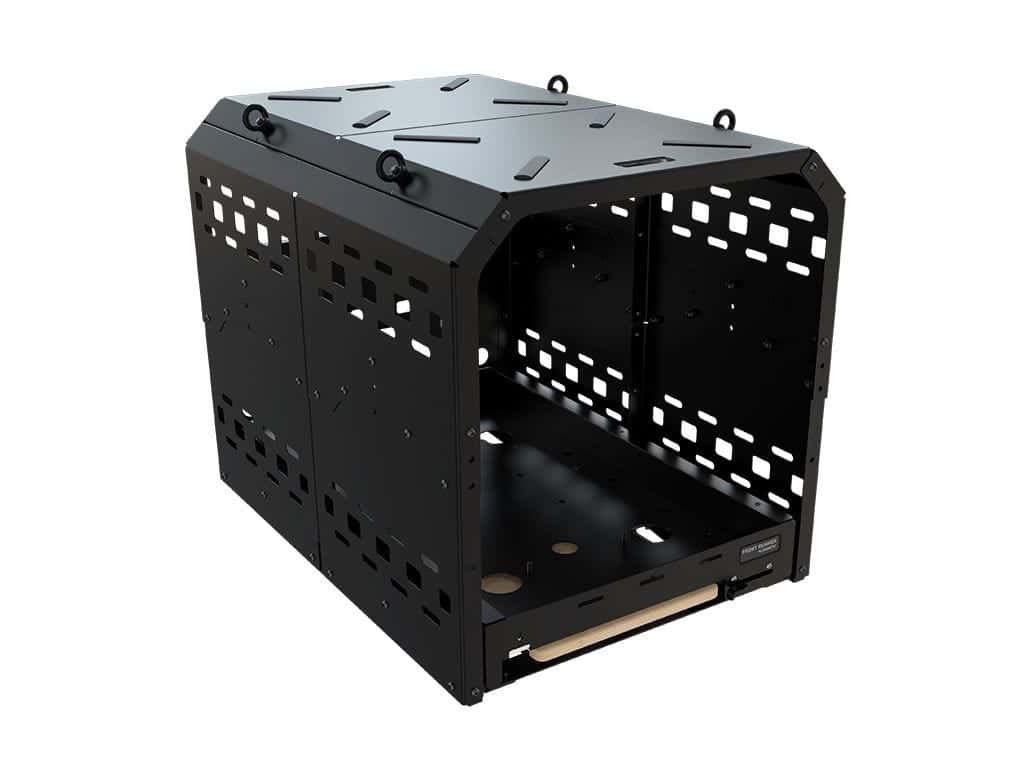

- The Fridge Cage has 3 (three) adjustable height settings to accommodate various makes of fridges.
- This Fridge Cage / Small, when assembled on the lowest height setting, accommodates the full operations of the Dometic CFX3 35 / Dometic CFX5 35 or Dometic CFX3 45 / Dometic CFX5 45*
- The Fridge Cage is designed with Molle pattern sides to mount smaller items directly onto the fridge cage.

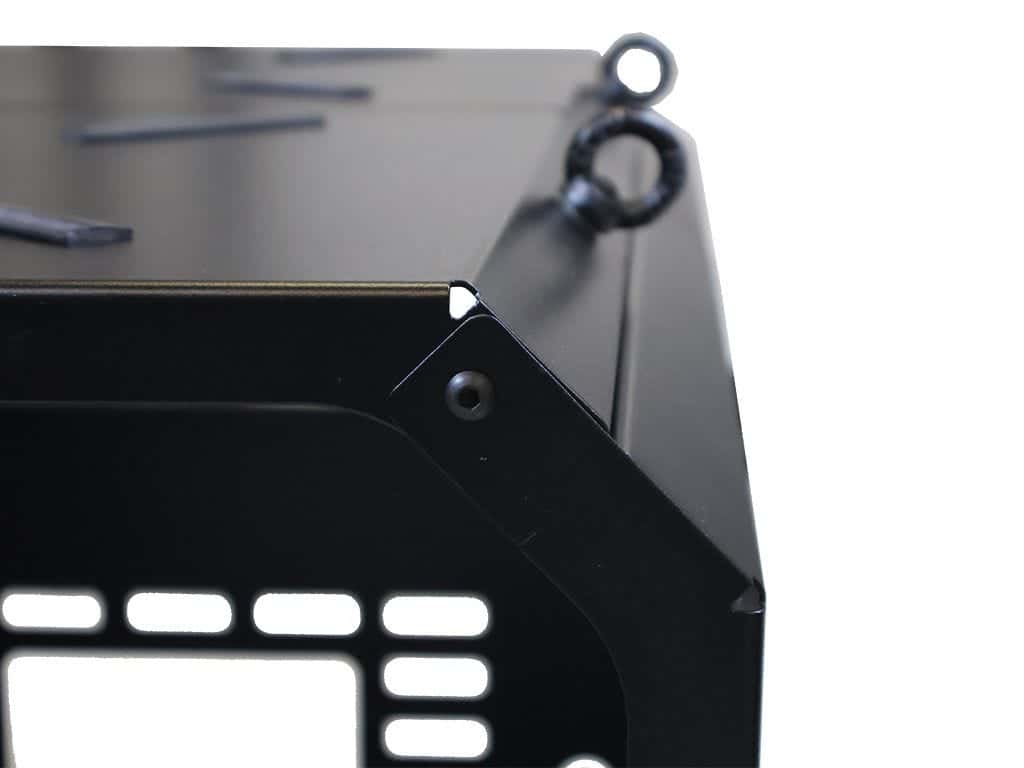

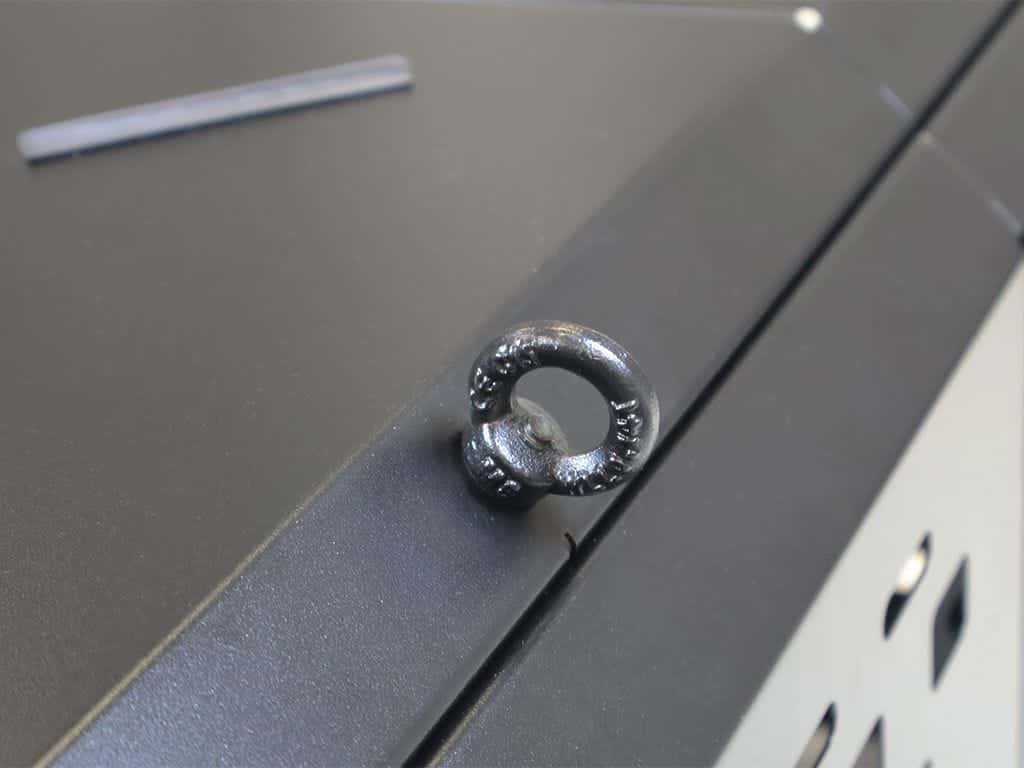

- Includes 2 (two) sets of Black Tie Down Rings / Eye Nuts at the top of the fridge cage to strap down cargo, such as 2 (two) Wolf Pack Pro boxes with Stratchits*.

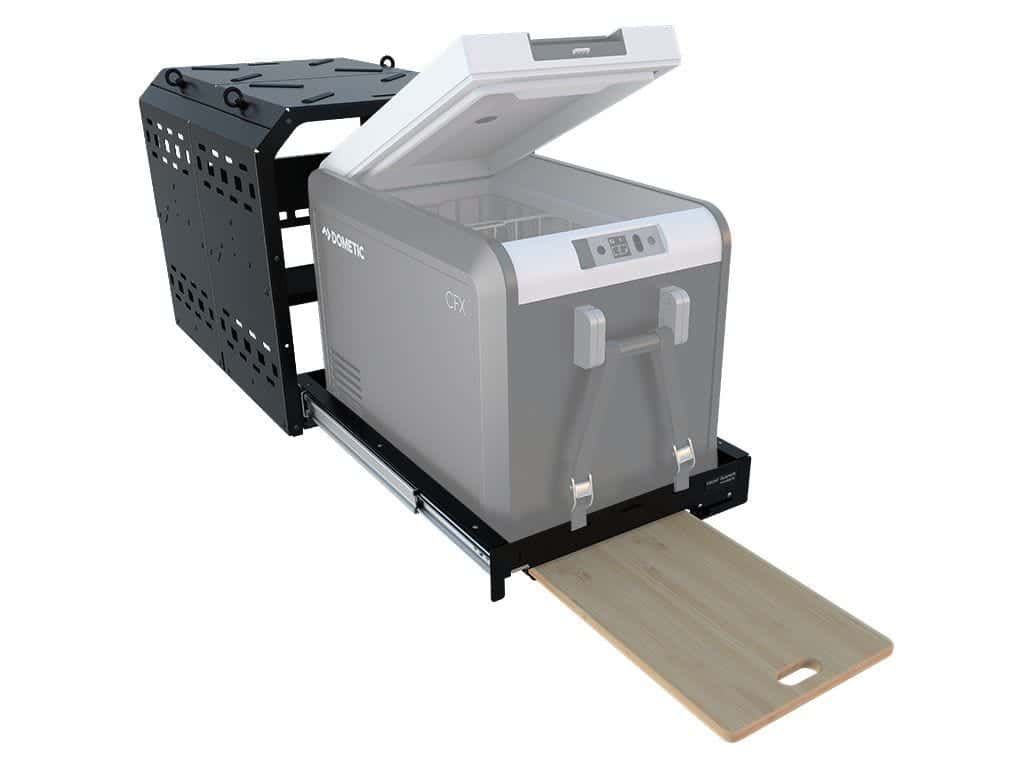

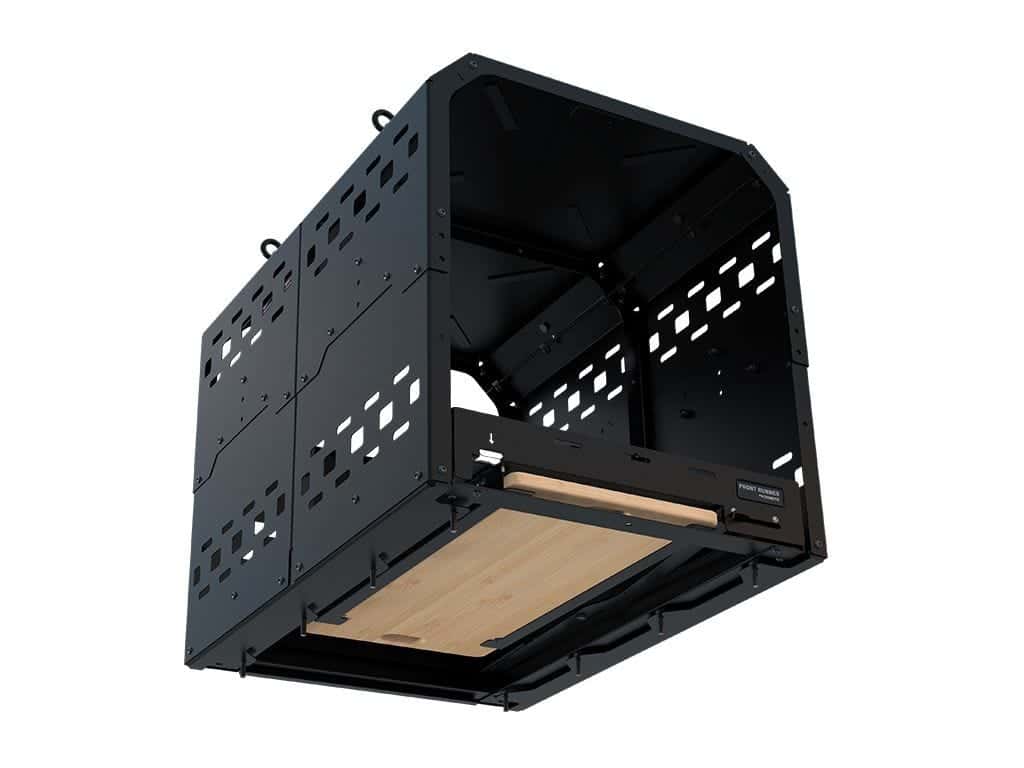

- The slide-out extension gives you an additional 425mm/16.7" x 277mm/10.9" work surface and extend nearly 100% from the anchored base.
- Slide mounting holes are predrilled.
- The Fridge Slide features a hold open mechanism to prevent the slider from closing when the vehicle is parked on uneven surfaces.
- A latching arm securely locks the sliding drawer in the closed position.

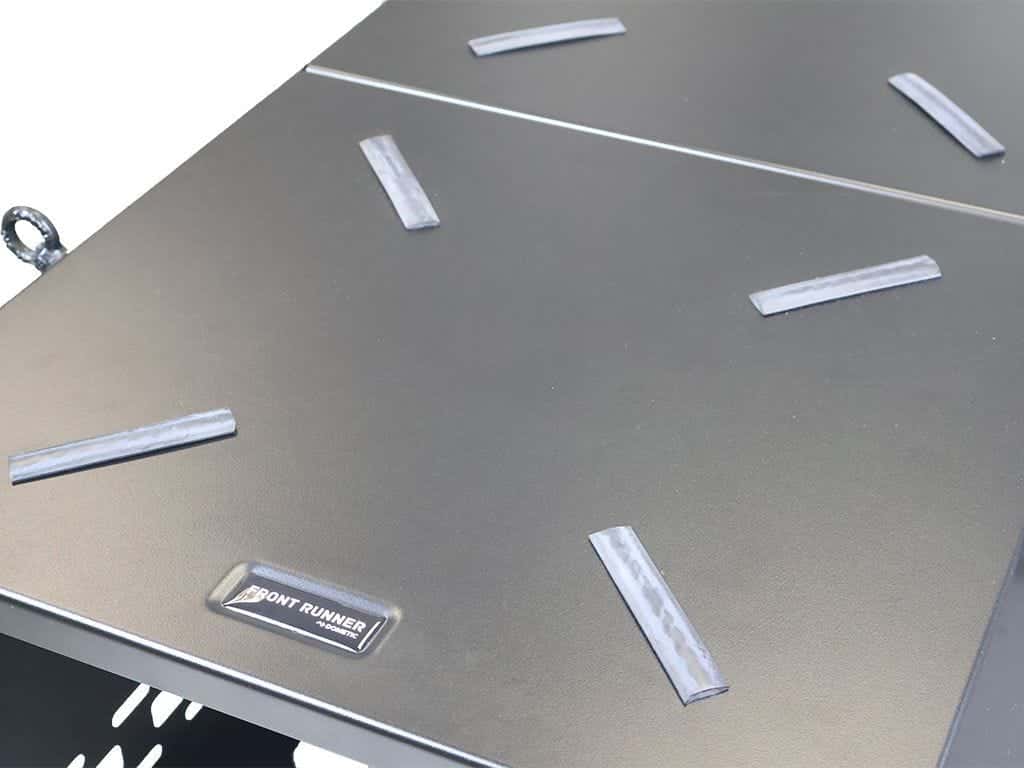

- Finished in the same durable weather-resistant black powder coating as the Dometic Front Runner Series Roof Racks.
- Four (4) Dometic Strap Kit are included to secure your fridge to the fridge slide.
- Mounting hardware included for wood and metal surfaces.
Note: The Fridge and Stratchits are not included when purchasing the Fridge Slide and Cage Combo / Small. These products are sold separately.
Specifications
SKU: FSLI040
Consists of:
1 x Cargo Slide/Fridge Slide / Small 35L to 45L
1 x Fridge Cage / Small
Installation Hardware
Fitting Instructions
Materials used:
Black powder-coated steel
Overall Fridge Slide and Cage Combo Dimensions:
745mm (29.3") L x 543mm (21.4") W x 590 (23") H
Fridge Slide Dimensions:
Overall Dimensions:
718mm (28.3") L x 471mm (18.5") W x 95mm (3.7") H
Closed Dimensions:
739mm (29.1") L x 471mm (18.5") W x 95mm (3.7") H
Open Dimensions:
1428mm (56.2") L x 471mm (18.5") W x 95mm (3.7") H
Internal Dimensions:
696mm (27.4") L x 395mm (15.6") W x 53mm (2.05") H
Cargo Slide/Fridge Slide / Small 35L to 45L Dimensions:
External Product Dimensions:
733mm (28.9") L x 561mm (22.1") W x 577mm (22.7") H (Low height)
733mm (28.9") L x 561mm (22.1") W x 607mm (23.9") H (Medium height)
733mm (28.9") L x 561mm (22.1") W x 637mm (25.1") H (High height)
Internal Cage Dimensions with Fridge Slide:
696mm (27.4") L x 410mm (16.1") W x 499mm (19.7") H (Low height)
696mm (27.4") L x 410mm (16.1") W x 529mm (20.8") H (Medium height)
696mm (27.4") L x 410mm (16.1") W x 559mm (22") H (High height)
Weight:
32.58kg (71.8lbs)
Load Rating:
60Kg (132 lbs)
