SKU: KVMS004T

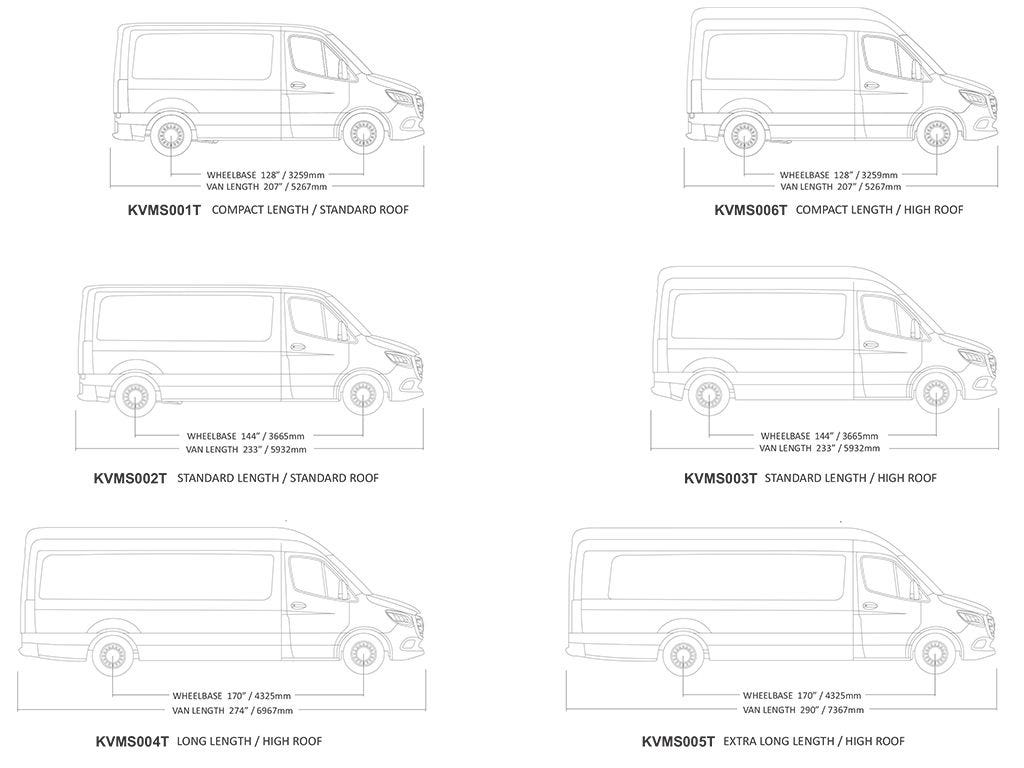

- Compatible with Mercedes-Benz Sprinter (L3H2/170" LWB) (2006-Current) high roof vans with a vehicle length of 6967mm / 274.3".
- Load-carrying area: 4130mm (162.6") x 1352mm (53.2").
- Fourteen (14) Mounting Feet secure into van's existing factory mounting points.
- Included Slat Bracket can be inverted for a lower profile at 85mm (3.4") height, or left in standard configuration at 127mm (5").
- Compatible with most Front Runner accessories.
- Slats can be configured to any spacing to accommodate roof AC, vents, or any other accessories.
- Fitment guide and all mounting hardware are included. No drilling or modification required.
- All Front Runner racks are backed by a limited lifetime warranty.*
Technical Information
Specifications

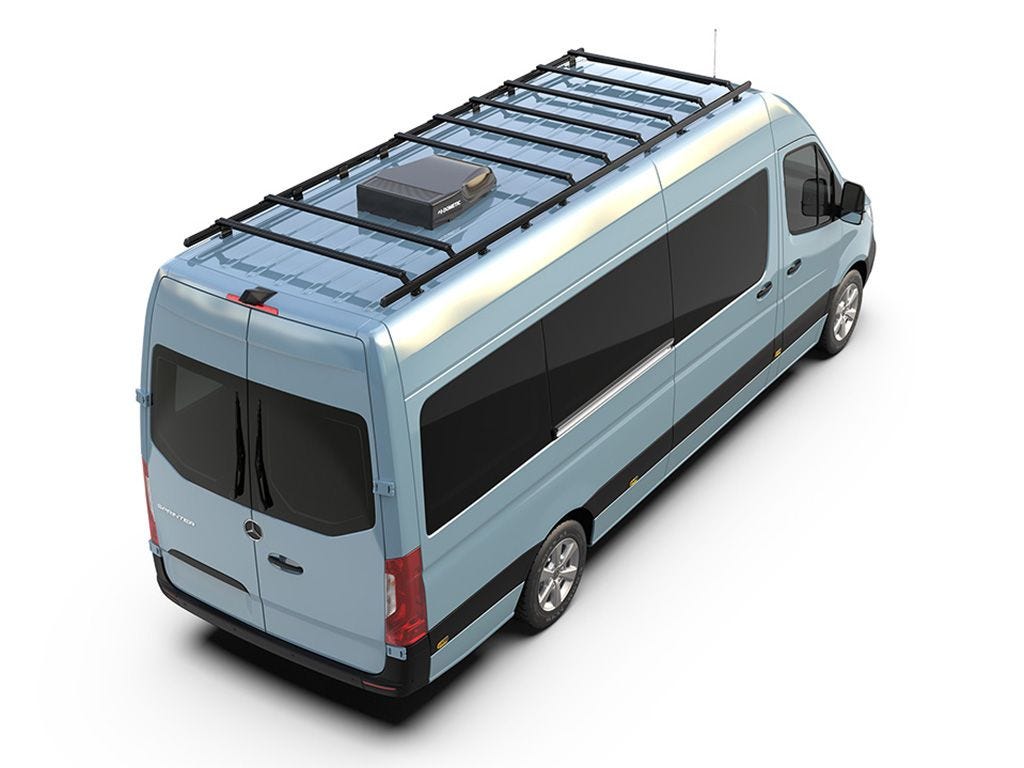

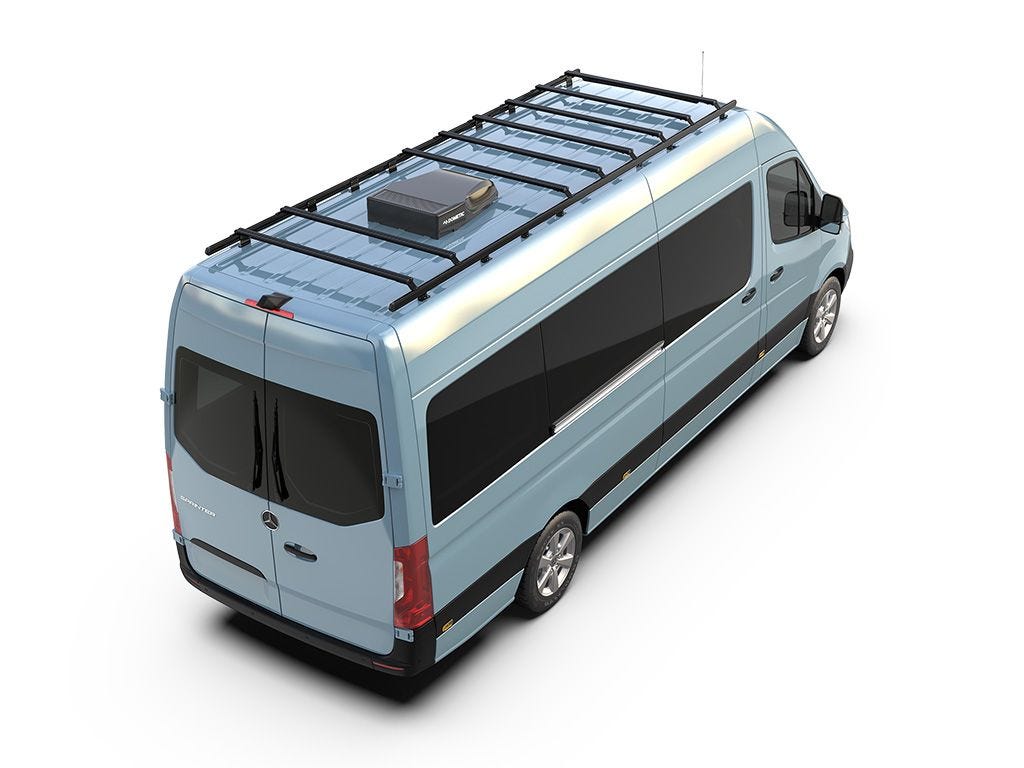

KVMS004T - Mercedes-Benz Sprinter (L3H2/170" LWB/High Roof) (2006-Current) Slimpro Roof Rack Kit - by Front Runner
Consisting of:
7x FAVF004 - Mercedes-Benz Sprinter Van Rack Foot Set
2x RRAC207 - Van Rack Joiner Kit
2x RRAC208 - Van Rack Side Profile End Caps
4x RRAC940 - Merc Bens Sprinter Slimpro Van Track T-Bolt Kit
5x RRNS1255 - Narrow Slat / 1255mm (Pair)
1x SPVT001 - Van Rack Side Profile / 1156mm
1x SPVT002 - Van Rack Side Profile / 1358mm
1x SPVT003 - Van Rack Side Profile / 1560mm
1x WDST013 - Wind Deflector Van Rack 30mm Lip
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Assembled Rack Kit Dimensions:
4130mm (162.6") L x 1352mm (53.2") W x 143mm (5.6") H
Approximate Installed Weight: 18.39kg (40.54lbs)
Shipping Dimensions:
Width: 440mm (17")
Length: 1730mm (68")
Height: 160mm (6")
Shipping Weight:
Weight: 47kg (103lbs)
