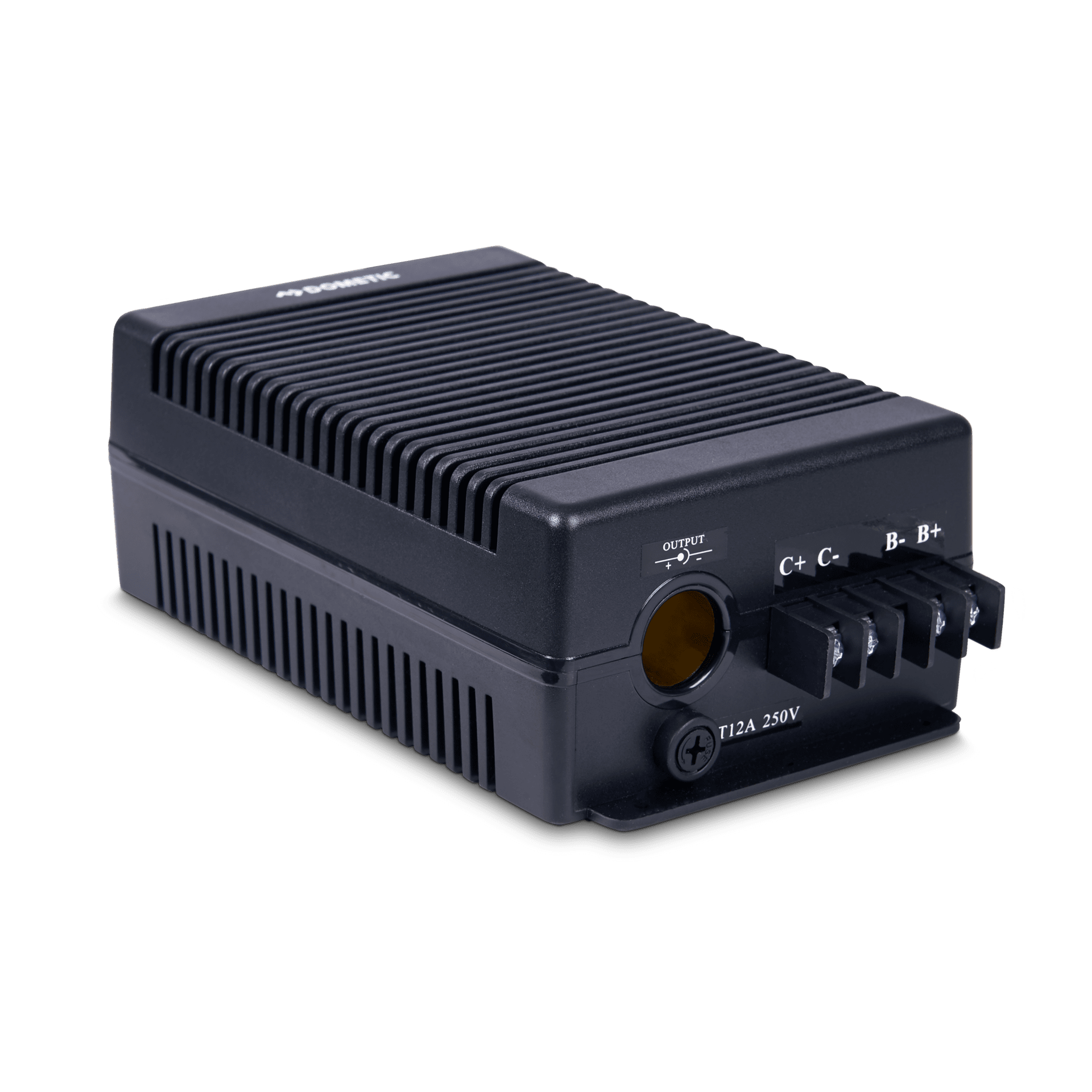

MPS-50US

Converter Plug, 110-240VAC to 24VDC

240 V AC to 12 V DC rectifier adapter for problem free connection to 110–240 V mains systems. Suitable for Dometic CFX, CC, CF, & TC models. Comes with switch mode for automatic priority of mains operation and integrated cigarette lighter socket.

Description

  1. Adapter for problem free connection
  2. Suitable for Dometic compressor fridges
  3. Includes transfer switch for automatic power grid

Specifications

SKU: 9105303781

MPS-50US — General specifications
ModelCoolPower
Scope of deliveryMulti-voltage mains adapter
Product DescriptionConverter Plug, 110-240VAC to 24VDC

MPS-50US — Dimensions specifications
Dimensions product depth, [mm]200
Dimensions product height, [mm]70
Dimensions product width, [mm]120
Dimensions product width, [in]4.72
Net weight, [kg]Yes
Net weight, [lbs]2.20

MPS-50US — Electrical specifications
Input voltage (AC), [V]110/240
Input frequency, [Hz]50/60
Priority circuit (Integrated)Yes

MPS-50US — Performance specifications
Energy efficiency, [%]≤87
Continuous power 25°C, [W]150
Operating temperature min, [°C]0
Operating temperature max, [°C]40

MPS-50US — Logistics specifications
Dimensions parcel depth, [mm]185
Dimensions parcel height, [mm]260
Dimensions parcel width, [mm]80
Parcel weight, [kg]1.02
Parcel weight, [lbs]2.25

Product size & weight

W 120 x H 70 x D 200 mm

Weight: 2.20 lbs
