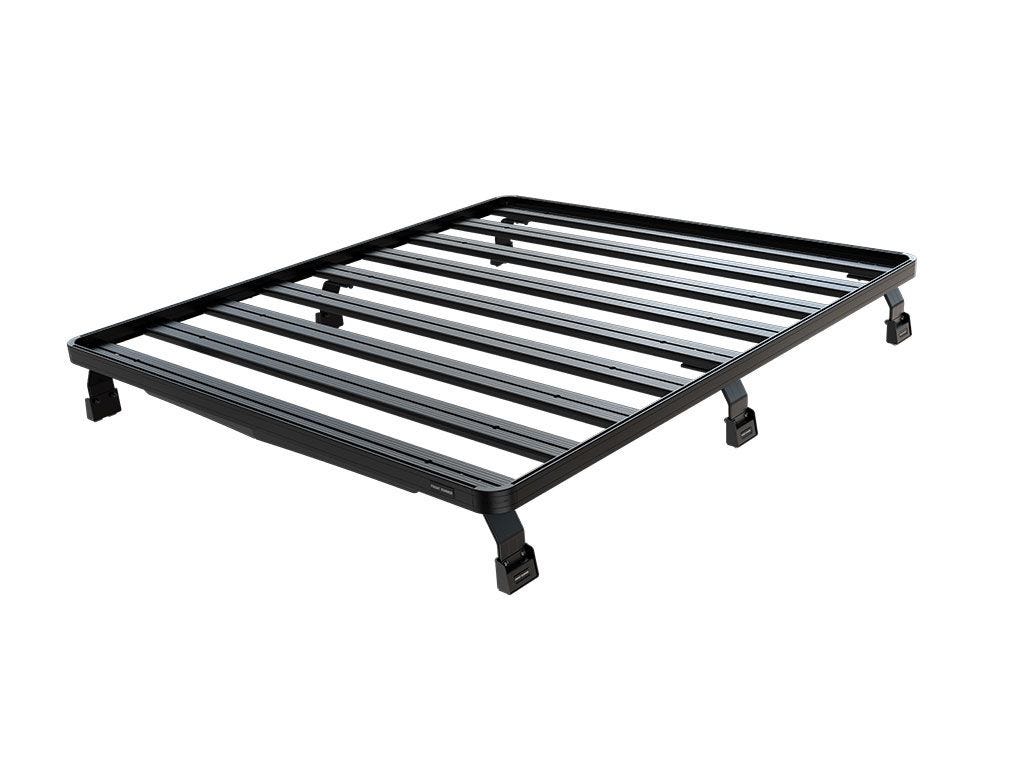

Ram 1500/2500/3500 ReTrax XR 6'4" (2003-Current) Slimline II Load Bed Rack Kit
SKU: KRDR020T
Technical Information
KRDR020T - Ram 1500/2500/3500 ReTrax XR 6'4" (2003-Current) Slimline II Load Bed Rack Kit - by Front Runner
Consisting of:
3x LASS027 - Leg Spacer 6mm (Pair)
3x LASS028 - Pick-Up Roll Top Leg Mount
1x RRSTP09 - SLII Tray - 1575mm(W)X1762mm(L)
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Approximate Installed Weight: 35.79kg (78.9lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/2") to the height of the Foot or Grab-on Foot listed above.
If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/2") to the height of the Legs to determine the height of the rack from your vehicle's rain gutters.
If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/2") to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.
Shipping Dimensions:
Width: 440mm (17")
Length: 1730mm (68")
Height: 260mm (10")
Shipping Weight:
Weight: 37kg (81lbs)
