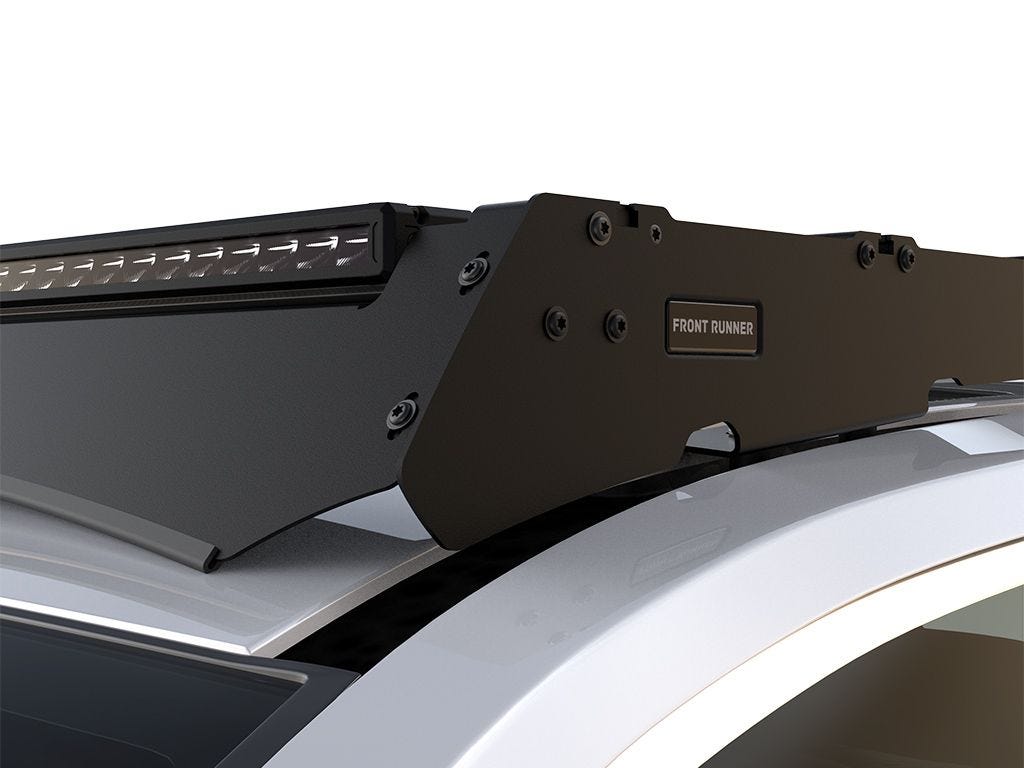

KSTR002T - Toyota Rav4 (2019-Current) Slimsport Roof Rack Kit / Light Bar Ready
Consisting of:
1x KSTR001 - Toyota Rav4 (2019-Current) Slimsport Roof Rack
1x RRAC220 - Toyota Rav4 Slimsport Rack 40" Light Bar Wind Fairing
1x RRAC971 - Protection Strip
Installation Hardware
Fitting Instructions
Material Used:
Black epoxy powder - coated T6 aluminium
High strength steel
Assembled Rack Dimensions: 1676mm (66") L x 1175mm (46.3") W x 135mm (5.3") H
Approximate Installed Weight: 33.94kg (74.82lbs)
The t-slots on the tops and bottoms of the slats accommodate standard 8mm bolts.
To determine the approximate height from your vehicle’s roof to the top of your Slimsport Rack add 60mm-70mm (2.4"-2.8") to the highest point of your roof.
Shipping Dimensions:
Width: 330mm (13")
Length: 1705mm (67")
Height: 220mm (9")
Shipping Weight:
Weight: 34kg (75lbs)
