Description
- Fan-cooled evaporator for enhanced airflow and faster pull-down times
- Active fan distribution improves temperature uniformity throughout the box
- Integrated digital temperature control
- Particularly suited to high-ambient marine environments
- 2.2 m refrigerant pipe length allows flexible compressor positioning
- Precision digital control compatibility with NTC temperature sensor for stable onboard cooling performance

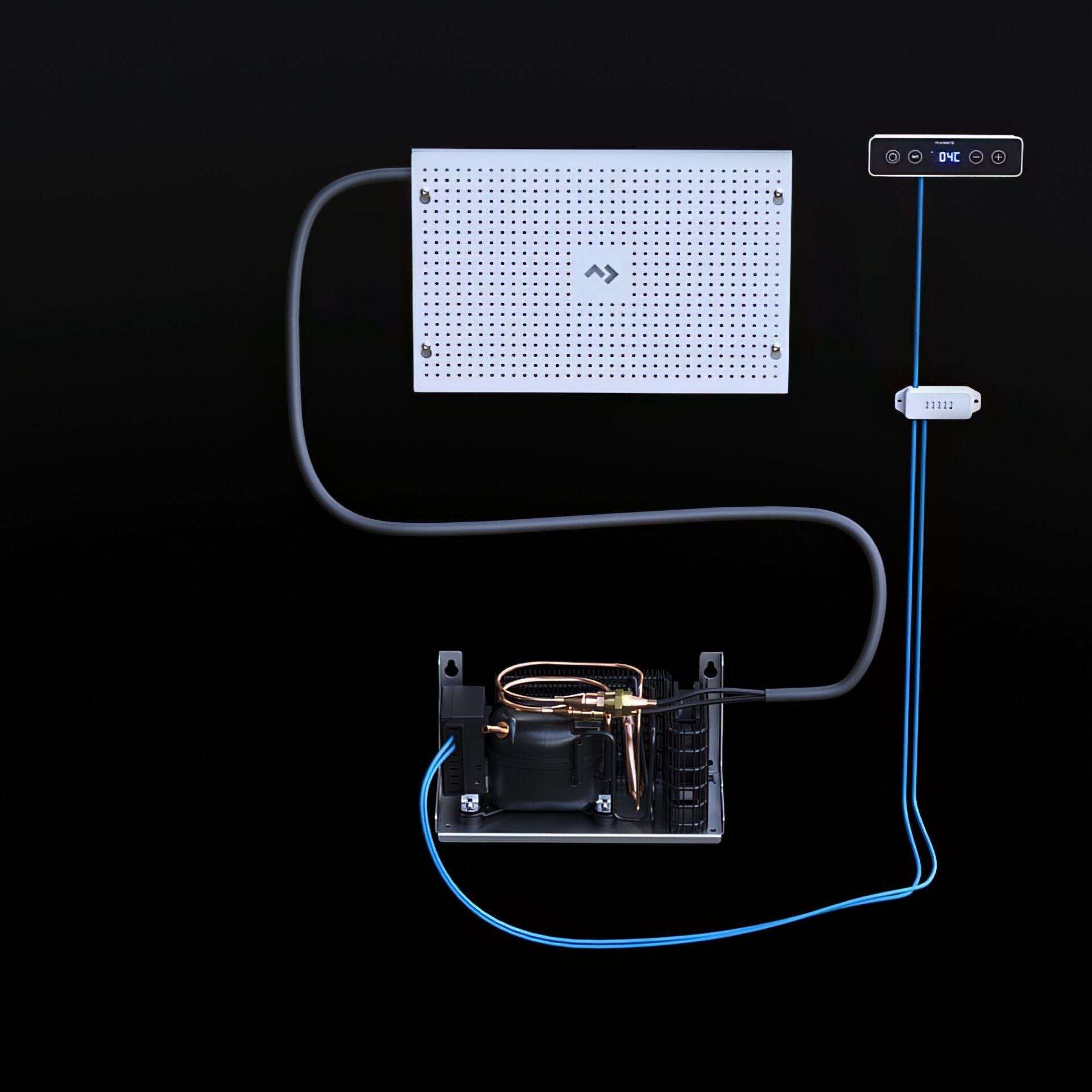

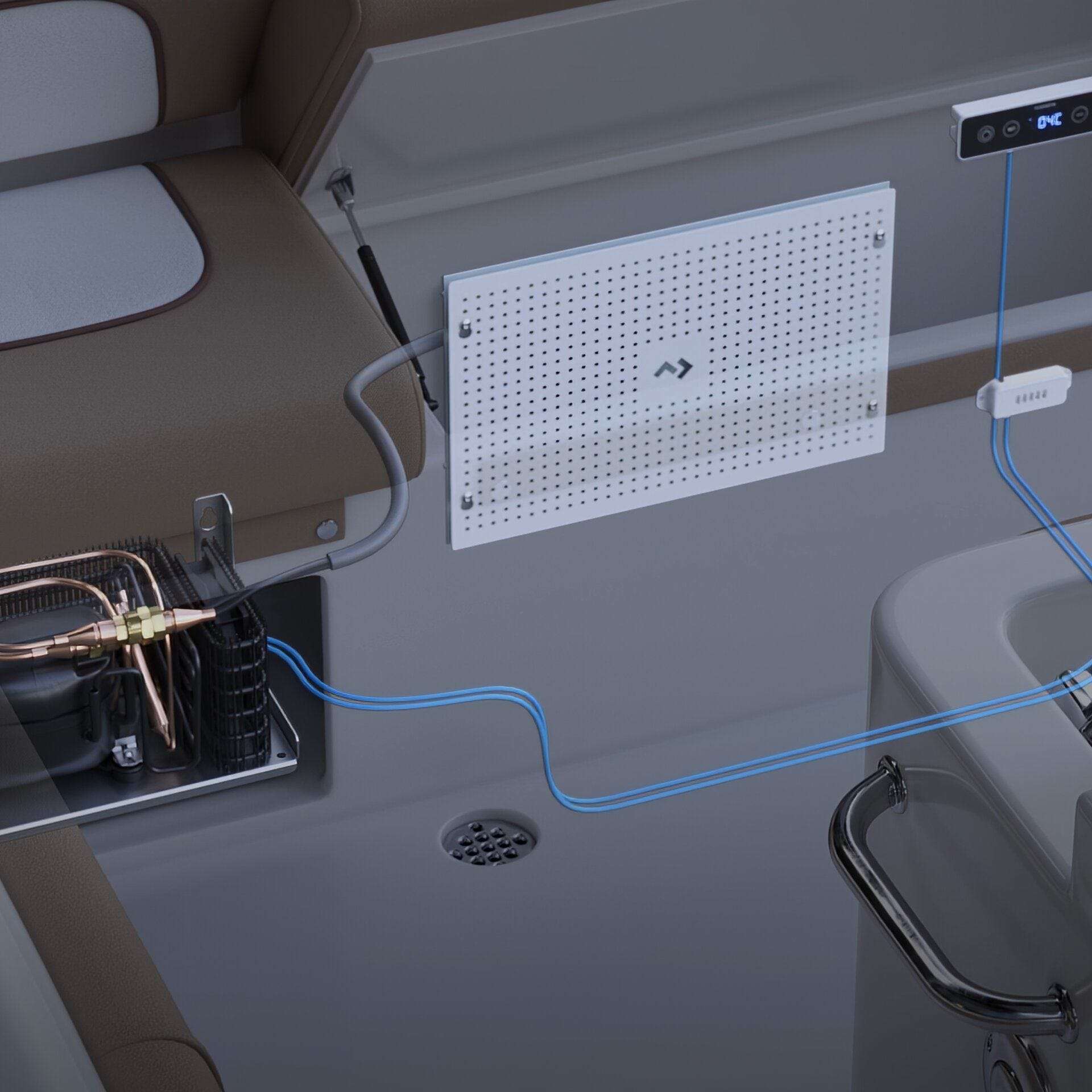

Designed for flexibility and performance, the Dometic VX series evaporators bring precise, even cooling to any custom box configuration. Available in flat, O-box, and fan-cooled formats, each plate integrates cleanly into your design and connects easily to CX condensing units for a perfectly balanced refrigeration system.
Specifications
SKU: 9630000227
| Model | VX200F |
|---|---|
| Scope of delivery | 1 coldmachine, 1 manual |
| SKUCertificates | CE;EMC;eMark |
| Product Description | Fan-cooled evaporator for volumes up to 200L |
| Dimensions product depth, [mm] | 67 |
|---|---|
| Dimensions product height, [mm] | 318 |
| Dimensions product width, [mm] | 221 |
| Input voltage (DC), [V] | 12/24 |
|---|---|
| Battery type | Not Applicable (NA) |
| Refrigerant, type | R1234yf |
|---|---|
| GWP | 0.5 |
| Climate class (EN 62552) | T |
| Connectivity Type | None |
|---|---|
| Thermostat control | Elektroninen termostaatti |
| Interior light | Kyllä, LED |
| Dimensions parcel depth, [mm] | 560 |
|---|---|
| Dimensions parcel height, [mm] | 110 |
| Dimensions parcel width, [mm] | 255 |
| Parcel weight, [kg] | 2.96 |
Videos
Safety warnings
01
FlammableGases
HAZARD STATEMENTS
Loading products…
Highlights
Fan-cooled evaporator
221×318×67mm fan unit
Integrated digital control
2.2m refrigerant pipe
For high-ambient climates
325,00 €
