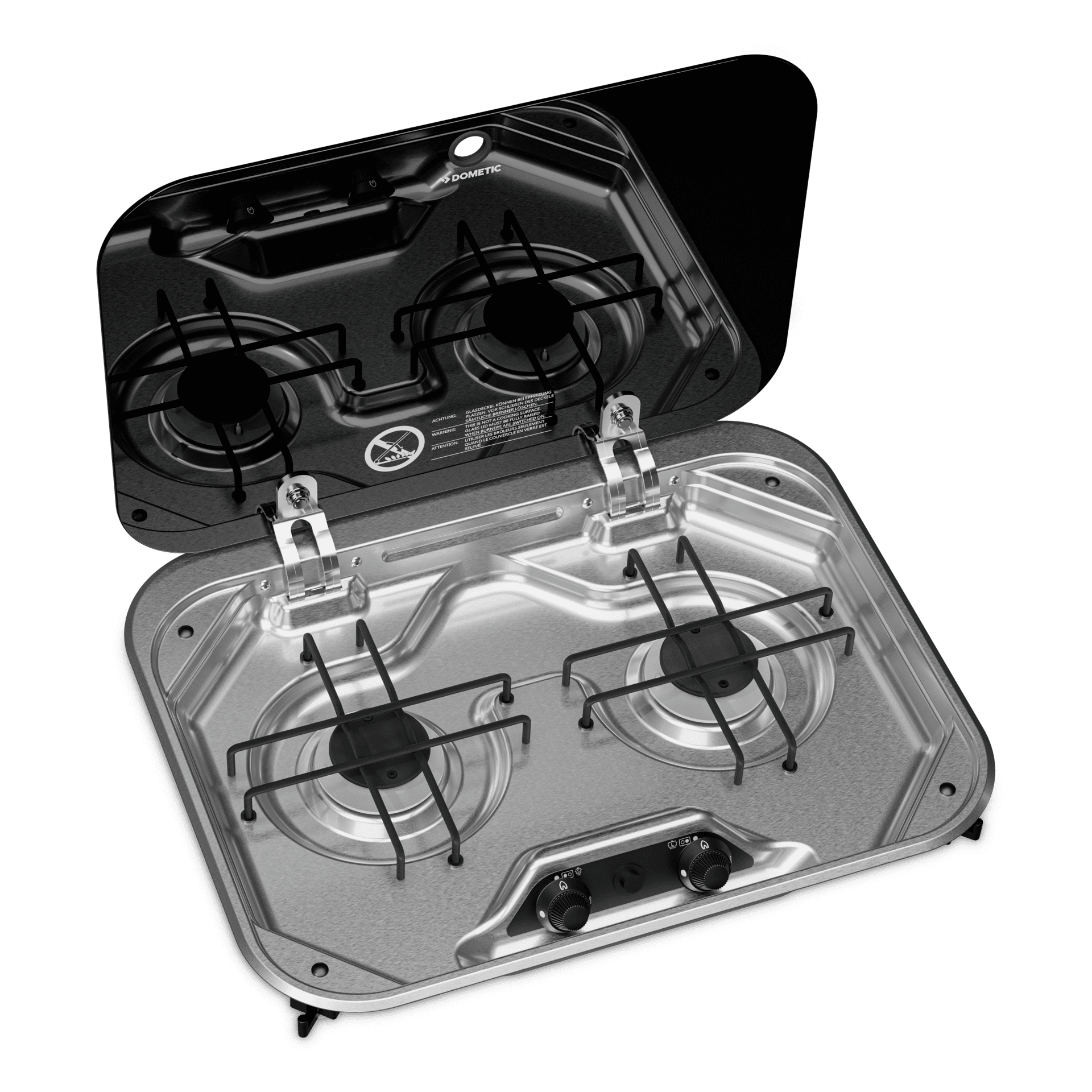

Dometic PI8022

Technical Information

Color

Black

Brand

Dometic

Model

PI8000

Scope of delivery

EU version, 12V ignition, EN30-1-1 compliant (gas shut-off + soft close hinges)

EAN-13

7392991002556

Publication Model Name

Dometic PI8022

Product Description

Kaksiliekkinen kaasukeittotaso lasikannella, 480 x 370 mm

Dimensions product depth, [mm]

370

Dimensions product height, [mm]

83

Dimensions product width, [mm]

480

Net weight, [kg]

3.60

Net weight, [lbs]

7.94

Dimensions parcel depth, [mm]

455

Dimensions parcel height, [mm]

190

Dimensions parcel width, [mm]

570

Parcel weight, [kg]

4.80

Parcel weight, [lbs]

10.58

SKUCertificates

CE

Fuel type

Nestekaasu

Input voltage (DC), [V]

12

Gas consumption [g/24h]

4992.000000

Output cooker plate 1, [kW]

1.100000

Output cooker plate 2, [kW]

1.800000

Gas consumption cooktop, [g/h]

208.000000

Number of burners

2

Operating pressure, [mbar]

30.000000

Gas pressure (DIN732), [mbar]

30

Gas category

Butane (G30, EU), Propane (G31, EU)

Cut out depth, [mm]

358.000000

Cut out height, [mm]

85.000000

Cut out width, [mm]

466.000000

Dimensions product width, ["] - Display

18.90

Item Description

Dometic PI8022 AM 2-burners cooktop - 1 glass lid, 12V ignition

Pack Size

Yes
