Description
- Flat, flush-fitting acrylic glass with a full black finish adds eye appeal to your vehicle
- Polyurethane frame withstands rain, sun and frost for guaranteed 15 years
- Double acrylic glazing and polyurethane frame for unique insulation and noise reduction
- Can be installed in both flat and curved walls – motorhomes, caravans and panel vans
- Steel reinforced polyurethane frame and sandwich construction stiffen the vehicle wall
- Blind and fly screen can be clipped together for convenient one-handed adjustment
- Flush finish and proven safety locking system
- Quick and easy clamp mounting, preassembled blind and fly screen included
- Suitable for wall thicknesses from 1 to 53 mm (ready to install for 26 mm walls, adjustable for all other wall thicknesses)

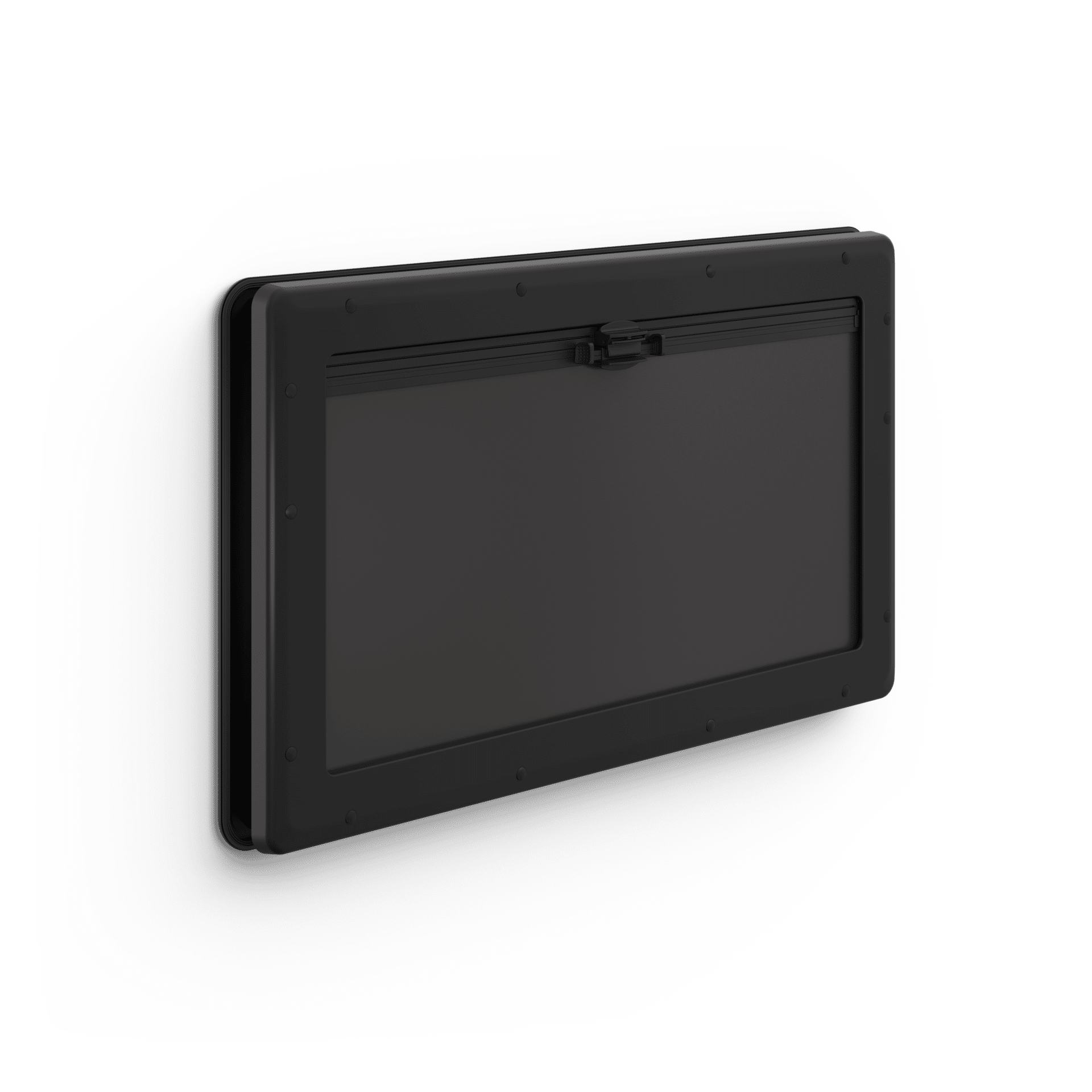

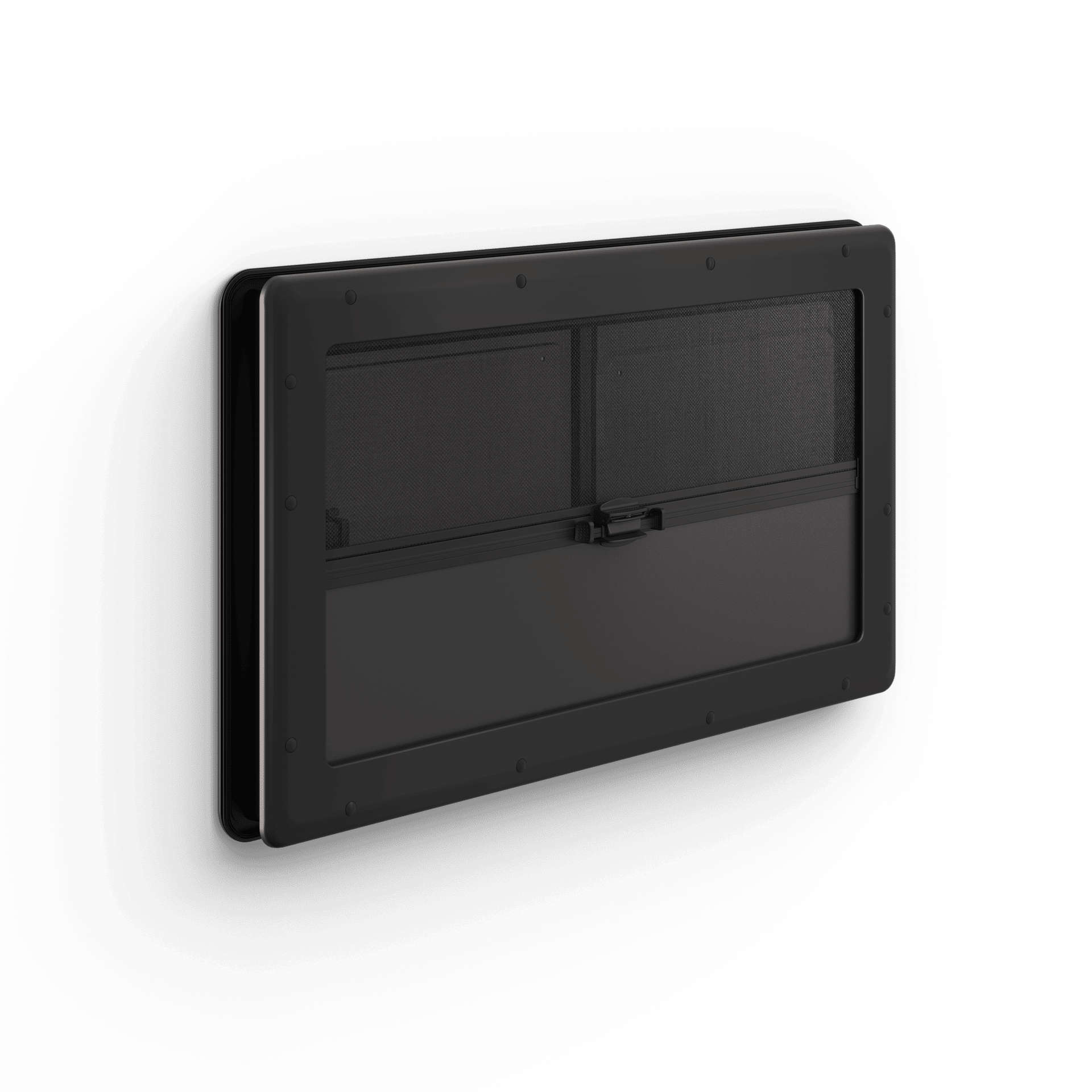

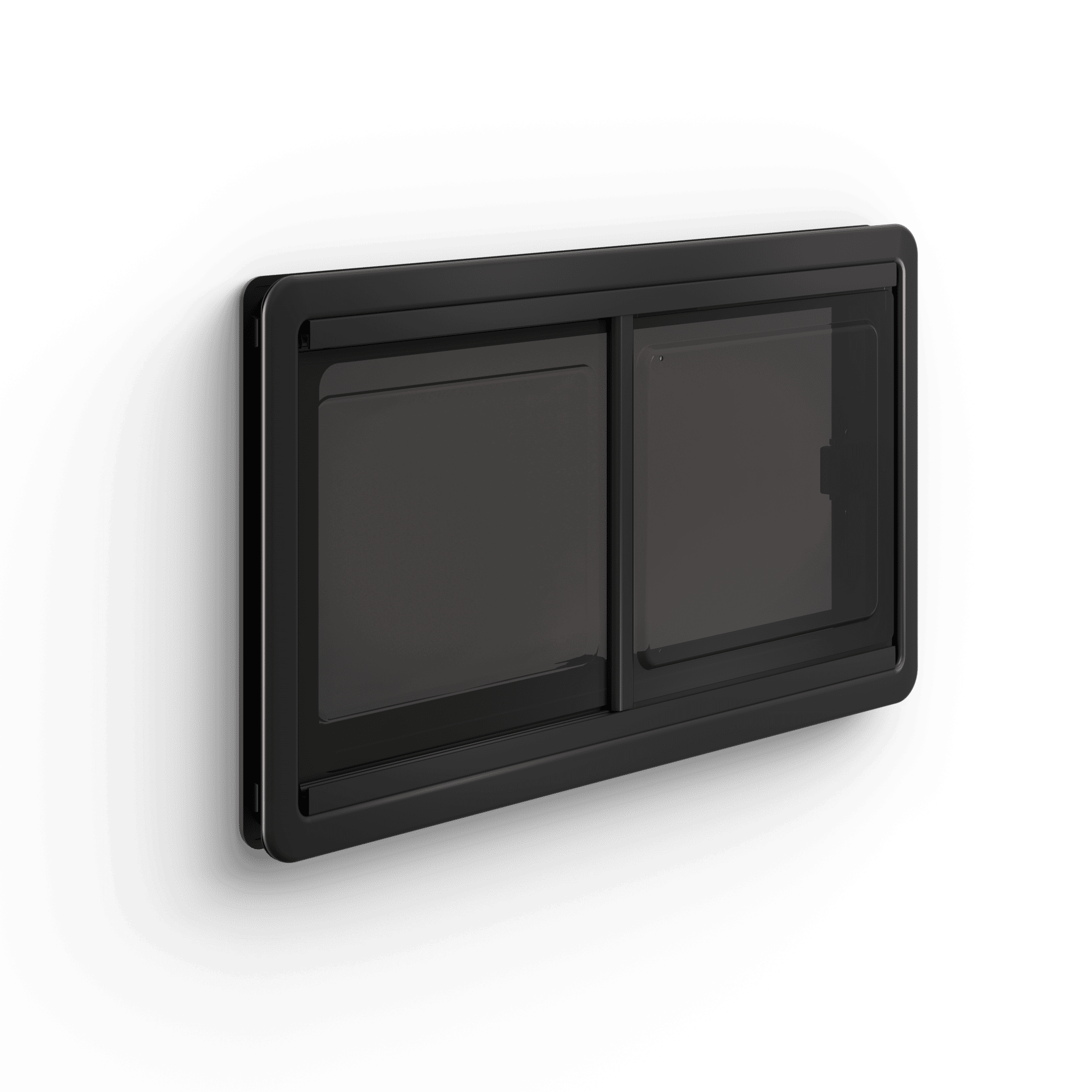

Looking for a stylish window to enhance your motorhome, caravan or campervan? The Dometic PUR-Win S10 series sets new benchmarks in design, stability and longevity. Double acrylic glazing, flat and flush-fitting with a full black finish. Robust polyurethane frame with 15-year weather protection guarantee. Integrated blind and fly screen. Enjoy the new look, the smart features and the admiring glances.
Specifications
SKU: 9620023801
| Model | S10 Windows |
|---|---|
| Scope of delivery | S10.4 Window with manual in box |
| SKUCertificates | ECE R43 |
| Product Description | Sliding window, 500 x 450, black |
| Dimensions product height, [mm] | 480 |
|---|---|
| Dimensions product width, [mm] | 544 |
| Dimensions ordered height, [mm] | 450 |
| Dimensions ordered width, [mm] | 500 |
| Net weight, [kg] | 5 |
| Standard mount. material thickness 1 min, [mm] | 26 |
| Standard mount. material thickness 1 max, [mm] | 26 |
| Possible material thickness 1 min, [mm] | 27 |
| Possible material thickness 1 max, [mm] | 41 |
| Cut out height, [mm] | 448 |
| Cut out width, [mm] | 500 |
| Positions variable | Variable |
|---|
| Dimensions parcel depth, [mm] | 560 |
|---|---|
| Dimensions parcel height, [mm] | 180 |
| Dimensions parcel width, [mm] | 640 |
| Parcel weight, [kg] | 6.18 |
