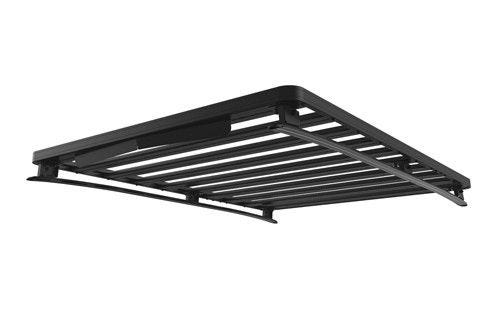

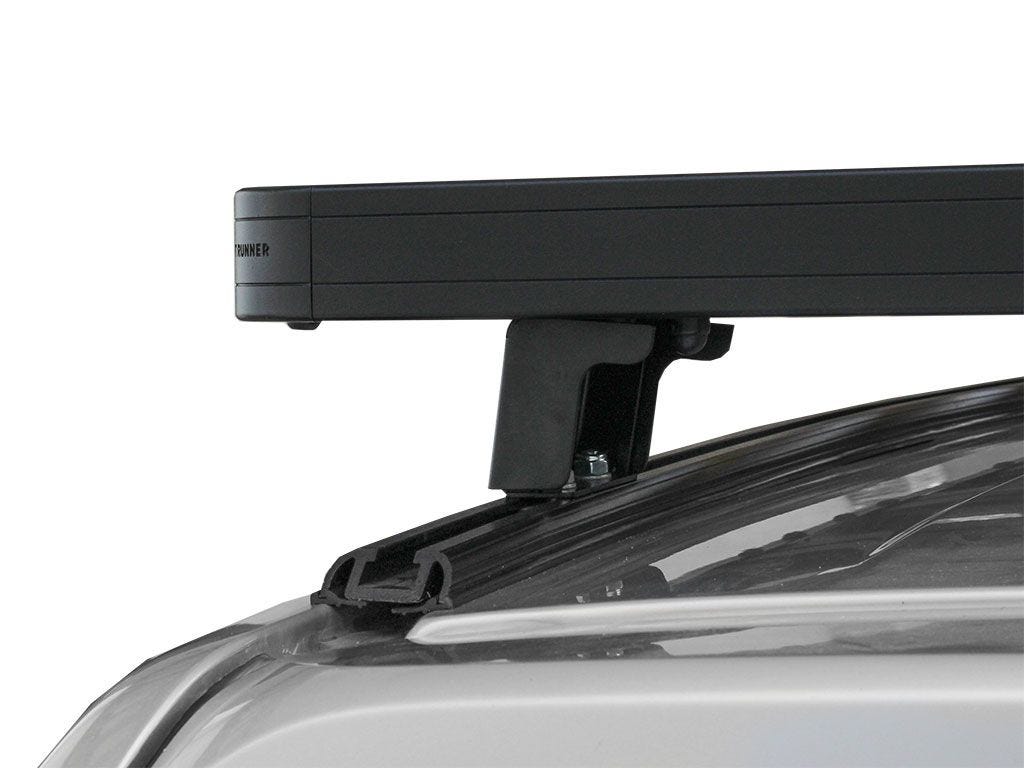

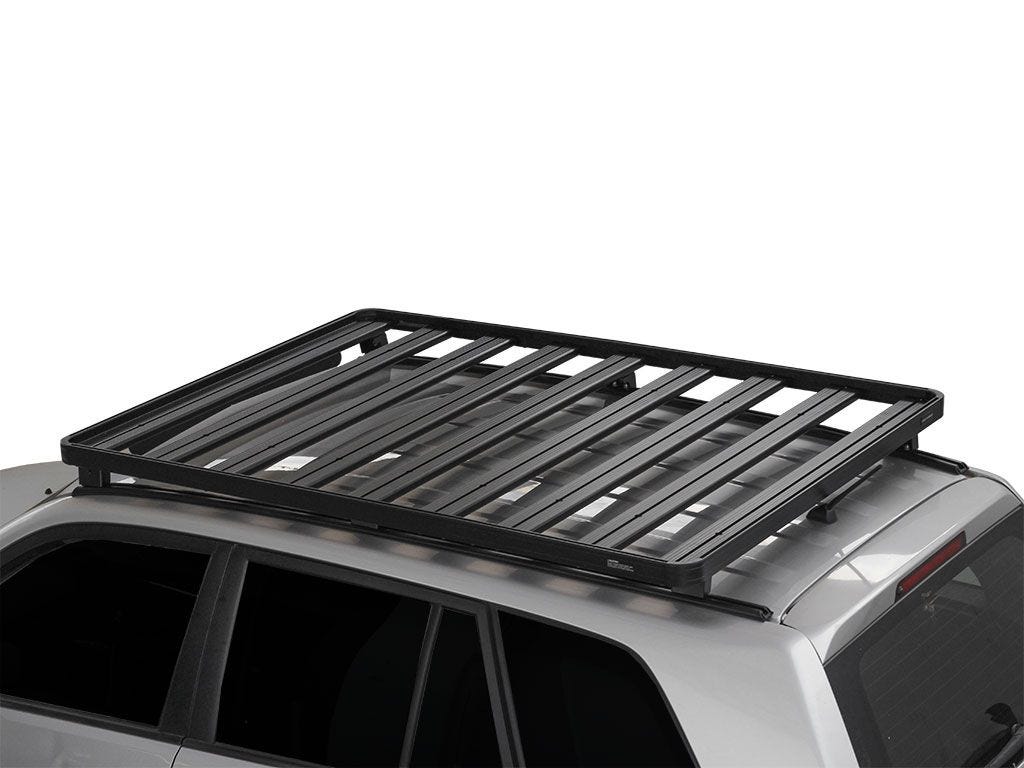

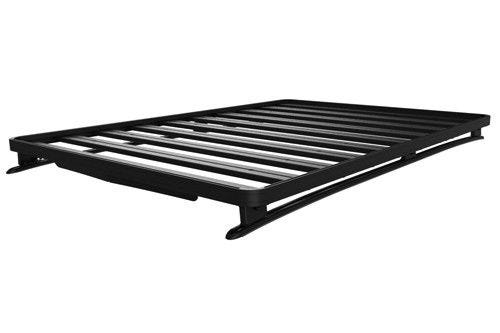

This 1762mm/69.4" long full-size Slimline II cargo carrying roof rack kit for the Suzuki Grand Vitara (2007-2014) contains Slimline II Tray, Wind Deflector, 2 Tracks and 6 Feet. Drilling is required for installation.
All Front Runner Rack Kits contain installation instructions as well as all the components needed to mount the Slimline II Tray to your vehicle.
All Dometic Front Runner Series racks are backed by a 5‑year warranty*
For further information on installation, please see the fitment instructions in the INSTALL tab.
SKU: KRSV001T
Consisting of:
1 x FASS024 - Foot Set / 50mm-60mm - by Front Runner
2 x FASS025 - Foot Set / 70mm-80mm - by Front Runner
1 x RRSTD09 - Slimline II Tray - 1255mm(W) X 1762mm(L) - by Front Runner
1 x TRSV001 - Suzuki Vitara Tracks / 1850mm(L) - by Front Runner
Black epoxy powder-coated T6 aluminium
High strength steel
Approximate Installed Weight 29kg (63lbs)
The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
Width 450mm (18")
Length 1615mm (64")
Height 140mm (6")
Weight 33.3kg (73.3lbs)
