Dometic FreshLight 2200

Roof air conditioner with window for vehicles up to 7 m, 2050 W

41699,00 kr
Find in store
  • Block out
  • Fast air circulation!
  • A patented distribution system

The world's first roof air conditioner with integrated rooflight, ensuring ideal temperatures without compromising on natural light from above. Suitable for vehicles up to 7 m in length.

Description

  1. Roof window with active ventilation system and single-pleated darkening screen
  2. Cool or warm air at the touch of a button
  3. Energy-efficient cooling mode and heat pump system for heating mode
  4. Cooling capacity: 2050 W / 7000 BTU/h
  5. Heating Capacity: 2700 W
  6. Individual air flow regulation with automatic blower control
  7. Control panel with integrated, dimmable LED lights

Specifications

SKU: 9102900165

Dometic FreshLight 2200 — General specifications
ModelFL2200
Scope of deliveryAirCon, Remote Control, User Manual, Installation Material, Installation Manual
SKUCertificatesCE;ECER10
Product DescriptionRoof air conditioner with window for vehicles up to 7 m, 2050 W

Dometic FreshLight 2200 — Dimensions specifications
Dimensions product depth, [mm]1105
Dimensions product height, [mm]210
Dimensions product width, [mm]758
Net weight, [kg]44.50

Dometic FreshLight 2200 — Electrical specifications
Input voltage (AC), [V]230
Input voltage (DC), [V]12
Input frequency, [Hz]50

Dometic FreshLight 2200 — Performance specifications
Refrigerant, typeR407C
GWP1774
CO2 equivalent, [t]1.01
Cooling Capacity ISO5151 Display2050
Power consumption - Heat pump (ISO 5151)1200

Dometic FreshLight 2200 — Properties specifications
Connectivity TypeCIBUS

Dometic FreshLight 2200 — Logistics specifications
Dimensions parcel depth, [mm]1160
Dimensions parcel height, [mm]400
Dimensions parcel width, [mm]790
Parcel weight, [kg]50.50

DoC conf FL2200
Declaration Of Conformity
DoC conf Freshlight 2013
Declaration Of Conformity
Dometic FL2200 - Operating Manual EMEA16
Operating Manual
Dometic FL1600, FL2200 (Freshlight) - Figures and Installation Manual EMEA16
Installation Manual

Product size & weight

W 758 x H 210 x D 1105 mm

Weight: 44.50 kg

Add the essentials

Highlights

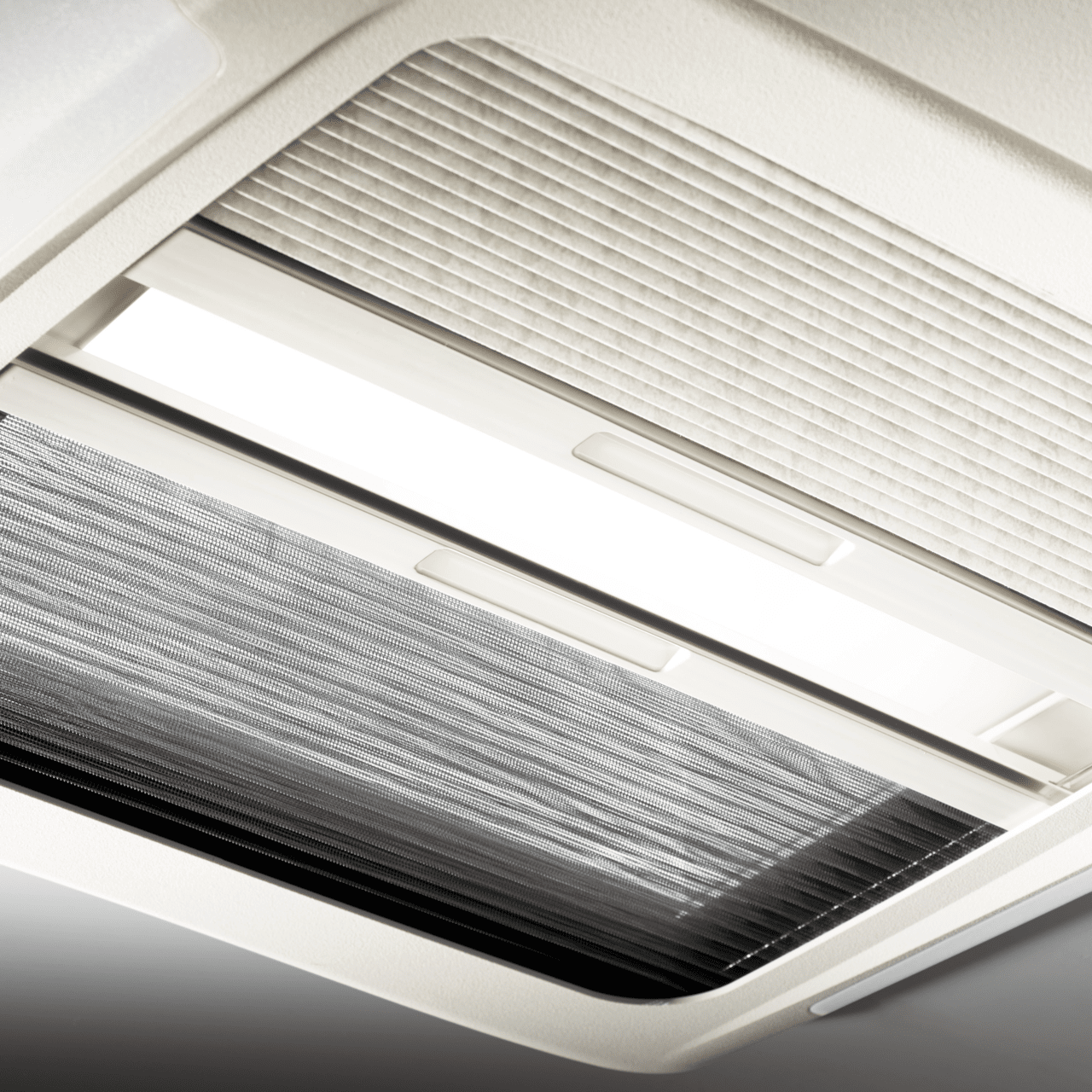

Block out

Single-pleat blind for roof window

Fast air circulation!

In the active ventilation mode, stale air is drawn out of the room.

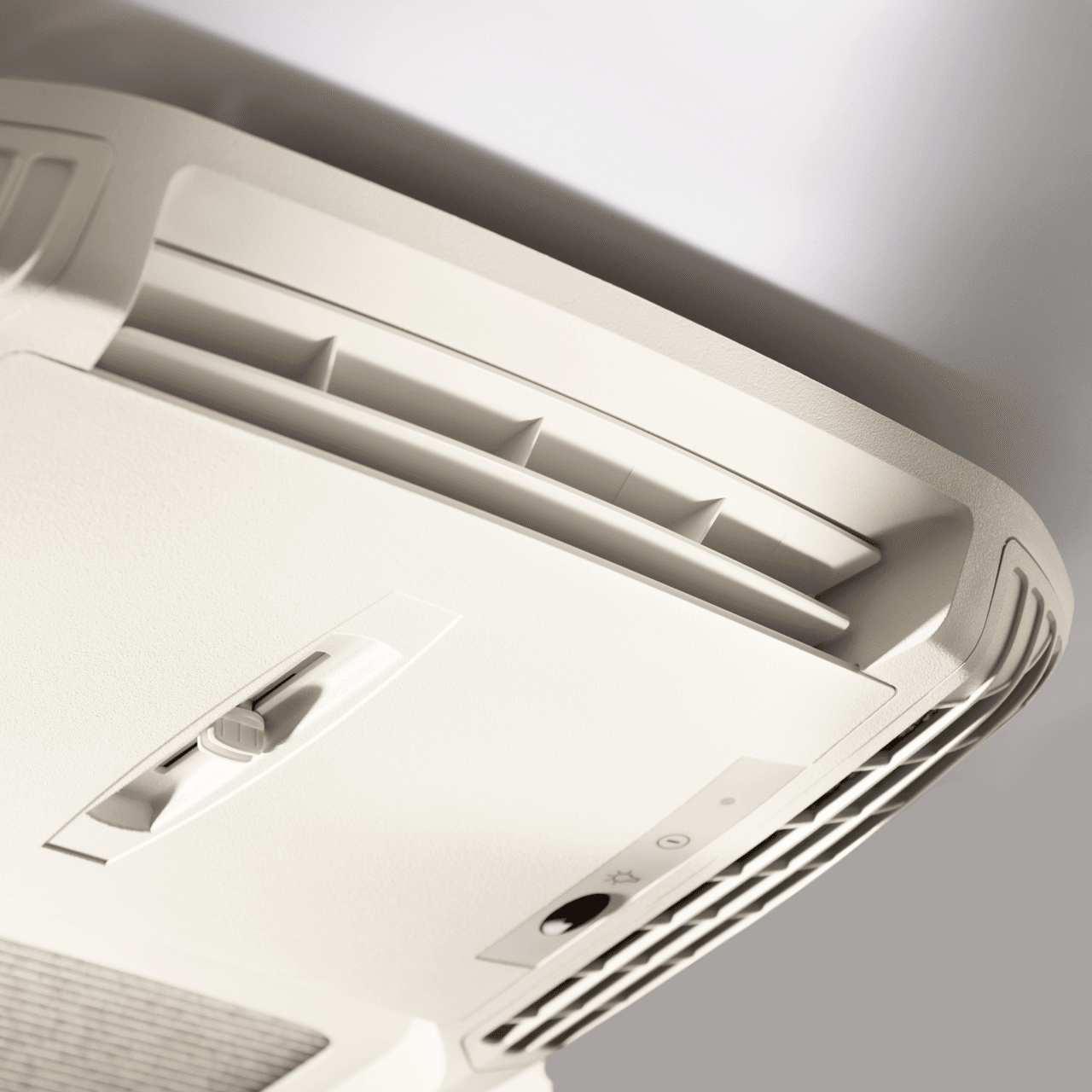

A patented distribution system

That steers cool, dehumidified air in the required direction without dust and dirt

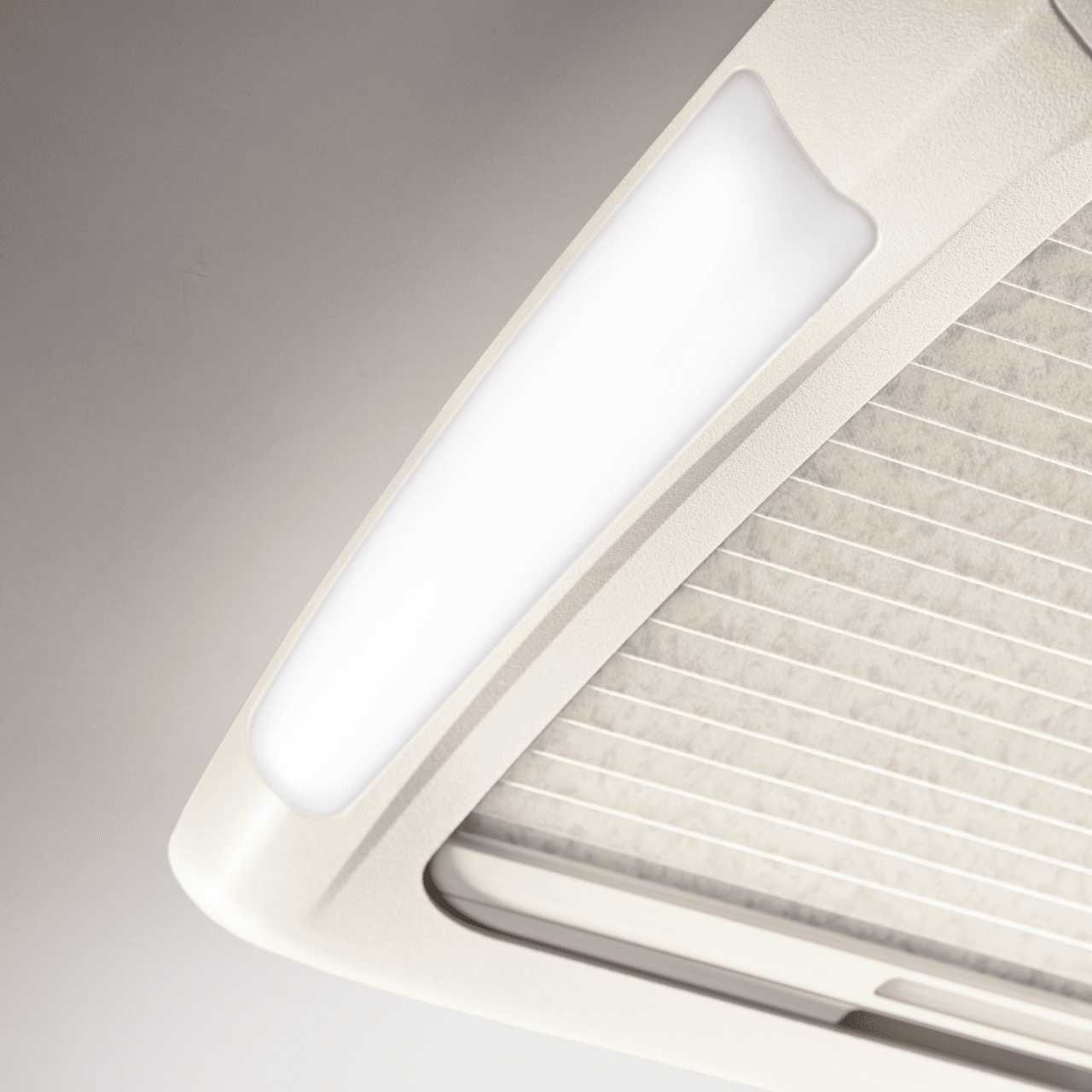

LED lights

LED lights dimmable at the touch of a button on the control panel or remote control.

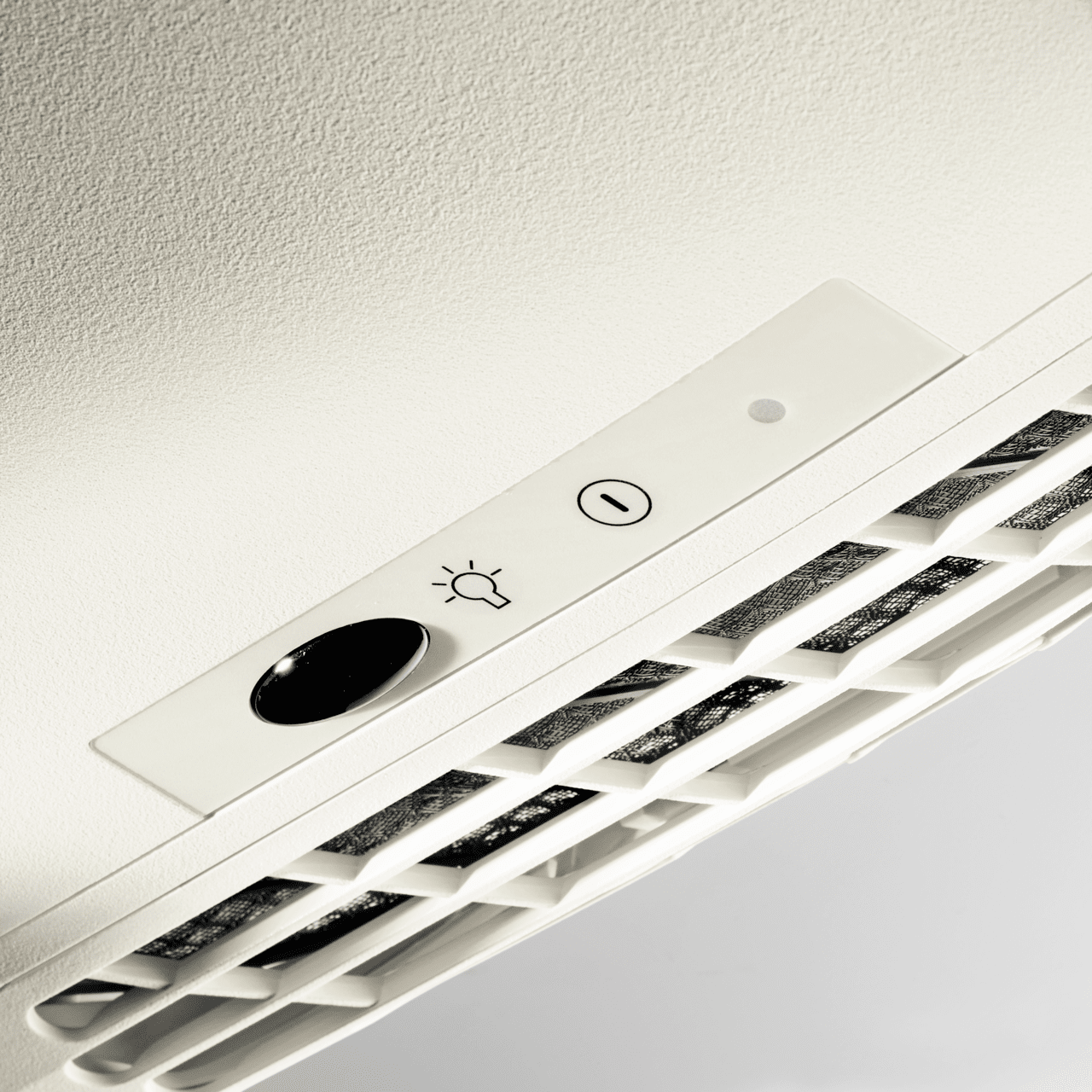

Air flow control

Switch to direct air flow left or right, and up or down

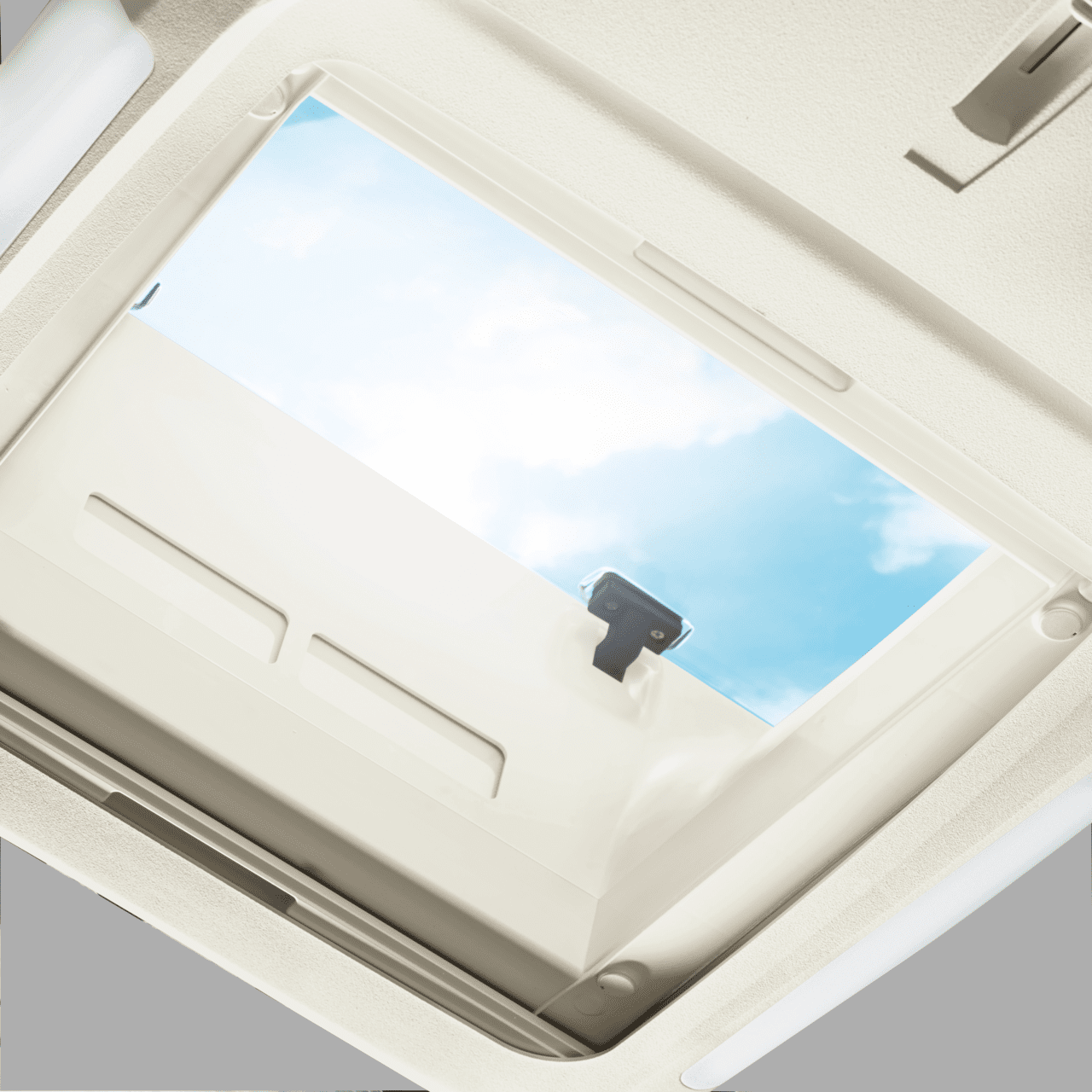

Rooflight

Roof window allows natural light from above into the caravan or motorhome.

Combined air conditioner and window

Combined air conditioner and window

For these innovative air conditioners, there’s no need to sacrifice the roof window – quite the contrary. With Dometic FreshLight, the window is already built into the air conditioning unit and the result is perfect temperatures on board a caravan or motorhome with natural light still coming from above. Available in two performance categories.

Questions, answered.

A few things worth knowing before you decide.

Still need a hand?

Contact product support

4 questions

If you are travelling to cooler climates then this will not challenge the air conditioners to the extremes, a unit with a smaller power rating will do for these types of trips. You should not save on power, though, if you regularly travel to warmer climates and even less so if you have children or pets on board as staying in a recreational vehicle can quickly become uncomfortable on a hot summer day. When the nights are not cooler either, rest and recuperation is only possible with an adequate air conditioner.

Air conditioners work on basically the same principle as the cooling units of kitchen refrigerators. Their cooling efficiency is way higher though. In either system a refrigerant extracts heat from the space to be cooled and dissipates it to the outside. An RV air conditioner should additionally reduce the humidity. AC systems most commonly used for recreational vehicles:

  • Evaporation systems: Water is vapourised in a roof-mounted unit and collected in a filter. A fan draws ambient air in through the filter, which results in a heat exchange. Benefits: low current consumption, lightweight. Drawback: The energy efficiency depends on the ambient humidity; so the performance of the system varies. It drops when the humidity is > 85% – and that's exactly the level where air conditioning is needed. Moreover, evaporation systems will, by nature increase the humidity in the vehicle, regardless of the ambient conditions.

The temperature conditions in recreational vehicles and the reasons behind them RV and caravans are no houses and they don't have thick walls, even if they are reasonably insulated they will heat up in the sun. The temperature inside can quickly rise to 30°C or more and not only in the hot and sunny south, but also in moderate climate zones. Besides insulation, the temperature conditions inside the vehicle depend on other factors, too: the size and number of windows, for instance. A caravan with small windows will heat up less quickly than a RV with generously sized glass surfaces and it does of course matter where you park your vehicle – in the blazing sun or in the shade of a tree. Do you take every opportunity to air the vehicle out? Or are all the windows closed and the heat can spread throughout the interior?

Travelling off the beaten track with all the comfort you are accustomed to – Dometic generators make it possible. They ensure reliable power supply wherever mains power is unavailable. This makes them a must-have accessory for outdoor enthusiasts striving for maximum freedom and independence.

Air conditioners have the highest start-up current of all electrical devices commonly used in recreational vehicles. However, this current level is only required for fractions of a second; the level required in continuous operation is much lower. As the mains hookups on most campsites are fitted with a delay fuse, the short-time peaks are normally no problem.
