Description
- Wireless video and audio signal transmission over distances up to 120 m (line of sight)
- No need to lay cables across the vehicle
- Extremely stable signal transmission – superior to conventional radio links
- Waterproof – can be fitted on the outside of the vehicle
- Fast response – reception delay under 200 ms
- Excellent image quality – frame rate up to 30 /s
- Simultaneous operation of up to six radio links

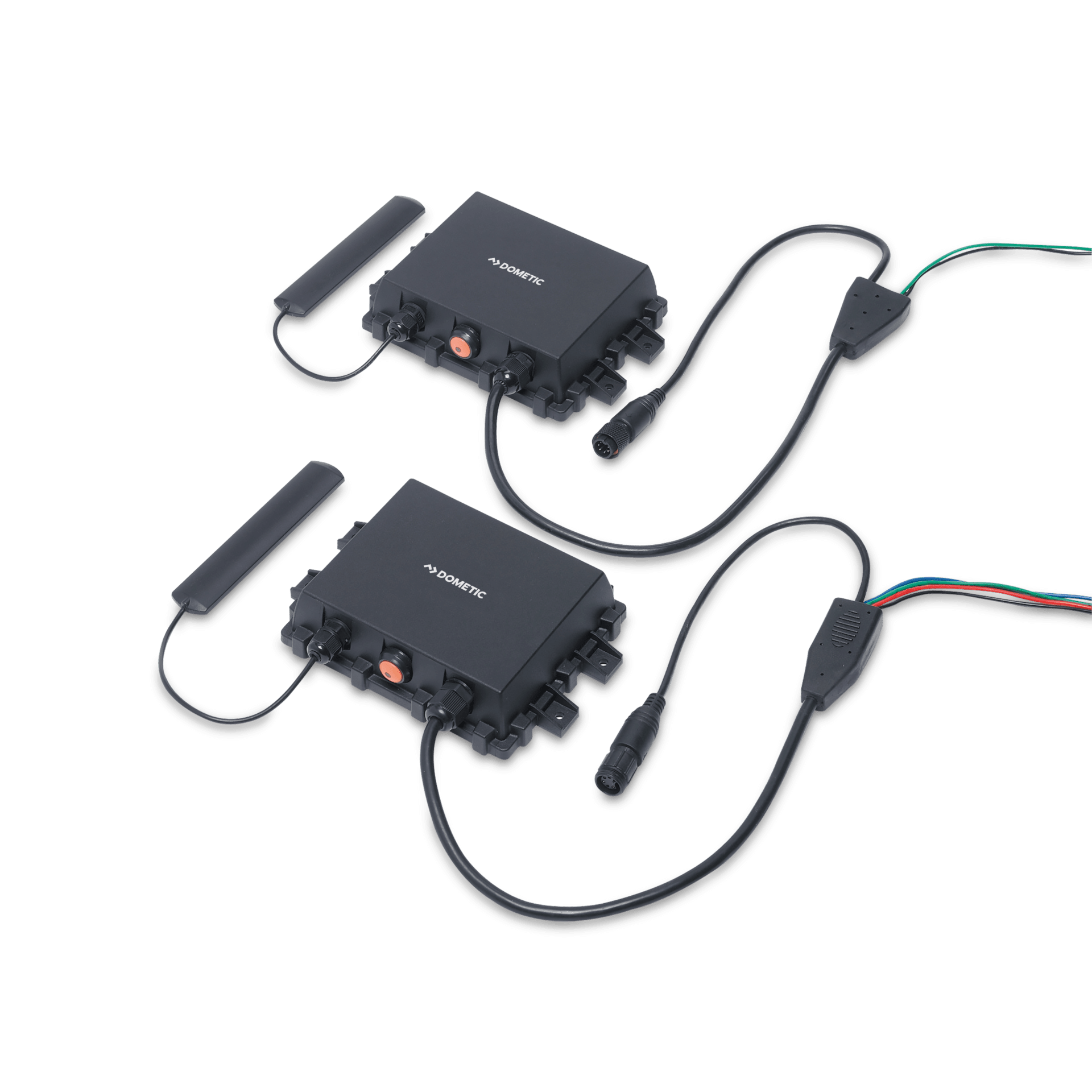

This digital radio link reliably transmits video and audio signals over distances up to 120 m. The wireless technology eliminates the need for time-consuming cable laying across the vehicle. There's no need for cost-intensive cable maintenance either. The digital radio link can be fitted on the outside of the vehicle, its housing is waterproof.
Specifications
SKU: 9600013956
| Model | Connection Box |
|---|---|
| Scope of delivery | TX + RX box, manual |
| Product Description | Radio-based video signal transmitter for reversing camera systems |
| Dimensions product depth, [mm] | 32 |
|---|---|
| Dimensions product height, [mm] | 57 |
| Dimensions product width, [mm] | 82 |
| Net weight, [kg] | 0.22 |
| Input voltage (DC), [V] | 12/24 |
|---|---|
| IP class | IP65 |
| Operating temperature min, [°C] | -20 |
|---|---|
| Operating temperature max, [°C] | 60 |
| Dimensions parcel depth, [mm] | 145 |
|---|---|
| Dimensions parcel height, [mm] | 170 |
| Dimensions parcel width, [mm] | 200 |
| Parcel weight, [kg] | Yes |
No need to lay cables
Wireless signal transmission gives you a unique benefit: there’s no need to lay cables across the length of your vehicle, and no need to maintain them later on. If you consider retrofitting video or audio equipment, check out for our digital radio link, PerfectView VT 150DIG. It can make installation much easier.
6399,00 kr
